◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11364 - FSR(MALAYSIA)W/B4200 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#15977) — 16 parça

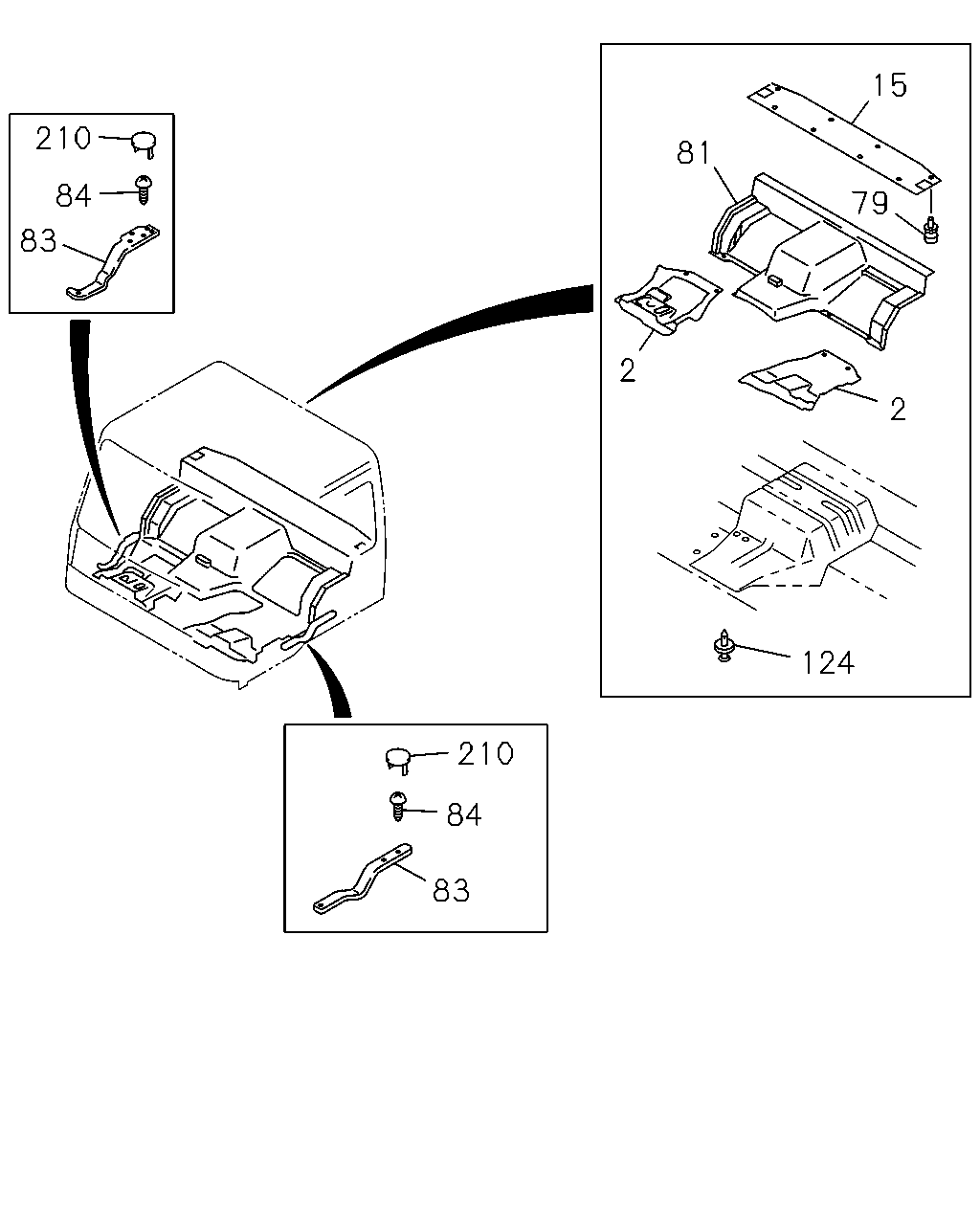

çizim 72734
15 210 81 79 84 83 2 2 124 210 84 83
BalonParca AdiParca NoAdetTipApplied Date
2 MAT; FLOOR
VINYL CARPET<B30> 		1-73236-015-0 01 1 9706-0006
2 MAT; FLOOR
VINYL CARPET<B30> 		1-73236-354-1 01 1 0007-
2 MAT; FLOOR
VINYL CARPET<B30> 		1-73236-016-1 01 1 9706-
2 MAT; FLOOR
EXC. VINYL CARPET<B30> 		1-73236-017-1 01 1 9706-
2 MAT; FLOOR
EXC. VINYL CARPET<B30> 		1-73236-043-0 01 1 9706-0006
2 MAT; FLOOR
EXC. VINYL CARPET<B30> 		1-73236-355-1 01 1 0007-
15 MAT; FLOOR REAR
VINYL CARPET<B30> 		1-73238-945-3 01 1 9706-
79 HOOK; MALE
BLACK MAL 		8-94279-089-0 08 1 9706-
81 MAT; FLOOR,CENTER
VINYL CARPET<B30> 		1-73238-999-9 01 1 9706-0105
81 MAT; FLOOR,CENTER
VINYL CARPET<B30> 		1-73236-452-3 01 1 0106-
81 MAT; FLOOR,CENTER
EXC. VINYL CARPET<B30> 		1-73236-050-7 01 1 9706-
83 PLATE; KICKING,FLOOR MAT 1-76798-027-2 01 1 9706-
83 PLATE; KICKING,FLOOR MAT 1-76798-026-3 01 1 9706-
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 9706-
124 FASTENER 1-09470-007-0 04 1 9706-
210 COVER; KICKING PLATE 1-72538-166-0 09 1 9706-
