Isuzu WW
▶
TRUCKS
▶
FSR
▶
11364 - FSR(MALAYSIA)W/B4200
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

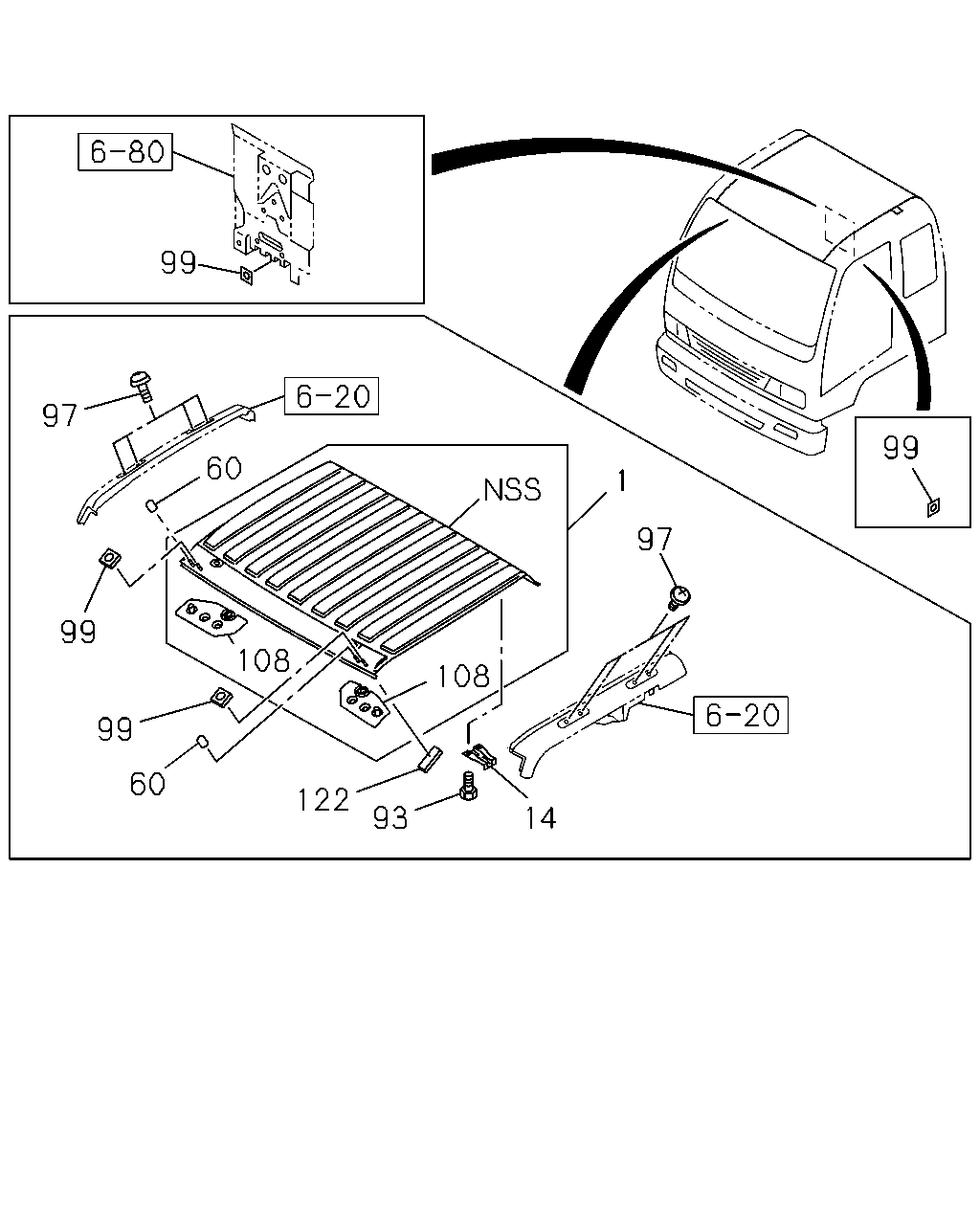

6-60 - ROOF PANEL
▶
6-60 — ROOF PANEL
(#15974) — 26 parça
99
97
99
60
1
97
99
108
108
99
60
122
93
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL; ROOF
MAL
1-61181-072-0
01
1
9706-
14
SUPPORT; ROOF
1-73318-510-1
02
1
9706-
60
COVER; ROOF
1-71736-200-0
02
1
9706-
93
BOLT; SUPPORT
M6X12 W/LK&PL WASHER MAL
8-94279-200-0
10
1
9706-
97
BOLT; AIR DEFLECTOR
M8X15 W/PL WASHER
1-79198-003-2
08
1
9706-
99
SEAL; BODY,METAL
30X30 ID=20 T=0.7
1-61281-380-1
25
1
9706-9806
99
SEAL; BODY,METAL
30X30 ID=20 T=0.7
1-61281-380-1
38
1
9807-9810
99
SEAL; BODY,METAL
30X30 ID=20 T=0.7
1-61281-380-1
13
1
9811-0001
99
SEAL; BODY,METAL
30X30 ID=20 T=0.7
1-61281-380-2
17
1
0002-
99
SEAL; BODY,METAL
14X14 ID=10 T=0.7 MAL
1-61281-427-0
08
1
9706-9806
99
SEAL; BODY,METAL
14X14 ID=10 T=0.7 MAL
1-61281-427-0
08
1
9807-9812
99
SEAL; BODY,METAL
14X14 ID=10 T=0.7 MAL
1-61281-427-0
08
1
9807-9812
99
SEAL; BODY,METAL
14X14 ID=10 T=0.7 MAL
1-61281-427-1
08
1
9901-
99
SEAL; BODY,METAL
30X30 ID=9 T=0.7
1-61281-444-0
02
1
9706-9810
99
SEAL; BODY,METAL
30X30 ID=9 T=0.7
1-61281-444-0
02
1
9706-9810
99
SEAL; BODY,METAL
14X14 ID=10 T=0.7 MAL
1-61281-427-0
02
1
9808-0403
99
SEAL; BODY,METAL
14X14 ID=10 T=0.7 MAL
1-61281-427-1
02
1
0404-
99
SEAL; BODY,METAL
14X14 ID=10 T=0.7 MAL
1-61281-427-0
04
1
9808-0403
99
SEAL; BODY,METAL
30X30 ID=20 T=0.7
1-61281-380-2
04
1
9906-
99
SEAL; BODY,METAL
EXC. ENGINE NO PLATE<E6D> 30X30 ID=20 T=0.7
1-61281-380-2
04
1
9906-
99
SEAL; BODY,METAL
30X30 ID=9 T=0.7
1-61281-444-1
01
1
9906-
99
SEAL; BODY,METAL
EXC. ENGINE NO PLATE<E6D> 30X30 ID=9 T=0.7
1-61281-444-1
01
1
9906-
108
PATCH; MIRROR
MAL
1-61181-029-4
01
1
9706-
108
PATCH; MIRROR
MAL
1-61281-241-5
01
1
9706-
122
SEAL; FRT UPR
1-61270-919-0
02
1
9706-0809
122
SEAL; FRT UPR
1-61270-973-0
02
1
0810-
