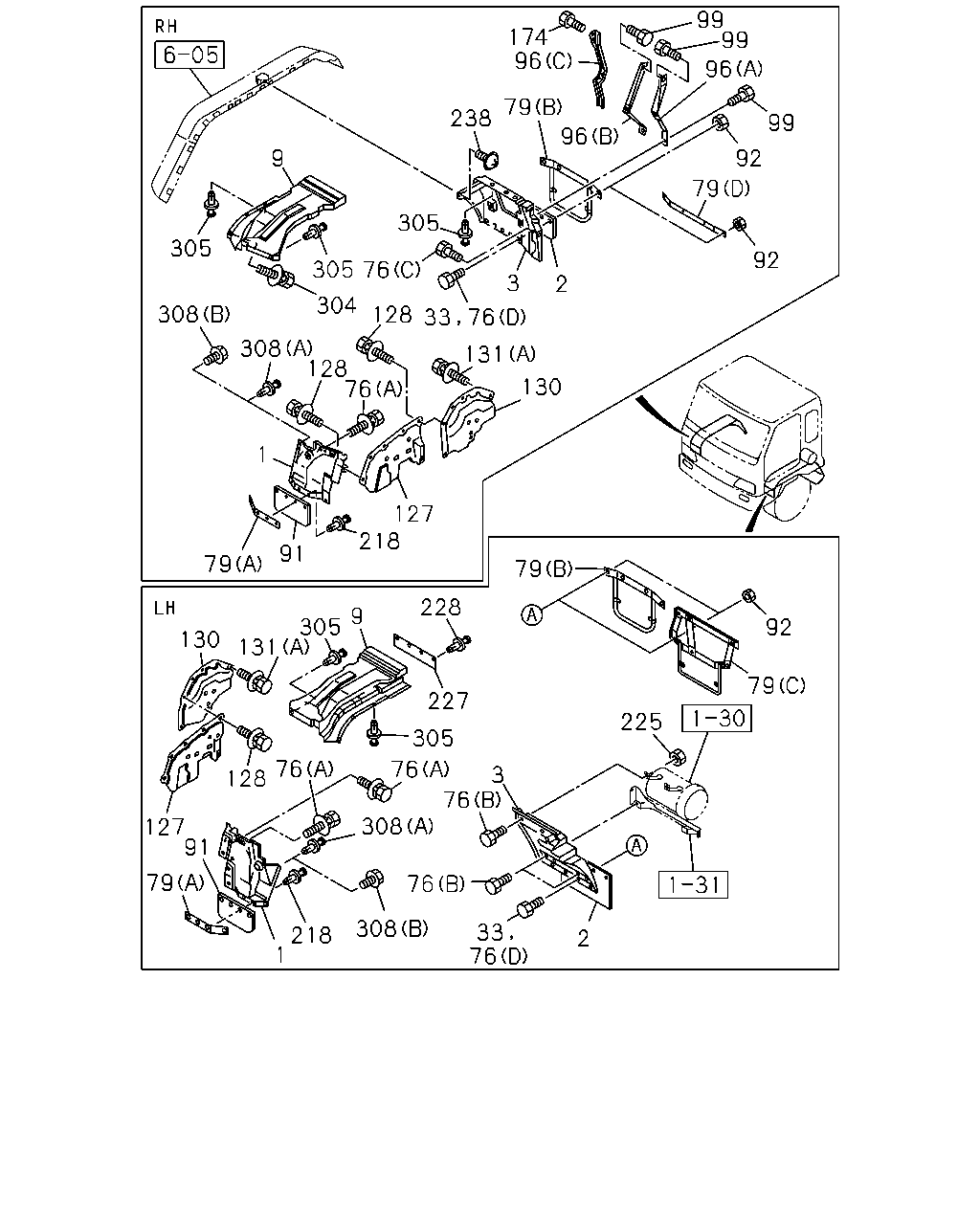

6-47 — MUD GUARD AND INSULATOR (#15973) — 110 parça

99 99 174 96 96 79 238 99 96 92 9 79 305 305 92 3 2 304 308 128 308 128 76 131 130 1 127 218 91 79 79 228 9 305 92 130 131 79 227 225 305 76 128 76 3 76 308 127 91 79 76 308 33 76 218 1 2 305 76 33 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GUARD; MUD,FRT	1-79938-810-8	01	1	9706-
1	GUARD; MUD,FRT	1-79938-812-8	01	1	9706-
2	COVER; MUD,TIRE RR FRONT FENDER WIDE<SA4> MAL	1-79931-255-2	01	1	9706-
2	COVER; MUD,TIRE RR FRONT FENDER WIDE<SA4> MAL	1-79938-973-2	01	1	9706-
2	COVER; MUD,TIRE RR EXC. FRONT FENDER WIDE<SA4> MAL	1-79930-484-2	01	1	9706-
2	COVER; MUD,TIRE RR EXC. FRONT FENDER WIDE<SA4> MAL	1-79930-693-1	01	1	9706-
3	GUARD; MUD,RR FRONT FENDER WIDE<SA4>	1-79938-959-1	01	1	9706-9711
3	GUARD; MUD,RR FRONT FENDER WIDE<SA4>	1-79938-998-0	01	1	9712-
3	GUARD; MUD,RR FRONT FENDER WIDE<SA4>	1-79938-971-1	01	1	9706-
3	GUARD; MUD,RR EXC. FRONT FENDER WIDE<SA4>	1-79938-961-2	01	1	9706-
3	GUARD; MUD,RR EXC. FRONT FENDER WIDE<SA4>	1-79938-932-4	01	1	9706-
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-831-9	01	1	9706-9802
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-007-1	01	1	9803-0305
9	GUARD; SPLASH,WHEEL HOUSE FRONT FENDER WIDE<SA4>	1-79936-007-2	01	1	0306-
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-955-2	01	1	9706-0305
9	GUARD; SPLASH,WHEEL HOUSE FRONT FENDER WIDE<SA4>	1-79938-955-3	01	1	0306-
9	GUARD; SPLASH,WHEEL HOUSE EXC. FRONT FENDER WIDE<SA4>	1-79936-043-1	01	1	0306-
9	GUARD; SPLASH,WHEEL HOUSE EXC. FRONT FENDER WIDE<SA4>	1-79936-041-1	01	1	0306-
33	BOLT; MUD COVER FRONT FENDER WIDE<SA4> M6X20 W/LK&PL WASHER	1-09980-495-0	13	1	9706-
33	BOLT; MUD COVER EXC. FRONT FENDER WIDE<SA4> M6X20 W/LK&PL WASHER	1-09980-495-0	09	1	9706-
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	9706-0805
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	04	1	0806-
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9706-
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	9706-
76	BOLT; MUD GUARD FRONT FENDER WIDE<SA4> (D) M6X16 W/LK&PL WASHER	1-09980-492-0	01	1	9712-9712
76	BOLT; MUD GUARD FRONT FENDER WIDE<SA4> (D) M6X20 W/LK&PL WASHER	1-09980-495-0	01	1	9801-
79	RETAINER; MUD COVER (A)	1-79931-044-0	02	1	9706-
79	RETAINER; MUD COVER FRONT FENDER WIDE<SA4> (B)	1-79931-252-0	01	1	9706-
79	RETAINER; MUD COVER FRONT FENDER WIDE<SA4> (C)	1-79931-278-1	01	1	9706-9711
79	RETAINER; MUD COVER FRONT FENDER WIDE<SA4> (C)	1-79931-304-0	01	1	9712-
79	RETAINER; MUD COVER EXC. FRONT FENDER WIDE<SA4> (D) L=509	1-79930-695-1	01	1	9706-
79	RETAINER; MUD COVER EXC. FRONT FENDER WIDE<SA4> (B)	1-79930-962-1	01	1	9706-
91	COVER; MUD,FRT MAL	1-79931-214-1	02	1	9706-
92	NUT; MUD COVER EXC. FRONT FENDER WIDE<SA4> M6 FLANGE	0-91150-106-0	09	1	9706-9710
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	09	1	9711-0602
92	NUT; MUD COVER M6 FLANGE MAL	0-91180-106-0	09	1	0603-
96	STAY; MUD GUARD FRONT FENDER WIDE<SA4> (B)	1-79938-968-2	01	1	9706-
96	STAY; MUD GUARD FRONT FENDER WIDE<SA4> (A)	1-79938-969-1	01	1	9706-
96	STAY; MUD GUARD FRONT FENDER WIDE<SA4> (C)	1-79938-996-0	01	1	9712-
96	STAY; MUD GUARD EXC. FRONT FENDER WIDE<SA4> (A)	1-79938-737-0	01	1	9706-
96	STAY; MUD GUARD EXC. FRONT FENDER WIDE<SA4> (B)	1-79938-925-1	01	1	9706-
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	9706-
127	APRON; FRT	1-53192-301-3	01	1	9706-
127	APRON; FRT	1-53193-222-1	01	1	9706-
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	10	1	9706-
130	PANEL; SHUTTER NOISE	1-53192-307-4	01	1	9706-
130	PANEL; SHUTTER NOISE	1-53192-305-2	01	1	9706-
131	BOLT; PANEL (B) M8X22 W/LK&PL WASHER	1-09030-084-0	01	1	9706-
131	BOLT; PANEL (A) M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	9706-
174	BOLT; STAY FIX FRONT FENDER WIDE<SA4> M6X20 W/LK&PL WASHER	8-94279-203-0	03	1	9712-
218	FASTENER; RUBBER	1-09470-001-0	08	1	9706-
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	02	1	9706-0602
225	NUT; MUD GUARD M8 FLANGE MAL	0-91180-108-0	02	1	0603-
227	SEAL; MUD GUARD	1-79938-953-1	01	1	9706-
228	FASTENER; MUD GUARD SEAL D8X13.5	1-09987-248-1	04	1	9706-
238	SCREW; MUD GUARD FRONT FENDER WIDE<SA4> M6X20 W/LK&PL WASHER	8-94279-203-0	01	1	9706-
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9706-
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	03	1	9706-
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	04	1	9706-9710
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	02	1	9711-
305	FASTENER; SPLASH GUARD FRONT FENDER WIDE<SA4> D8X13.5	1-09987-248-1	01	1	0405-
305	FASTENER; SPLASH GUARD EXC. FRONT FENDER WIDE<SA4> D8X13.5	1-09987-248-1	10	1	9706-
308	FASTENER; MUD GUARD FRONT FENDER WIDE<SA4> (A)	1-09470-007-0	02	1	9706-0404
308	FASTENER; MUD GUARD FRONT FENDER WIDE<SA4> (B) M6X22	1-65481-386-0	02	1	9706-0404
308	FASTENER; MUD GUARD FRONT FENDER WIDE<SA4> (B) M6X22	1-65481-386-0	04	1	0405-
308	FASTENER; MUD GUARD EXC. FRONT FENDER WIDE<SA4> (A)	1-09470-007-0	04	1	9706-

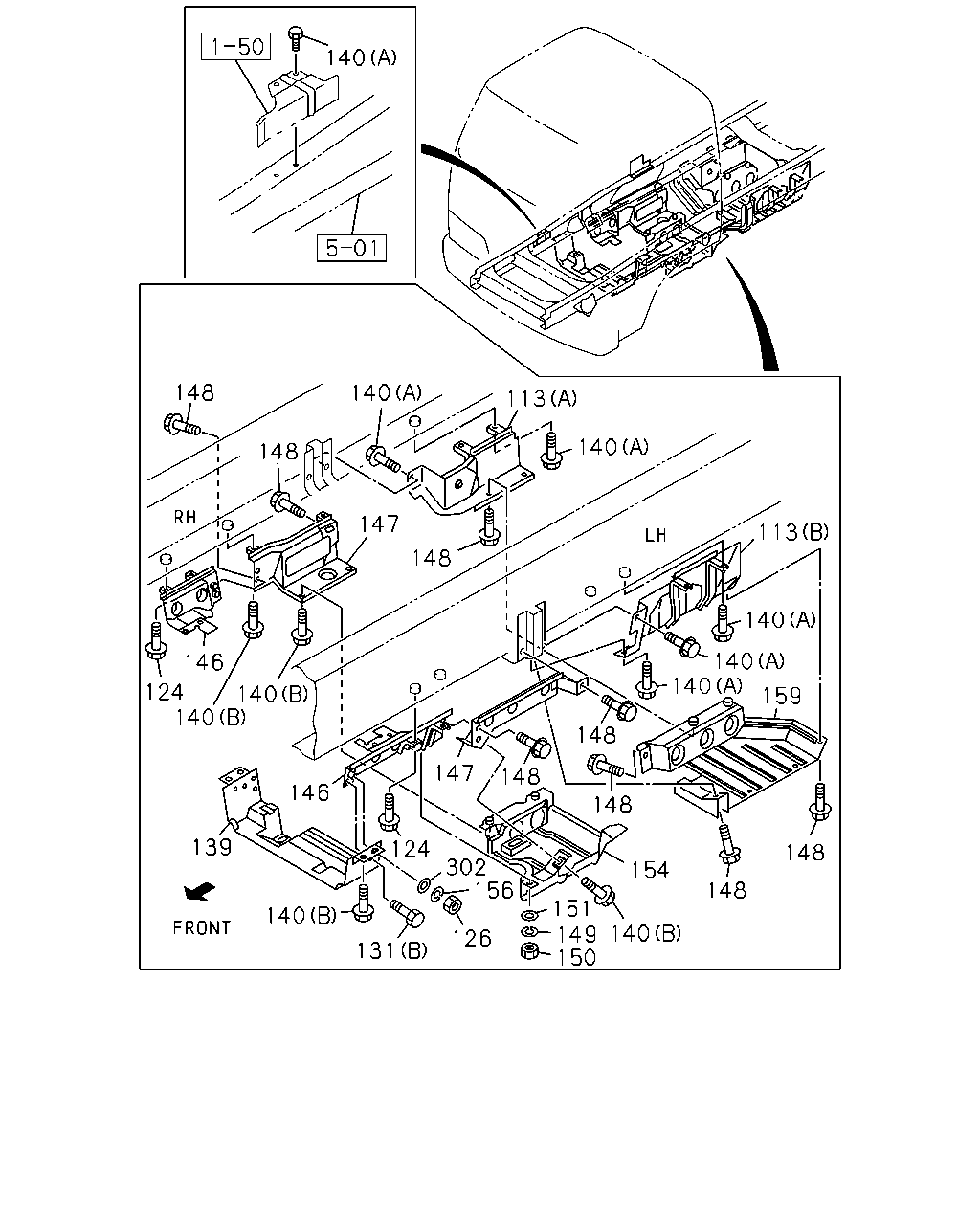

140 148 140 113 140 148 147 113 148 140 140 140 146 124 140 140 159 148 147 148 146 148 139 124 148 302 156 154 148 151 149 150 140 140 126 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
113	PANEL; SIDE (A)	1-53192-909-2	01	1	9706-0212
113	PANEL; SIDE (A)	1-53194-388-0	01	1	0301-
113	PANEL; SIDE (B)	1-53192-911-2	01	1	9706-0302
113	PANEL; SIDE (B)	1-53194-390-0	01	1	0303-
124	BOLT; BRKT M8X25 FLANGE MAL	0-28680-825-0	04	1	9706-0512
124	BOLT; BRKT M8X25 FLANGE MAL	0-28650-825-0	04	1	0601-
126	NUT; PANEL M8 MAL	9-09110-408-0	01	1	9706-0512
126	NUT; PANEL M8	0-91110-508-0	01	1	0601-
131	BOLT; PANEL (B) M8X22 W/LK&PL WASHER	1-09030-084-0	01	1	9706-
131	BOLT; PANEL (A) M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	9706-
139	PANEL; SIDE	1-53192-591-0	01	1	9706-
140	BOLT; SIDE PANEL (A) M8X25 FLANGE MAL	0-28650-825-0	05	1	1207-
140	BOLT; SIDE PANEL (B) M8X22 W/LK&PL WASHER	1-09030-084-0	02	1	1207-
140	BOLT; SIDE PANEL (A) M8X25 FLANGE MAL	0-28680-825-0	01	1	9706-0512
140	BOLT; SIDE PANEL (A) M8X25 FLANGE MAL	0-28650-825-0	01	1	0601-
140	BOLT; SIDE PANEL (A) M8X25 FLANGE MAL	0-28680-825-0	02	1	9706-0512
140	BOLT; SIDE PANEL (A) M8X25 FLANGE MAL	0-28650-825-0	02	1	0601-
140	BOLT; SIDE PANEL (A) M8X25 FLANGE MAL	0-28680-825-0	04	1	9706-0512
140	BOLT; SIDE PANEL (A) M8X25 FLANGE MAL	0-28680-825-0	04	1	9706-0512
140	BOLT; SIDE PANEL (A) M8X25 FLANGE MAL	0-28650-825-0	04	1	0601-1206
140	BOLT; SIDE PANEL (A) M8X25 FLANGE MAL	0-28650-825-0	04	1	0601-1206
140	BOLT; SIDE PANEL (A) M8X25 FLANGE MAL	0-28650-825-0	04	1	1207-
140	BOLT; SIDE PANEL (B) M8X22 W/LK&PL WASHER	1-09030-084-0	02	1	9706-1206
140	BOLT; SIDE PANEL (B) M8X22 W/LK&PL WASHER	1-09030-084-0	02	1	9706-1206
140	BOLT; SIDE PANEL (B) M8X22 W/LK&PL WASHER	1-09030-084-0	01	1	1207-
146	PANEL; SIDE,UNDER,FRT	1-53193-037-1	01	1	9706-
146	PANEL; SIDE,UNDER,FRT	1-53193-039-0	01	1	9706-
147	PANEL; SIDE,UNDER,RR	1-53192-924-0	01	1	9706-
147	PANEL; SIDE,UNDER,RR	1-53193-043-1	01	1	9706-
148	BOLT; PANEL TO PANEL M8X22 W/LK&PL WASHER	1-09030-084-0	08	1	9706-
148	BOLT; PANEL TO PANEL M8X22 W/LK&PL WASHER	1-09030-084-0	04	1	9706-
148	BOLT; PANEL TO PANEL M8X22 W/LK&PL WASHER	1-09030-084-0	04	1	9706-
149	WASHER; LK,SIDE PANEL ID=8.2	9-09150-508-0	01	1	9706-0603
149	WASHER; LK,SIDE PANEL ID=8.2	0-91510-508-0	01	1	0604-
150	NUT; SIDE PANEL M8 MAL	9-09110-408-0	01	1	9706-0512
150	NUT; SIDE PANEL M8	0-91110-508-0	01	1	0601-
151	WASHER; PL,SIDE PANEL ID=8.4 OD=22	9-09160-708-0	01	1	9706-0605
151	WASHER; PL,SIDE PANEL ID=8.4 OD=22	0-91610-708-0	01	1	0606-
154	PANEL; SIDE,UNDER ENG CTR	1-53193-142-0	01	1	9706-
156	WASHER; LK,PANEL ID=8.2	9-09150-508-0	01	1	9706-0603
156	WASHER; LK,PANEL ID=8.2	0-91510-508-0	01	1	0604-
159	PANEL; SIDE,TRANS,CTR	1-53193-116-1	01	1	9706-
302	WASHER; PL,PANEL ID=8.4 OD=22	9-09160-708-0	01	1	9706-0605
302	WASHER; PL,PANEL ID=8.4 OD=22	0-91610-708-0	01	1	0606-
