6-35 — FRONT DOOR TRIM (#15970) — 56 parça

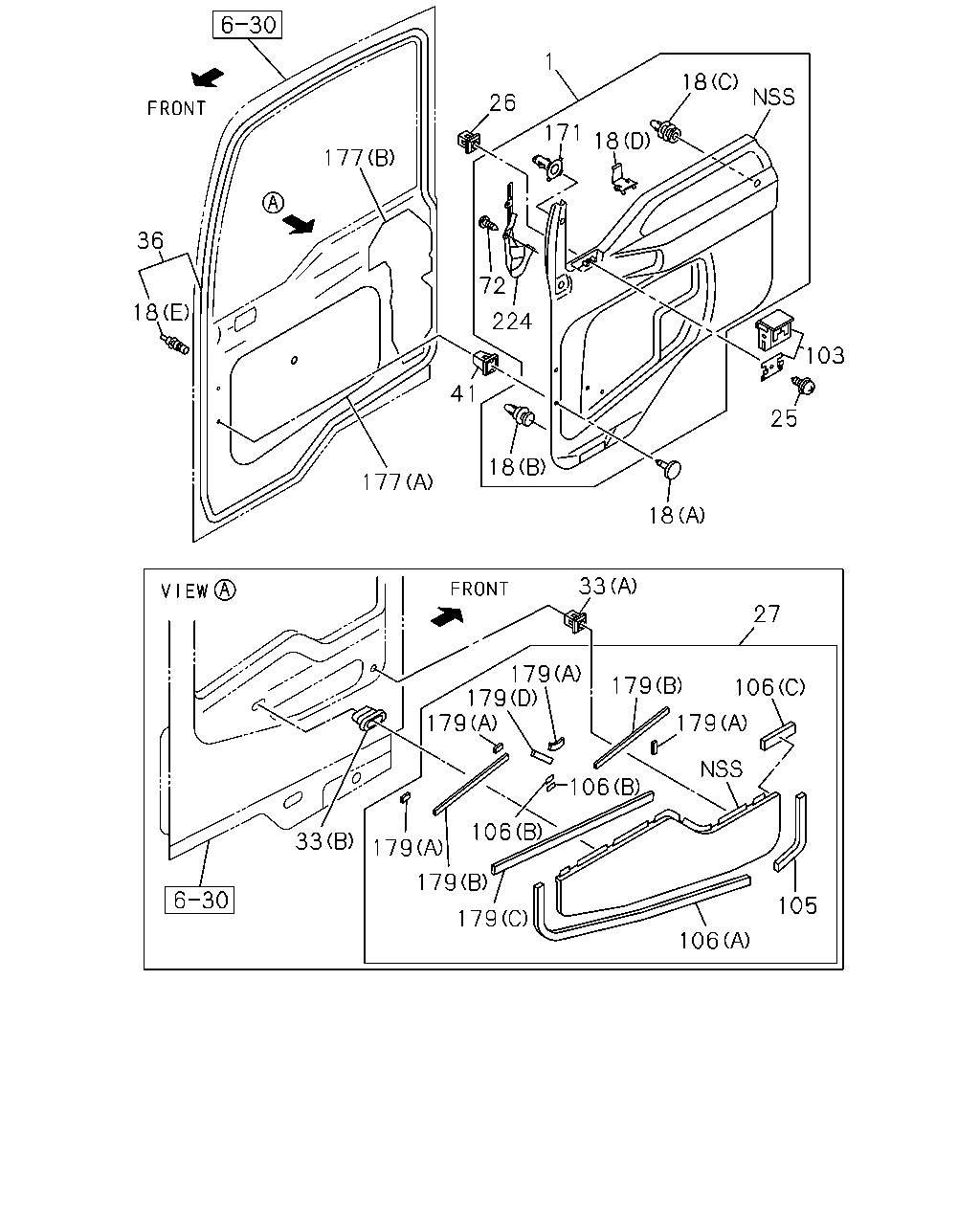

çizim 74244
1 18 18 171 26 177 72 224 41 177 103 25 18 36 18 27 33 106 179 179 179 179 179 105 106 179 179 106 179 106 33 18
BalonParca AdiParca NoAdetTipApplied Date
1 PAD; TRIM,FRT DOOR 1-73338-449-4 01 1 9706-0012
1 PAD; TRIM,FRT DOOR 1-73338-531-1 01 1 0101-
1 PAD; TRIM,FRT DOOR 1-73338-467-4 01 1 9706-0012
1 PAD; TRIM,FRT DOOR 1-73338-535-1 01 1 0101-
18 CLIP; DOOR PAD
(A) D4.2X19.9 DARK GRAY 		1-09987-242-0 04 1 9706-
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 04 1 9706-0005
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 04 1 9706-0005
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 05 1 0006-
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 05 1 0006-
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-94126-768-0 05 1 9706-0012
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-94126-768-0 05 1 9706-0012
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-97893-482-0 05 1 0101-
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-97893-482-0 05 1 0101-
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK MAL 		8-94279-974-1 01 1 9706-
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK MAL 		8-94279-974-1 01 1 9706-
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 9706-
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 9706-
25 SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING MAL 		8-94279-123-0 02 1 9706-
26 GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL MAL 		8-94279-043-0 02 1 9706-
27 PANEL; ORNAMENT,DOOR 1-76218-099-7 01 1 9706-
27 PANEL; ORNAMENT,DOOR 1-76218-095-7 01 1 9706-1210
27 PANEL; ORNAMENT,DOOR 8-98229-328-0 01 1 1211-
33 GROMMET; DOOR ORNAMENT
(A) 		1-09983-149-1 02 1 9706-0802
33 GROMMET; DOOR ORNAMENT
(A) OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 02 1 0803-
33 GROMMET; DOOR ORNAMENT
(B) 		1-74998-111-0 02 1 9706-
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-177-9 01 1 9706-1010
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-764-0 01 1 1011-
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-176-9 01 1 9706-1010
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-763-0 01 1 1011-
41 GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 04 1 9706-
72 SCREW; DOOR TRIM 1-73338-527-0 04 1 9706-
72 SCREW; DOOR TRIM 1-73338-527-0 04 1 9706-
103 TRAY ASM; ASH,DOOR 1-76458-078-2 01 1 9706-0111
103 TRAY ASM; ASH,DOOR 1-76458-084-1 01 1 0112-
103 TRAY ASM; ASH,DOOR 1-76458-077-2 01 1 9706-0111
103 TRAY ASM; ASH,DOOR 1-76458-083-1 01 1 0112-
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 01 1 9706-
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 01 1 9706-
106 SEAL; DOOR ORNAMENT
(C) 		8-98226-642-0 01 1 1211-
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 01 1 9706-
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 01 1 9706-
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 02 1 9706-
171 RETAINER; DOOR PAD 1-09987-264-0 01 1 9706-
171 RETAINER; DOOR PAD 1-09987-264-0 01 1 9706-
177 SEAL; WATER,DOOR
(A) 		1-76778-047-3 02 1 9706-
177 SEAL; WATER,DOOR
(B) 		1-76778-055-2 02 1 9706-
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-2 04 1 9706-
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-2 04 1 9706-
179 TAPE; ORNAMENT
(C) L=770 		1-76218-091-2 01 1 9706-
179 TAPE; ORNAMENT
(C) L=770 		1-76218-091-2 01 1 9706-
179 TAPE; ORNAMENT
(D) L=160 		1-76218-094-1 01 1 9706-
179 TAPE; ORNAMENT
(D) L=160 		1-76218-094-1 01 1 9706-
179 TAPE; ORNAMENT
(B) L=235 		1-76218-127-1 02 1 9706-
179 TAPE; ORNAMENT
(B) L=235 		1-76218-127-1 02 1 9706-
224 DEFLECTOR; DUCT 1-73338-529-0 01 1 9706-
224 DEFLECTOR; DUCT 1-73338-528-0 01 1 9706-
