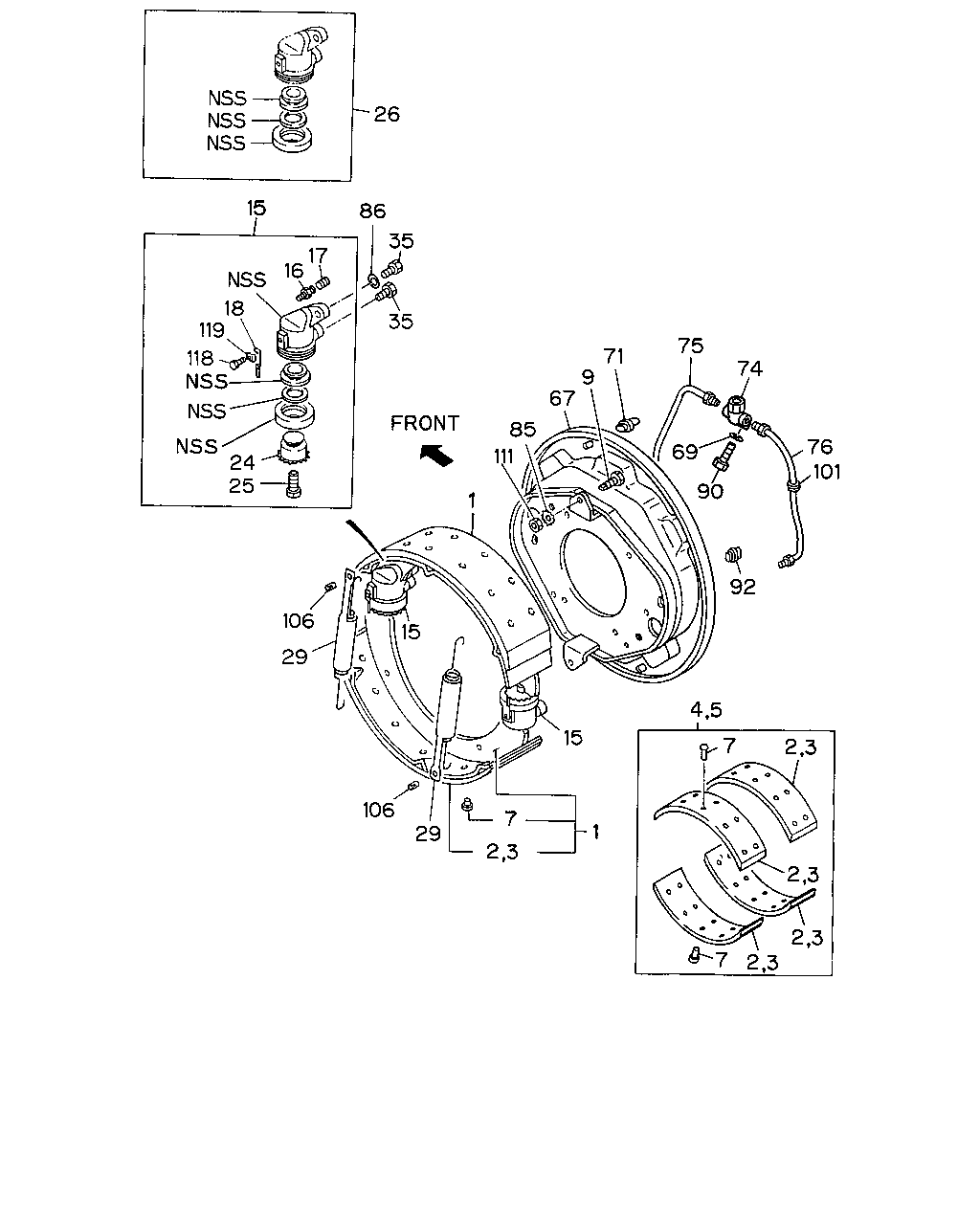

3-01 — FRONT WHEEL BRAKE (#1597) — 46 parça
çizim 29084
26 15 17 16 86 35 35 18 119 118 24 25 1 111 85 67 9 71 75 74 76 101 69 90 92 4 5 7 2 3 15 106 29 15 106 29 2 3 7 1 2 3 3 2 3 2 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 SHOE; BRK,FRT
BRK LINING MATERIAL L709 NON ASBESTOS<BBY>, FRONT AXLE TOE IN "0"(PQ6) 		1-47120-026-0 04 1 9207- ● ● ● ● ●
1 SHOE; BRK,FRT
FRONT AXLE 39/7 14.4" SPIRAL(W9A),FRONT AXLE 39/6 14.4" SPIRAL(W9C) EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> ,FRONT AXLE TOE IN "0"(PQ6) 		1-47110-359-0 04 1 9207- ● ● ● ● ●
1 SHOE; BRK,FRT
FRONT AXLE 41/8 14.4" SPIRAL(W9M) EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> ,FRONT AXLE TOE IN "0"(PQ6) 		1-47110-502-0 04 1 9207- ●
2 LINING; FRT BRK SHOE,STANDARD
BRK LINING MATERIAL L709 NON ASBESTOS<BBY>, FRONT AXLE TOE IN "0"(PQ6) 		1-47125-133-0 04 1 9207- ● ● ● ● ●
2 LINING; FRT BRK SHOE,STANDARD
FRONT AXLE 39/7 14.4" SPIRAL(W9A),FRONT AXLE 39/6 14.4" SPIRAL(W9C) EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> ,FRONT AXLE TOE IN "0"(PQ6) 		1-47115-181-0 04 1 9207- ● ● ● ● ●
2 LINING; FRT BRK SHOE,STANDARD
FRONT AXLE 41/8 14.4" SPIRAL(W9M) EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> ,FRONT AXLE TOE IN "0"(PQ6) 		1-47115-807-0 04 1 9207- ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRK LINING MATERIAL L709 NON ASBESTOS<BBY>, FRONT AXLE TOE IN "0"(PQ6) 		1-47125-134-0 04 1 9207- ● ● ● ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
FRONT AXLE 39/7 14.4" SPIRAL(W9A),FRONT AXLE 39/6 14.4" SPIRAL(W9C) EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> ,FRONT AXLE TOE IN "0"(PQ6) 		1-47115-191-0 04 1 9207- ● ● ● ● ●
4 LINING SET; FRT BRK,STANDARD
BRK LINING MATERIAL L709 NON ASBESTOS<BBY>, FRONT AXLE TOE IN "0"(PQ6) 		1-88310-104-0 01 1 9207- ● ● ● ● ●
4 LINING SET; FRT BRK,STANDARD
FRONT AXLE 39/7 14.4" SPIRAL(W9A),FRONT AXLE 39/6 14.4" SPIRAL(W9C) EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> ,FRONT AXLE TOE IN "0"(PQ6) 		1-87870-132-1 01 1 9207- ● ● ● ● ●
4 LINING SET; FRT BRK,STANDARD
FRONT AXLE 41/8 14.4" SPIRAL(W9M) EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> ,FRONT AXLE TOE IN "0"(PQ6) 		1-88302-919-0 01 1 9207- ●
5 LINING SET; FRT BRK,OVER SIZE
BRK LINING MATERIAL L709 NON ASBESTOS<BBY>, FRONT AXLE TOE IN "0"(PQ6) 		1-88310-105-0 01 1 9207- ● ● ● ● ●
5 LINING SET; FRT BRK,OVER SIZE
FRONT AXLE 39/7 14.4" SPIRAL(W9A),FRONT AXLE 39/6 14.4" SPIRAL(W9C) EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> ,FRONT AXLE TOE IN "0"(PQ6) 		1-87870-133-1 01 1 9207- ● ● ● ● ●
7 RIVET; LINING,FRT BRK
D6X11.5 		1-09732-019-0 64 1 9207- ● ● ● ● ●
9 PIN; SHOE HOLDER 1-47162-012-0 04 1 9207- ● ● ● ● ●
15 CYLINDER; WHEEL,FRT BRK 1-47600-379-1 02 1 9207- ● ● ● ● ●
15 CYLINDER; WHEEL,FRT BRK 1-47600-378-1 02 1 9207- ● ● ● ● ●
16 SCREW; BLEEDER,FRT BRK
L=44 		1-47615-007-0 04 1 9207- ● ● ● ● ●
17 CAP; BLEEDER,FRT WHEEL CYL
OD=9.5 		9-47619-005-0 04 1 9207- ● ● ● ● ●
18 STOPPER; ADJ SCREW 1-47169-008-0 04 1 9207- ● ● ● ● ●
24 PISTON; FRT WHEEL CYL 1-47624-130-0 02 1 9207- ● ● ● ● ●
24 PISTON; FRT WHEEL CYL 1-47624-129-0 02 1 9207- ● ● ● ● ●
25 SCREW; ADJ,FRT WHEEL CYL 1-47622-015-0 02 1 9207- ● ● ● ● ●
25 SCREW; ADJ,FRT WHEEL CYL 1-47622-014-0 02 1 9207- ● ● ● ● ●
26 CUP SET; FRT WHEEL CYL 1-87830-555-0 04 1 9207- ● ● ● ● ●
29 SPRING; RETURN,FRT BRK SHOE 1-09583-126-1 04 1 9207- ● ● ● ● ●
35 BOLT; FRT WHEEL CYL
M10X22 W/LK WASHER 		0-50051-022-0 08 1 9207- ● ● ● ● ●
35 BOLT; FRT WHEEL CYL
M16X30 		9-02351-630-0 04 1 9207- ● ● ● ● ●
67 PLATE; BACK,FRT BRK 1-47150-357-1 01 1 9207- ● ● ● ● ●
67 PLATE; BACK,FRT BRK 1-47150-356-1 01 1 9207- ● ● ● ● ●
69 WASHER; LK,CONNECTOR
ID=8.2 		9-09150-608-0 02 1 9207- ● ● ● ● ●
71 GROMMET; CHECK HOLE 1-09333-058-1 04 1 9207- ● ● ● ● ●
74 CONNECTOR; FRT BRK 1-47630-003-2 02 1 9207- ● ● ● ● ●
75 PIPE; OIL,FWD,FRT BRK 1-47413-792-0 01 1 9207- ● ● ● ● ●
75 PIPE; OIL,FWD,FRT BRK 1-47413-791-0 01 1 9207- ● ● ● ● ●
76 PIPE; OIL,BACKWARD,FRT BRK 1-47413-790-0 01 1 9207- ● ● ● ● ●
76 PIPE; OIL,BACKWARD,FRT BRK 1-47413-789-0 01 1 9207- ● ● ● ● ●
85 PLATE; LK,CONNECTOR 1-09533-006-0 04 1 9207- ● ● ● ● ●
86 WASHER; LK,FRT WHEEL CYL
ID=16.2 		9-09150-616-0 04 1 9207- ● ● ● ● ●
90 BOLT; CONNECTOR
M8X16 		0-20800-816-0 02 1 9207- ● ● ● ● ●
92 GROMMET; ADJ HOLE 1-09333-010-0 04 1 9207- ● ● ● ● ●
101 PROTECTOR; OIL PIPE,FRT BRK
ID=5 OD=18 T=8 		1-09332-063-0 02 1 9207- ● ● ● ● ●
106 PIN; RET,SPR COVER 1-47118-072-0 04 1 9207-9507 ● ● ● ● ●
111 NUT; FLANGE,SHOE HOLD
M16 		9-99111-416-0 04 1 9207- ● ● ● ● ●
118 BOLT; STOPPER
M6X10 		0-20800-610-0 04 1 9207- ● ● ● ● ●
119 PLATE; LK,STOPPER 1-47169-009-0 04 1 9207- ● ● ● ● ●
