◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11364 - FSR(MALAYSIA)W/B4200 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#15964) — 190 parça

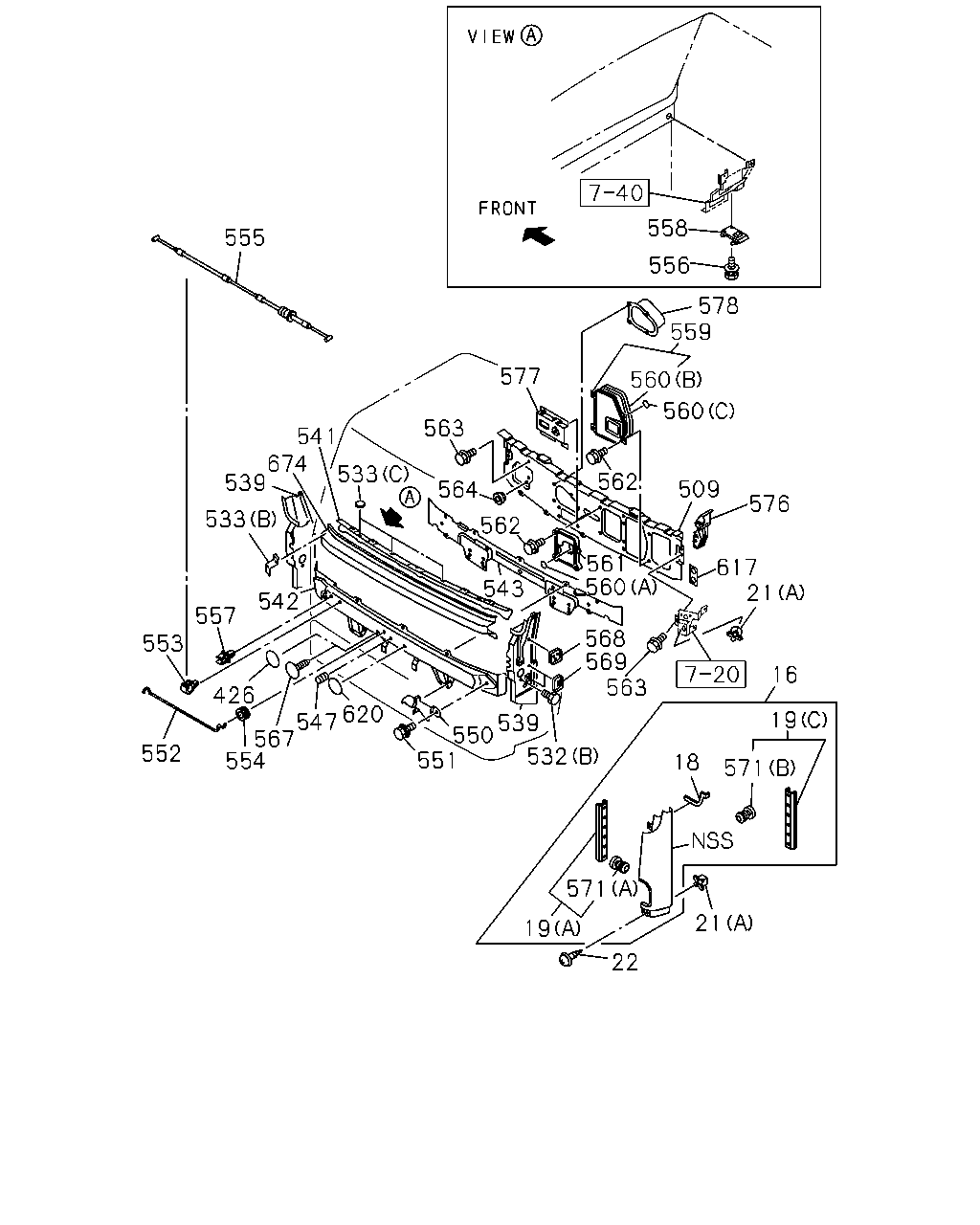

çizim 102589
558 555 556 578 559 577 560 560 563 541 674 539 533 562 509 564 576 533 562 561 560 543 617 21 542 557 568 569 563 553 16 426 620 547 567 554 19 539 550 551 552 532 18 571 571 21 19 22
BalonParca AdiParca NoAdetTipApplied Date
16 PANEL; FRONT,SIDE
WHITE 		1-65481-563-3 01 1 9706-
16 PANEL; FRONT,SIDE
WHITE 		1-65481-590-2 01 1 9706-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 9706-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 9706-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 9706-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 9706-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 9706-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 9706-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 9706-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 9706-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 MAL 		8-94279-078-0 02 1 9706-
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING MAL 		8-94279-123-0 12 1 9706-0003
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 0004-0810
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING MAL 		8-94279-123-0 12 1 0811-1010
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 1011-
426 GASKET
OD=25 BLACK MAL 		1-76798-019-0 01 1 9805-
426 GASKET
OD=25 BLACK MAL 		1-76798-019-0 03 1 9805-
509 PANEL; DASH 1-62280-193-5 01 1 9706-0604
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 9706-
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 9706-
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 02 1 9706-9807
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 9808-
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-3 02 1 9706-
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK MAL 		5-76777-035-0 13 1 9706-9709
533 SEAL; FRT PANEL
(C) OD=36 BLACK MAL 		1-76798-018-0 13 1 9710-9806
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK MAL 		5-76777-035-0 13 1 9807-
533 SEAL; FRT PANEL
(A) 25X25 MAL 		8-94272-533-0 02 1 9706-
539 CLOSING; PILLAR 1-61480-673-6 01 1 9706-
539 CLOSING; PILLAR 1-61480-674-6 01 1 9706-
541 PANEL; FRONT,INNER 1-61480-679-0 01 1 9706-
542 RAIL; FRT MOUNTING 1-61480-685-9 01 1 9706-9708
542 RAIL; FRT MOUNTING 1-61480-825-6 01 1 9709-
543 CLOSING; FRT MTG RAIL 1-61480-687-4 01 1 9706-
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 03 1 9706-
550 LOCK ASM; FRT LID 1-79318-010-2 01 1 9706-
550 LOCK ASM; FRT LID 1-79318-009-4 01 1 9706-
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER MAL 		8-94279-207-0 04 1 9706-
552 STAY; FRT LID 1-71998-810-2 01 1 9706-0205
552 STAY; FRT LID 1-71996-310-0 01 1 0206-0706
552 STAY; FRT LID 1-71996-352-0 01 1 0707-
553 CLIP; STAY 8-97031-428-0 01 1 9706-
554 GROMMET; STAY
ID=8 OD=20 T=9 		9-09956-038-0 01 1 9706-
555 CABLE; FRT LID
L=2142 		1-79348-001-4 01 1 9706-
556 BOLT; CABLE
M6X12 W/LK&PL WASHER MAL 		8-94279-200-0 01 1 9706-
557 CLIP; CABLE
ID=4.8 MAL 		8-94128-483-0 02 1 9706-
558 LEVER; FRT LID 1-79338-003-1 01 1 9706-0212
558 LEVER; FRT LID 1-79338-007-1 01 1 0301-
559 COVER; EVAPOLATOR 1-71996-194-1 01 1 9706-
560 SEAL; COVER
(B) 		1-71998-827-1 01 1 9706-
560 SEAL; COVER
(C) OD=36 BLACK MAL 		1-76798-018-0 01 1 9706-9806
560 SEAL; COVER
(C) OD=36 T=0.05 BLACK MAL 		5-76777-035-0 01 1 9807-
560 SEAL; COVER
(A) OD=36 T=0.05 BLACK MAL 		5-76777-035-0 02 1 9706-9708
560 SEAL; COVER
(A) OD=36 BLACK MAL 		1-76798-018-0 02 1 9709-9806
560 SEAL; COVER
(A) OD=36 T=0.05 BLACK MAL 		5-76777-035-0 02 1 9807-
561 COVER; HEATER CORE 1-71998-829-1 01 1 9706-
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER MAL 		8-94279-201-0 08 1 9706-
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 12 1 9706-9707
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 10 1 9708-9807
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 14 1 9808-0202
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 12 1 0203-
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 9706-9707
563 BOLT; DASH PANEL
M8X20 W/LK&PL WASHER 		8-94279-216-0 04 1 9708-9807
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 0203-
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 9706-
567 PLUG; FRT MTG RAIL
OD=15 BLACK 		8-94279-804-0 01 1 9706-9803
567 PLUG; FRT MTG RAIL
OD=25 BLACK MAL 		1-76798-019-0 01 1 9804-9804
568 PATCH; INST REINF 1-61480-675-2 02 1 9706-
569 PATCH; LWR GRIP 1-61480-689-2 01 1 9706-
569 PATCH; LWR GRIP 1-61480-736-2 01 1 9706-
571 CLIP; SEAL
(A) 		1-09987-228-0 06 1 9706-
571 CLIP; SEAL
(A) 		1-09987-228-0 06 1 9706-
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 07 1 9706-
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 07 1 9706-
576 FRAME; INST SIDE 1-62280-176-6 01 1 9706-0604
576 FRAME; INST SIDE 1-62280-177-7 01 1 9706-0604
577 BRACKET; IDLER 1-62280-195-0 01 1 9706-0604
578 COVER; WIPER MOTOR 1-62280-173-4 01 1 9706-0604
617 SEAL; DASH 1-61281-497-0 02 1 9706-0604
620 SEAL; FRT MTG
OD=25 BLACK MAL 		1-76798-019-0 01 1 9706-9801
620 SEAL; FRT MTG
OD=25 BLACK MAL 		1-76798-019-0 02 1 9802-
674 PANEL; UPR 1-61480-677-4 01 1 9706-

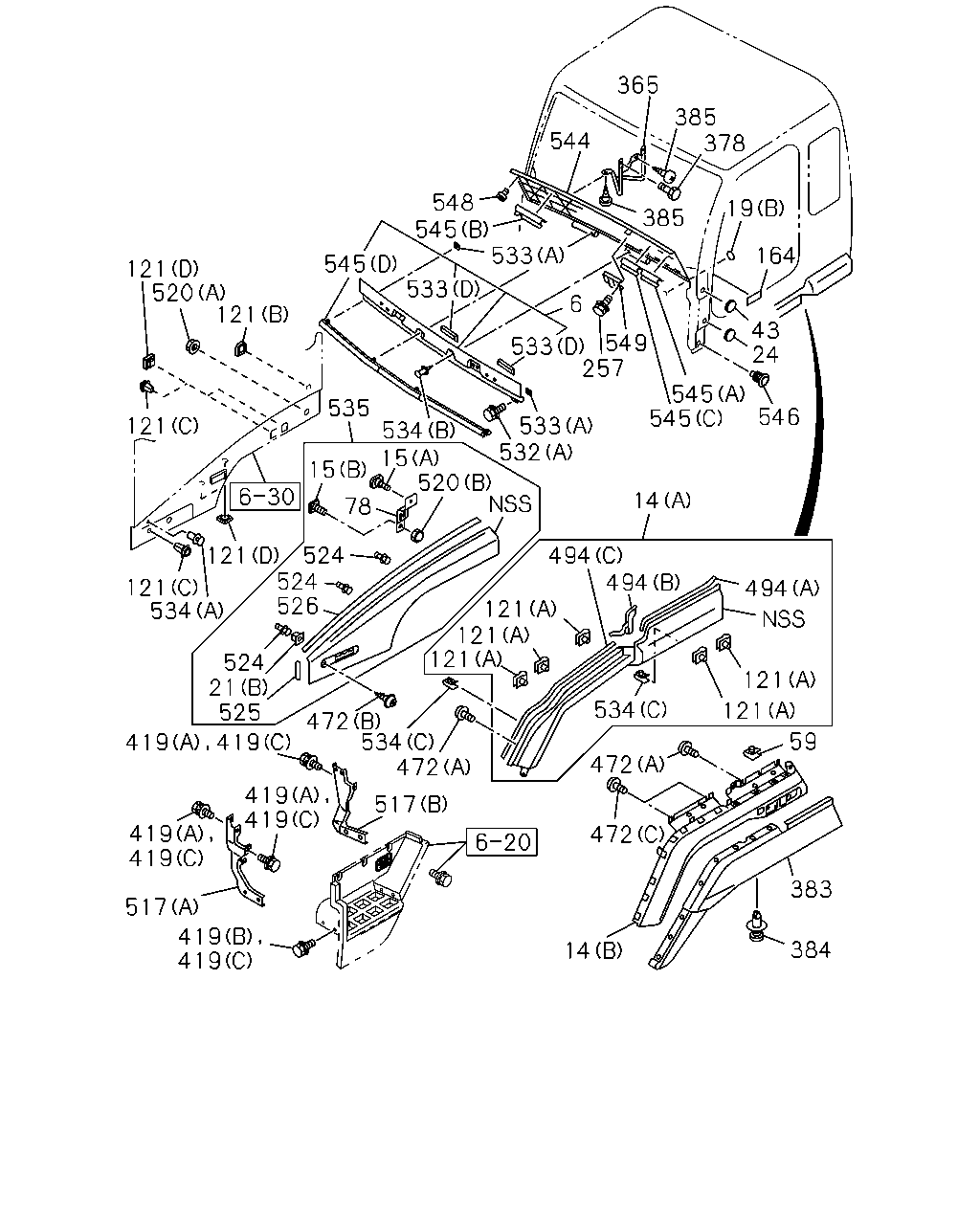

çizim 102610
365 385 378 544 548 545 533 19 385 164 545 533 121 520 6 121 43 24 533 549 257 545 545 535 533 532 546 121 534 15 520 78 15 14 524 526 494 494 121 534 494 121 121 121 524 21 525 121 534 121 472 534 472 59 419 472 419 419 517 419 419 472 383 517 419 419 384 14 419 121 524
BalonParca AdiParca NoAdetTipApplied Date
6 PANEL; FRONT 1-65481-556-2 01 1 9706-9807
6 PANEL; FRONT 1-65481-744-2 01 1 9808-
14 FENDER; FRT
FRONT FENDER WIDE<SA4> (A) 		1-65481-638-1 01 1 9706-0209
14 FENDER; FRT
FRONT FENDER WIDE<SA4> (A) WHITE 		1-65482-045-1 01 1 0210-
14 FENDER; FRT
FRONT FENDER WIDE<SA4> (B) GRAY 		1-71996-178-1 01 1 9706-
14 FENDER; FRT
FRONT FENDER WIDE<SA4> (A) 		1-65481-637-1 01 1 9706-0209
14 FENDER; FRT
FRONT FENDER WIDE<SA4> (A) WHITE 		1-65482-044-1 01 1 0210-
14 FENDER; FRT
FRONT FENDER WIDE<SA4> (B) GRAY 		1-71996-177-1 01 1 9706-
14 FENDER; FRT
EXC. FRONT FENDER WIDE<SA4> (A) WHITE 		1-65481-447-1 01 1 9706-0209
14 FENDER; FRT
EXC. FRONT FENDER WIDE<SA4> (A) WHITE 		1-65482-023-1 01 1 0210-
14 FENDER; FRT
EXC. FRONT FENDER WIDE<SA4> (A) WHITE 		1-65481-446-1 01 1 9706-0209
14 FENDER; FRT
EXC. FRONT FENDER WIDE<SA4> (A) WHITE 		1-65482-022-1 01 1 0210-
15 BOLT; FENDER
(A) M6X7 		1-71268-294-0 02 1 9706-
15 BOLT; FENDER
(B) M6X14 SQUARE HEAD 		1-71268-300-1 02 1 9706-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 9706-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 9706-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 9706-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 9706-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 9706-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 9706-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 MAL 		8-94279-078-0 02 1 9706-
24 SEAL; FRT PANEL LWR
FRONT FENDER WIDE<SA4> OD=25 BLACK MAL 		1-76798-019-0 06 1 9706-9811
24 SEAL; FRT PANEL LWR
OD=25 BLACK MAL 		1-76798-019-0 08 1 9812-
24 SEAL; FRT PANEL LWR
EXC. FRONT FENDER WIDE<SA4> OD=25 BLACK MAL 		1-76798-019-0 04 1 9706-9811
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 9706-
59 GROMMET; SCREW
FRONT FENDER WIDE<SA4> 		8-94279-723-0 02 1 9706-
78 BRACKET; FENDER 1-71268-323-0 01 1 9706-
78 BRACKET; FENDER 1-71268-322-0 01 1 9706-
121 GROMMET; FENDER
(B) 		1-09983-162-0 02 1 9706-1009
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL MAL 		8-94279-043-0 02 1 9706-0304
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL MAL 		8-94279-043-0 12 1 0305-
121 GROMMET; FENDER
(D) 14.5X14.5 BLACK 		8-94279-714-0 10 1 9706-0304
121 GROMMET; FENDER
(A) 		8-94279-723-0 16 1 9706-
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 9706-
257 BOLT; BRKT
M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 9706-
365 SUPPORT; FENDER
FRONT FENDER WIDE<SA4> 		1-71996-147-1 01 1 9706-
378 BOLT; SUPPORT
FRONT FENDER WIDE<SA4> M6X20 W/LK&PL WASHER 		8-94279-203-0 01 1 9706-
383 GUARD; MUD,FENDER LWR
EXC. FRONT FENDER WIDE<SA4> 		1-71996-061-3 01 1 9706-
383 GUARD; MUD,FENDER LWR
EXC. FRONT FENDER WIDE<SA4> 		1-71996-062-3 01 1 9706-
384 CLIP; FENDER LWR
EXC. FRONT FENDER WIDE<SA4> D8X13.5 		1-09987-248-1 06 1 9706-
385 SCREW; FENDER LWR
FRONT FENDER WIDE<SA4> M6X30 		1-65481-387-0 04 1 9706-
385 SCREW; FENDER LWR
EXC. FRONT FENDER WIDE<SA4> M6X30 		1-65481-387-0 01 1 9809-
419 BOLT; STEP
(C) M8X24.5 W/LK&PL WASHER MAL 		8-94279-208-0 18 1 9706-0009
419 BOLT; STEP
(A) M8X24.5 W/LK&PL WASHER MAL 		8-94279-208-0 10 1 0010-0904
419 BOLT; STEP
(A) M8X24.5 W/LK&PL WASHER MAL 		8-98059-720-0 10 1 0905-
419 BOLT; STEP
(B) M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0010-0204
419 BOLT; STEP
(B) M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 0205-0301
419 BOLT; STEP
(B) M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0302-
472 SCREW; FENDER TO CAB
(B) M5X20 		5-09981-102-0 02 1 9706-9706
472 SCREW; FENDER TO CAB
(B) M5X16 W/PL WASHER TAPPING MAL 		8-94279-123-0 02 1 9707-
472 SCREW; FENDER TO CAB
FRONT FENDER WIDE<SA4> (A) M6X22 		1-65481-386-0 02 1 9706-9802
472 SCREW; FENDER TO CAB
FRONT FENDER WIDE<SA4> (A) M6X22 		1-65481-386-0 07 1 9803-9804
472 SCREW; FENDER TO CAB
FRONT FENDER WIDE<SA4> (A) M6X22 		1-65481-386-0 08 1 9805-
472 SCREW; FENDER TO CAB
FRONT FENDER WIDE<SA4> (A) M6X30 		1-65481-387-0 32 1 9706-9802
472 SCREW; FENDER TO CAB
FRONT FENDER WIDE<SA4> (A) M6X30 		1-65481-387-0 28 1 9803-9804
472 SCREW; FENDER TO CAB
FRONT FENDER WIDE<SA4> (A) M6X30 		1-65481-387-0 26 1 9805-
472 SCREW; FENDER TO CAB
FRONT FENDER WIDE<SA4> (C) M6X25 		1-65481-736-0 04 1 9706-
472 SCREW; FENDER TO CAB
EXC. FRONT FENDER WIDE<SA4> (A) M6X22 		1-65481-386-0 17 1 9706-
494 FINISHER; FENDER
(C) 		1-71998-900-3 02 1 9706-0610
494 FINISHER; FENDER
(C) 		1-71907-641-0 02 1 0611-
494 FINISHER; FENDER
(A) 		1-71998-999-0 02 1 9706-
494 FINISHER; FENDER
(B) 		1-71907-181-4 01 1 9706-
494 FINISHER; FENDER
(B) 		1-71907-180-4 01 1 9706-
517 SUPPORT; STEP PANEL
(B) 		1-71996-083-4 01 1 9706-
517 SUPPORT; STEP PANEL
(A) 		1-71998-780-5 01 1 9706-
517 SUPPORT; STEP PANEL
(B) 		1-71996-082-2 01 1 9706-
517 SUPPORT; STEP PANEL
(A) 		1-71998-779-5 01 1 9706-
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9706-
520 NUT; FENDER
(B) M6 		1-09984-189-0 02 1 9706-
524 CLIP; FENDER COVER
D5.4X8 		1-09983-174-0 08 1 9706-9803
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 9804-
525 SEAL; FENDER
10X145 		1-71268-281-1 02 1 9706-0409
525 SEAL; FENDER
10X145 		1-71267-342-0 02 1 0410-
526 FINISHER; FENDER 1-71268-276-1 01 1 9706-0209
526 FINISHER; FENDER 1-71268-275-1 01 1 9706-0209
526 FINISHER; FENDER 1-71268-275-1 02 1 0210-
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 9706-
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 9706-
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 02 1 9706-9807
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 9808-
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-3 02 1 9706-
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK MAL 		5-76777-035-0 13 1 9706-9709
533 SEAL; FRT PANEL
(C) OD=36 BLACK MAL 		1-76798-018-0 13 1 9710-9806
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK MAL 		5-76777-035-0 13 1 9807-
533 SEAL; FRT PANEL
(A) 25X25 MAL 		8-94272-533-0 02 1 9706-
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-019-0 08 1 9706-9803
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-020-1 08 1 9804-0001
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0002-1302
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1303-
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 9706-
534 FASTENER
FRONT FENDER WIDE<SA4> (C) 		1-71996-035-1 20 1 9706-
534 FASTENER
FRONT FENDER WIDE<SA4> (C) 		1-71996-035-1 04 1 9706-0404
534 FASTENER
FRONT FENDER WIDE<SA4> (C) 		1-71996-035-1 06 1 0405-
535 FENDER; BLISTER
WHITE 		1-71268-361-3 01 1 9706-0209
535 FENDER; BLISTER
WHITE 		1-71268-429-1 01 1 0210-
535 FENDER; BLISTER
WHITE 		1-71268-360-3 01 1 9706-0209
535 FENDER; BLISTER
WHITE 		1-71268-428-2 01 1 0210-
544 LID; FRT
HITACHI CHEMICAL 		1-71108-152-0 01 1 9706-
544 LID; FRT
MITRAS 		1-71108-116-0 01 1 0007-0411
545 SEAL; FRT LID
(D) 		1-71998-814-4 01 1 9706-
545 SEAL; FRT LID
(B) 		1-71998-871-2 01 1 9706-9908
545 SEAL; FRT LID
(B) 		1-71996-253-1 01 1 9909-
545 SEAL; FRT LID
(C) 		1-71998-873-2 01 1 9706-9908
545 SEAL; FRT LID
(C) 		1-71996-255-0 01 1 9909-
545 SEAL; FRT LID
(A) L=63 		1-71998-963-2 01 1 9706-
546 PLUG; DUMMY HOLE
OD=16 L=11 		1-76378-155-0 02 1 9706-
548 STRIKER; FRT LID PANEL 1-79318-008-1 02 1 9706-
549 BRACKET; STOPPER,FRT LID 1-71108-033-4 01 1 9706-0301
549 BRACKET; STOPPER,FRT LID 1-71108-358-0 01 1 0302-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
