◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11409 - FVR(RHD)EURO1 ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#15963) — 57 parça
çizim 97841
9 1 23 13 22 21 20 17 115 29 29 29 230 237
BalonParca AdiParca NoAdetTipApplied Date
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		9-23110-018-0 01 1 1110-
9 WRENCH; WHEEL PIN
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) B=33X30 L=450 		1-85111-033-1 01 1 1110-
9 WRENCH; WHEEL PIN
DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) B=41X21 L=440 		1-85113-015-1 01 1 1110-
13 WRENCH; MONKEY
L=247 		1-85117-006-0 01 1 1110-1407
13 WRENCH; MONKEY
L=255 		8-98270-303-0 01 1 1408-
17 HAMMER 9-85121-406-0 01 1 1110-
20 WRENCH; 10X12
10X12 		0-95902-510-0 01 1 1110-
21 WRENCH; 14X17
14X17 		0-95902-514-0 01 1 1110-
22 WRENCH; 19X22
19X22 		0-95902-519-0 01 1 1110-
23 WRENCH; 24X27
24X27 		0-95902-524-0 01 1 1110-
29 DRIVER; SCREW
(C) <+>,<-> L=160 		8-94242-798-1 01 1 1110-
29 DRIVER; SCREW
(B) <-> L=275 		8-98061-105-0 01 1 1110-
29 DRIVER; SCREW
(A) <+> L=190 		9-09595-522-0 01 1 1110-
115 PLIER 5-85171-002-0 01 1 1110-1410
115 PLIER 8-98282-845-0 01 1 1411-
230 PUMP; GREASE 1-85556-007-5 01 1 1110-
237 BAG; TOOL 8-97130-902-1 01 1 1110-

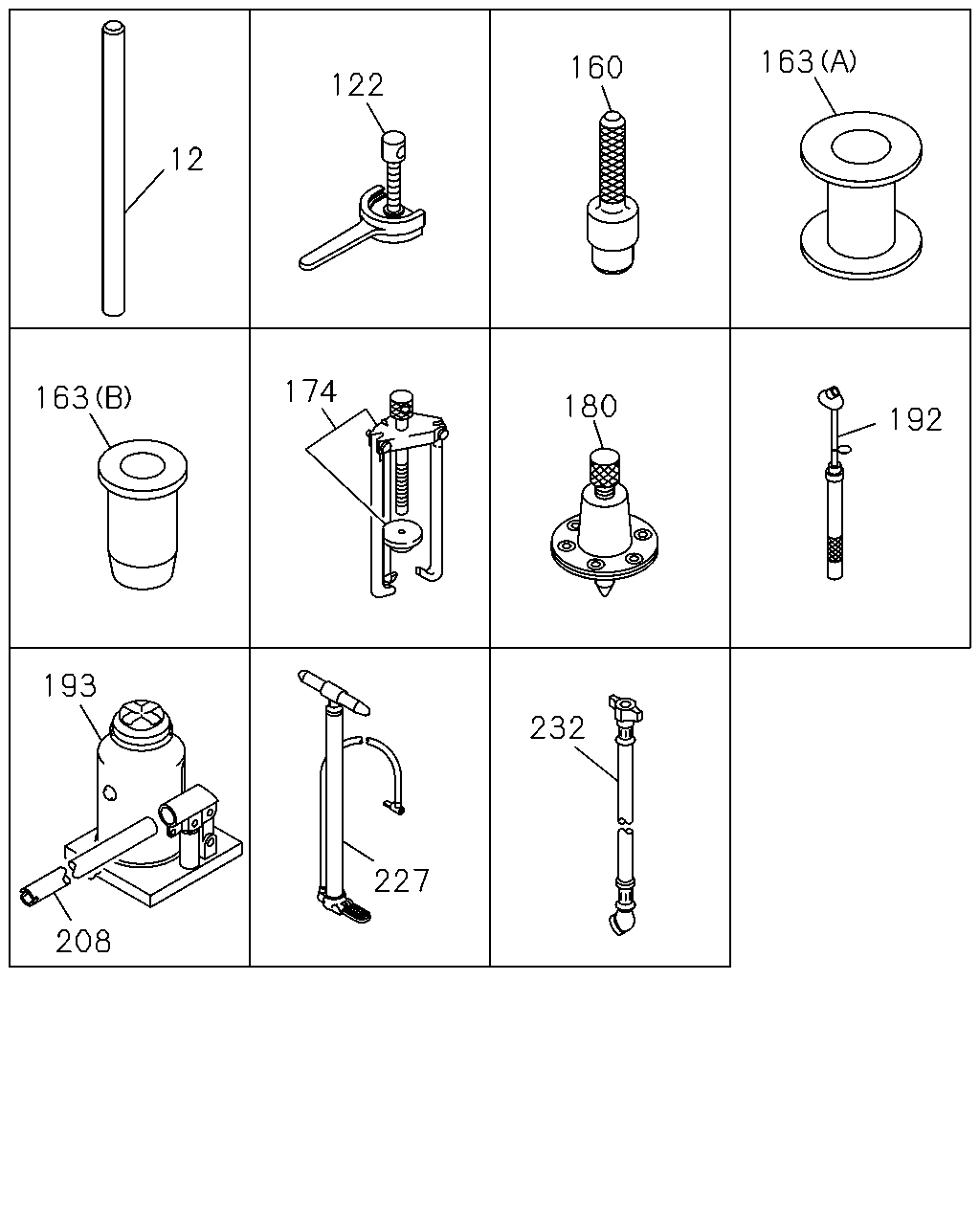

çizim 97852
12 122 160 163 192 180 174 163 193 208 227 232
BalonParca AdiParca NoAdetTipApplied Date
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 1110-1501
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		8-98257-407-0 01 1 1502-
122 PULLER ASM; COUNTER FRT
MLD6A M/T(X5N) 		9-85210-168-0 01 1 1110-
160 REMOVER; NEEDLE BRG
L=220 		1-85238-001-0 01 1 1110-
163 TOOL; SETTING
(B) L=195 		1-85221-162-1 01 1 1110-
163 TOOL; SETTING
(A) L=150 		1-85221-163-0 01 1 1110-
174 PULLER ASM; MAIN CLU SHAFT
MLD6A M/T(X5N) 		9-85210-148-0 01 1 1110-
180 PULLER; FRT & RR HUB 1-85210-002-0 01 1 1110-
192 GAUGE; TIRE PRESSURE 1-85315-002-0 01 1 1110-
193 JACK ASM
10TON 		8-97607-599-0 01 1 1110-
208 HANDLE; JACK
L=600 		8-98181-437-0 01 1 1110-
227 PUMP ASM; TIRE 9-85521-132-0 01 1 1110-
232 HOSE; AIR,AIR CHARGE
TIRE INFLATOR DEVICE<SG4> 		1-09360-245-1 01 1 1110-
çizim 97859
93 84 92 91 127 125 126 129 143 144 157 153 154 158 159
BalonParca AdiParca NoAdetTipApplied Date
84 REPLACER; VALVE SEAL 8-94396-815-0 01 1 1110-
91 REPLACER ASM; CYL LINER 8-94396-849-0 01 1 1110-
92 ANKLE; REPLACER,CYL LINER 8-94396-821-0 01 1 1110-
93 SETTING KIT; VALVE GUIDE 1-85220-001-0 01 1 1110-
125 PULLER ASM; KING PIN
L=450 		1-85210-009-0 01 1 1110-
126 WRENCH; FRT HUB BRG NUT
L=350 B=75 		1-85110-002-1 01 1 1110-
127 WRENCH ASM; HUB BRG NUT
L=400 B=116 		8-98119-000-1 01 1 1110-
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 1110-
143 GUIDE; BOOT,TIE ROD END 1-85229-013-0 01 1 1110-
144 BASE; BOOT GUIDE,TIE ROD END 1-85229-009-0 01 1 1110-
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 1110-
154 SLEEPER; KING PIN 1-85238-003-0 01 1 1110-
157 REPLACER KIT; RETURN SPR 9-85231-554-0 01 1 1110-
158 SETTING TOOL; RETURN SPR 9-85221-231-0 01 1 1110-
159 REMOVER; RETURN SPR
ID=12.5 		9-85231-555-0 01 1 1110-
çizim 98008
274 271 268 209 311 285 281 283 282 284
BalonParca AdiParca NoAdetTipApplied Date
209 CLIP; JACK HANDLE 8-98053-799-0 02 1 1110-
268 SCREW; CLIP
T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1110-1212
268 SCREW; CLIP
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301-
271 CLIP; TIRE HANGER 8-98053-800-0 02 1 1110-
274 SCREW; CLIP
T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1110-1212
274 SCREW; CLIP
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301-
281 BRACKET; TOOL BOX
KEY LOCK TOOL<RC5> 		1-53459-665-2 02 1 1110-
282 NUT; BRKT
KEY LOCK TOOL<RC5> M10 FLANGE 		0-91180-210-0 04 1 1110-
283 WASHER; LK,BRKT
KEY LOCK TOOL<RC5> ID=10.2 		0-91510-510-0 04 1 1110-
284 BOLT; TOOL BOX
KEY LOCK TOOL<RC5> M10X20 FLANGE 		0-28651-020-0 04 1 1110-
285 NUT; TOOL BOX
KEY LOCK TOOL<RC5> M10 FLANGE 		0-91180-210-0 04 1 1110-
311 BOX ASM; TOOL
KEY LOCK TOOL<RC5> 		1-85561-006-3 01 1 1110-
