◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11311 - FTS(MIDDLE EAST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#15951) — 15 parça

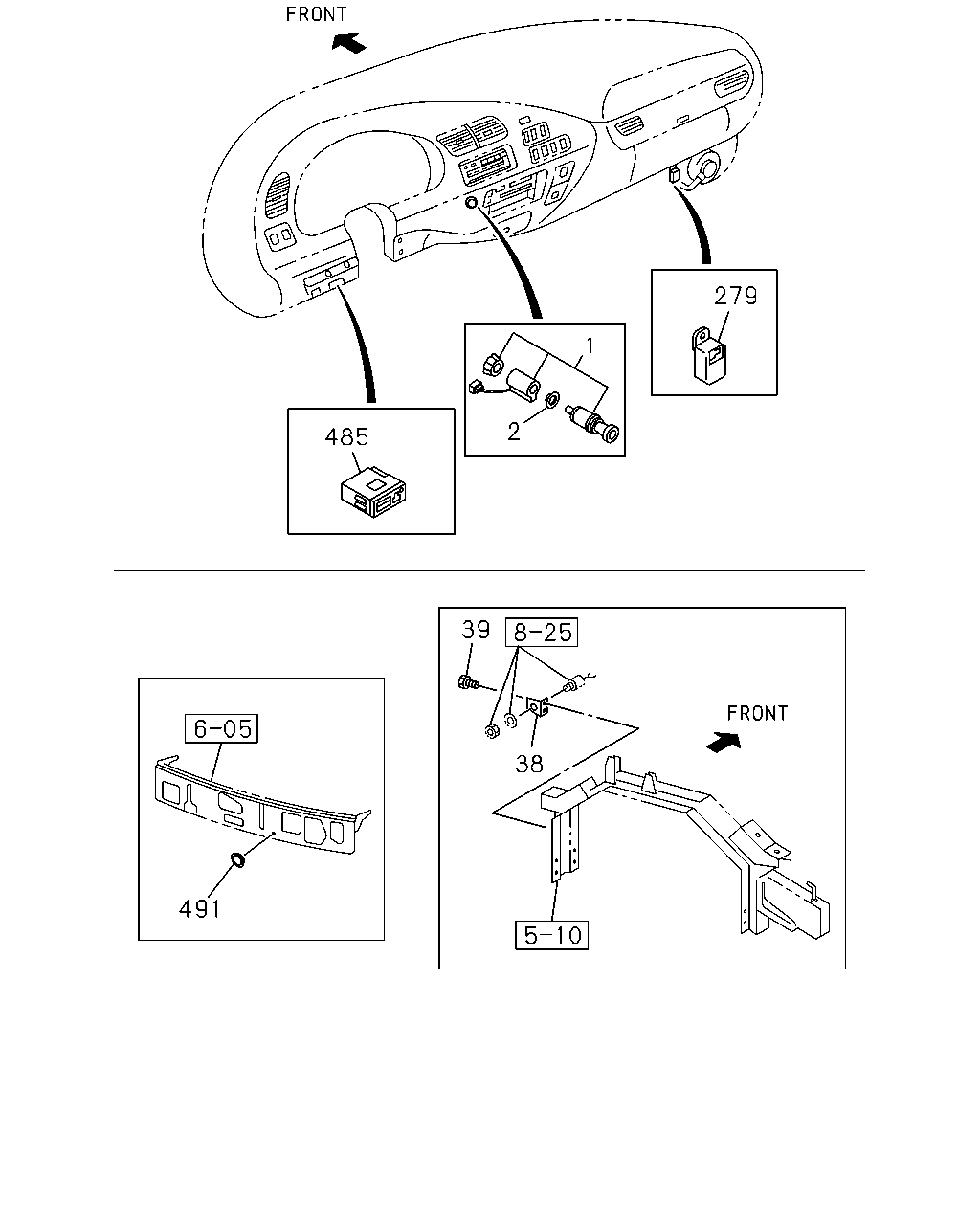

çizim 63771
279 1 2 485 39 38 491
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-97064-970-1 01 1 9905-0108 ● ●
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0109- ● ●
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 9905- ● ●
38 BRACKET; SW,STARTER SUB 1-82699-351-0 01 1 9905-0004 ● ●
38 BRACKET; SW,STARTER SUB 1-82698-232-0 01 1 0005-0211 ● ●
38 BRACKET; SW,STARTER SUB
EXC. STARTER SWITCH DELETION<E5D> 		1-82698-232-0 01 1 0212- ● ●
39 BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE 		0-28680-820-0 02 1 9905-0211 ● ●
39 BOLT; BRKT,STARTER SUB SW
EXC. STARTER SWITCH DELETION<E5D> M8X20 FLANGE 		0-28680-820-0 02 1 0212-0512 ● ●
39 BOLT; BRKT,STARTER SUB SW
EXC. STARTER SWITCH DELETION<E5D> M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
279 BUZZER ASM; SEAT BELT WARNING
12V 		5-83460-004-1 01 1 9905- ● ●
485 CONTROL UNIT; SPEED SENSOR 1-82540-065-0 01 1 9905-0004 ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-038-1 01 1 0005-0402 ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-149-0 01 1 0403-0410 ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-158-0 01 1 0411- ● ●
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 9905- ● ●
