◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11311 - FTS(MIDDLE EAST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#15950) — 30 parça

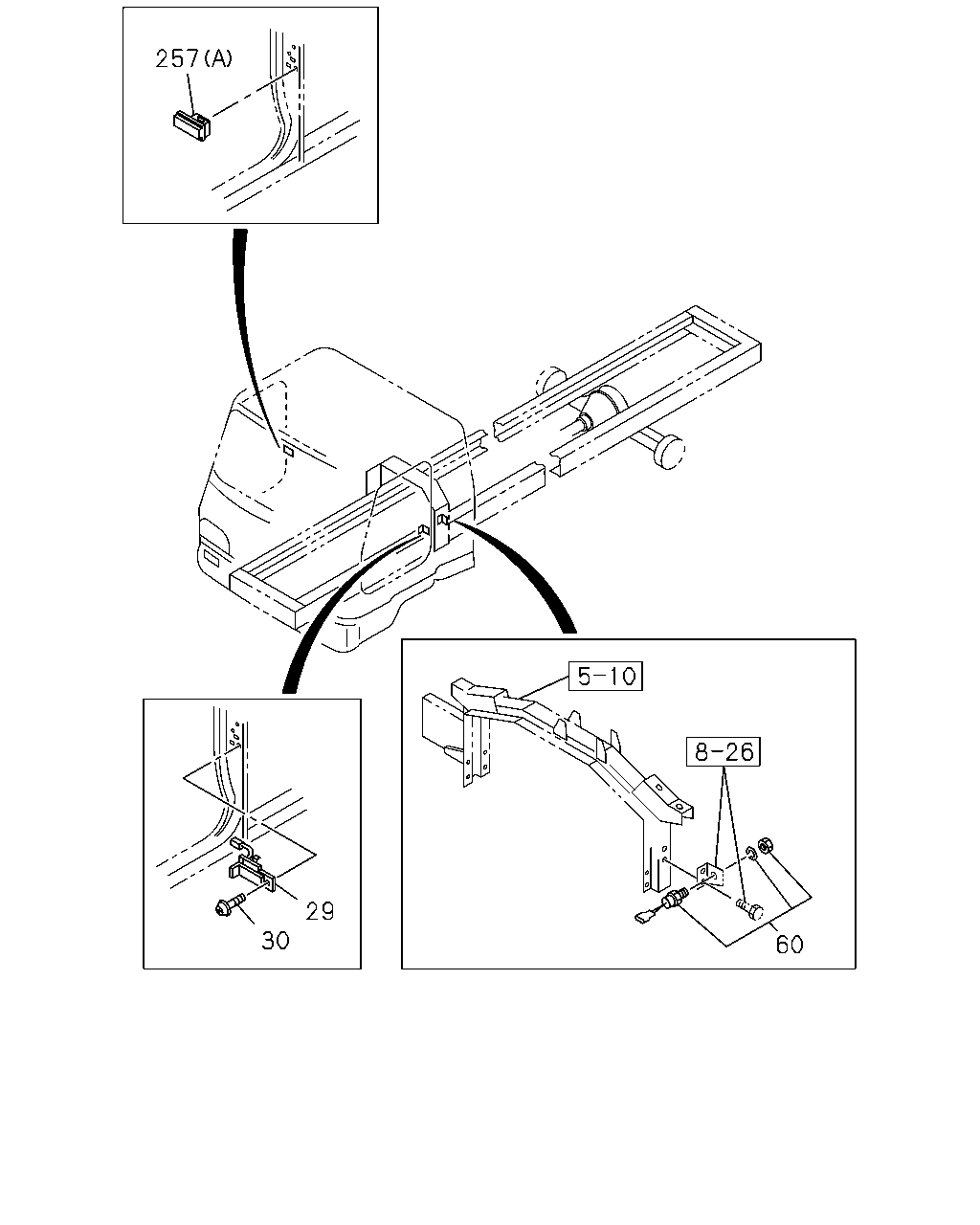

çizim 63713
257 29 30 60
BalonParca AdiParca NoAdetTipApplied Date A B
29 SWITCH; DOOR 8-97855-032-3 01 1 9905- ● ●
30 SCREW; DOOR SW
M5X16 		8-94279-341-0 01 1 9905-9906 ● ●
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 01 1 9907- ● ●
60 SWITCH; STARTER SUB 1-82380-107-1 01 1 9905-0211 ● ●
60 SWITCH; STARTER SUB
EXC. STARTER SWITCH DELETION<E5D> 		1-82380-107-1 01 1 0212- ● ●
257 COVER; HOLE,SW
(B) 		1-82389-011-2 01 1 9905- ● ●
257 COVER; HOLE,SW
(B) 		1-82389-012-2 01 1 9905- ● ●
257 COVER; HOLE,SW
(A) 		8-94229-914-1 01 1 9905- ● ●

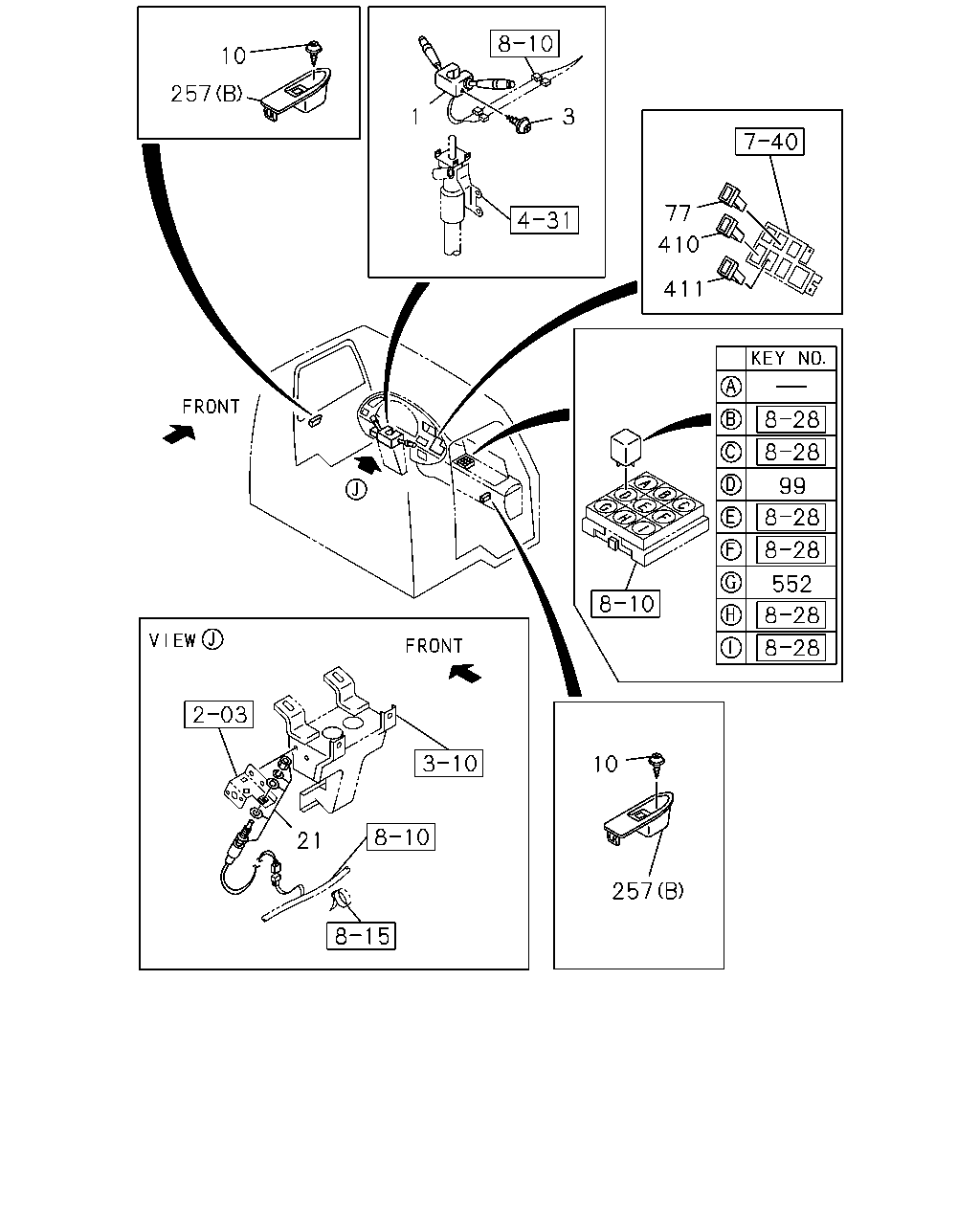

çizim 63981
10 257 3 1 77 410 411 99 552 10 21 257
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB 1-82360-371-4 01 1 9905-0004 ● ●
1 SWITCH; COMB
EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-371-4 01 1 0005-0103 ● ●
1 SWITCH; COMB
EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-642-0 01 1 0104-0312 ● ●
1 SWITCH; COMB
EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-731-0 01 1 0401- ● ●
1 SWITCH; COMB
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-405-4 01 1 0005-0103 ● ●
1 SWITCH; COMB
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-647-0 01 1 0104-0312 ● ●
1 SWITCH; COMB
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-734-0 01 1 0401- ● ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 9905-0604 ● ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74165-512-0 04 1 0605- ● ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9905-0604 ● ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605- ● ●
21 SWITCH; CLU 1-82380-114-3 01 1 9905- ● ●
77 SWITCH; PTO
PTO CONTROL<SV6> 		1-82340-403-0 01 1 9905- ● ●
99 RELAY; FOG LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 12.5A MITUBA 		8-97062-815-1 01 1 0005-0111 ● ●
99 RELAY; FOG LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112- ● ●
257 COVER; HOLE,SW
(B) 		1-82389-011-2 01 1 9905- ● ●
257 COVER; HOLE,SW
(B) 		1-82389-012-2 01 1 9905- ● ●
257 COVER; HOLE,SW
(A) 		8-94229-914-1 01 1 9905- ● ●
410 SWITCH; FRT DRIVE 1-82350-264-0 01 1 9905- ● ●
411 SWITCH; TRANSFER 1-82350-265-0 01 1 9905- ● ●
552 RELAY; CIGAR LIGHTER
24V 12.5A MITUBA 		8-97062-815-1 01 1 9905-0111 ● ●
552 RELAY; CIGAR LIGHTER
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112- ● ●
