Sayfa 2-81 - Isuzu EPC

2-81 — POWER TAKE OFF; TRANSMISSION SIDE (#1595) — 171 parça

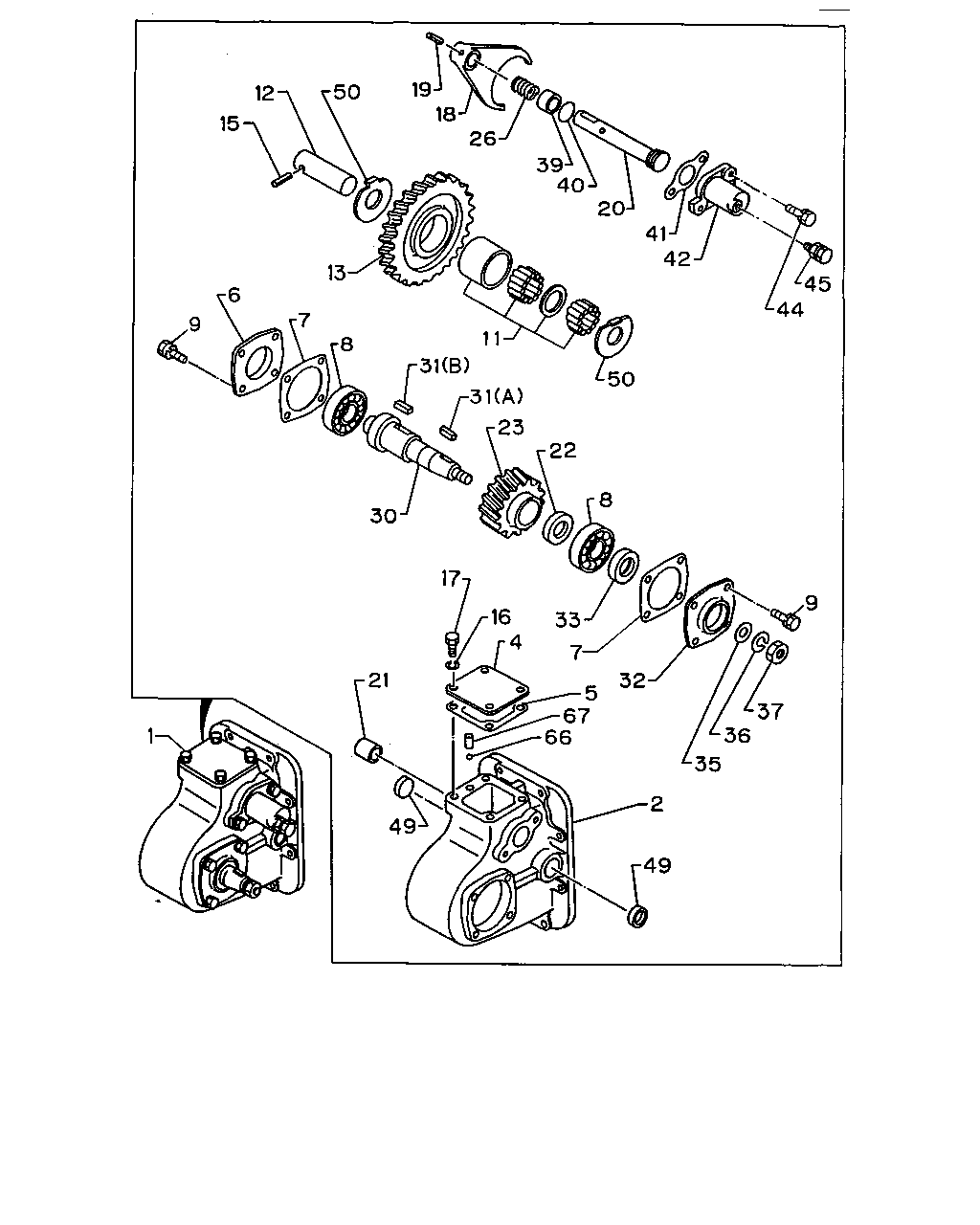

50 11 13 50 15 12 67 66 39 26 20 40 41 42 44 45 37 36 35 9 32 7 33 8 21 5 4 16 17 2 9 6 7 31 31 8 30 23 22 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38000-194-1	01	1	9207-9511	●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38000-297-0	01	1	9512-	●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38000-294-0	01	1	9409-9412		●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38000-294-0	01	1	9501-		●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38000-182-2	01	1	9207-9408		●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO(SD8)	1-38000-182-2	01	1	9409-9412		●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-048-0	01	1	9207-9511	●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-088-0	01	1	9512-	●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-085-0	01	1	9409-9412		●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-085-0	01	1	9501-		●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-043-0	01	1	9207-9408		●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8)	1-38111-043-0	01	1	9409-9412		●
4	COVER; UPR,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-38121-002-0	01	1	9207-	●
4	COVER; UPR,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38131-008-0	01	1	9207-		●
5	GASKET; UPR COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38132-005-0	01	1	9207-9511	●
5	GASKET; UPR COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38132-007-0	01	1	9207-		●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-38151-024-0	01	1	9207-9408	●	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-38151-024-0	01	1	9409-9412	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8)	9-38151-024-0	01	1	9409-9412		●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-38151-024-0	01	1	9501-	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-38151-604-0	01	1	9409-9412		●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-38151-604-0	01	1	9501-		●
7	GASKET; OUTPUT SHAFT COVER,SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38152-005-0	02	1	9207-9408	●	●
7	GASKET; OUTPUT SHAFT COVER,SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38152-005-0	02	1	9409-9412	●
7	GASKET; OUTPUT SHAFT COVER,SIDE PTO TRANSMISSION SIDE PTO(SD8)	1-38152-005-0	02	1	9409-9412		●
7	GASKET; OUTPUT SHAFT COVER,SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38152-005-0	02	1	9501-9511	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09800-121-0	02	1	9207-	●	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 W/LK WASHER	0-50040-820-0	08	1	9207-	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X16 W/LK WASHER	0-50040-816-0	08	1	9409-9412		●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X16 W/LK WASHER	0-50040-816-0	08	1	9501-		●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X16 W/LK WASHER	9-01910-816-0	08	1	9207-9408		●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO(SD8) M8X16 W/LK WASHER	9-01910-816-0	08	1	9409-9412		●
11	BEARING; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09811-144-0	01	1	9207-	●	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38221-024-0	01	1	9207-	●	●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=36	1-38241-042-0	01	1	9207-	●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=32	1-38241-063-0	01	1	9207-		●
15	PIN; SPR,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5) L=16	9-09878-613-0	01	1	9207-	●	●
16	WASHER; LK,UPR COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=10.2	9-09150-510-0	04	1	9207-9408	●	●
16	WASHER; LK,UPR COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=10.2	9-09150-510-0	04	1	9409-9412	●
16	WASHER; LK,UPR COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8) ID=10.2	9-09150-510-0	04	1	9409-9412		●
16	WASHER; LK,UPR COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=10.2	9-09150-510-0	04	1	9501-	●
17	BOLT; UPR COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20	9-02351-020-0	04	1	9207-9408	●	●
17	BOLT; UPR COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20	9-02351-020-0	04	1	9409-9412	●
17	BOLT; UPR COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8) M10X20	9-02351-020-0	04	1	9409-9412		●
17	BOLT; UPR COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20	9-02351-020-0	04	1	9501-9511	●
17	BOLT; UPR COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20	0-23801-020-0	04	1	9512-	●
17	BOLT; UPR COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 W/LK WASHER	0-50051-020-0	04	1	9409-9412		●
17	BOLT; UPR COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 W/LK WASHER	0-50051-020-0	04	1	9501-		●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-035-0	01	1	9207-	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-033-0	01	1	9207-		●
21	COVER; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-33545-001-0	01	1	9207-	●	●
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38226-046-0	01	1	9207-	●
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38226-044-0	01	1	9207-		●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=19	1-38241-041-0	01	1	9207-	●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=22	1-38241-064-0	01	1	9207-		●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38121-001-0	01	1	9207-9408	●	●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38121-001-0	01	1	9409-9412	●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8)	1-38121-001-0	01	1	9409-9412		●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38121-001-0	01	1	9501-	●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38121-004-0	01	1	9409-9412		●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38121-004-0	01	1	9501-		●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38221-023-0	01	1	9207-	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38211-009-0	01	1	9207-		●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) L=25	1-09735-024-0	01	1	9207-	●	●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	9-08011-030-0	01	1	9207-	●	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-38161-608-0	01	1	9207-	●	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-09924-533-1	01	1	9207-	●	●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=15	9-09160-514-0	01	1	9207-	●	●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=14.2	9-09150-514-0	01	1	9207-	●	●
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5) M14	9-99111-414-0	01	1	9207-	●	●
39	STOPPER; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38379-006-0	01	1	9207-	●	●
40	GASKET; AIR SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-09561-324-0	01	1	9207-	●	●
41	GASKET; CYL TO CASE,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38152-009-0	01	1	9207-9408	●	●
41	GASKET; CYL TO CASE,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38152-009-0	01	1	9409-9412	●
41	GASKET; CYL TO CASE,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8)	1-38152-009-0	01	1	9409-9412		●
41	GASKET; CYL TO CASE,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38152-009-0	01	1	9501-9511	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38377-003-0	01	1	9207-	●	●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 FLANGE	0-28181-025-0	02	1	9207-	●	●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5) M20 & PT1/4	9-09902-386-0	01	1	9207-	●	●
50	WASHER; THRUST,IDLE GEAR,TRANS SIDE PT TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38245-003-0	02	1	9207-	●
50	WASHER; THRUST,IDLE GEAR,TRANS SIDE PT TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38226-043-0	02	1	9207-		●
66	BALL; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-00097-009-0	01	1	9207-	●	●
67	PIN; STRAIGHT TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5) OD=8 L=16	9-08160-816-0	01	1	9207-	●	●

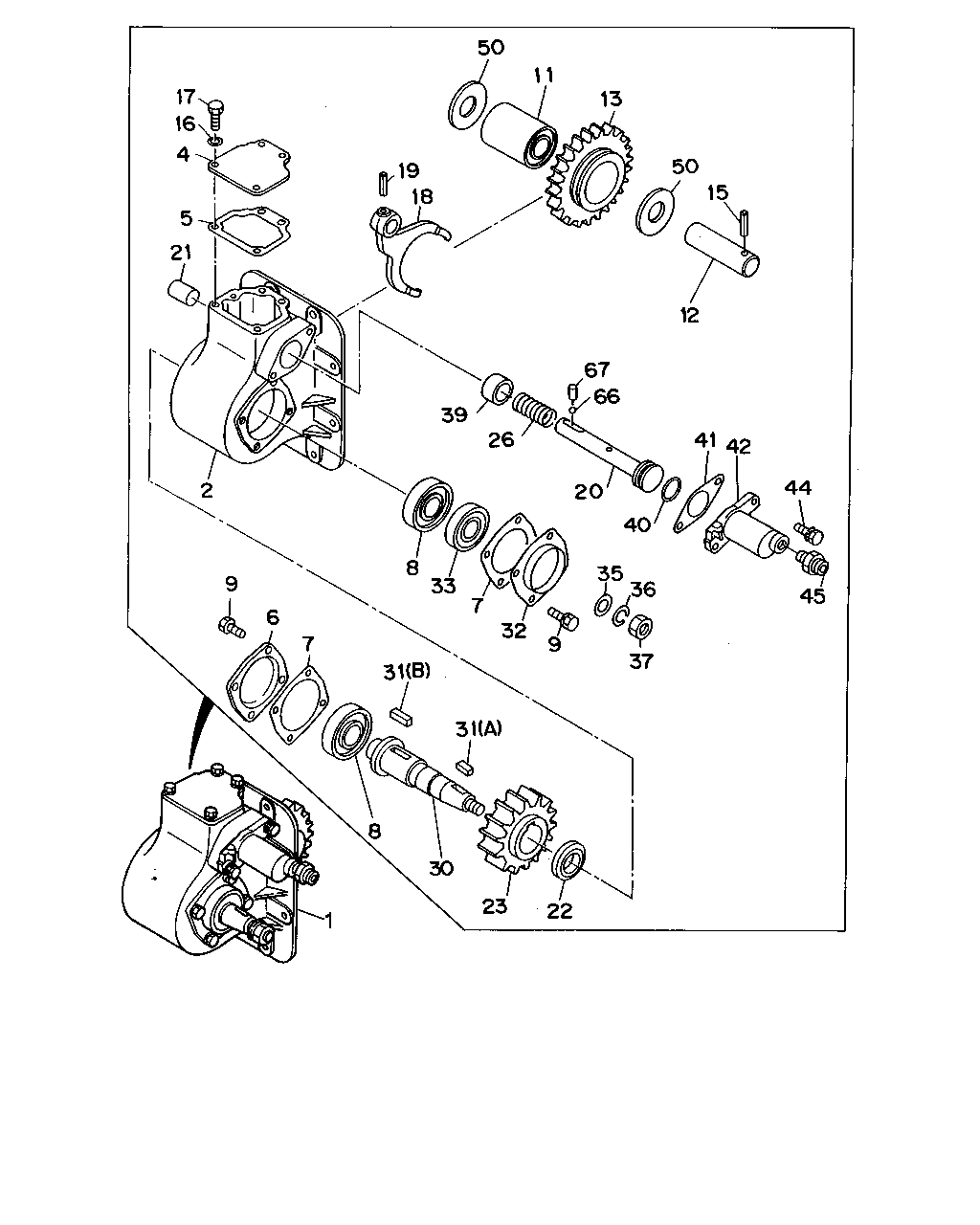

50 12 15 19 18 26 39 40 20 41 42 45 44 50 11 13 6 9 7 8 31 31 23 22 8 33 7 32 37 9 36 35 2 49 66 67 5 4 16 17 30 21 49 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38000-194-1	01	1	9207-9511	●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38000-297-0	01	1	9512-	●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38000-294-0	01	1	9409-9412		●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38000-294-0	01	1	9501-		●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38000-182-2	01	1	9207-9408		●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO(SD8)	1-38000-182-2	01	1	9409-9412		●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-048-0	01	1	9207-9511	●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-088-0	01	1	9512-	●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-085-0	01	1	9409-9412		●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-085-0	01	1	9501-		●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-043-0	01	1	9207-9408		●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8)	1-38111-043-0	01	1	9409-9412		●
4	COVER; UPR,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-38121-002-0	01	1	9207-	●
4	COVER; UPR,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38131-008-0	01	1	9207-		●
5	GASKET; UPR COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38132-005-0	01	1	9207-9511	●
5	GASKET; UPR COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38132-007-0	01	1	9207-		●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-38151-024-0	01	1	9207-9408	●	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-38151-024-0	01	1	9409-9412	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8)	9-38151-024-0	01	1	9409-9412		●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-38151-024-0	01	1	9501-	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-38151-604-0	01	1	9409-9412		●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-38151-604-0	01	1	9501-		●
7	GASKET; OUTPUT SHAFT COVER,SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38152-005-0	02	1	9207-9408	●	●
7	GASKET; OUTPUT SHAFT COVER,SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38152-005-0	02	1	9409-9412	●
7	GASKET; OUTPUT SHAFT COVER,SIDE PTO TRANSMISSION SIDE PTO(SD8)	1-38152-005-0	02	1	9409-9412		●
7	GASKET; OUTPUT SHAFT COVER,SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38152-005-0	02	1	9501-9511	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09800-121-0	02	1	9207-	●	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 W/LK WASHER	0-50040-820-0	08	1	9207-	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X16 W/LK WASHER	0-50040-816-0	08	1	9409-9412		●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X16 W/LK WASHER	0-50040-816-0	08	1	9501-		●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X16 W/LK WASHER	9-01910-816-0	08	1	9207-9408		●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO(SD8) M8X16 W/LK WASHER	9-01910-816-0	08	1	9409-9412		●
11	BEARING; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09811-144-0	01	1	9207-	●	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38221-024-0	01	1	9207-	●	●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=36	1-38241-042-0	01	1	9207-	●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=32	1-38241-063-0	01	1	9207-		●
15	PIN; SPR,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5) L=16	9-09878-613-0	01	1	9207-	●	●
16	WASHER; LK,UPR COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=10.2	9-09150-510-0	04	1	9207-9408	●	●
16	WASHER; LK,UPR COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=10.2	9-09150-510-0	04	1	9409-9412	●
16	WASHER; LK,UPR COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8) ID=10.2	9-09150-510-0	04	1	9409-9412		●
16	WASHER; LK,UPR COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=10.2	9-09150-510-0	04	1	9501-	●
17	BOLT; UPR COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20	9-02351-020-0	04	1	9207-9408	●	●
17	BOLT; UPR COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20	9-02351-020-0	04	1	9409-9412	●
17	BOLT; UPR COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8) M10X20	9-02351-020-0	04	1	9409-9412		●
17	BOLT; UPR COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20	9-02351-020-0	04	1	9501-9511	●
17	BOLT; UPR COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20	0-23801-020-0	04	1	9512-	●
17	BOLT; UPR COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 W/LK WASHER	0-50051-020-0	04	1	9409-9412		●
17	BOLT; UPR COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 W/LK WASHER	0-50051-020-0	04	1	9501-		●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38361-028-0	01	1	9207-	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38361-029-0	01	1	9207-		●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-09878-614-0	01	1	9207-	●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09748-019-0	01	1	9207-		●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-035-0	01	1	9207-	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-033-0	01	1	9207-		●
21	COVER; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-33545-001-0	01	1	9207-	●	●
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38226-046-0	01	1	9207-	●
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38226-044-0	01	1	9207-		●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=19	1-38241-041-0	01	1	9207-	●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=22	1-38241-064-0	01	1	9207-		●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38121-001-0	01	1	9207-9408	●	●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38121-001-0	01	1	9409-9412	●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8)	1-38121-001-0	01	1	9409-9412		●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38121-001-0	01	1	9501-	●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38121-004-0	01	1	9409-9412		●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38121-004-0	01	1	9501-		●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38221-023-0	01	1	9207-	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38211-009-0	01	1	9207-		●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) L=25	1-09735-024-0	01	1	9207-	●	●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	9-08011-030-0	01	1	9207-	●	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-38161-608-0	01	1	9207-	●	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-09924-533-1	01	1	9207-	●	●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=15	9-09160-514-0	01	1	9207-	●	●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=14.2	9-09150-514-0	01	1	9207-	●	●
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5) M14	9-99111-414-0	01	1	9207-	●	●
39	STOPPER; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38379-006-0	01	1	9207-	●	●
40	GASKET; AIR SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-09561-324-0	01	1	9207-	●	●
41	GASKET; CYL TO CASE,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38152-009-0	01	1	9207-9408	●	●
41	GASKET; CYL TO CASE,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38152-009-0	01	1	9409-9412	●
41	GASKET; CYL TO CASE,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8)	1-38152-009-0	01	1	9409-9412		●
41	GASKET; CYL TO CASE,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38152-009-0	01	1	9501-9511	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38377-003-0	01	1	9207-	●	●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 FLANGE	0-28181-025-0	02	1	9207-	●	●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5) M20 & PT1/4	9-09902-386-0	01	1	9207-	●	●
49	PLUG; IDLE SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09600-036-0	02	1	9207-	●
50	WASHER; THRUST,IDLE GEAR,TRANS SIDE PT TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38245-003-0	02	1	9207-	●
50	WASHER; THRUST,IDLE GEAR,TRANS SIDE PT TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38226-043-0	02	1	9207-		●
66	BALL; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-00097-009-0	01	1	9207-	●	●
67	PIN; STRAIGHT TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO WO/LEVER(SH5) OD=8 L=16	9-08160-816-0	01	1	9207-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
