◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11311 - FTS(MIDDLE EAST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#15948) — 189 parça

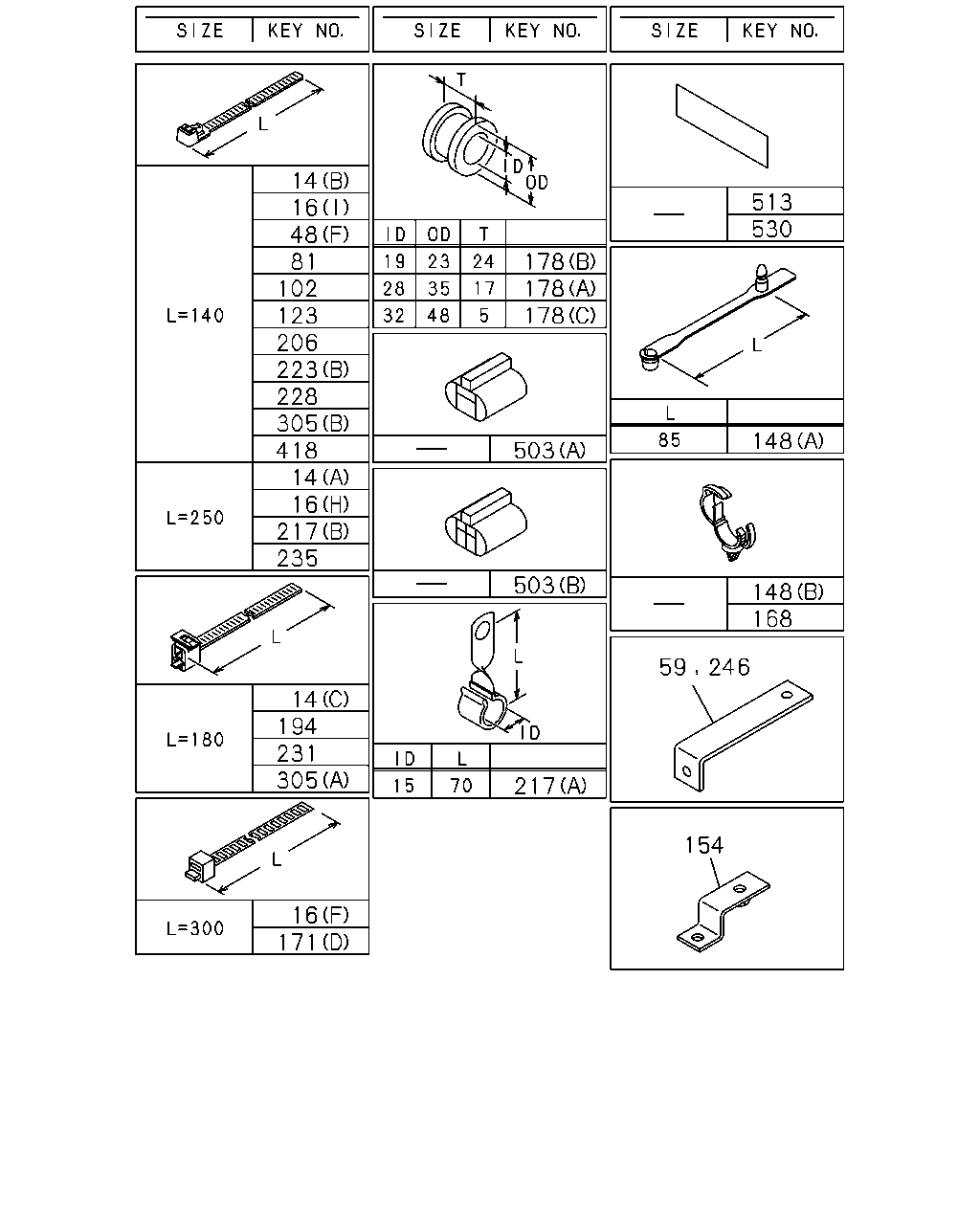

çizim 15753
14 16 48 81 102 123 206 223 228 305 418 14 16 217 235 513 530 178 178 178 148 503 503 148 168 14 194 231 305 217 154 16 171 59 246
BalonParca AdiParca NoAdetTipApplied Date A B
14 CLIP; BAND,HARNESS
(C) L=180 		1-09707-162-1 01 1 9905- ● ●
14 CLIP; BAND,HARNESS
(A) L=250 		5-09707-030-1 01 1 0002-1205 ● ●
14 CLIP; BAND,HARNESS
(A) L=250 		8-98216-430-0 01 1 1206- ● ●
14 CLIP; BAND,HARNESS
(B) L=140 		5-09707-031-1 01 1 0203-0206 ● ●
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 05 1 9905-0110 ● ●
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 07 1 0111-0401 ● ●
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 08 1 0402-0403 ● ●
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0404- ● ●
16 CLIP; HARNESS
(B) ID=28 L=78 		1-09700-858-0 01 1 9905- ● ●
16 CLIP; HARNESS
(B) ID=28 L=78 		1-09700-858-0 01 1 9905- ● ●
16 CLIP; HARNESS
(C) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9905-1001 ● ●
16 CLIP; HARNESS
(C) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9905-1001 ● ●
16 CLIP; HARNESS
(C) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1002- ● ●
16 CLIP; HARNESS
(D) ID=19 H=21 L=50 		1-09700-910-1 01 1 9905- ● ●
16 CLIP; HARNESS
(E) ID=25 L=50 		1-09701-019-0 01 1 9905- ● ●
16 CLIP; HARNESS
(F) L=300 		1-09707-001-1 01 1 9905- ● ●
16 CLIP; HARNESS
(G) OD=9 H=6 		1-09709-178-0 02 1 9905- ● ●
16 CLIP; HARNESS
(H) L=250 		5-09707-030-1 01 1 9905- ● ●
16 CLIP; HARNESS
(I) L=140 		5-09707-031-1 03 1 9905-0110 ● ●
16 CLIP; HARNESS
(I) L=140 		5-09707-031-1 01 1 0111- ● ●
16 CLIP; HARNESS
(J) ID=19 L=32 		9-09525-866-0 01 1 9905-0606 ● ●
16 CLIP; HARNESS
(J) ID=19 L=32 		0-95235-866-0 01 1 0607- ● ●
16 CLIP; HARNESS
(K) ID=20 L=50 		9-09917-430-0 01 1 9905-0301 ● ●
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 06 1 0404- ● ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 13 1 9905-0004 ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 14 1 0005- ●
48 CLIP; FRAME HARNESS
(A) ID=11 L=41 		1-09700-403-0 04 1 9905- ● ●
48 CLIP; FRAME HARNESS
(B) ID=15 L=65 		1-09700-466-0 01 1 9905- ● ●
48 CLIP; FRAME HARNESS
(C) ID=28 L=78 		1-09700-858-0 04 1 9905- ● ●
48 CLIP; FRAME HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9905- ● ●
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 01 1 9905-0006 ● ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 02 1 0007- ●
48 CLIP; FRAME HARNESS
(G) ID=19 L=28 		9-09525-856-0 01 1 9905-0606 ● ●
48 CLIP; FRAME HARNESS
(G) ID=19 L=28 		0-95235-856-0 01 1 0607- ● ●
48 CLIP; FRAME HARNESS
(H) ID=14 L=44 		9-09917-427-0 02 1 9905-0006 ● ●
48 CLIP; FRAME HARNESS
(H) ID=14 L=44 		9-09917-427-0 01 1 0007- ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 03 1 9905-0008 ● ●
48 CLIP; FRAME HARNESS
(I) ID=20 L=70 		1-09700-485-0 03 1 0009- ● ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 15 1 9905-0004 ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 17 1 0005- ●
59 BRACKET; FRAME HARNESS
L=95 		1-82699-085-0 01 1 9905- ● ●
81 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 9905- ● ●
102 CLIP; BAND
L=140 		5-09707-031-1 01 1 0112- ● ●
123 CLIP; CONT UNIT HARNESS
L=140 		5-09707-031-1 01 1 9905- ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=85 		8-94232-611-0 01 1 9905- ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 01 1 9905- ● ●
154 BRACKET; STARTER EARTH CABLE 1-47465-518-0 01 1 0301- ● ●
154 BRACKET; STARTER EARTH CABLE 1-47465-518-0 01 1 9905-0212 ● ●
168 CLIP; DASH HARNESS
ID=6 & 10-13 		8-97069-515-0 05 1 9905- ● ●
171 CLIP; STARTER HARNESS
(C) OD=9 H=6 		1-09709-178-0 02 1 9905- ● ●
171 CLIP; STARTER HARNESS
(A) ID=18 L=44 		8-94225-185-0 01 1 9905-0801 ● ●
171 CLIP; STARTER HARNESS
(A) ID=18 L=44 		8-97367-985-1 01 1 0802- ● ●
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		9-09525-856-0 04 1 9905-0606 ● ●
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		0-95235-856-0 04 1 0607- ● ●
171 CLIP; STARTER HARNESS
(D) L=300 		1-09707-001-1 01 1 0005- ● ●
178 GROMMET; HARNESS
(B) ID=19 OD=23 T=24 		1-09332-103-0 01 1 9905-0812 ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0901- ● ●
178 GROMMET; HARNESS
(C) ID=32 OD=48 T=5 		9-09575-232-0 01 1 9905- ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 9905- ● ●
194 CLIP; BAND
L=180 		1-09707-162-1 04 1 9905- ● ●
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 9905- ● ●
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 		1-09700-980-0 02 1 9905-0208 ● ●
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 9905- ● ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 9905- ● ●
223 CLIP; AIR TANK HARNESS
(B) L=140 		5-09707-031-1 01 1 9905- ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=20 L=50 		9-09917-430-0 06 1 9905-9909 ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=20 L=50 		9-09917-430-0 04 1 9910-0004 ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=20 L=50 		9-09917-430-0 06 1 0005- ● ●
223 CLIP; AIR TANK HARNESS
(D) ID=14 L=44 		9-09917-427-0 02 1 9910-0004 ● ●
228 CLIP; COOLER HARNESS
L=140 		5-09707-031-1 01 1 9905- ● ●
231 CLIP; BAND,OIL PRESS
L=180 		1-09707-162-1 01 1 9905- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
L=250 		5-09707-030-1 01 1 9905- ● ●
246 BRACKET; CLIP,SPD SENSOR
L=55 		1-47475-304-0 01 1 0005- ● ●
305 CLIP; ENG HARNESS
(A) L=180 		1-09707-162-1 01 1 9905- ● ●
305 CLIP; ENG HARNESS
EXC. TACHOMETER<UD7> (B) L=140 		5-09707-031-1 01 1 9905- ● ●
418 CLIP; LAMP HARNESS
RADIO CLARION(SK2) L=140 		5-09707-031-1 01 1 0703- ● ●
503 CONNECTOR
(A) 		1-82690-668-0 01 1 0102- ● ●
503 CONNECTOR
(A) 		1-82690-668-0 01 1 0102- ● ●
503 CONNECTOR
STARTER SWITCH DELETION<E5D> (B) 		1-82690-666-0 01 1 0212- ● ●
513 TAPE; SOFT,HARNESS
100X40 		1-72498-022-0 02 1 9905-0101 ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 06 1 0102- ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 01 1 0407- ● ●

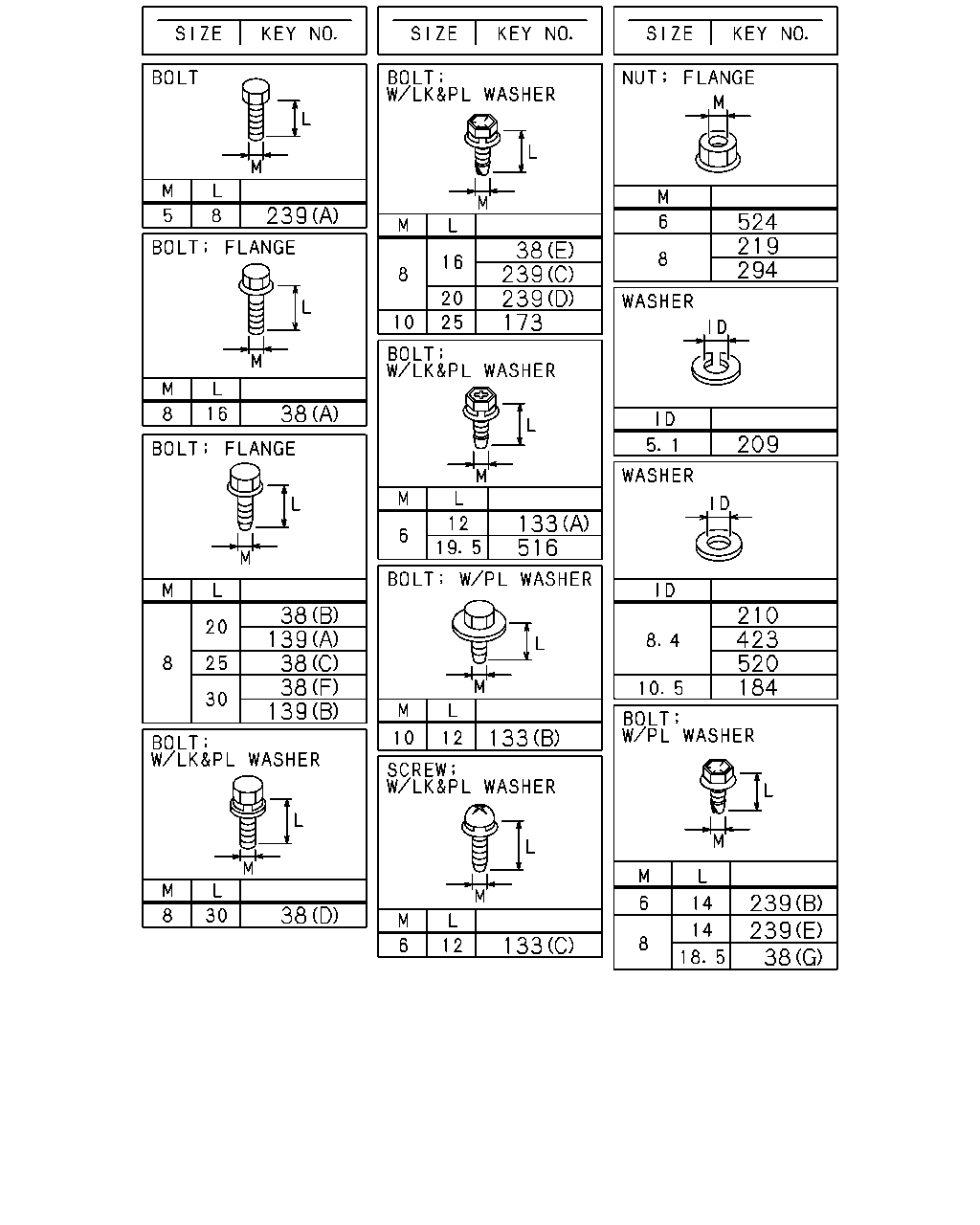

çizim 64683
239 524 219 294 38 239 239 173 38 209 133 516 38 139 38 38 139 210 423 520 184 133 239 239 38 38 133
BalonParca AdiParca NoAdetTipApplied Date A B
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 04 1 9905-0512 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28050-816-0 04 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 02 1 9905-0512 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28680-825-0 01 1 9905-0512 ● ●
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28680-825-0 02 1 9905-0512 ● ●
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9905-0512 ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(C) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9905-1201 ● ●
38 BOLT; CLIP,HARNESS
(G) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1202- ● ●
38 BOLT; CLIP,HARNESS
(F) M8X30 FLANGE 		0-28680-830-0 02 1 9905-0512 ● ●
38 BOLT; CLIP,HARNESS
(F) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(E) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9908-0001 ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 9905-0110 ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111- ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 01 1 9905-0512 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0601- ● ●
139 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0005-0512 ● ●
139 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 9905- ● ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 9905- ● ●
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 9905-0603 ● ●
209 WASHER; LK,GEN,EARTH
ID=5.1 		0-91510-505-0 01 1 0604- ● ●
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 9905- ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 02 1 9905-0602 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 05 1 9905-0602 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 05 1 0603- ● ●
239 BOLT; GRAND
(A) M5X8 		0-20800-508-0 01 1 9905- ● ●
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 9905-1007 ● ●
239 BOLT; GRAND
(B) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008- ● ●
239 BOLT; GRAND
(D) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9905-9907 ● ●
239 BOLT; GRAND
(C) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9908-1201 ● ●
239 BOLT; GRAND
(E) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202- ● ●
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 9905-0602 ● ●
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 01 1 9905-0001 ● ●
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9905- ● ●
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 9905- ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 02 1 9905-0602 ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 02 1 0603- ● ●

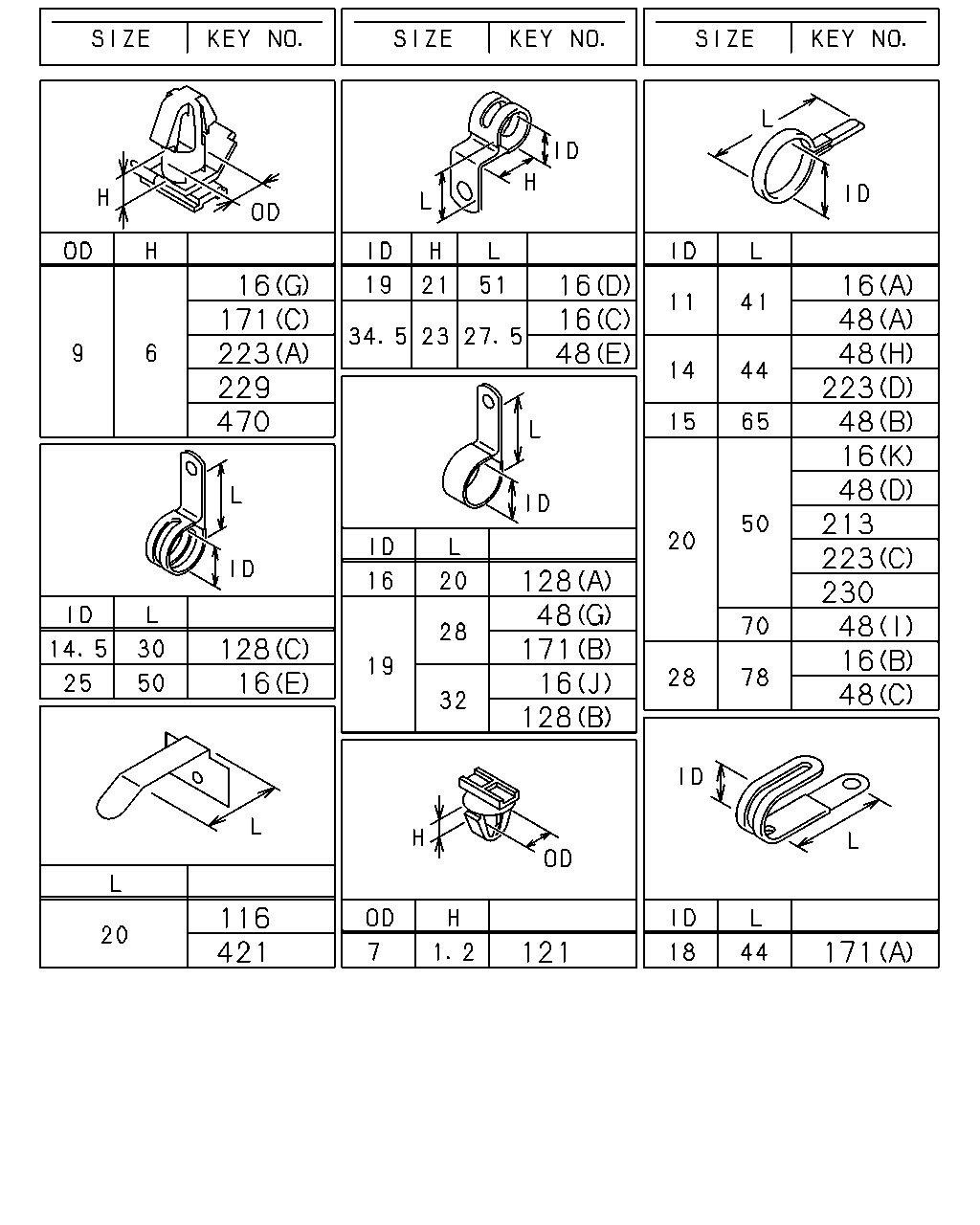

çizim 64719
16 171 223 229 470 16 16 48 16 48 48 223 48 16 48 213 223 230 48 16 48 128 48 171 16 128 128 16 116 421 121 171
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 05 1 9905-0110 ● ●
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 07 1 0111-0401 ● ●
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 08 1 0402-0403 ● ●
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0404- ● ●
16 CLIP; HARNESS
(B) ID=28 L=78 		1-09700-858-0 01 1 9905- ● ●
16 CLIP; HARNESS
(B) ID=28 L=78 		1-09700-858-0 01 1 9905- ● ●
16 CLIP; HARNESS
(C) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9905-1001 ● ●
16 CLIP; HARNESS
(C) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9905-1001 ● ●
16 CLIP; HARNESS
(C) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1002- ● ●
16 CLIP; HARNESS
(D) ID=19 H=21 L=50 		1-09700-910-1 01 1 9905- ● ●
16 CLIP; HARNESS
(E) ID=25 L=50 		1-09701-019-0 01 1 9905- ● ●
16 CLIP; HARNESS
(F) L=300 		1-09707-001-1 01 1 9905- ● ●
16 CLIP; HARNESS
(G) OD=9 H=6 		1-09709-178-0 02 1 9905- ● ●
16 CLIP; HARNESS
(H) L=250 		5-09707-030-1 01 1 9905- ● ●
16 CLIP; HARNESS
(I) L=140 		5-09707-031-1 03 1 9905-0110 ● ●
16 CLIP; HARNESS
(I) L=140 		5-09707-031-1 01 1 0111- ● ●
16 CLIP; HARNESS
(J) ID=19 L=32 		9-09525-866-0 01 1 9905-0606 ● ●
16 CLIP; HARNESS
(J) ID=19 L=32 		0-95235-866-0 01 1 0607- ● ●
16 CLIP; HARNESS
(K) ID=20 L=50 		9-09917-430-0 01 1 9905-0301 ● ●
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 06 1 0404- ● ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 13 1 9905-0004 ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 14 1 0005- ●
48 CLIP; FRAME HARNESS
(A) ID=11 L=41 		1-09700-403-0 04 1 9905- ● ●
48 CLIP; FRAME HARNESS
(B) ID=15 L=65 		1-09700-466-0 01 1 9905- ● ●
48 CLIP; FRAME HARNESS
(C) ID=28 L=78 		1-09700-858-0 04 1 9905- ● ●
48 CLIP; FRAME HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9905- ● ●
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 01 1 9905-0006 ● ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 02 1 0007- ●
48 CLIP; FRAME HARNESS
(G) ID=19 L=28 		9-09525-856-0 01 1 9905-0606 ● ●
48 CLIP; FRAME HARNESS
(G) ID=19 L=28 		0-95235-856-0 01 1 0607- ● ●
48 CLIP; FRAME HARNESS
(H) ID=14 L=44 		9-09917-427-0 02 1 9905-0006 ● ●
48 CLIP; FRAME HARNESS
(H) ID=14 L=44 		9-09917-427-0 01 1 0007- ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 03 1 9905-0008 ● ●
48 CLIP; FRAME HARNESS
(I) ID=20 L=70 		1-09700-485-0 03 1 0009- ● ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 15 1 9905-0004 ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 17 1 0005- ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 9905-0009 ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 0010-0112 ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 0201-1409 ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 1410- ● ●
121 CLIP; FACIA HARNESS
OD=7 H=1.2 		8-94364-750-0 02 1 9905-0404 ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 9905-0606 ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607- ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=19 L=32 		9-09525-862-0 01 1 9905-0011 ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(C) ID=14.5 L=30 		9-09916-893-1 01 1 0012- ● ●
171 CLIP; STARTER HARNESS
(C) OD=9 H=6 		1-09709-178-0 02 1 9905- ● ●
171 CLIP; STARTER HARNESS
(A) ID=18 L=44 		8-94225-185-0 01 1 9905-0801 ● ●
171 CLIP; STARTER HARNESS
(A) ID=18 L=44 		8-97367-985-1 01 1 0802- ● ●
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		9-09525-856-0 04 1 9905-0606 ● ●
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		0-95235-856-0 04 1 0607- ● ●
171 CLIP; STARTER HARNESS
(D) L=300 		1-09707-001-1 01 1 0005- ● ●
213 CLIP; END CROSS HARNESS
ID=20 L=50 		9-09917-430-0 03 1 9905- ● ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 9905- ● ●
223 CLIP; AIR TANK HARNESS
(B) L=140 		5-09707-031-1 01 1 9905- ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=20 L=50 		9-09917-430-0 06 1 9905-9909 ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=20 L=50 		9-09917-430-0 04 1 9910-0004 ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=20 L=50 		9-09917-430-0 06 1 0005- ● ●
223 CLIP; AIR TANK HARNESS
(D) ID=14 L=44 		9-09917-427-0 02 1 9910-0004 ● ●
229 CLIP; STARTER SUB SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 9905- ● ●
230 CLIP; C/MBR HARNESS
ID=20 L=50 		9-09917-430-0 02 1 9905- ● ●
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 9905-0101 ● ●
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 01 1 0102-0406 ● ●
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 9905- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
