Isuzu WW
▶
TRUCKS
▶
FTS
▶
11311 - FTS(MIDDLE EAST)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-10 - WIRING HARNESS AND FUSE
▶
8-10 — WIRING HARNESS AND FUSE
(#15947) — 99 parça
Tümü
A - FTS6MC
B - FTS6MF
◀

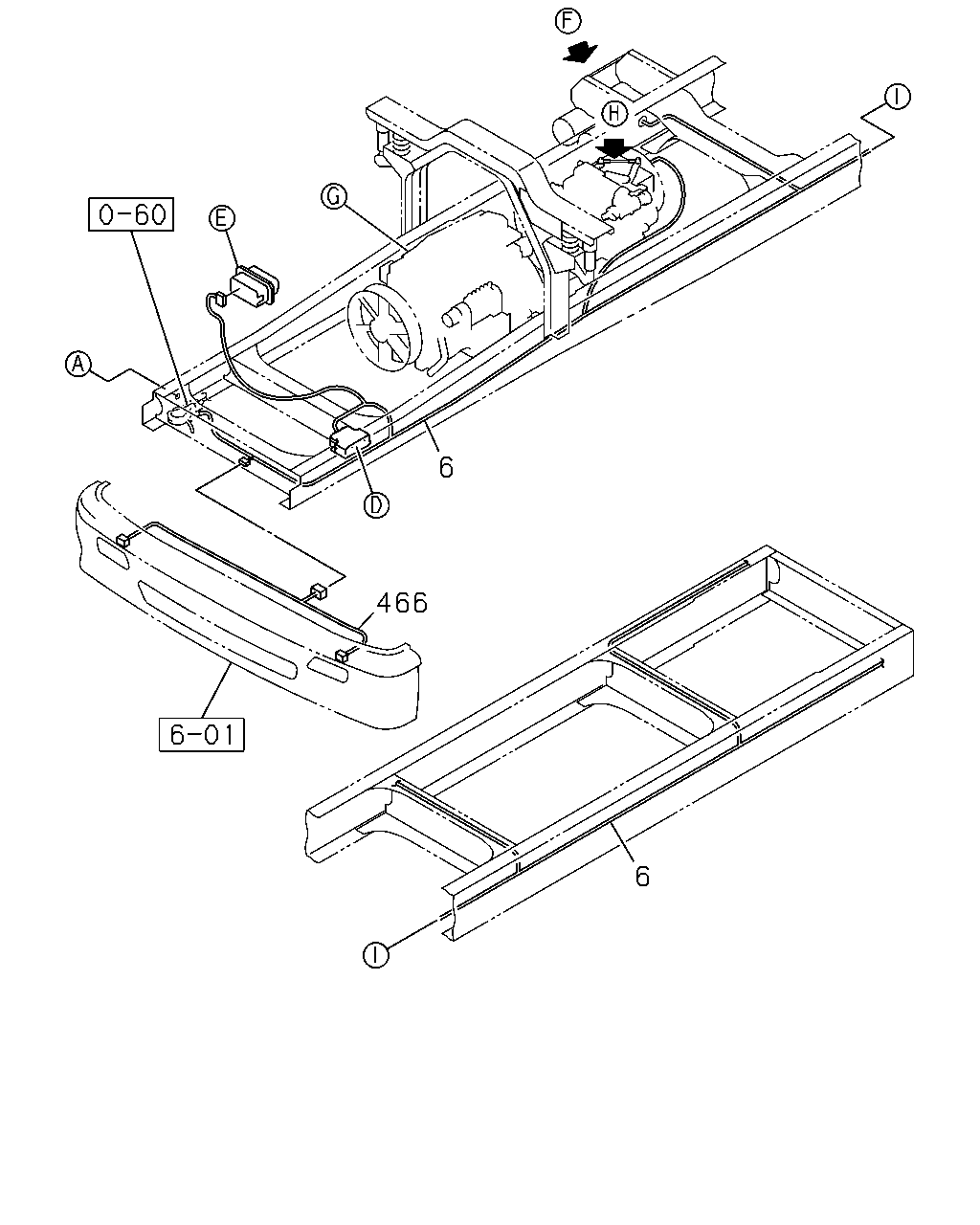

[810A] BUMPER AND FRAME HARNESS (13 parça)

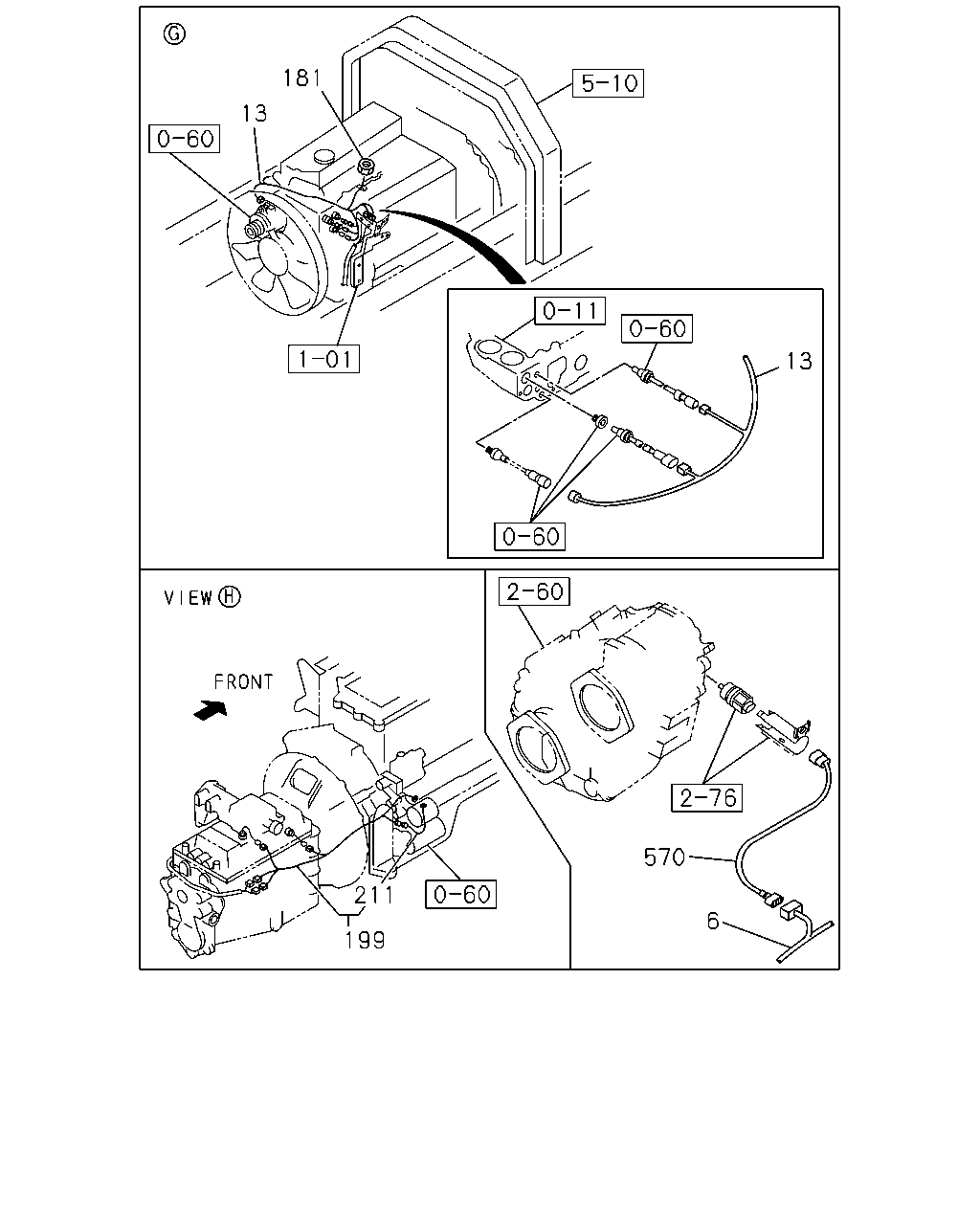

[810A] ENG HARNESS AND STARTER HARNESS (16 parça)

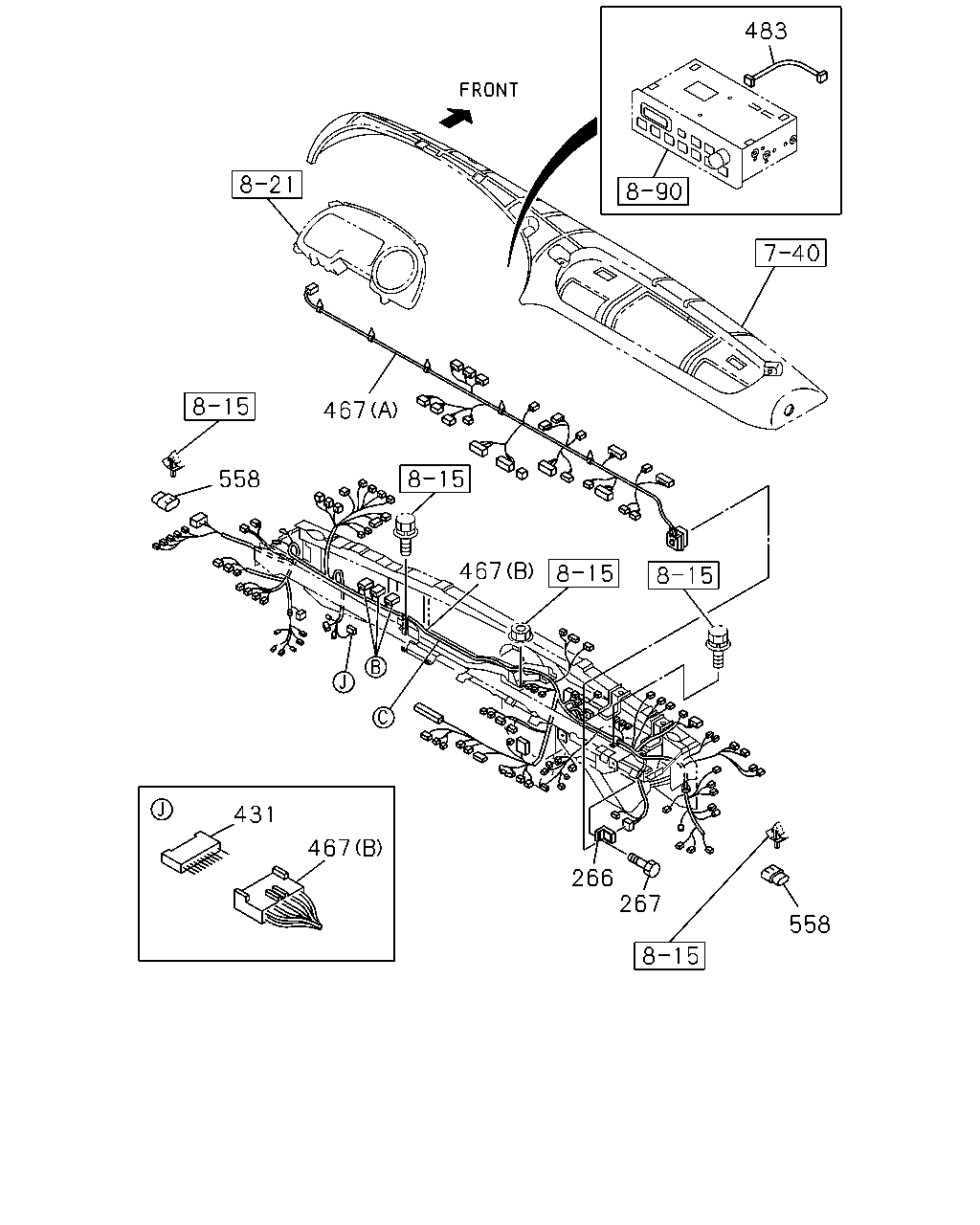

[810A] FACIA HARNESS AND CONNECTOR (14 parça)
[810A] FUSE BOX AND FUSE (18 parça)

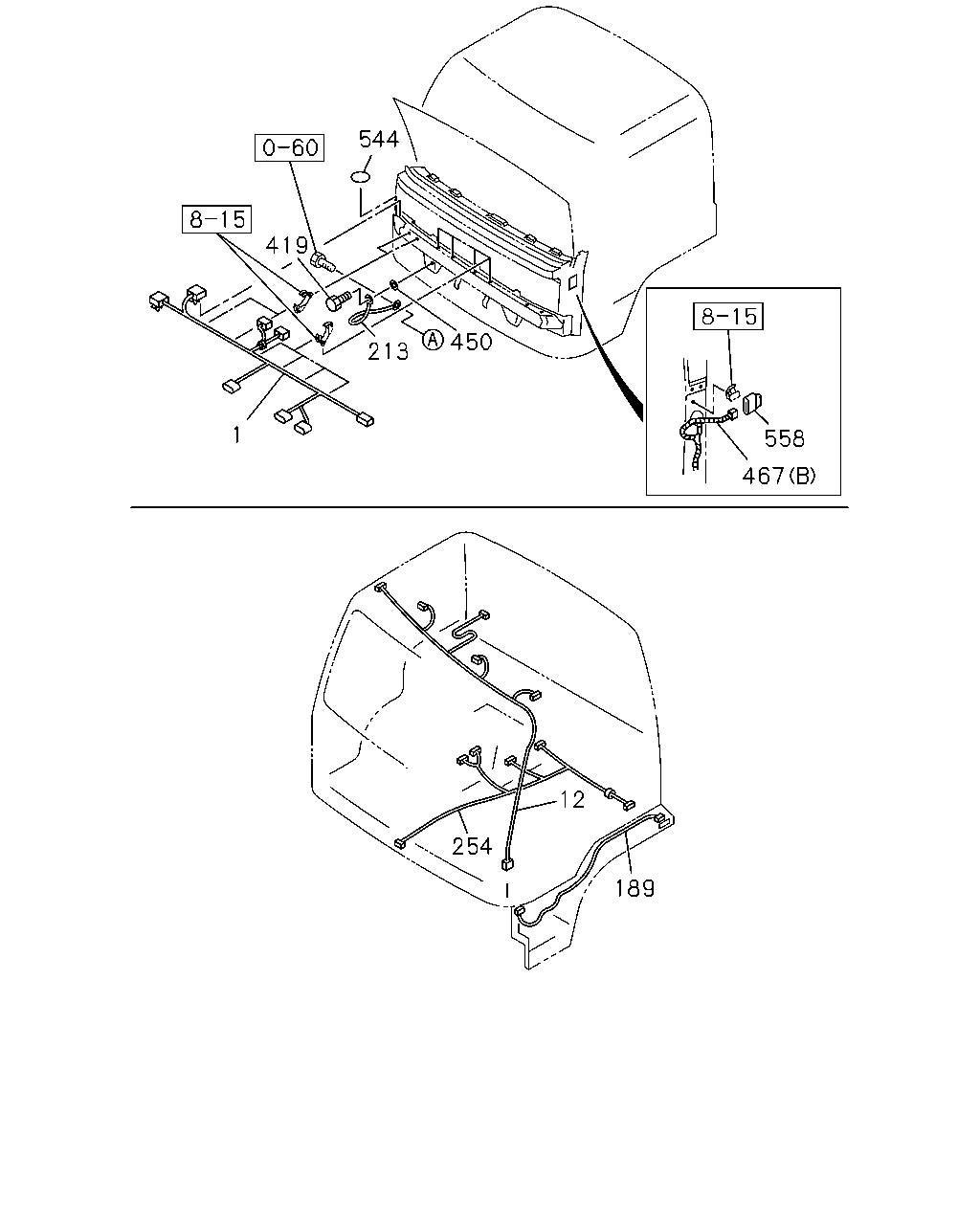

[810A] CAB,DOOR,ROOF AND FLOOR HARNESS (21 parça)
[810A] AIR TANK HARN AND CONN BOX (17 parça)
▶
6
466
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
6
HARNESS; FRAME
WHEEL BASE 3600MM(36W)
1-82671-294-1
01
1
9905-0004
●
6
HARNESS; FRAME
WHEEL BASE 3600MM(36W) HEADLAMPS RECTANGULAR<TR4>
1-82673-582-2
01
1
0005-0401
●
6
HARNESS; FRAME
WHEEL BASE 3600MM(36W) HEADLAMPS RECTANGULAR<TR4>
1-82677-427-0
01
1
0402-0407
●
6
HARNESS; FRAME
WHEEL BASE 3600MM(36W) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>
1-82673-261-3
01
1
0005-0401
●
6
HARNESS; FRAME
WHEEL BASE 3600MM(36W) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>
1-82677-422-1
01
1
0402-
●
6
HARNESS; FRAME
WHEEL BASE 4200MM(42W)
1-82671-295-1
01
1
9905-0004
●
6
HARNESS; FRAME
WHEEL BASE 4200MM(42W) HEADLAMPS RECTANGULAR<TR4>
1-82673-583-2
01
1
0005-0401
●
6
HARNESS; FRAME
WHEEL BASE 4200MM(42W) HEADLAMPS RECTANGULAR<TR4>
1-82677-428-0
01
1
0402-0407
●
6
HARNESS; FRAME
WHEEL BASE 4200MM(42W) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>
1-82673-262-3
01
1
0005-0401
●
6
HARNESS; FRAME
WHEEL BASE 4200MM(42W) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>
1-82677-423-1
01
1
0402-
●
466
HARNESS; BUMPER
1-82638-996-1
01
1
9905-0004
●
●
466
HARNESS; BUMPER
HEADLAMPS RECTANGULAR<TR4>
1-82638-996-1
01
1
0005-0407
●
●
466
HARNESS; BUMPER
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>
1-82638-758-1
01
1
0005-
●
●
181
13
13
570
211
6
199
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
6
HARNESS; FRAME
WHEEL BASE 3600MM(36W)
1-82671-294-1
01
1
9905-0004
●
6
HARNESS; FRAME
WHEEL BASE 3600MM(36W) HEADLAMPS RECTANGULAR<TR4>
1-82673-582-2
01
1
0005-0401
●
6
HARNESS; FRAME
WHEEL BASE 3600MM(36W) HEADLAMPS RECTANGULAR<TR4>
1-82677-427-0
01
1
0402-0407
●
6
HARNESS; FRAME
WHEEL BASE 3600MM(36W) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>
1-82673-261-3
01
1
0005-0401
●
6
HARNESS; FRAME
WHEEL BASE 3600MM(36W) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>
1-82677-422-1
01
1
0402-
●
6
HARNESS; FRAME
WHEEL BASE 4200MM(42W)
1-82671-295-1
01
1
9905-0004
●
6
HARNESS; FRAME
WHEEL BASE 4200MM(42W) HEADLAMPS RECTANGULAR<TR4>
1-82673-583-2
01
1
0005-0401
●
6
HARNESS; FRAME
WHEEL BASE 4200MM(42W) HEADLAMPS RECTANGULAR<TR4>
1-82677-428-0
01
1
0402-0407
●
6
HARNESS; FRAME
WHEEL BASE 4200MM(42W) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>
1-82673-262-3
01
1
0005-0401
●
6
HARNESS; FRAME
WHEEL BASE 4200MM(42W) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>
1-82677-423-1
01
1
0402-
●
13
HARNESS; ENG
1-82640-714-0
01
1
9905-
●
●
181
NUT; GLOW PLUG HARNESS
M4 FLANGE
5-09440-007-0
01
1
9905-
●
●
199
HARNESS; STARTER
1-82640-966-1
01
1
9905-
●
●
211
WIRE; FUSIBLE LINK,STARTER
WHITE
1-82659-124-0
01
1
9905-
●
●
570
HARNESS; SPEED SENSOR
1-82670-078-0
01
1
0005-0206
●
●
570
HARNESS; SPEED SENSOR
1-82676-547-0
01
1
0207-0401
●
●
483
467
558
467
431
467
266
267
558
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
266
BRACKET; CONN BOX
1-82699-580-0
01
1
9905-
●
●
267
BOLT; BRKT
M6X16 W/PL WASHER
1-09981-438-0
02
1
9905-
●
●
431
CONNECTOR; JOINT
10P BROWN
1-82699-601-0
01
1
9905-
●
●
467
HARNESS; FACIA
(B)
1-82628-835-0
01
1
9905-0004
●
●
467
HARNESS; FACIA
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B)
1-82629-382-0
01
1
0005-0008
●
●
467
HARNESS; FACIA
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B)
1-82629-891-4
01
1
0009-
●
●
467
HARNESS; FACIA
HEADLAMPS RECTANGULAR<TR4> EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B)
1-82629-387-3
01
1
0005-0407
●
●
467
HARNESS; FACIA
HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> HEADLAMPS RECTANGULAR<TR4> (B)
1-82629-388-3
01
1
0005-0407
●
●
467
HARNESS; FACIA
HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)
1-82629-383-0
01
1
0005-0008
●
●
467
HARNESS; FACIA
HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)
1-82629-892-4
01
1
0009-
●
●
467
HARNESS; FACIA
HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)
1-82626-562-3
01
1
9905-
●
●
467
HARNESS; FACIA
EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)
1-82627-628-1
01
1
9905-
●
●
483
HARNESS; EXT,RADIO
RADIO CLARION(SK2)
8-98075-645-0
01
1
0703-
●
●
558
CONNECTOR; HARNESS
1-82690-666-0
02
1
9905-
●
●
41
5
4
467
5
4
62
467
10
27
27
467
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
4
BOX ASM; FUSE,HARNESS
(A) 7.5AX15
1-82510-391-0
01
1
9905-
●
●
4
BOX ASM; FUSE,HARNESS
(B) 15AX9
1-82510-485-0
01
1
9905-
●
●
5
FUSE; FACIA HARNESS
15A BLUE
5-82516-003-0
09
1
9905-
●
●
5
FUSE; FACIA HARNESS
7.5A BROWN
8-94159-007-0
15
1
9905-
●
●
10
BOX; FUSE,HARNESS
1-82510-409-0
01
1
9905-
●
●
27
FUSE UNIT
(A) 40A GREEN
8-94468-662-0
03
1
9905-
●
●
27
FUSE UNIT
(B) 60A YELLOW
8-94468-669-0
01
1
9905-
●
●
41
PULLER; FUSE
L=25.3 B=11.5
8-94121-482-0
01
1
9905-
●
●
62
DIODE; HARNESS
BLACK 10P
1-82699-703-0
01
1
9905-
●
●
467
HARNESS; FACIA
(B)
1-82628-835-0
01
1
9905-0004
●
●
467
HARNESS; FACIA
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B)
1-82629-382-0
01
1
0005-0008
●
●
467
HARNESS; FACIA
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B)
1-82629-891-4
01
1
0009-
●
●
467
HARNESS; FACIA
HEADLAMPS RECTANGULAR<TR4> EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B)
1-82629-387-3
01
1
0005-0407
●
●
467
HARNESS; FACIA
HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> HEADLAMPS RECTANGULAR<TR4> (B)
1-82629-388-3
01
1
0005-0407
●
●
467
HARNESS; FACIA
HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)
1-82629-383-0
01
1
0005-0008
●
●
467
HARNESS; FACIA
HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)
1-82629-892-4
01
1
0009-
●
●
467
HARNESS; FACIA
HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)
1-82626-562-3
01
1
9905-
●
●
467
HARNESS; FACIA
EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)
1-82627-628-1
01
1
9905-
●
●
544
419
450
213
1
558
467
12
254
189
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
HARNESS; CAB
1-82625-725-3
01
1
9905-
●
●
12
HARNESS; ROOF
1-82625-713-4
01
1
9905-
●
●
189
HARNESS; EXT
1-82625-673-2
02
1
9905-
●
●
213
CABLE; EARTH,CAB TO FRAME
1-82657-055-1
01
1
9905-
●
●
254
HARNESS; CAB FLOOR
1-82628-836-0
01
1
9905-0004
●
●
254
HARNESS; CAB FLOOR
1-82629-307-3
01
1
0005-
●
●
419
BOLT; CAB EARTH
M8X25 W/LK&PL WASHER
8-97087-203-0
01
1
9905-1201
●
●
419
BOLT; CAB EARTH
M8X24 W/PL WASHER
8-98141-256-1
01
1
1202-
●
●
450
WASHER; PL,CAB EARTH
ID=8.4 OD=18
9-09164-608-0
01
1
0205-0605
●
●
450
WASHER; PL,CAB EARTH
ID=8.4 OD=18
0-91614-608-0
01
1
0606-
●
●
467
HARNESS; FACIA
(B)
1-82628-835-0
01
1
9905-0004
●
●
467
HARNESS; FACIA
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B)
1-82629-382-0
01
1
0005-0008
●
●
467
HARNESS; FACIA
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B)
1-82629-891-4
01
1
0009-
●
●
467
HARNESS; FACIA
HEADLAMPS RECTANGULAR<TR4> EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B)
1-82629-387-3
01
1
0005-0407
●
●
467
HARNESS; FACIA
HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> HEADLAMPS RECTANGULAR<TR4> (B)
1-82629-388-3
01
1
0005-0407
●
●
467
HARNESS; FACIA
HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)
1-82629-383-0
01
1
0005-0008
●
●
467
HARNESS; FACIA
HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)
1-82629-892-4
01
1
0009-
●
●
467
HARNESS; FACIA
HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)
1-82626-562-3
01
1
9905-
●
●
467
HARNESS; FACIA
EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)
1-82627-628-1
01
1
9905-
●
●
544
SEAL; FRT MTG RAIL
OD=25 BLACK
1-76798-019-0
01
1
9905-
●
●
558
CONNECTOR; HARNESS
1-82690-666-0
02
1
9905-
●
●
276
277
265
262
6
264
201
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
6
HARNESS; FRAME
WHEEL BASE 3600MM(36W)
1-82671-294-1
01
1
9905-0004
●
6
HARNESS; FRAME
WHEEL BASE 3600MM(36W) HEADLAMPS RECTANGULAR<TR4>
1-82673-582-2
01
1
0005-0401
●
6
HARNESS; FRAME
WHEEL BASE 3600MM(36W) HEADLAMPS RECTANGULAR<TR4>
1-82677-427-0
01
1
0402-0407
●
6
HARNESS; FRAME
WHEEL BASE 3600MM(36W) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>
1-82673-261-3
01
1
0005-0401
●
6
HARNESS; FRAME
WHEEL BASE 3600MM(36W) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>
1-82677-422-1
01
1
0402-
●
6
HARNESS; FRAME
WHEEL BASE 4200MM(42W)
1-82671-295-1
01
1
9905-0004
●
6
HARNESS; FRAME
WHEEL BASE 4200MM(42W) HEADLAMPS RECTANGULAR<TR4>
1-82673-583-2
01
1
0005-0401
●
6
HARNESS; FRAME
WHEEL BASE 4200MM(42W) HEADLAMPS RECTANGULAR<TR4>
1-82677-428-0
01
1
0402-0407
●
6
HARNESS; FRAME
WHEEL BASE 4200MM(42W) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>
1-82673-262-3
01
1
0005-0401
●
6
HARNESS; FRAME
WHEEL BASE 4200MM(42W) HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>
1-82677-423-1
01
1
0402-
●
201
HARNESS; AIR TANK
1-82670-538-1
01
1
9905-
●
●
262
COVER; CONNECTOR BOX,FRT PNL
1-82699-605-1
01
1
9905-
●
●
264
NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER
1-09984-180-0
04
1
9905-
●
●
265
BOX; CONN,FRT PNL
1-82699-538-3
01
1
9905-
●
●
276
COVER; BOX,FRAME HARNESS
1-82699-558-3
01
1
9905-
●
●
277
BOLT; BOX ASM FIX
M6X25 W/LK&PL WASHER
0-50140-625-0
02
1
9905-0512
●
●
277
BOLT; BOX ASM FIX
M6X25 W/LK&PL WASHER
0-50640-625-0
02
1
0601-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
