7-50 — FRONT SEAT (#15941) — 153 parça

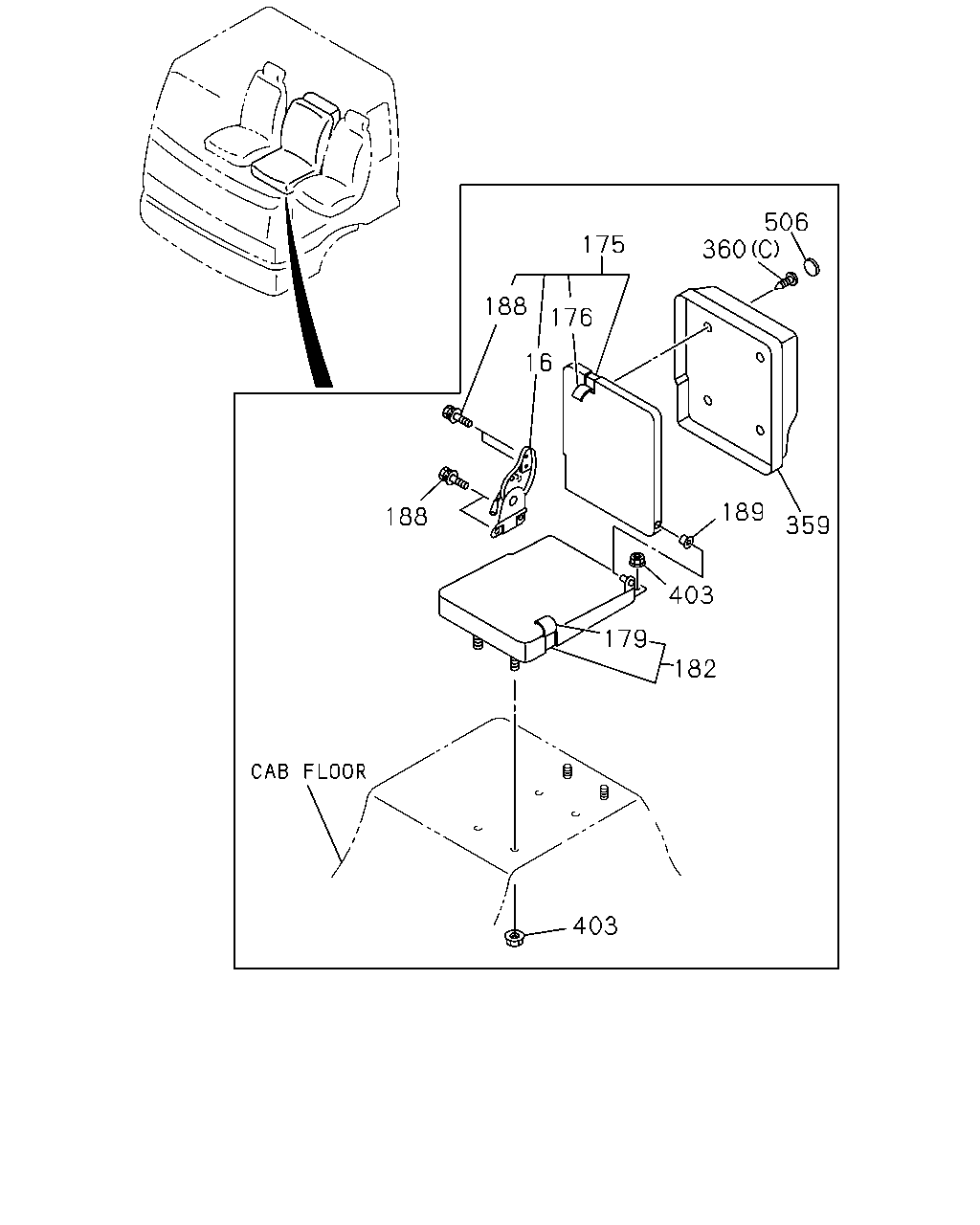

506 360 175 188 176 16 189 188 359 403 179 182 403

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	ADJUSTER ASM; RECLINING CENTER SEAT<SA1>	1-75418-057-1	01	1	9905-0003	●	●
16	ADJUSTER ASM; RECLINING CENTER SEAT<SA1>	1-75418-062-0	01	1	0004-0004	●	●
16	ADJUSTER ASM; RECLINING CENTER SEAT<SA1>	1-75418-061-0	01	1	0005-0211	●	●
16	ADJUSTER ASM; RECLINING CENTER SEAT<SA1>	1-75418-062-1	01	1	0212-	●	●
175	BACK ASM; PASSENGER CENTER SEAT CENTER SEAT<SA1>	1-75028-925-0	01	1	9905-0003	●	●
175	BACK ASM; PASSENGER CENTER SEAT CENTER SEAT<SA1>	1-75207-253-0	01	1	0004-0004	●	●
175	BACK ASM; PASSENGER CENTER SEAT CENTER SEAT<SA1>	1-75026-856-3	01	1	0005-	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK CENTER SEAT<SA1>	1-75116-258-1	01	1	9905-0003	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK CENTER SEAT<SA1>	1-75116-641-0	01	1	0004-0004	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK CENTER SEAT<SA1>	1-75116-710-1	01	1	0005-	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH CENTER SEAT<SA1>	1-75116-223-1	01	1	9905-0003	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH CENTER SEAT<SA1>	1-75116-629-0	01	1	0004-0004	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH CENTER SEAT<SA1>	1-75116-692-1	01	1	0005-	●	●
182	CUSHION ASM; CENTER SEAT CENTER SEAT<SA1>	1-75028-533-2	01	1	9905-0003	●	●
182	CUSHION ASM; CENTER SEAT CENTER SEAT<SA1>	1-75026-831-0	01	1	0004-0004	●	●
182	CUSHION ASM; CENTER SEAT CENTER SEAT<SA1>	1-75026-841-4	01	1	0005-	●	●
188	BOLT; BACK TO CUSHION CENTER SEAT<SA1> M10X16 FLANGE	1-75198-053-0	04	1	9905-	●	●
189	BUSHING; HINGE,CENTER SEAT BACK CENTER SEAT<SA1>	8-97854-900-0	01	1	9905-	●	●
359	BOX; PARCEL CENTER SEAT<SA1>	1-72538-157-2	01	1	9905-0211	●	●
359	BOX; PARCEL CENTER SEAT<SA1>	1-72538-275-4	01	1	0212-1006	●	●
359	BOX; PARCEL CENTER SEAT<SA1>	8-98145-114-0	01	1	1007-	●	●
360	SCREW; PARCEL CENTER SEAT<SA1> (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	9905-0612	●	●
360	SCREW; PARCEL CENTER SEAT<SA1> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0701-1006	●	●
360	SCREW; PARCEL CENTER SEAT<SA1> (D) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1007-	●	●
360	SCREW; PARCEL CENTER SEAT<SA1> (B) M4X16	0-70080-416-0	06	1	9905-0612	●	●
360	SCREW; PARCEL CENTER SEAT<SA1> (B) M4X16	0-70040-416-0	06	1	0701-1104	●	●
360	SCREW; PARCEL CENTER SEAT<SA1> (B) M4X16	0-70080-416-0	06	1	1105-	●	●
360	SCREW; PARCEL CENTER SEAT<SA1> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	9905-0310	●	●
360	SCREW; PARCEL CENTER SEAT<SA1> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	05	1	0311-1006	●	●
360	SCREW; PARCEL CENTER SEAT<SA1> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	1007-	●	●
403	NUT; CENTER SEAT EXC. CENTER SEAT DELETE 2 CREWS<SP9> M8 FLANGE	8-94279-518-0	04	1	9905-0312	●	●
403	NUT; CENTER SEAT EXC. CENTER SEAT DELETE 2 CREWS<SP9> M8 FLANGE	1-75538-207-0	04	1	0401-0703	●	●
403	NUT; CENTER SEAT EXC. CENTER SEAT DELETE 2 CREWS<SP9> M8 FLANGE	0-91180-108-0	04	1	0704-	●	●
506	CAP; PARCEL BOX CENTER SEAT<SA1>	1-09983-164-0	04	1	9905-0211	●	●
506	CAP; PARCEL BOX CENTER SEAT<SA1>	1-09983-180-3	04	1	0212-1006	●	●
506	CAP; PARCEL BOX CENTER SEAT<SA1>	1-09983-180-3	02	1	1007-	●	●

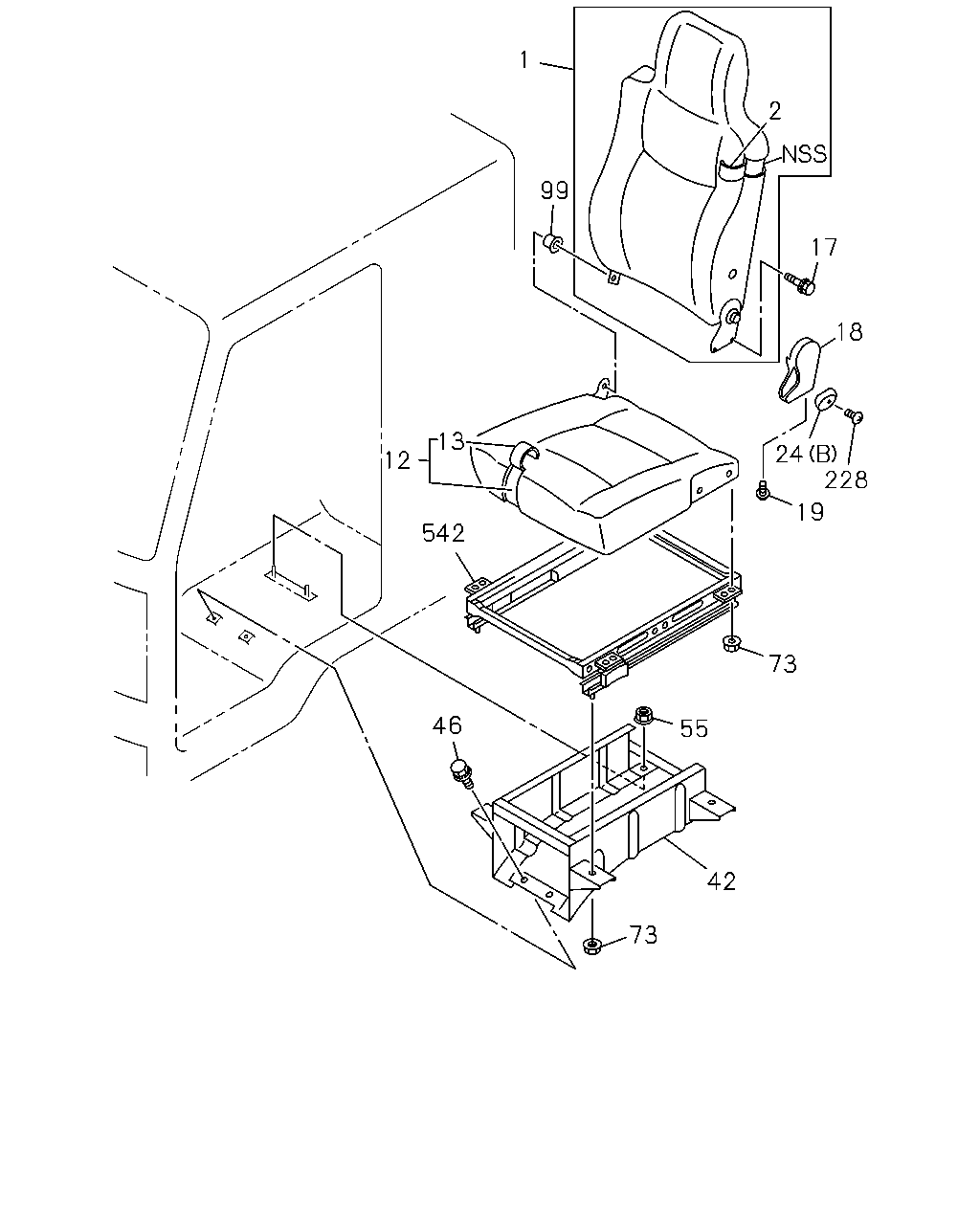

1 2 99 17 18 24 228 13 12 19 542 73 46 55 42 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT	1-75028-615-2	01	1	9905-0003	●	●
1	BACK ASM; SEAT	1-75026-720-0	01	1	0004-0004	●	●
1	BACK ASM; SEAT	1-75026-735-0	01	1	0005-0105	●	●
1	BACK ASM; SEAT	1-75208-074-3	01	1	0106-	●	●
2	COVER; TRIM,FRT SEAT,BACK	1-75116-273-1	01	1	9905-0003	●	●
2	COVER; TRIM,FRT SEAT,BACK	1-75116-599-0	01	1	0004-0004	●	●
2	COVER; TRIM,FRT SEAT,BACK	1-75116-592-1	01	1	0005-	●	●
12	CUSHION; SEAT,FRT	1-75028-599-3	01	1	9905-0003	●	●
12	CUSHION; SEAT,FRT	1-75026-685-0	01	1	0004-0004	●	●
12	CUSHION; SEAT,FRT	1-75026-701-1	01	1	0005-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION	1-75116-277-2	01	1	9905-0003	●	●
13	COVER; TRIM,FRT SEAT,CUSHION	1-75116-553-0	01	1	0004-0004	●	●
13	COVER; TRIM,FRT SEAT,CUSHION	1-75116-689-1	01	1	0005-	●	●
17	BOLT; RECLINING M8X18	8-94279-109-1	02	1	9905-0003	●	●
17	BOLT; RECLINING M8X20	8-97255-906-0	02	1	0004-	●	●
18	COVER; RECLINING	1-75418-052-0	01	1	9905-0004	●	●
18	COVER; RECLINING DARK GRAY	8-97859-018-0	01	1	0005-	●	●
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9905-	●	●
24	KNOB; RECLINING,FRT,SEAT (B)	1-75418-056-0	01	1	9905-0004	●	●
24	KNOB; RECLINING,FRT,SEAT (B) DARK GRAY	8-97859-019-0	01	1	0005-0710	●	●
24	KNOB; RECLINING,FRT,SEAT (B)	1-75418-067-0	01	1	0711-	●	●
24	KNOB; RECLINING,FRT,SEAT (A)	1-75418-059-0	01	1	9905-0004	●	●
24	KNOB; RECLINING,FRT,SEAT (A) DARK GRAY	8-97867-021-0	01	1	0005-	●	●
42	STAND; DRIVER SEAT	1-75558-491-4	01	1	9905-0003	●	●
42	STAND; DRIVER SEAT	1-75558-604-2	01	1	0004-	●	●
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	9905-0703	●	●
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	0704-	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	9905-0703	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	0-91180-110-0	02	1	0704-	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	8-94279-518-0	12	1	9905-0003	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	12	1	0004-	●	●
99	BUSHING; SEAT BACK	8-97854-087-0	01	1	9905-	●	●
228	SCREW; KNOB M4X6	8-97042-273-0	02	1	9905-0710	●	●
228	SCREW; KNOB PASSENGER M4X6	8-97042-273-0	01	1	0711-	●	●
228	SCREW; KNOB DRIVER M4	8-98062-662-0	01	1	0711-	●	●
542	ADJUSTER ASM; SEAT SLIDE	1-75518-283-3	01	1	9905-1502	●	●
542	ADJUSTER ASM; SEAT SLIDE	8-98291-656-0	01	1	1503-	●	●

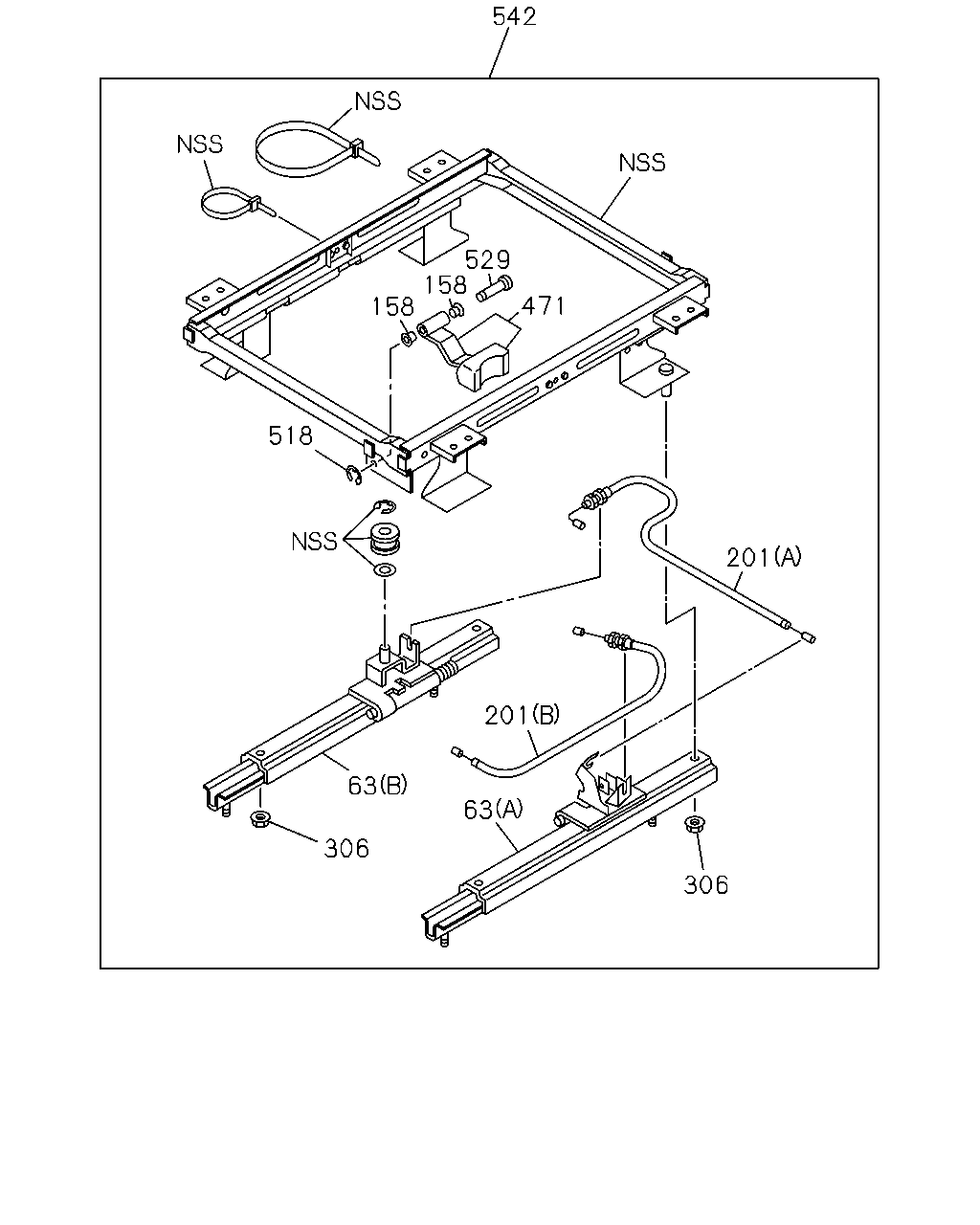

542 529 158 471 158 518 201 201 63 63 306 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
63	ADJUSTER; SEAT SLIDE (B)	1-75518-227-1	01	1	9905-	●	●
63	ADJUSTER; SEAT SLIDE (A)	1-75518-295-1	01	1	9905-	●	●
158	BUSHING; LINK ARM	1-75518-209-0	02	1	9905-	●	●
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	9905-	●	●
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	9905-	●	●
306	NUT; SEAT ADJ M8 FLANGE	8-94279-518-0	04	1	9905-0003	●	●
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	04	1	0004-	●	●
471	LEVER; SEAT ADJ	1-75518-290-0	01	1	9905-0710	●	●
471	LEVER; SEAT ADJ	8-98107-870-0	01	1	0711-	●	●
518	NUT; TILT ADJ	1-75518-263-0	01	1	9905-	●	●
529	PIN; LINK	1-75518-262-0	01	1	9905-	●	●
542	ADJUSTER ASM; SEAT SLIDE	1-75518-283-3	01	1	9905-1502	●	●
542	ADJUSTER ASM; SEAT SLIDE	8-98291-656-0	01	1	1503-	●	●

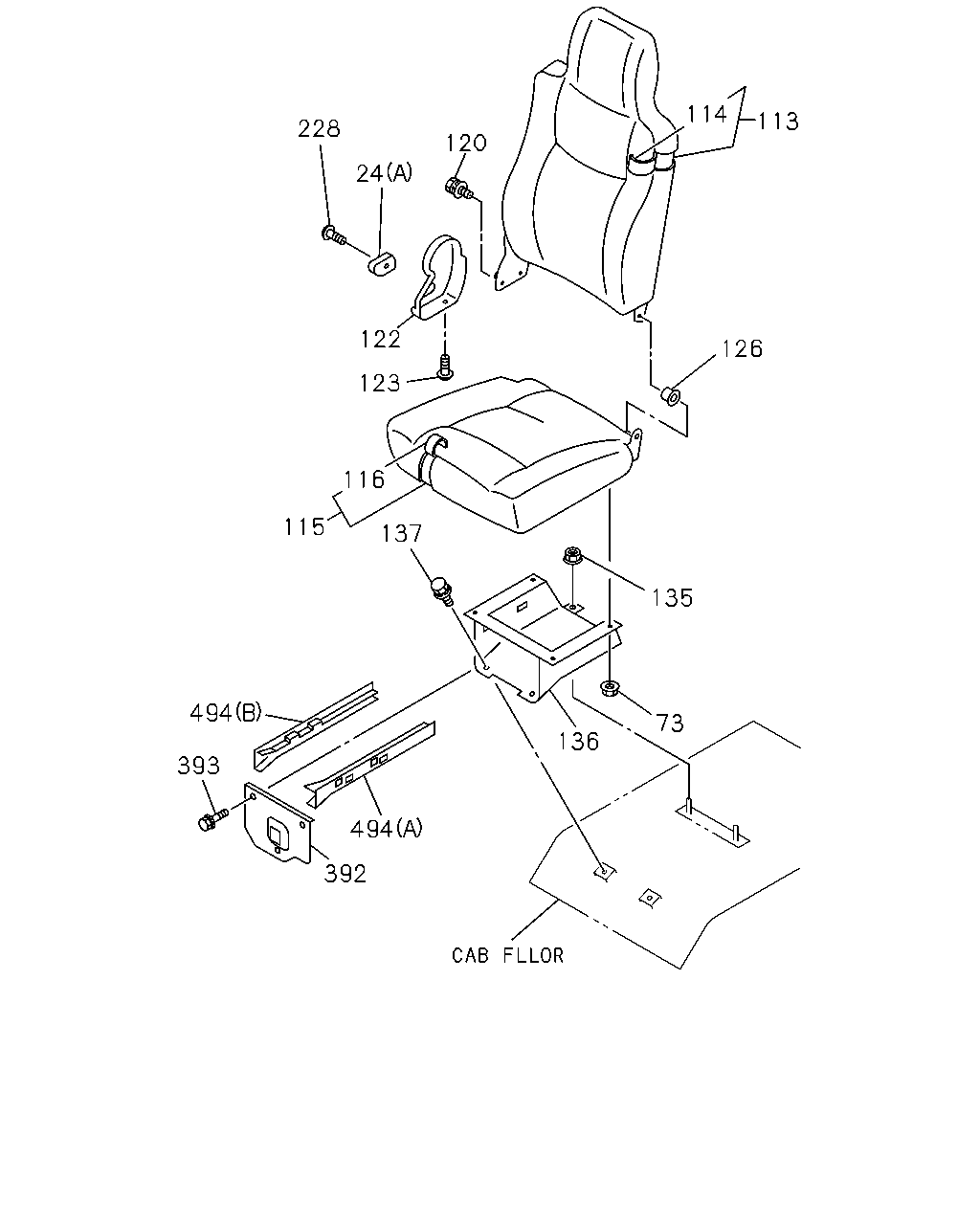

114 113 228 120 24 122 126 123 116 115 137 135 494 73 136 393 494 392

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	KNOB; RECLINING,FRT,SEAT (B)	1-75418-056-0	01	1	9905-0004	●	●
24	KNOB; RECLINING,FRT,SEAT (B) DARK GRAY	8-97859-019-0	01	1	0005-0710	●	●
24	KNOB; RECLINING,FRT,SEAT (B)	1-75418-067-0	01	1	0711-	●	●
24	KNOB; RECLINING,FRT,SEAT (A)	1-75418-059-0	01	1	9905-0004	●	●
24	KNOB; RECLINING,FRT,SEAT (A) DARK GRAY	8-97867-021-0	01	1	0005-	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	8-94279-518-0	12	1	9905-0003	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	12	1	0004-	●	●
113	BACK ASM; SEAT	1-75028-618-2	01	1	9905-0003	●	●
113	BACK ASM; SEAT	1-75026-721-0	01	1	0004-0004	●	●
113	BACK ASM; SEAT	1-75026-728-0	01	1	0005-0105	●	●
113	BACK ASM; SEAT	1-75208-067-3	01	1	0106-	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK	1-75116-274-1	01	1	9905-0003	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK	1-75116-600-0	01	1	0004-0004	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK	1-75116-702-1	01	1	0005-	●	●
115	CUSHION ASM; PASSENGER SEAT	1-75028-620-3	01	1	9905-0003	●	●
115	CUSHION ASM; PASSENGER SEAT	1-75026-771-0	01	1	0004-0004	●	●
115	CUSHION ASM; PASSENGER SEAT	1-75026-692-1	01	1	0005-	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION	1-75116-275-2	01	1	9905-0003	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION	1-75116-575-0	01	1	0004-0004	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION	1-75116-680-1	01	1	0005-	●	●
120	BOLT; RECLINING ADJ M8X18	8-94279-109-1	02	1	9905-0003	●	●
120	BOLT; RECLINING ADJ M8X20	8-97255-906-0	02	1	0004-	●	●
122	COVER; ADJ,RECLINING	1-75418-050-0	01	1	9905-0004	●	●
122	COVER; ADJ,RECLINING DARK GRAY	8-97867-020-0	01	1	0005-	●	●
123	SCREW; COVER,RECLINING M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9905-	●	●
126	BUSHING; HINGE,RECLINING	8-97854-087-0	01	1	9905-	●	●
135	NUT; SEAT STAND M10 FLANGE	1-09984-153-0	02	1	9905-0703	●	●
135	NUT; SEAT STAND M10 FLANGE	0-91180-110-0	02	1	0704-	●	●
136	STAND; PASSENGER SEAT	1-75558-547-3	01	1	9905-0004	●	●
136	STAND; PASSENGER SEAT	1-75558-550-4	01	1	0005-0105	●	●
136	STAND; PASSENGER SEAT	1-75558-587-0	01	1	0106-0212	●	●
136	STAND; PASSENGER SEAT	1-75558-550-7	01	1	0301-1305	●	●
136	STAND; PASSENGER SEAT	8-98242-292-0	01	1	1306-	●	●
137	BOLT; STAND M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	9905-0703	●	●
137	BOLT; STAND M10X20 FLANGE	0-28451-020-0	02	1	0704-	●	●
228	SCREW; KNOB M4X6	8-97042-273-0	02	1	9905-0710	●	●
228	SCREW; KNOB PASSENGER M4X6	8-97042-273-0	01	1	0711-	●	●
228	SCREW; KNOB DRIVER M4	8-98062-662-0	01	1	0711-	●	●
392	COVER; STAND,PASSENGER SEAT	1-75558-535-3	01	1	9905-	●	●
393	BOLT; COVER,SEAT STAND M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9905-0703	●	●
393	BOLT; COVER,SEAT STAND M6X16	0-52000-616-0	03	1	0704-	●	●
494	RAIL; GUIDE (A)	1-72537-149-0	01	1	9905-0004	●	●
494	RAIL; GUIDE (B)	1-72537-150-0	01	1	9905-0004	●	●

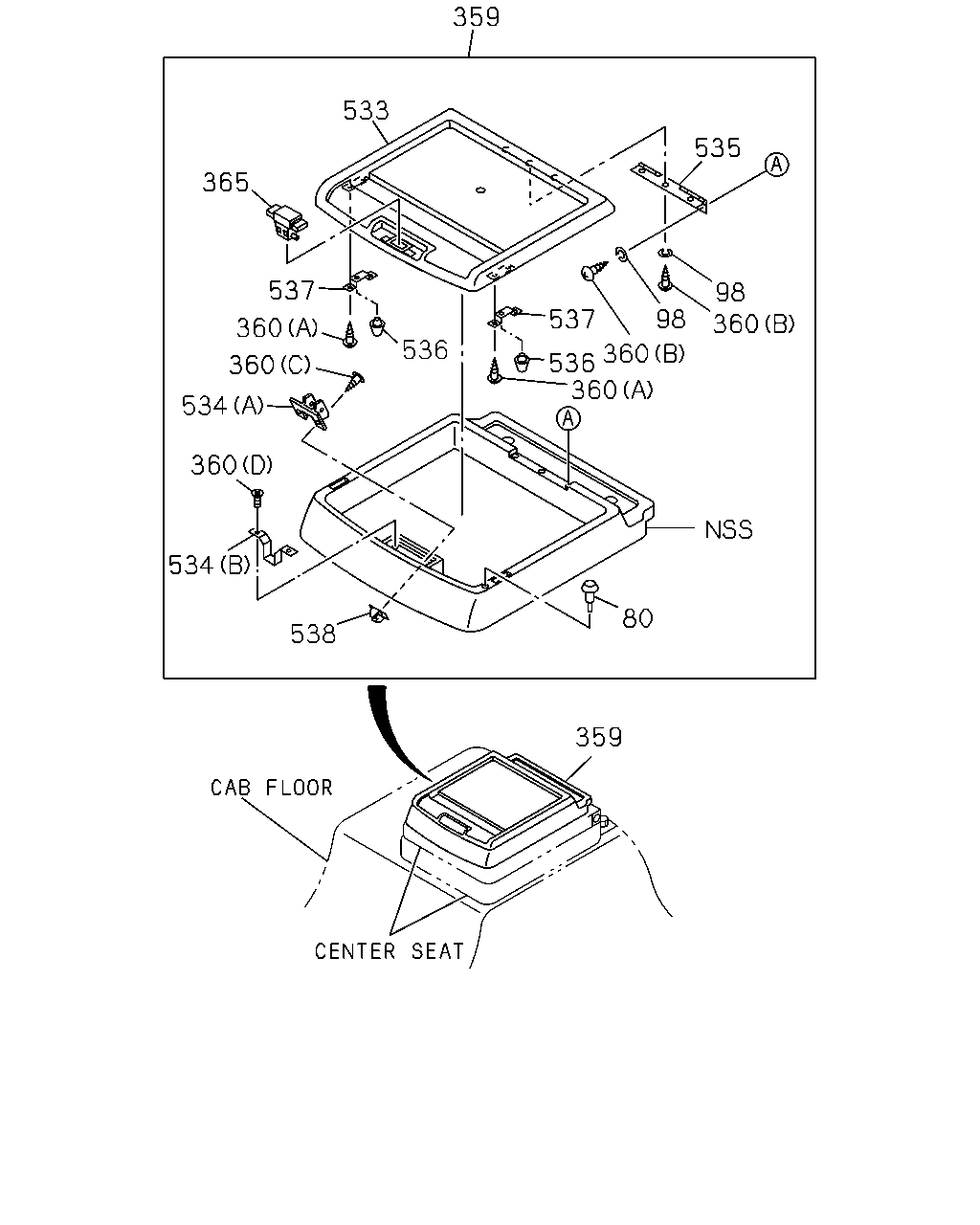

359 533 535 365 537 98 360 98 537 360 536 360 536 360 360 534 360 534 80 538 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
80	RUBBER; STOPPER CENTER SEAT<SA1>	1-72538-187-0	02	1	1007-	●	●
98	WASHER; HINGE CENTER SEAT<SA1> ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	9905-	●	●
359	BOX; PARCEL CENTER SEAT<SA1>	1-72538-157-2	01	1	9905-0211	●	●
359	BOX; PARCEL CENTER SEAT<SA1>	1-72538-275-4	01	1	0212-1006	●	●
359	BOX; PARCEL CENTER SEAT<SA1>	8-98145-114-0	01	1	1007-	●	●
360	SCREW; PARCEL CENTER SEAT<SA1> (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	9905-0612	●	●
360	SCREW; PARCEL CENTER SEAT<SA1> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0701-1006	●	●
360	SCREW; PARCEL CENTER SEAT<SA1> (D) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1007-	●	●
360	SCREW; PARCEL CENTER SEAT<SA1> (B) M4X16	0-70080-416-0	06	1	9905-0612	●	●
360	SCREW; PARCEL CENTER SEAT<SA1> (B) M4X16	0-70040-416-0	06	1	0701-1104	●	●
360	SCREW; PARCEL CENTER SEAT<SA1> (B) M4X16	0-70080-416-0	06	1	1105-	●	●
360	SCREW; PARCEL CENTER SEAT<SA1> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	9905-0310	●	●
360	SCREW; PARCEL CENTER SEAT<SA1> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	05	1	0311-1006	●	●
360	SCREW; PARCEL CENTER SEAT<SA1> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	1007-	●	●
365	LOCK ASM; SEAT CENTER SEAT<SA1>	1-72538-180-0	01	1	9905-	●	●
533	LID; PARCEL BOX CENTER SEAT<SA1>	1-72538-194-2	01	1	9905-0310	●	●
533	LID; PARCEL BOX CENTER SEAT<SA1>	1-72538-277-1	01	1	0311-1006	●	●
533	LID; PARCEL BOX CENTER SEAT<SA1>	8-98145-118-0	01	1	1007-	●	●
534	STRIKER; PARCEL BOX CENTER SEAT<SA1> (A)	1-72538-181-0	01	1	9905-1006	●	●
534	STRIKER; PARCEL BOX CENTER SEAT<SA1> (B)	1-72538-190-0	01	1	1007-	●	●
535	HINGE; PARCEL BOX CENTER SEAT<SA1>	1-72447-391-1	01	1	9905-	●	●
536	RUBBER; CUSHION CENTER SEAT<SA1>	5-09983-002-1	02	1	9905-1006	●	●
537	BRACKET; RUBBER CENTER SEAT<SA1>	1-72548-057-1	02	1	9905-1006	●	●
538	GROMMET; SCREW CENTER SEAT<SA1>	1-09983-165-0	02	1	9905-1006	●	●
