Isuzu WW
▶
TRUCKS
▶
FTS
▶
11311 - FTS(MIDDLE EAST)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-43 - SUN VISOR AND ASSIST GRIP
▶
7-43 — SUN VISOR AND ASSIST GRIP
(#15939) — 60 parça
Tümü
A - FTS6MC
B - FTS6MF
◀

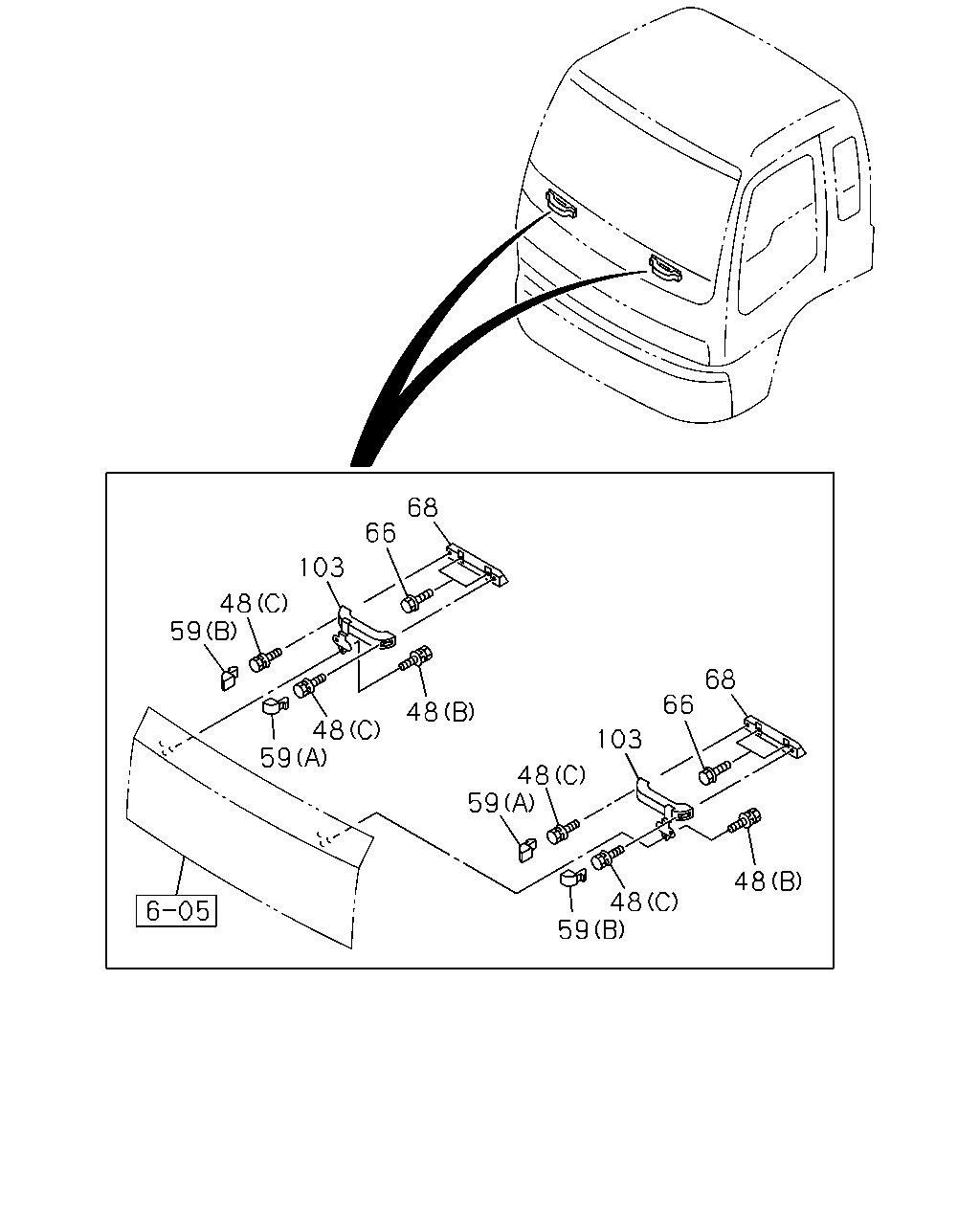

[743A] GRIP AND BRACKET FRONT PANEL (16 parça)

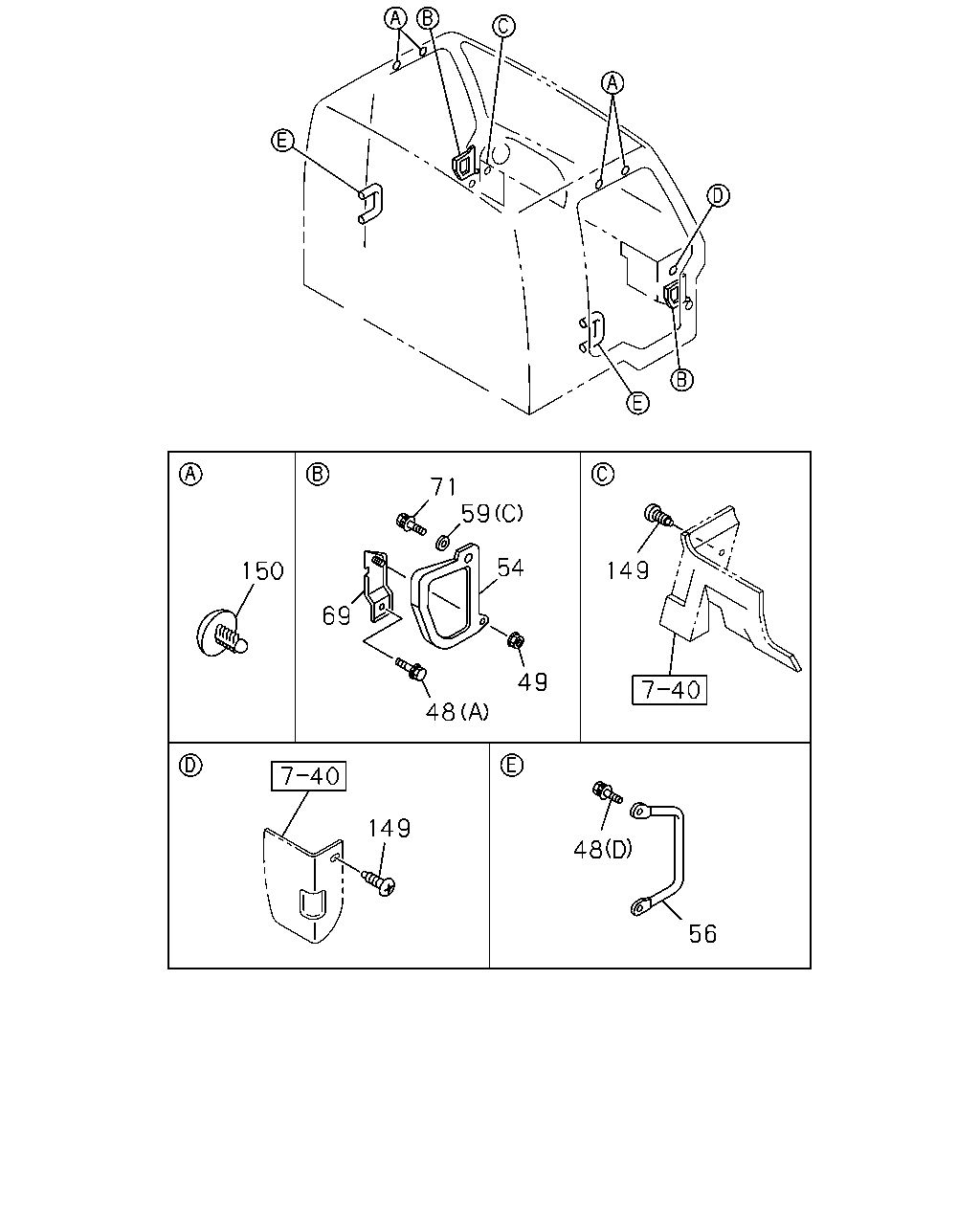

[743A] ASSIST GRIP;CAB INSIDE (28 parça)

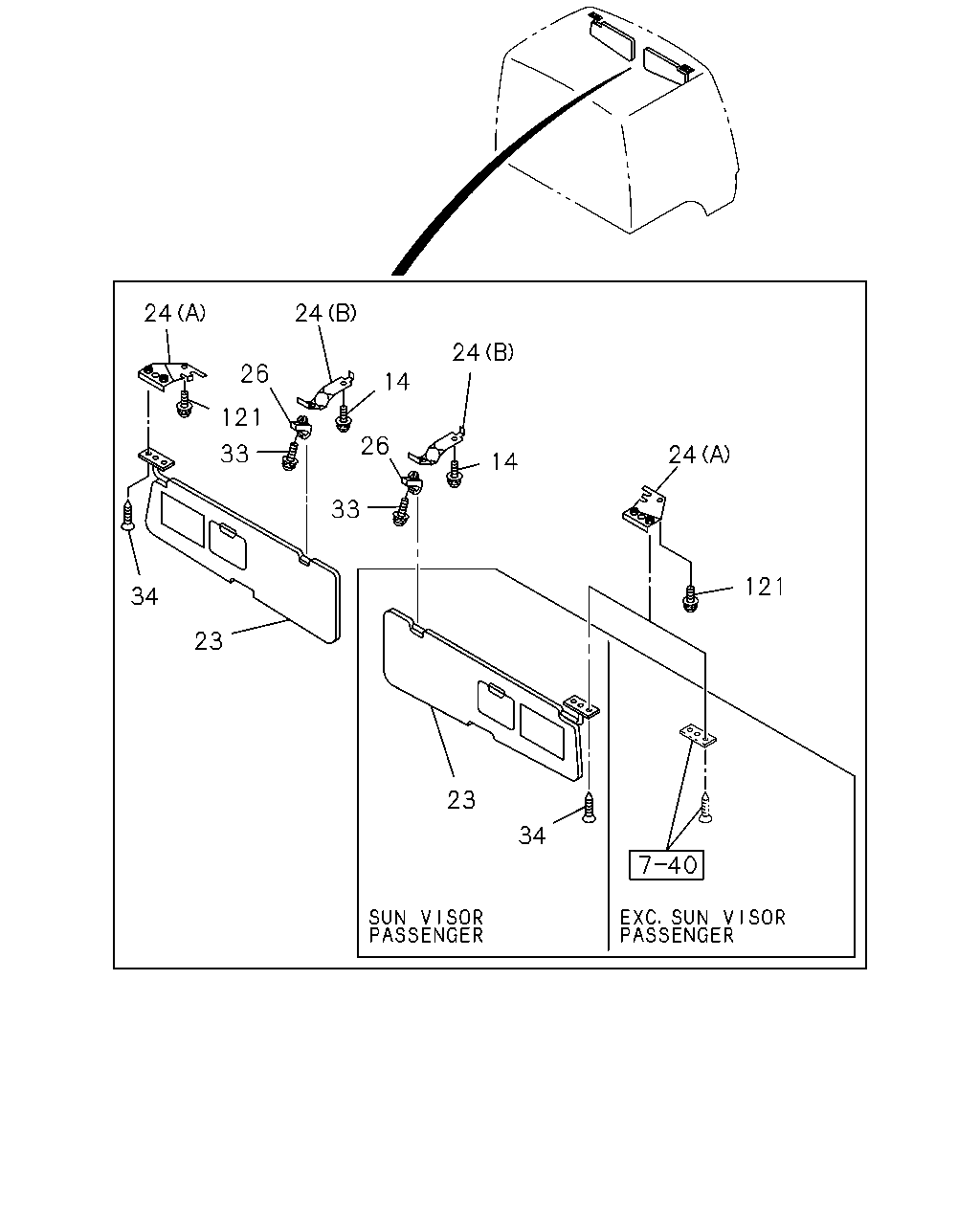

[743A] SUN VISOR AND BRACKET (16 parça)
▶
68
66
103
48
59
68
66
48
48
59
103
48
59
48
48
59
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
48
BOLT; ASSIST GRIP
(B) M6X16 W/LK&PL WASHER
1-09980-492-0
04
1
9905-0411
●
●
48
BOLT; ASSIST GRIP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M6X16 W/LK&PL WASHER
1-09980-492-0
04
1
0412-
●
●
48
BOLT; ASSIST GRIP
(D) M6X12 W/LK&PL WASHER
1-09980-611-0
04
1
9905-
●
●
48
BOLT; ASSIST GRIP
(A) M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
9905-0904
●
●
48
BOLT; ASSIST GRIP
(A) M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
0905-
●
●
48
BOLT; ASSIST GRIP
(C) M8X30 W/LK&PL WASHER
8-94279-210-0
04
1
9905-
●
●
59
COVER; ASSIST GRIP
(B) OUTER
1-71998-789-2
02
1
9905-
●
●
59
COVER; ASSIST GRIP
(A) INNER
1-71998-790-2
02
1
9905-
●
●
59
COVER; ASSIST GRIP
(C)
1-73617-069-0
02
1
9905-0004
●
●
59
COVER; ASSIST GRIP
(C)
1-73617-565-0
02
1
0005-
●
●
66
BOLT; ASSIST GRIP BRKT
M8X20.5 W/LK&PL WASHER
8-94279-207-0
04
1
9905-
●
●
68
BRACKET; ASSIST GRIP,FRT PANEL
1-65580-203-0
02
1
9905-
●
●
103
GRIP; ASSIST,FRT PNL
1-71998-792-2
01
1
9905-0411
●
●
103
GRIP; ASSIST,FRT PNL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>
1-71998-792-2
01
1
0412-
●
●
103
GRIP; ASSIST,FRT PNL
1-71998-791-2
01
1
9905-0411
●
●
103
GRIP; ASSIST,FRT PNL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>
1-71998-791-2
01
1
0412-
●
●
71
59
54
149
150
69
49
48
149
48
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
48
BOLT; ASSIST GRIP
(B) M6X16 W/LK&PL WASHER
1-09980-492-0
04
1
9905-0411
●
●
48
BOLT; ASSIST GRIP
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M6X16 W/LK&PL WASHER
1-09980-492-0
04
1
0412-
●
●
48
BOLT; ASSIST GRIP
(D) M6X12 W/LK&PL WASHER
1-09980-611-0
04
1
9905-
●
●
48
BOLT; ASSIST GRIP
(A) M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
9905-0904
●
●
48
BOLT; ASSIST GRIP
(A) M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
0905-
●
●
48
BOLT; ASSIST GRIP
(C) M8X30 W/LK&PL WASHER
8-94279-210-0
04
1
9905-
●
●
49
NUT; ASSIST GRIP
M6 FLANGE
0-91150-106-0
02
1
9905-0602
●
●
49
NUT; ASSIST GRIP
M6 FLANGE
0-91180-106-0
02
1
0603-
●
●
54
GRIP; ASSIST,QUARTER SIDE
1-73617-067-0
01
1
9905-0004
●
●
54
GRIP; ASSIST,QUARTER SIDE
1-73617-564-1
01
1
0005-
●
●
54
GRIP; ASSIST,QUARTER SIDE
1-73617-066-0
01
1
9905-0004
●
●
54
GRIP; ASSIST,QUARTER SIDE
1-73617-563-1
01
1
0005-
●
●
56
GRIP; ASSIST,SIDE SILL
1-73617-062-5
02
1
9905-0402
●
●
56
GRIP; ASSIST,SIDE SILL
1-73617-570-0
02
1
0403-0804
●
●
56
GRIP; ASSIST,SIDE SILL
8-98081-700-0
02
1
0805-
●
●
59
COVER; ASSIST GRIP
(B) OUTER
1-71998-789-2
02
1
9905-
●
●
59
COVER; ASSIST GRIP
(A) INNER
1-71998-790-2
02
1
9905-
●
●
59
COVER; ASSIST GRIP
(C)
1-73617-069-0
02
1
9905-0004
●
●
59
COVER; ASSIST GRIP
(C)
1-73617-565-0
02
1
0005-
●
●
69
BRACKET; ASSIST GRIP
1-73618-178-2
01
1
9905-
●
●
69
BRACKET; ASSIST GRIP
1-73618-181-1
01
1
9905-
●
●
71
SCREW
M6X20 W/LK&PL WASHER
1-09981-073-0
02
1
9905-0004
●
●
71
SCREW
M6X20 W/LK&PL WASHER
1-09981-073-0
03
1
0005-
●
●
149
SCREW; ASSIST GRIP HOLE
M6X16
8-94479-534-0
02
1
9905-0302
●
●
149
SCREW; ASSIST GRIP HOLE
M6X12
8-97094-854-0
02
1
0303-
●
●
150
CLIP; ASSIST GRIP HOLE
OD=6 L=17 DARK GRAY
1-73996-128-1
04
1
9905-0004
●
●
150
CLIP; ASSIST GRIP HOLE
OD=6 L=17 DARK GRAY
1-73996-364-0
04
1
0005-
●
●
150
CLIP; ASSIST GRIP HOLE
OD=6 L=17 LIGHT GRAY
1-73996-301-0
04
1
9905-
●
●
24
24
24
26
14
121
26
33
24
14
33
121
34
23
23
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
14
SCREW; BRKT
M6X24 W/LK&PL WASHER
8-94279-404-0
02
1
9905-
●
●
23
SUN VISOR
1-73138-150-1
01
1
9905-0004
●
●
23
SUN VISOR
1-73138-157-1
01
1
0005-
●
●
23
SUN VISOR
SUN VISOR PASSENGER<D20>
1-73138-148-1
01
1
9905-0004
●
●
23
SUN VISOR
SUN VISOR PASSENGER<D20>
1-73138-156-1
01
1
0005-
●
●
24
BRACKET; SUN VISOR
(B)
1-73138-145-0
02
1
9905-
●
●
24
BRACKET; SUN VISOR
(A)
1-73138-144-1
01
1
9905-
●
●
24
BRACKET; SUN VISOR
(A)
1-73138-143-1
01
1
9905-
●
●
26
HOLDER; SUN VISOR
1-73138-142-0
02
1
9905-0006
●
●
26
HOLDER; SUN VISOR
1-73137-175-0
02
1
0007-
●
●
33
SCREW; HOLDER,SUN VISOR
M4X16 TAPPING OVAL-HEAD
0-70580-416-0
02
1
9905-0101
●
●
33
SCREW; HOLDER,SUN VISOR
M4X20 TAPPING OVAL-HEAD
0-70580-420-0
02
1
0102-0603
●
●
33
SCREW; HOLDER,SUN VISOR
M4X20 TAPPING OVAL-HEAD
0-70540-420-0
02
1
0604-
●
●
34
SCREW; SUN VISOR
M6X25
1-09981-441-0
02
1
9905-
●
●
34
SCREW; SUN VISOR
SUN VISOR PASSENGER<D20> M6X25
1-09981-441-0
02
1
9905-
●
●
121
SCREW; BRKT,SUN VISOR
M6X24 W/LK&PL WASHER
8-94279-404-0
02
1
9905-
●
●
