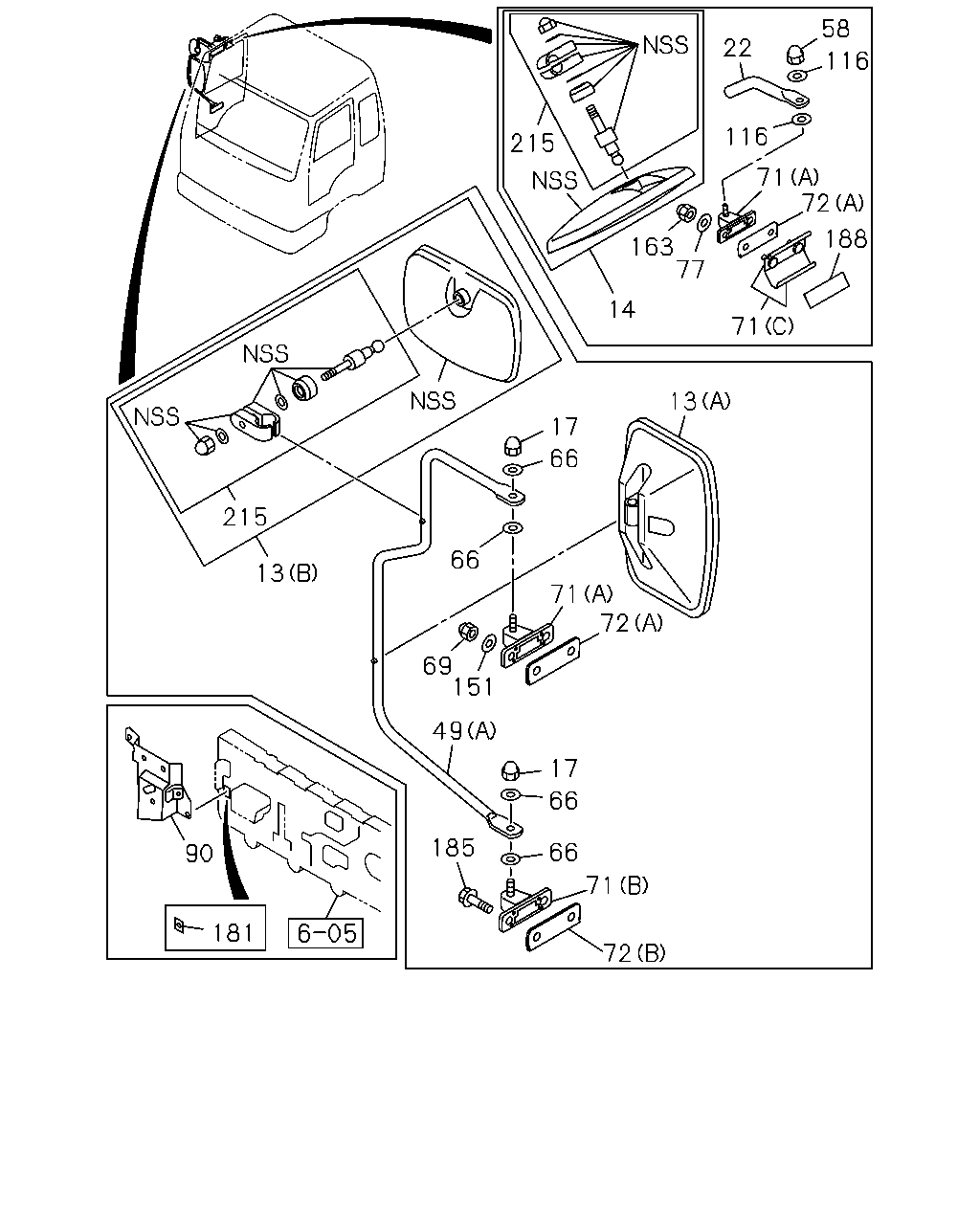

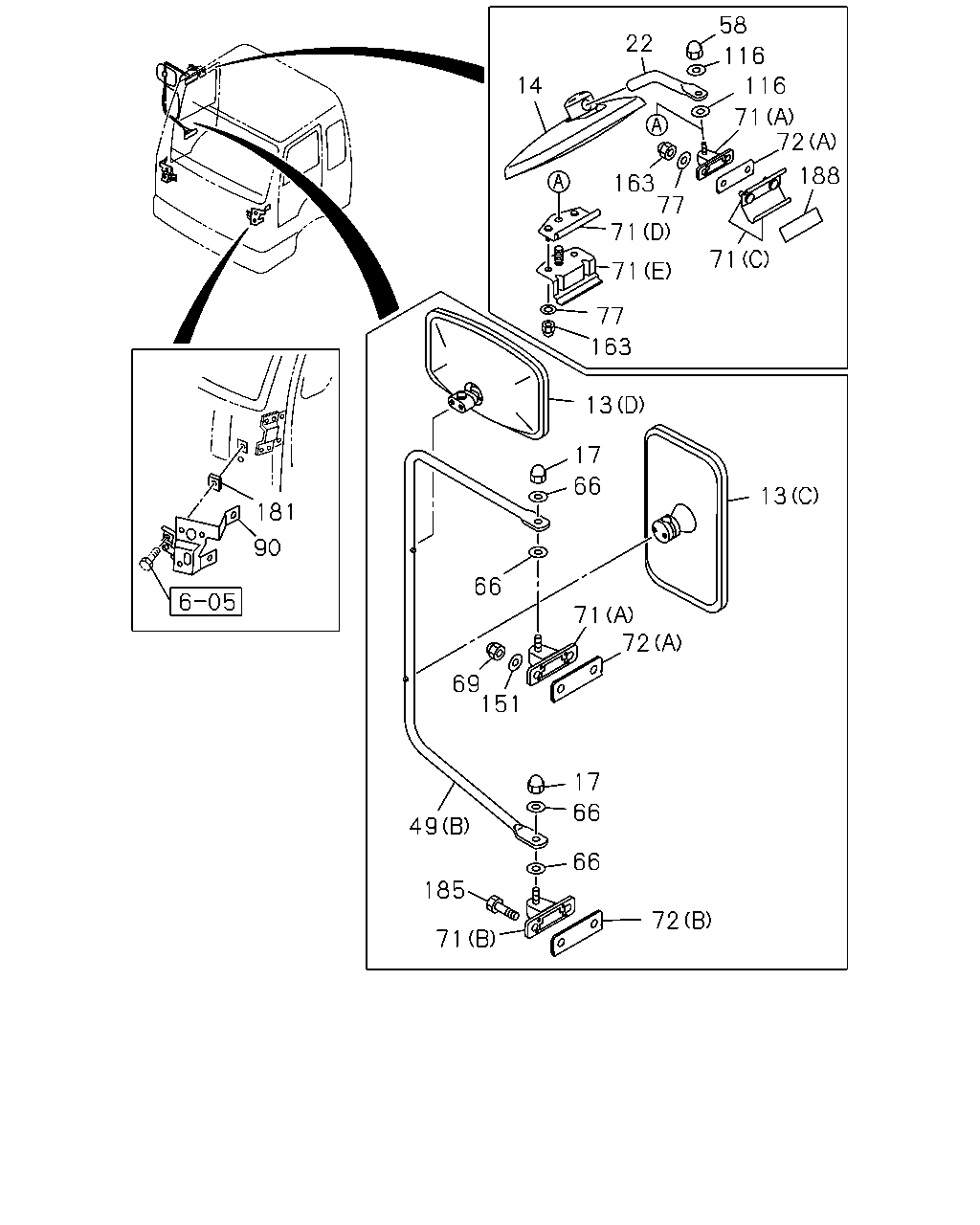

7-20 — MIRROR AND MIRROR STAY (#15936) — 92 parça

58 22 116 116 71 72 215 188 163 77 14 71 13 17 66 215 66 13 71 72 69 151 49 17 66 185 66 90 71 181 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71798-587-2	02	1	9905-0311	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (C)	8-97867-880-1	02	1	0312-0602	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (C)	8-98037-583-1	02	1	0603-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (B)	1-71798-651-2	01	1	9905-0311	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (D)	1-71798-862-1	01	1	0312-	●	●
14	MIRROR ASM; OUTSIDE	1-71798-651-2	01	1	9905-0311	●	●
14	MIRROR ASM; OUTSIDE	1-71798-862-1	01	1	0312-	●	●
17	NUT; CAP,MIRROR STAY M10	1-09984-183-0	04	1	9905-0208	●	●
17	NUT; CAP,MIRROR STAY M10 CAP NUT	1-09984-134-0	04	1	0209-	●	●
22	STAY; OUTSIDE MIRROR	1-71798-663-1	01	1	9905-	●	●
49	STAY; MIRROR SIDE (A)	1-71798-584-2	01	1	9905-0311	●	●
49	STAY; MIRROR SIDE (B)	1-71798-873-1	01	1	0312-	●	●
49	STAY; MIRROR SIDE (A)	1-71798-583-2	01	1	9905-0311	●	●
49	STAY; MIRROR SIDE (B)	1-71798-872-2	01	1	0312-	●	●
58	NUT; MIRROR STAY M10	1-09984-183-0	01	1	9905-	●	●
66	WASHER; PL ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	9905-	●	●
69	NUT; CAP M8	1-09984-187-0	04	1	9905-0809	●	●
69	NUT; CAP M8 CAP NUT	8-98059-914-0	04	1	0810-	●	●
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	02	1	9905-0004	●	●
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	01	1	0005-0803	●	●
71	BRACKET; OUTSIDE MIRROR (D)	8-98099-810-0	01	1	0804-	●	●
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-486-2	02	1	9905-	●	●
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	01	1	9905-0004	●	●
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	02	1	0005-	●	●
71	BRACKET; OUTSIDE MIRROR (C)	1-71798-664-2	01	1	9905-0803	●	●
71	BRACKET; OUTSIDE MIRROR (E)	8-98099-811-0	01	1	0804-1007	●	●
71	BRACKET; OUTSIDE MIRROR (E)	8-98167-111-0	01	1	1008-	●	●
72	SHEET (A)	1-71798-487-3	02	1	9905-	●	●
72	SHEET (B)	1-71798-488-1	02	1	9905-	●	●
72	SHEET (A)	1-71798-487-3	01	1	9905-0803	●	●
77	WASHER; PL,BRKT,STAY ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	9905-	●	●
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	9905-	●	●
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	9905-0809	●	●
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-	●	●
116	WASHER; PL,STAY,MIRROR ID=10.5 OD=26 T=2.6	1-09985-204-0	02	1	9905-	●	●
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	9905-	●	●
163	NUT; MIRROR BRKT M8	1-09984-187-0	02	1	9905-0910	●	●
163	NUT; MIRROR BRKT M8 CAP NUT	8-98059-914-0	02	1	0911-	●	●
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	9905-	●	●
185	BOLT; BRKT M8X35 FLANGE	0-28690-835-0	04	1	9905-0512	●	●
185	BOLT; BRKT M8X35 FLANGE	0-28660-835-0	04	1	0601-0605	●	●
185	BOLT; BRKT M8X35 FLANGE	8-98046-876-0	04	1	0606-	●	●
188	SEAL; PROTECTOR	1-72497-049-0	01	1	9905-0803	●	●
215	FIXING KIT; MIRROR	1-71707-040-0	01	1	9905-0311	●	●
215	FIXING KIT; MIRROR	1-71707-040-0	01	1	9905-0311	●	●

2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MIRROR; ROOM	1-73118-026-0	01	1	9905-0004	●	●
1	MIRROR; ROOM	1-73117-033-1	01	1	0005-	●	●
2	SCREW; MIRROR TO BODY M6X25	1-09981-441-0	02	1	9905-9906	●	●
2	SCREW; MIRROR TO BODY M6X20	1-09981-310-0	02	1	9907-	●	●

58 22 116 14 116 71 72 188 163 77 71 71 71 77 163 13 17 66 13 181 66 71 72 69 151 17 66 49 66 185 72 71 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71798-587-2	02	1	9905-0311	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (C)	8-97867-880-1	02	1	0312-0602	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (C)	8-98037-583-1	02	1	0603-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (B)	1-71798-651-2	01	1	9905-0311	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (D)	1-71798-862-1	01	1	0312-	●	●
14	MIRROR ASM; OUTSIDE	1-71798-651-2	01	1	9905-0311	●	●
14	MIRROR ASM; OUTSIDE	1-71798-862-1	01	1	0312-	●	●
17	NUT; CAP,MIRROR STAY M10	1-09984-183-0	04	1	9905-0208	●	●
17	NUT; CAP,MIRROR STAY M10 CAP NUT	1-09984-134-0	04	1	0209-	●	●
22	STAY; OUTSIDE MIRROR	1-71798-663-1	01	1	9905-	●	●
49	STAY; MIRROR SIDE (A)	1-71798-584-2	01	1	9905-0311	●	●
49	STAY; MIRROR SIDE (B)	1-71798-873-1	01	1	0312-	●	●
49	STAY; MIRROR SIDE (A)	1-71798-583-2	01	1	9905-0311	●	●
49	STAY; MIRROR SIDE (B)	1-71798-872-2	01	1	0312-	●	●
58	NUT; MIRROR STAY M10	1-09984-183-0	01	1	9905-	●	●
66	WASHER; PL ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	9905-	●	●
69	NUT; CAP M8	1-09984-187-0	04	1	9905-0809	●	●
69	NUT; CAP M8 CAP NUT	8-98059-914-0	04	1	0810-	●	●
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	02	1	9905-0004	●	●
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	01	1	0005-0803	●	●
71	BRACKET; OUTSIDE MIRROR (D)	8-98099-810-0	01	1	0804-	●	●
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-486-2	02	1	9905-	●	●
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	01	1	9905-0004	●	●
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	02	1	0005-	●	●
71	BRACKET; OUTSIDE MIRROR (C)	1-71798-664-2	01	1	9905-0803	●	●
71	BRACKET; OUTSIDE MIRROR (E)	8-98099-811-0	01	1	0804-1007	●	●
71	BRACKET; OUTSIDE MIRROR (E)	8-98167-111-0	01	1	1008-	●	●
72	SHEET (A)	1-71798-487-3	02	1	9905-	●	●
72	SHEET (B)	1-71798-488-1	02	1	9905-	●	●
72	SHEET (A)	1-71798-487-3	01	1	9905-0803	●	●
77	WASHER; PL,BRKT,STAY ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	9905-	●	●
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	9905-	●	●
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	9905-0809	●	●
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-	●	●
116	WASHER; PL,STAY,MIRROR ID=10.5 OD=26 T=2.6	1-09985-204-0	02	1	9905-	●	●
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	9905-	●	●
163	NUT; MIRROR BRKT M8	1-09984-187-0	02	1	9905-0910	●	●
163	NUT; MIRROR BRKT M8 CAP NUT	8-98059-914-0	02	1	0911-	●	●
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	9905-	●	●
185	BOLT; BRKT M8X35 FLANGE	0-28690-835-0	04	1	9905-0512	●	●
185	BOLT; BRKT M8X35 FLANGE	0-28660-835-0	04	1	0601-0605	●	●
185	BOLT; BRKT M8X35 FLANGE	8-98046-876-0	04	1	0606-	●	●
188	SEAL; PROTECTOR	1-72497-049-0	01	1	9905-0803	●	●
