Isuzu WW
▶
TRUCKS
▶
FTS
▶
11311 - FTS(MIDDLE EAST)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-60 - ROOF PANEL
▶

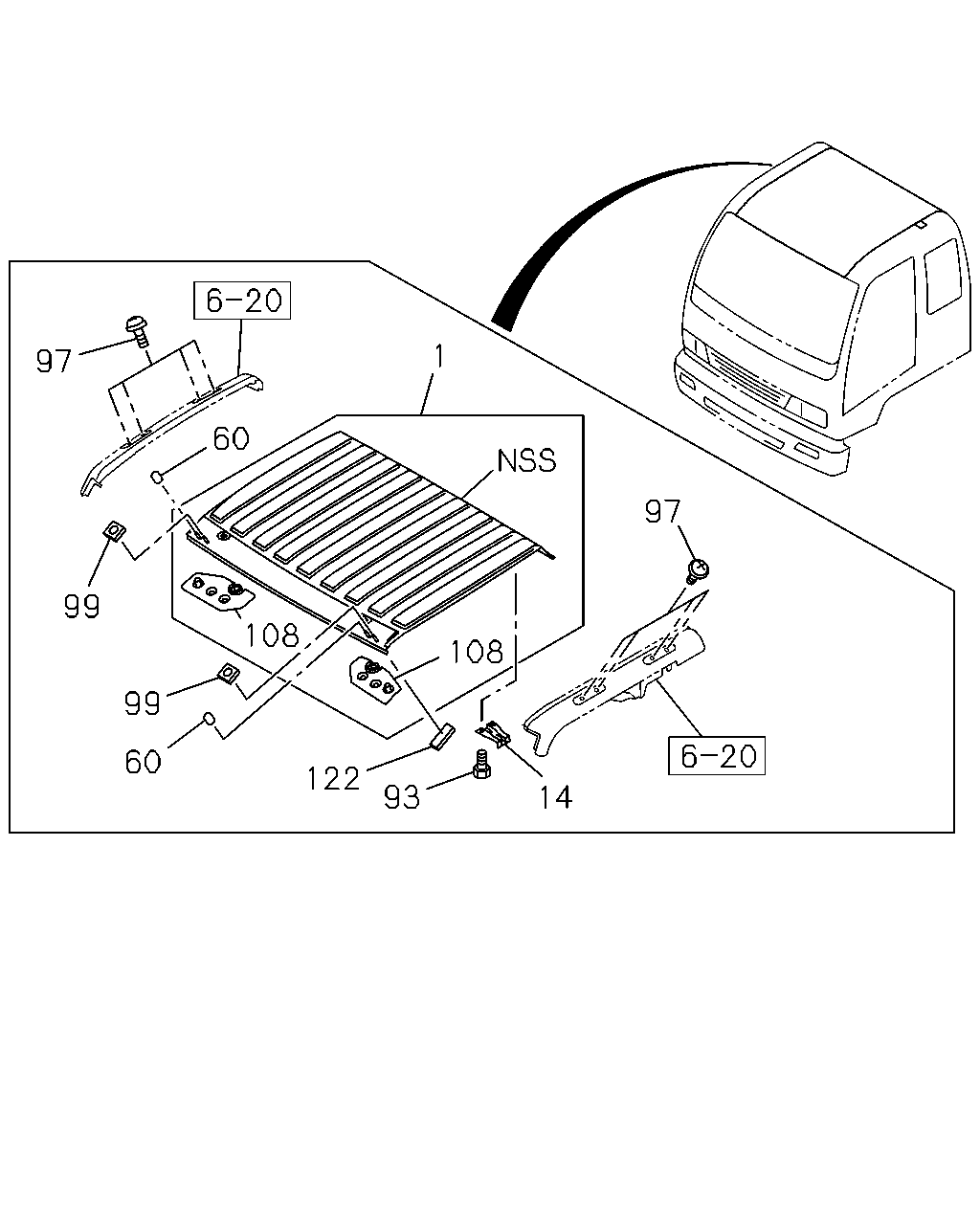

6-60 — ROOF PANEL
(#15924) — 19 parça
Tümü
A - FTS6MC
B - FTS6MF
1
97
60
97
99
108
108
99
60
122
93
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PANEL; ROOF
1-61181-072-0
01
1
9905-
●
●
14
SUPPORT; ROOF
1-73318-510-1
02
1
9905-
●
●
60
COVER; ROOF
1-71736-200-0
03
1
9905-0004
●
●
60
COVER; ROOF
1-71736-200-0
02
1
9905-0004
●
●
60
COVER; ROOF
1-71736-200-0
02
1
0005-
●
●
60
COVER; ROOF
1-71736-200-0
02
1
0005-
●
●
93
BOLT; SUPPORT
M6X12 W/LK&PL WASHER
8-94279-200-0
10
1
9905-
●
●
97
BOLT; AIR DEFLECTOR
M8X15 W/PL WASHER
1-79198-003-2
08
1
9905-
●
●
99
SEAL; BODY,METAL
30X30 ID=20 T=0.7
1-61281-380-1
13
1
9905-0001
●
●
99
SEAL; BODY,METAL
30X30 ID=20 T=0.7
1-61281-380-2
17
1
0002-
●
●
99
SEAL; BODY,METAL
14X14 ID=10 T=0.7
1-61281-427-1
08
1
9905-
●
●
99
SEAL; BODY,METAL
14X14 ID=10 T=0.7
1-61281-427-0
04
1
9905-0403
●
●
99
SEAL; BODY,METAL
14X14 ID=10 T=0.7
1-61281-427-0
04
1
9905-0403
●
●
99
SEAL; BODY,METAL
14X14 ID=10 T=0.7
1-61281-427-1
02
1
0404-
●
●
99
SEAL; BODY,METAL
14X14 ID=10 T=0.7
1-61281-427-1
02
1
0404-
●
●
108
PATCH; MIRROR
1-61181-029-4
01
1
9905-
●
●
108
PATCH; MIRROR
1-61281-241-5
01
1
9905-
●
●
122
SEAL; FRT UPR
1-61270-919-0
02
1
9905-0809
●
●
122
SEAL; FRT UPR
1-61270-973-0
02
1
0810-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
