◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11311 - FTS(MIDDLE EAST) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#15922) — 16 parça

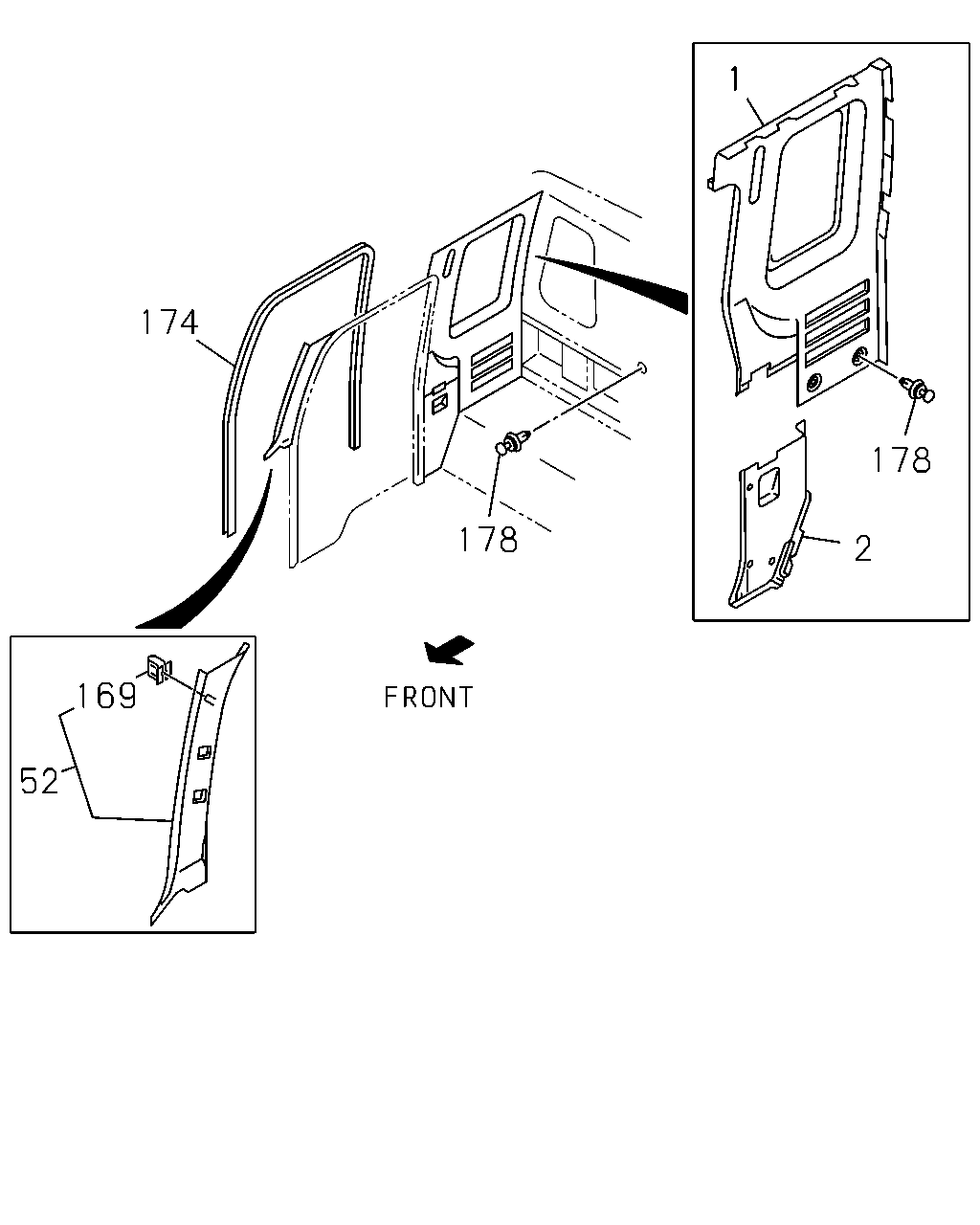

çizim 63703
1 174 178 178 2 169 52
BalonParca AdiParca NoAdetTipApplied Date A B
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73348-878-2 01 1 9905-0004 ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73348-965-3 01 1 0005- ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73348-877-2 01 1 9905-0004 ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73348-964-3 01 1 0005- ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73347-780-8 01 1 9905-0004 ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73348-978-2 01 1 0005- ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73347-779-8 01 1 9905-0004 ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73348-977-2 01 1 0005- ● ●
52 COVER; TRIM,FRT PILLAR 1-73348-484-3 01 1 9905-0004 ● ●
52 COVER; TRIM,FRT PILLAR 1-73347-833-0 01 1 0005- ● ●
52 COVER; TRIM,FRT PILLAR 1-73348-483-3 01 1 9905-0004 ● ●
52 COVER; TRIM,FRT PILLAR 1-73348-939-0 01 1 0005- ● ●
169 CLIP; TRIM COVER,FRT PILLAR 8-94313-458-0 02 1 9905- ● ●
174 FINISHER; BODY SIDE 1-76718-175-4 02 1 9905- ● ●
178 CLIP; TRIM COVER
OD=6.2 DARK GRAY 		1-09983-167-0 09 1 9905-0004 ● ●
178 CLIP; TRIM COVER
OD=6.2 LIGHT GRAY 		1-09983-178-0 09 1 0005- ● ●
