◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11311 - FTS(MIDDLE EAST) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#15920) — 60 parça

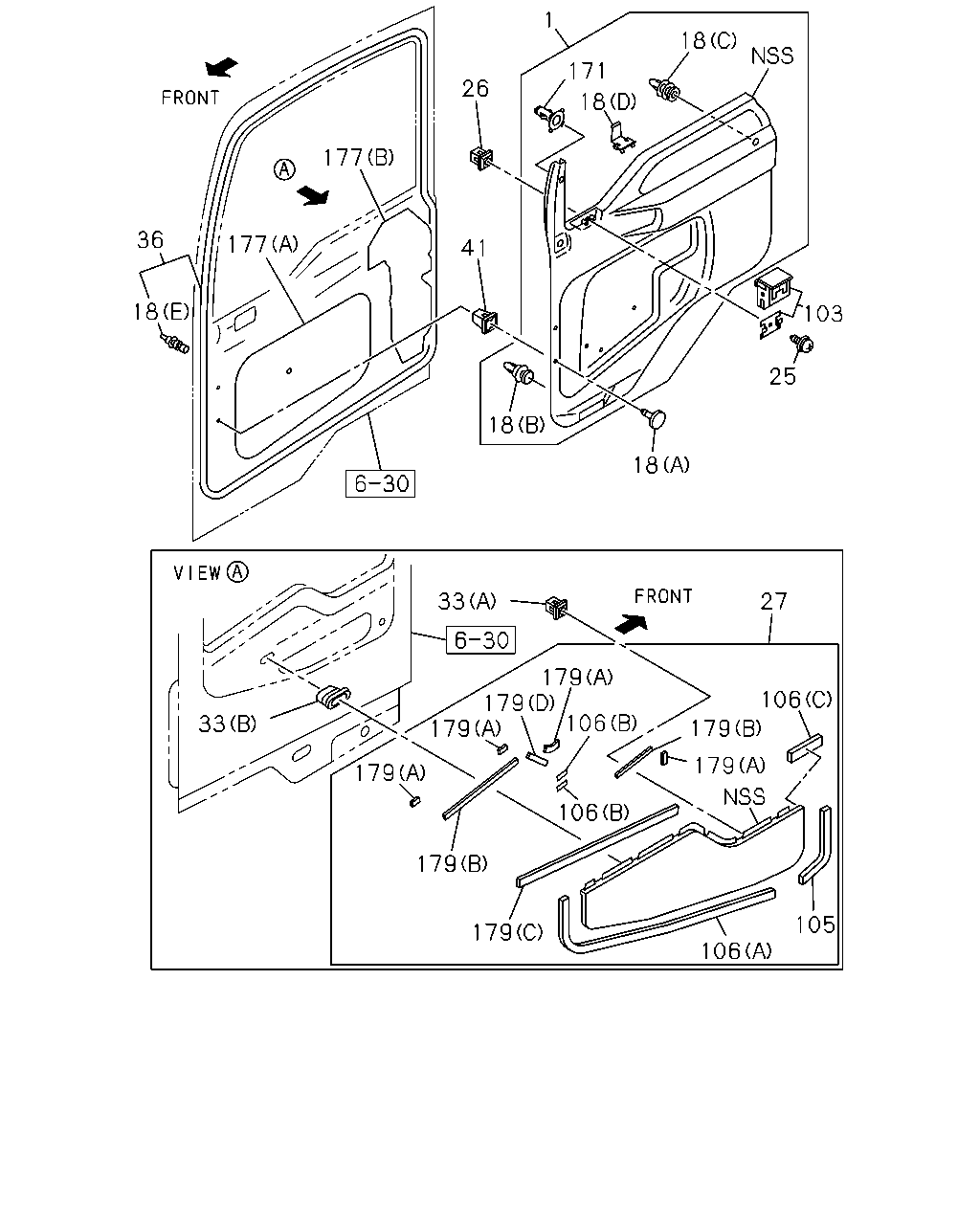

çizim 64848
106 179 05 179 106 27 179 106 106 179 179 179 179 33 33 179 18 25 103 18 18 171 1 26 18 41 177 177 18 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAD; TRIM,FRT DOOR 1-73338-449-4 01 1 9905-0004 ● ●
1 PAD; TRIM,FRT DOOR 1-73338-506-0 01 1 0005-0012 ● ●
1 PAD; TRIM,FRT DOOR 1-73338-538-0 01 1 0101-0702 ● ●
1 PAD; TRIM,FRT DOOR 1-73337-515-1 01 1 0703- ● ●
1 PAD; TRIM,FRT DOOR 1-73338-467-4 01 1 9905-0004 ● ●
1 PAD; TRIM,FRT DOOR 1-73337-485-0 01 1 0005-0012 ● ●
1 PAD; TRIM,FRT DOOR 1-73337-510-0 01 1 0101-0702 ● ●
1 PAD; TRIM,FRT DOOR 1-73337-514-1 01 1 0703- ● ●
18 CLIP; DOOR PAD
(A) D4.2X19.9 DARK GRAY 		1-09987-242-0 04 1 9905-0004 ● ●
18 CLIP; DOOR PAD
(A) D4.2X19.9 GRAY 		1-09987-272-0 04 1 0005- ● ●
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 04 1 9905-0005 ● ●
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 04 1 9905-0005 ● ●
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 05 1 0006- ● ●
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 05 1 0006- ● ●
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-94126-768-0 05 1 9905-0012 ● ●
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-94126-768-0 05 1 9905-0012 ● ●
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-97893-482-0 05 1 0101- ● ●
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-97893-482-0 05 1 0101- ● ●
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 01 1 9905- ● ●
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 01 1 9905- ● ●
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 9905- ● ●
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 9905- ● ●
25 SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 9905- ● ●
26 GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9905- ● ●
27 PANEL; ORNAMENT,DOOR 1-76218-096-7 01 1 9905- ● ●
27 PANEL; ORNAMENT,DOOR 1-76218-095-7 01 1 9905-1210 ● ●
27 PANEL; ORNAMENT,DOOR 8-98229-328-0 01 1 1211- ● ●
33 GROMMET; DOOR ORNAMENT
(A) 		1-09983-149-1 02 1 9905-0802 ● ●
33 GROMMET; DOOR ORNAMENT
(A) OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 02 1 0803- ● ●
33 GROMMET; DOOR ORNAMENT
(B) 		1-74998-111-0 02 1 9905- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-177-9 01 1 9905-1010 ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-764-0 01 1 1011- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-176-9 01 1 9905-1010 ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-763-0 01 1 1011- ● ●
41 GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 04 1 9905- ● ●
103 TRAY ASM; ASH,DOOR 1-76458-078-2 01 1 9905-0004 ● ●
103 TRAY ASM; ASH,DOOR 1-76457-054-0 01 1 0005-0111 ● ●
103 TRAY ASM; ASH,DOOR 1-76458-086-1 01 1 0112- ● ●
103 TRAY ASM; ASH,DOOR 1-76458-077-2 01 1 9905-0004 ● ●
103 TRAY ASM; ASH,DOOR 1-76457-053-0 01 1 0005-0111 ● ●
103 TRAY ASM; ASH,DOOR 1-76458-085-1 01 1 0112- ● ●
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 01 1 9905- ● ●
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 01 1 9905- ● ●
106 SEAL; DOOR ORNAMENT
(C) 		8-98226-642-0 01 1 1211- ● ●
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 01 1 9905- ● ●
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 01 1 9905- ● ●
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 02 1 9905- ● ●
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 02 1 9905- ● ●
171 RETAINER; DOOR PAD 1-09987-264-0 01 1 9905- ● ●
171 RETAINER; DOOR PAD 1-09987-264-0 01 1 9905- ● ●
177 SEAL; WATER,DOOR
(A) 		1-76778-047-3 02 1 9905- ● ●
177 SEAL; WATER,DOOR
(B) 		1-76778-055-2 02 1 9905- ● ●
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-2 04 1 9905- ● ●
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-2 04 1 9905- ● ●
179 TAPE; ORNAMENT
(C) L=770 		1-76218-091-2 01 1 9905- ● ●
179 TAPE; ORNAMENT
(C) L=770 		1-76218-091-2 01 1 9905- ● ●
179 TAPE; ORNAMENT
(D) L=160 		1-76218-094-1 01 1 9905- ● ●
179 TAPE; ORNAMENT
(D) L=160 		1-76218-094-1 01 1 9905- ● ●
179 TAPE; ORNAMENT
(B) L=235 		1-76218-127-1 02 1 9905- ● ●
179 TAPE; ORNAMENT
(B) L=235 		1-76218-127-1 02 1 9905- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
