Sayfa 2-75 - Isuzu EPC

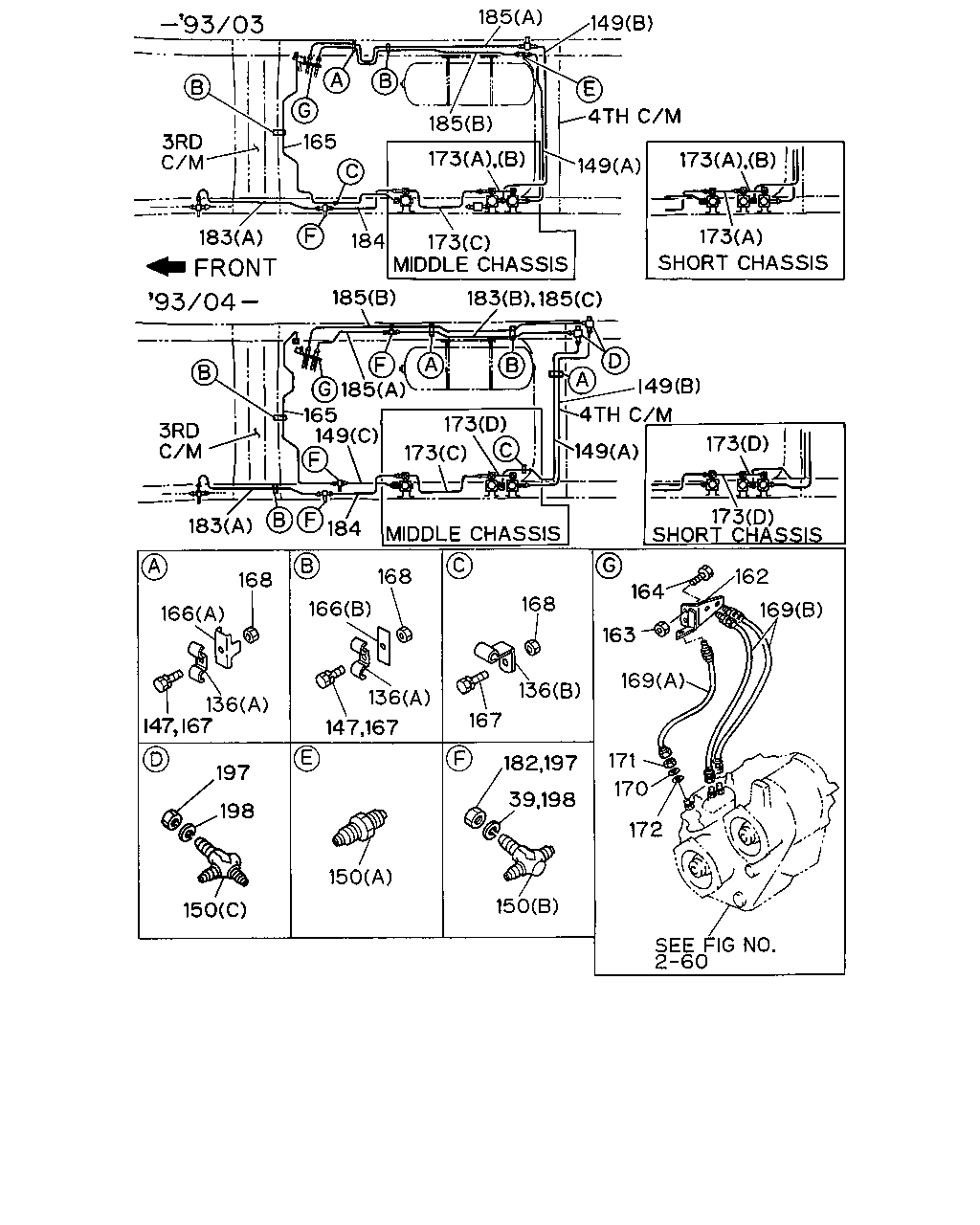

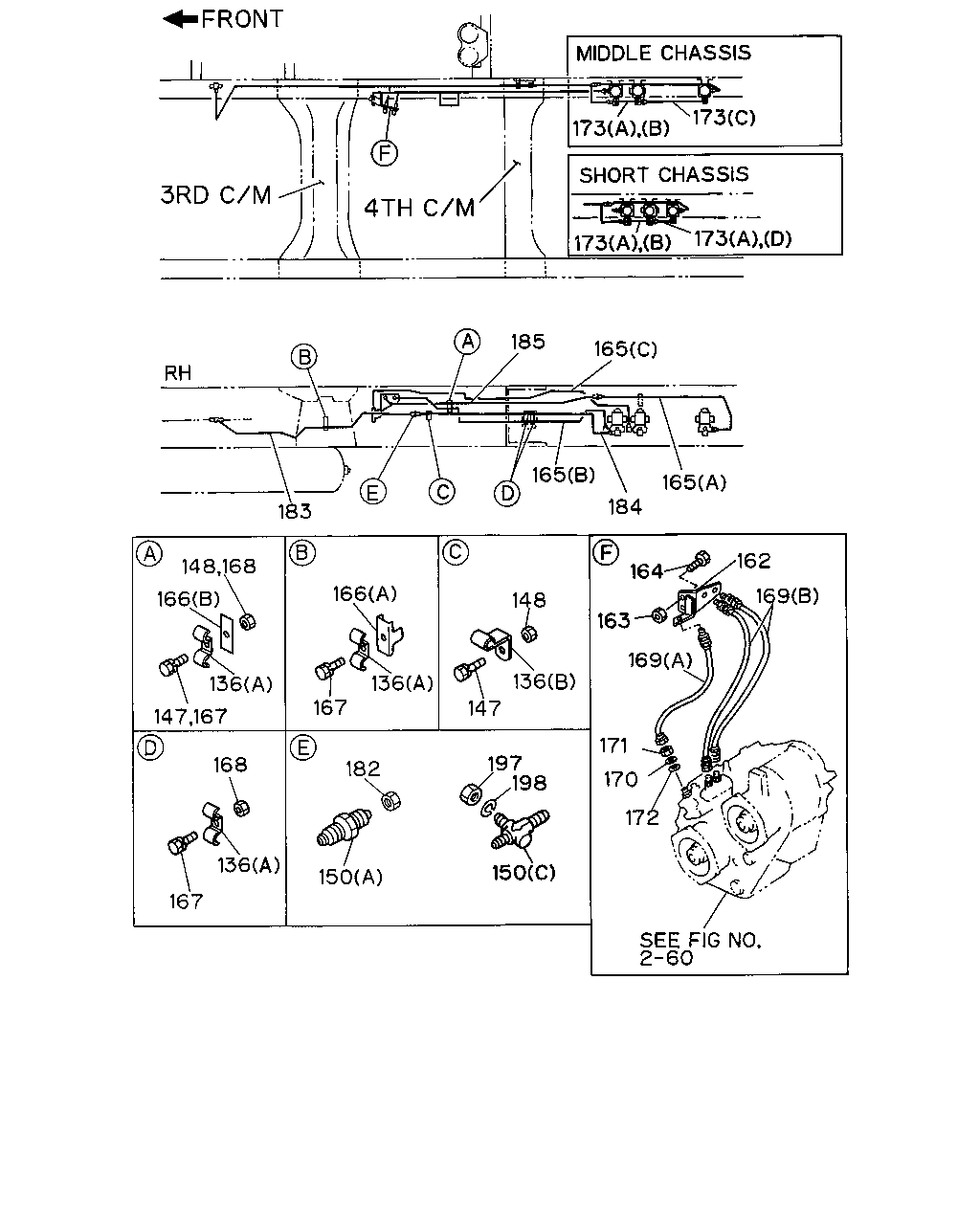

2-75 — TRANSFER CONTROL (#1592) — 338 parça

185 149 149 173 173 173 185 165 183 184 173 183 185 185 165 149 185 173 173 149 149 173 173 162 169 164 163 169 136 168 168 168 166 166 136 167 147 147 136 167 182 197 198 39 150 150 198 197 171 170 172 184 150 183

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
39	WASHER; LK ID=12.2	9-09150-512-0	01	1	9207-	●	●
136	CLIP; AIR PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	03	1	9207-9303	●	●
136	CLIP; AIR PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	9304-9307	●	●	●
136	CLIP; AIR PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	9308-	●	●
136	CLIP; AIR PIPE (A) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	9207-	●	●	●	●	●
136	CLIP; AIR PIPE (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9207-9211	●	●		●	●
136	CLIP; AIR PIPE (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9212-9303	●	●		●	●
136	CLIP; AIR PIPE WHEEL BASE 3800MM(38W) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9212-9303		●
136	CLIP; AIR PIPE (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9304-9307		●	●
136	CLIP; AIR PIPE (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9308-		●
136	CLIP; AIR PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9207-9303		●	●	●	●
136	CLIP; AIR PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9207-9303			●
136	CLIP; AIR PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9304-		●
136	CLIP; AIR PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	03	1	9308-			●
136	CLIP; AIR PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	9207-9303				●	●
136	CLIP; AIR PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	04	1	9304-				●	●
136	CLIP; AIR PIPE (A) ID=6 H=20 L=20	1-09700-603-0	02	1	9304-				●	●
147	BOLT; CLIP M8X25 FLANGE	0-28080-825-0	01	1	9207-9209			●	●	●
147	BOLT; CLIP M8X25 FLANGE	0-28080-825-0	01	1	9207-9209				●	●
147	BOLT; CLIP M8X25 FLANGE	0-28080-825-0	01	1	9210-				●	●
147	BOLT; CLIP M8X40 FLANGE	0-28080-840-0	01	1	9207-9209			●	●	●
147	BOLT; CLIP M8X40 FLANGE	0-28080-840-0	02	1	9210-			●	●	●
147	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9207-9210				●	●
147	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9211-	●	●		●	●
149	PIPE; AIR,MAG VLV TO UNION (B) L=831 SERVICED BY L=900	1-47426-349-0	01	1	9207-9303	●	●
149	PIPE; AIR,MAG VLV TO UNION (A) L=1091 SERVICED BY L=1100	1-47426-351-0	01	1	9304-	●	●
149	PIPE; AIR,MAG VLV TO UNION (A) L=996	1-47493-833-0	01	1	9207-9210	●	●
149	PIPE; AIR,MAG VLV TO UNION (A) L=995 SERVICED BY L=1000	1-47426-350-0	01	1	9211-9303	●	●
149	PIPE; AIR,MAG VLV TO UNION (C) L=377 SERVICED BY L=460	1-47426-342-0	01	1	9304-	●	●
149	PIPE; AIR,MAG VLV TO UNION (B) L=923	1-49111-134-0	01	1	9304-	●	●
150	UNION; AIR PIPE (B) M12 3WAY	1-09654-137-2	02	1	9207-	●	●
150	UNION; AIR PIPE (C) M12 2WAY	1-09654-059-2	02	1	9304-	●	●
150	UNION; AIR PIPE (A) M12 L=40	9-09223-006-1	01	1	9207-9303	●	●	●	●	●
150	UNION; AIR PIPE (A) M12 L=40	9-09223-006-1	01	1	9207-9303				●	●
150	UNION; AIR PIPE (A) M12 L=40	9-09223-006-1	01	1	9304-			●	●	●
150	UNION; AIR PIPE WHEEL BASE 3600MM(36W) (B) M12 3WAY	1-09654-137-2	01	1	9304-		●
150	UNION; AIR PIPE (C) M12 2WAY	1-09654-059-2	01	1	9304-				●	●
162	BRACKET; FLEX HOSE,TRANSFER	1-47476-553-1	01	1	9207-	●	●	●	●	●
163	NUT; BRKT,FLEX HOSE M8	9-09110-408-0	02	1	9208-	●	●	●	●	●
164	BOLT; BRKT,FLEX HOSE M8X20 FLANGE	0-28080-820-0	02	1	9208-	●	●	●	●	●
165	PIPE; AIR,MAG VLV TO FLEX HOSE L=1385 SERVICED BY L=1500	1-47434-391-0	01	1	9207-9212	●	●
165	PIPE; AIR,MAG VLV TO FLEX HOSE L=1411 SERVICED BY L=1500	1-47434-391-0	01	1	9301-9303	●	●
165	PIPE; AIR,MAG VLV TO FLEX HOSE (A) L=826 SERVICED BY L=1000	1-47434-386-0	01	1	9207-9210			●
165	PIPE; AIR,MAG VLV TO FLEX HOSE (A) L=845 SERVICED BY L=1000	1-47434-386-0	01	1	9211-9303			●
165	PIPE; AIR,MAG VLV TO FLEX HOSE (B) L=500	1-49111-108-0	01	1	9304-			●
165	PIPE; AIR,MAG VLV TO FLEX HOSE (B) L=593 SERVICED BY L=700	1-47434-466-0	01	1	9207-9303			●
165	PIPE; AIR,MAG VLV TO FLEX HOSE (C) L=681 SERVICED BY L=700	1-47426-347-0	01	1	9304-			●
165	PIPE; AIR,MAG VLV TO FLEX HOSE (C) L=673	1-47493-852-0	01	1	9207-9210			●
165	PIPE; AIR,MAG VLV TO FLEX HOSE (C) L=633	1-47499-053-0	01	1	9211-9303			●
165	PIPE; AIR,MAG VLV TO FLEX HOSE (A) L=839 SERVICED BY L=900	1-47426-349-0	01	1	9304-			●
165	PIPE; AIR,MAG VLV TO FLEX HOSE (A) L=713 SERVICED BY L=900	1-47434-385-0	01	1	9207-9303				●	●
165	PIPE; AIR,MAG VLV TO FLEX HOSE (A) L=1114 SERVICED BY L=1200	1-47426-352-0	01	1	9304-				●	●
165	PIPE; AIR,MAG VLV TO FLEX HOSE FIRE TRUCK(RA9) (B) L=1068 SERVICED BY L=1200	1-47434-388-0	01	1	9207-9210				●	●
165	PIPE; AIR,MAG VLV TO FLEX HOSE FIRE TRUCK(RA9) (B) L=1024 SERVICED BY L=1200	1-47434-388-0	01	1	9211-9303				●	●
165	PIPE; AIR,MAG VLV TO FLEX HOSE FIRE TRUCK(RA9) (B) L=1039 SERVICED BY L=1100	1-47426-351-0	01	1	9304-				●	●
165	PIPE; AIR,MAG VLV TO FLEX HOSE FIRE TRUCK(RA9) (C) L=1277 SERVICED BY L=1500	1-47434-391-0	01	1	9207-9210				●	●
165	PIPE; AIR,MAG VLV TO FLEX HOSE FIRE TRUCK(RA9) (C) L=1284 SERVICED BY L=1500	1-47426-355-0	01	1	9211-9303				●	●
165	PIPE; AIR,MAG VLV TO FLEX HOSE FIRE TRUCK(RA9) (C) L=1263 SERVICED BY L=1370	1-47426-354-0	01	1	9304-				●	●
165	PIPE; AIR,MAG VLV TO FLEX HOSE EXC. FIRE TRUCK(RA9) (B) L=1121 SERVICED BY L=1250	1-47434-389-0	01	1	9207-9210				●	●
165	PIPE; AIR,MAG VLV TO FLEX HOSE EXC. FIRE TRUCK(RA9) (B) L=1077 SERVICED BY L=1250	1-47434-389-0	01	1	9211-9303				●	●
165	PIPE; AIR,MAG VLV TO FLEX HOSE EXC. FIRE TRUCK(RA9) (B) L=1092 SERVICED BY L=1100	1-47426-351-0	01	1	9304-				●	●
165	PIPE; AIR,MAG VLV TO FLEX HOSE EXC. FIRE TRUCK(RA9) (C) L=1333 SERVICED BY L=1500	1-47434-391-0	01	1	9207-9210				●	●
165	PIPE; AIR,MAG VLV TO FLEX HOSE EXC. FIRE TRUCK(RA9) (C) L=1337 SERVICED BY L=1500	1-47426-355-0	01	1	9211-9303				●	●
165	PIPE; AIR,MAG VLV TO FLEX HOSE EXC. FIRE TRUCK(RA9) (C) L=1316 SERVICED BY L=1370	1-47426-354-0	01	1	9304-				●	●
166	BRACKET; CLIP,AIR PIPE (B) L=50	1-47475-299-2	03	1	9207-9210	●	●
166	BRACKET; CLIP,AIR PIPE (B) L=50	1-47475-299-2	04	1	9211-9303	●	●
166	BRACKET; CLIP,AIR PIPE (B) L=50	1-47475-299-2	02	1	9304-9307	●	●
166	BRACKET; CLIP,AIR PIPE (B) L=50	1-47475-299-2	02	1	9308-	●	●	●	●	●
166	BRACKET; CLIP,AIR PIPE (A)	1-47475-427-1	01	1	9207-9303	●	●	●	●	●
166	BRACKET; CLIP,AIR PIPE WHEEL BASE 3800MM(38W) (A)	1-47475-427-1	01	1	9207-9303		●
166	BRACKET; CLIP,AIR PIPE (A)	1-47475-427-1	01	1	9207-9303				●	●
166	BRACKET; CLIP,AIR PIPE (A)	1-47475-427-1	02	1	9304-	●	●
166	BRACKET; CLIP,AIR PIPE WHEEL BASE 3600MM(36W) (B) L=50	1-47475-299-2	01	1	9207-9303		●
166	BRACKET; CLIP,AIR PIPE (B) L=50	1-47475-299-2	01	1	9207-9303			●	●	●
166	BRACKET; CLIP,AIR PIPE (B) L=50	1-47475-299-2	01	1	9207-9303			●
166	BRACKET; CLIP,AIR PIPE (B) L=50	1-47475-299-2	02	1	9304-9307			●	●	●
166	BRACKET; CLIP,AIR PIPE (B) L=50	1-47475-299-2	01	1	9308-			●
166	BRACKET; CLIP,AIR PIPE (A)	1-47475-427-1	01	1	9304-		●	●	●	●
166	BRACKET; CLIP,AIR PIPE (A)	1-47475-427-1	01	1	9304-				●	●
167	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28080-820-0	04	1	9207-9301	●	●
167	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28080-820-0	03	1	9302-9303	●	●
167	BOLT; CLIP,AIR PIPE M8X40 FLANGE	0-28080-840-0	02	1	9304-	●	●
167	BOLT; CLIP,AIR PIPE M8X40 FLANGE	0-28080-840-0	01	1	9207-9303	●	●		●	●
167	BOLT; CLIP,AIR PIPE WHEEL BASE 3800MM(38W) M8X40 FLANGE	0-28080-840-0	01	1	9207-9303		●
167	BOLT; CLIP,AIR PIPE M8X40 FLANGE	0-28080-840-0	01	1	9304-		●		●	●
167	BOLT; CLIP,AIR PIPE WHEEL BASE 3600MM(36W) M8X16 FLANGE	0-28080-816-0	01	1	9207-9303		●
167	BOLT; CLIP,AIR PIPE M8X16 FLANGE	0-28080-816-0	01	1	9207-9303			●
167	BOLT; CLIP,AIR PIPE M8X16 FLANGE	0-28080-816-0	01	1	9304-			●
167	BOLT; CLIP,AIR PIPE WHEEL BASE 3800MM(38W) M8X25 FLANGE	0-28080-825-0	01	1	9212-9301		●
167	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28080-825-0	01	1	9302-9303	●	●
167	BOLT; CLIP,AIR PIPE WHEEL BASE 3800MM(38W) M8X25 FLANGE	0-28080-825-0	01	1	9302-9303		●
167	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28080-825-0	01	1	9304-		●
167	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28080-820-0	01	1	9207-9303			●	●	●
167	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28080-820-0	01	1	9304-	●	●	●	●	●
167	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28080-820-0	01	1	9304-			●
167	BOLT; CLIP,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	9207-				●	●
167	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28080-820-0	02	1	9304-				●	●
168	NUT; CLIP,AIR PIPE M8	9-09110-408-0	05	1	9207-9303	●	●
168	NUT; CLIP,AIR PIPE M8	9-09110-408-0	03	1	9304-	●	●
168	NUT; CLIP,AIR PIPE WHEEL BASE 3800MM(38W) M8	9-09110-408-0	02	1	9212-9303		●
168	NUT; CLIP,AIR PIPE M8	9-09110-408-0	01	1	9304-			●	●	●
168	NUT; CLIP,AIR PIPE M8	9-09110-408-0	01	1	9304-			●
168	NUT; CLIP,AIR PIPE M8	9-09110-408-0	01	1	9207-9303		●	●	●	●
168	NUT; CLIP,AIR PIPE M8	9-09110-408-0	01	1	9207-9303				●	●
168	NUT; CLIP,AIR PIPE M8	9-09110-408-0	02	1	9304-		●		●	●
169	HOSE; FLEX,TRANSFER CONT MBG5B M/T(X4K) (A) L=220	0-07120-220-0	01	1	9207-9209	●	●	●	●	●
169	HOSE; FLEX,TRANSFER CONT (A) L=220	0-07120-220-0	01	1	9210-	●	●
169	HOSE; FLEX,TRANSFER CONT MBG5B M/T(X4K) (B) L=280	0-07120-280-0	02	1	9207-9209	●	●	●	●	●
169	HOSE; FLEX,TRANSFER CONT (B) L=280	0-07120-280-0	02	1	9210-	●	●
169	HOSE; FLEX,TRANSFER CONT MLD6D M/T(X5Q) (A) L=320	0-07120-320-0	01	1	9207-9209				●	●
169	HOSE; FLEX,TRANSFER CONT (A) L=320	0-07120-320-0	01	1	9210-9309			●	●	●
169	HOSE; FLEX,TRANSFER CONT (A) L=300	0-07120-300-0	01	1	9310-			●	●	●
169	HOSE; FLEX,TRANSFER CONT MLD6D M/T(X5Q) (B) L=340	0-07120-340-0	02	1	9207-9209				●	●
169	HOSE; FLEX,TRANSFER CONT (B) L=340	0-07120-340-0	02	1	9210-			●	●	●
170	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	03	1	9207-	●	●	●	●	●
171	NUT; FLEX HOSE M12	9-09840-280-0	03	1	9207-	●	●	●	●	●
172	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	03	1	9207-	●	●	●	●	●
173	PIPE; AIR,MAG VALVE TO VALVE (A)	1-47493-835-0	01	1	9207-9210	●	●	●	●	●
173	PIPE; AIR,MAG VALVE TO VALVE (A)	1-47493-835-0	01	1	9207-9210	●		●
173	PIPE; AIR,MAG VALVE TO VALVE (A)	1-47493-835-0	01	1	9211-9303	●		●
173	PIPE; AIR,MAG VALVE TO VALVE (D)	1-47493-835-0	01	1	9304-	●	●	●
173	PIPE; AIR,MAG VALVE TO VALVE (D)	1-47493-835-0	01	1	9304-	●
173	PIPE; AIR,MAG VALVE TO VALVE (B) L=273	1-47491-847-0	01	1	9211-9303	●	●	●	●	●
173	PIPE; AIR,MAG VALVE TO VALVE (B) L=273	1-47491-847-0	01	1	9304-			●	●	●
173	PIPE; AIR,MAG VALVE TO VALVE WHEEL BASE 3600MM(36W) (C) L=545	1-47493-832-0	01	1	9207-9303		●
173	PIPE; AIR,MAG VALVE TO VALVE WHEEL BASE 3600MM(36W) (C) L=622 SERVICED BY L=650	1-47426-346-0	01	1	9304-		●
173	PIPE; AIR,MAG VALVE TO VALVE WHEEL BASE 3800MM(38W) (C)	1-47493-847-0	01	1	9207-9303		●
173	PIPE; AIR,MAG VALVE TO VALVE WHEEL BASE 3800MM(38W) (C) L=773 SERVICED BY L=800	1-47426-348-0	01	1	9304-		●
173	PIPE; AIR,MAG VALVE TO VALVE (C) L=357	1-47493-842-0	01	1	9207-9303				●	●
173	PIPE; AIR,MAG VALVE TO VALVE (C) L=370 SERVICED BY L=460	1-47426-342-0	01	1	9304-				●	●
182	NUT M12	9-99111-412-0	01	1	9207-	●	●
182	NUT M8	9-09110-408-0	01	1	9207-9210			●	●	●
182	NUT M8	9-09110-408-0	01	1	9211-	●	●	●	●	●
183	PIPE; AIR,UNION TO UNION (A) L=647	1-47493-829-0	01	1	9207-	●	●
183	PIPE; AIR,UNION TO UNION WHEEL BASE 3600MM(36W) (B) L=837 SERVICED BY L=900	1-47426-349-0	01	1	9304-		●
183	PIPE; AIR,UNION TO UNION L=1026 SERVICED BY L=1200	1-47434-388-0	01	1	9207-9310			●	●	●
183	PIPE; AIR,UNION TO UNION L=1032 SERVICED BY L=1100	1-47426-351-0	01	1	9311-			●	●	●
184	PIPE; AIR,UNION TO MAG VALVE L=362	1-47493-830-0	01	1	9207-	●	●
184	PIPE; AIR,UNION TO MAG VALVE L=288 SERVICED BY L=300	1-47426-340-0	01	1	9207-9303			●
184	PIPE; AIR,UNION TO MAG VALVE L=287 SERVICED BY L=300	1-47426-340-0	01	1	9304-			●
184	PIPE; AIR,UNION TO MAG VALVE L=888 SERVICED BY L=900	1-47426-349-0	01	1	9207-9303				●	●
184	PIPE; AIR,UNION TO MAG VALVE L=871 SERVICED BY L=900	1-47426-349-0	01	1	9304-				●	●
185	PIPE; AIR,UNION TO FLEX HOSE (A) L=851	1-47493-845-0	01	1	9207-9303	●
185	PIPE; AIR,UNION TO FLEX HOSE (A) L=995 SERVICED BY L=1000	1-47434-386-0	01	1	9304-	●
185	PIPE; AIR,UNION TO FLEX HOSE (B) L=809	1-47493-846-0	01	1	9207-9303	●
185	PIPE; AIR,UNION TO FLEX HOSE (B) L=960 SERVICED BY L=1000	1-47434-386-0	01	1	9304-	●
185	PIPE; AIR,UNION TO FLEX HOSE (C) L=1028 SERVICED BY L=1100	1-47426-351-0	01	1	9304-	●	●
185	PIPE; AIR,UNION TO FLEX HOSE WHEEL BASE 3600MM(36W) (A) L=1169 SERVICED BY L=1250	1-47434-389-0	01	1	9207-9303		●
185	PIPE; AIR,UNION TO FLEX HOSE WHEEL BASE 3600MM(36W) (B) L=1237 SERVICED BY L=1250	1-47434-389-0	01	1	9304-		●
185	PIPE; AIR,UNION TO FLEX HOSE WHEEL BASE 3600MM(36W) (B) L=1118 SERVICED BY L=1250	1-47434-389-0	01	1	9207-9303		●
185	PIPE; AIR,UNION TO FLEX HOSE WHEEL BASE 3600MM(36W) (A) L=516 SERVICED BY L=550	1-47426-344-0	01	1	9304-9304		●
185	PIPE; AIR,UNION TO FLEX HOSE WHEEL BASE 3600MM(36W) (A) L=513 SERVICED BY L=550	1-47426-344-0	01	1	9305-		●
185	PIPE; AIR,UNION TO FLEX HOSE WHEEL BASE 3800MM(38W) (A) L=1301 SERVICED BY L=1500	1-47434-391-0	01	1	9207-9303		●
185	PIPE; AIR,UNION TO FLEX HOSE WHEEL BASE 3800MM(38W) (A) L=1445 SERVICED BY L=1500	1-47434-391-0	01	1	9304-		●
185	PIPE; AIR,UNION TO FLEX HOSE WHEEL BASE 3800MM(38W) (B) L=1260 SERVICED BY L=1500	1-47434-391-0	01	1	9207-9303		●
185	PIPE; AIR,UNION TO FLEX HOSE WHEEL BASE 3800MM(38W) (B) L=1410 SERVICED BY L=1500	1-47434-391-0	01	1	9304-		●
185	PIPE; AIR,UNION TO FLEX HOSE FIRE TRUCK(RA9) L=1100 SERVICED BY L=1200	1-47434-388-0	01	1	9207-9210				●	●
185	PIPE; AIR,UNION TO FLEX HOSE FIRE TRUCK(RA9) L=1070 SERVICED BY L=1200	1-47434-388-0	01	1	9211-9303				●	●
185	PIPE; AIR,UNION TO FLEX HOSE FIRE TRUCK(RA9) L=516 SERVICED BY L=550	1-47426-344-0	01	1	9304-				●	●
185	PIPE; AIR,UNION TO FLEX HOSE EXC. FIRE TRUCK(RA9) L=1152 SERVICED BY L=1250	1-47434-389-0	01	1	9207-9210				●	●
185	PIPE; AIR,UNION TO FLEX HOSE EXC. FIRE TRUCK(RA9) L=1121 SERVICED BY L=1250	1-47434-389-0	01	1	9211-9303				●	●
185	PIPE; AIR,UNION TO FLEX HOSE EXC. FIRE TRUCK(RA9) L=569 SERVICED BY L=600	1-47426-345-0	01	1	9304-				●	●
197	NUT; UNION M12	9-99111-412-0	01	1	9207-9303	●	●
197	NUT; UNION M12	9-99111-412-0	03	1	9304-	●	●
197	NUT; UNION WHEEL BASE 3600MM(36W) M12	9-99111-412-0	01	1	9304-		●
197	NUT; UNION M12	9-99110-512-0	01	1	9304-				●	●
198	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	9207-9303	●	●
198	WASHER; LK,UNION ID=12.2	9-09150-512-0	03	1	9304-	●	●
198	WASHER; LK,UNION WHEEL BASE 3600MM(36W) ID=12.2	9-09150-512-0	01	1	9304-		●
198	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	9304-				●	●

173 173 173 173 165 185 165 184 165 183 166 136 167 136 147 167 166 148 168 136 148 147 163 164 169 162 169 171 170 172 198 197 182 150 136 168 167 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
136	CLIP; AIR PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	03	1	9207-9303	●	●
136	CLIP; AIR PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	9304-9307	●	●	●
136	CLIP; AIR PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	9308-	●	●
136	CLIP; AIR PIPE (A) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	9207-	●	●	●	●	●
136	CLIP; AIR PIPE (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9207-9211	●	●		●	●
136	CLIP; AIR PIPE (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9212-9303	●	●		●	●
136	CLIP; AIR PIPE WHEEL BASE 3800MM(38W) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9212-9303		●
136	CLIP; AIR PIPE (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9304-9307		●	●
136	CLIP; AIR PIPE (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9308-		●
136	CLIP; AIR PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9207-9303		●	●	●	●
136	CLIP; AIR PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9207-9303			●
136	CLIP; AIR PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9304-		●
136	CLIP; AIR PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	03	1	9308-			●
136	CLIP; AIR PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	9207-9303				●	●
136	CLIP; AIR PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	04	1	9304-				●	●
136	CLIP; AIR PIPE (A) ID=6 H=20 L=20	1-09700-603-0	02	1	9304-				●	●
147	BOLT; CLIP M8X25 FLANGE	0-28080-825-0	01	1	9207-9209			●	●	●
147	BOLT; CLIP M8X25 FLANGE	0-28080-825-0	01	1	9207-9209				●	●
147	BOLT; CLIP M8X25 FLANGE	0-28080-825-0	01	1	9210-				●	●
147	BOLT; CLIP M8X40 FLANGE	0-28080-840-0	01	1	9207-9209			●	●	●
147	BOLT; CLIP M8X40 FLANGE	0-28080-840-0	02	1	9210-			●	●	●
147	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9207-9210				●	●
147	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9211-	●	●		●	●
148	NUT; CLIP M8	9-09110-408-0	01	1	9207-9303			●	●	●
148	NUT; CLIP M8	9-09110-408-0	01	1	9207-9303				●	●
148	NUT; CLIP M8	9-09110-408-0	01	1	9304-			●	●	●
148	NUT; CLIP M8	9-09110-408-0	01	1	9304-			●
148	NUT; CLIP M8	9-09110-408-0	03	1	9304-				●	●
150	UNION; AIR PIPE (B) M12 3WAY	1-09654-137-2	02	1	9207-	●	●
150	UNION; AIR PIPE (C) M12 2WAY	1-09654-059-2	02	1	9304-	●	●
150	UNION; AIR PIPE (A) M12 L=40	9-09223-006-1	01	1	9207-9303	●	●	●	●	●
150	UNION; AIR PIPE (A) M12 L=40	9-09223-006-1	01	1	9207-9303				●	●
150	UNION; AIR PIPE (A) M12 L=40	9-09223-006-1	01	1	9304-			●	●	●
150	UNION; AIR PIPE WHEEL BASE 3600MM(36W) (B) M12 3WAY	1-09654-137-2	01	1	9304-		●
150	UNION; AIR PIPE (C) M12 2WAY	1-09654-059-2	01	1	9304-				●	●
162	BRACKET; FLEX HOSE,TRANSFER	1-47476-553-1	01	1	9207-	●	●	●	●	●
163	NUT; BRKT,FLEX HOSE M8	9-09110-408-0	02	1	9208-	●	●	●	●	●
164	BOLT; BRKT,FLEX HOSE M8X20 FLANGE	0-28080-820-0	02	1	9208-	●	●	●	●	●
165	PIPE; AIR,MAG VLV TO FLEX HOSE L=1385 SERVICED BY L=1500	1-47434-391-0	01	1	9207-9212	●	●
165	PIPE; AIR,MAG VLV TO FLEX HOSE L=1411 SERVICED BY L=1500	1-47434-391-0	01	1	9301-9303	●	●
165	PIPE; AIR,MAG VLV TO FLEX HOSE (A) L=826 SERVICED BY L=1000	1-47434-386-0	01	1	9207-9210			●
165	PIPE; AIR,MAG VLV TO FLEX HOSE (A) L=845 SERVICED BY L=1000	1-47434-386-0	01	1	9211-9303			●
165	PIPE; AIR,MAG VLV TO FLEX HOSE (B) L=500	1-49111-108-0	01	1	9304-			●
165	PIPE; AIR,MAG VLV TO FLEX HOSE (B) L=593 SERVICED BY L=700	1-47434-466-0	01	1	9207-9303			●
165	PIPE; AIR,MAG VLV TO FLEX HOSE (C) L=681 SERVICED BY L=700	1-47426-347-0	01	1	9304-			●
165	PIPE; AIR,MAG VLV TO FLEX HOSE (C) L=673	1-47493-852-0	01	1	9207-9210			●
165	PIPE; AIR,MAG VLV TO FLEX HOSE (C) L=633	1-47499-053-0	01	1	9211-9303			●
165	PIPE; AIR,MAG VLV TO FLEX HOSE (A) L=839 SERVICED BY L=900	1-47426-349-0	01	1	9304-			●
165	PIPE; AIR,MAG VLV TO FLEX HOSE (A) L=713 SERVICED BY L=900	1-47434-385-0	01	1	9207-9303				●	●
165	PIPE; AIR,MAG VLV TO FLEX HOSE (A) L=1114 SERVICED BY L=1200	1-47426-352-0	01	1	9304-				●	●
165	PIPE; AIR,MAG VLV TO FLEX HOSE FIRE TRUCK(RA9) (B) L=1068 SERVICED BY L=1200	1-47434-388-0	01	1	9207-9210				●	●
165	PIPE; AIR,MAG VLV TO FLEX HOSE FIRE TRUCK(RA9) (B) L=1024 SERVICED BY L=1200	1-47434-388-0	01	1	9211-9303				●	●
165	PIPE; AIR,MAG VLV TO FLEX HOSE FIRE TRUCK(RA9) (B) L=1039 SERVICED BY L=1100	1-47426-351-0	01	1	9304-				●	●
165	PIPE; AIR,MAG VLV TO FLEX HOSE FIRE TRUCK(RA9) (C) L=1277 SERVICED BY L=1500	1-47434-391-0	01	1	9207-9210				●	●
165	PIPE; AIR,MAG VLV TO FLEX HOSE FIRE TRUCK(RA9) (C) L=1284 SERVICED BY L=1500	1-47426-355-0	01	1	9211-9303				●	●
165	PIPE; AIR,MAG VLV TO FLEX HOSE FIRE TRUCK(RA9) (C) L=1263 SERVICED BY L=1370	1-47426-354-0	01	1	9304-				●	●
165	PIPE; AIR,MAG VLV TO FLEX HOSE EXC. FIRE TRUCK(RA9) (B) L=1121 SERVICED BY L=1250	1-47434-389-0	01	1	9207-9210				●	●
165	PIPE; AIR,MAG VLV TO FLEX HOSE EXC. FIRE TRUCK(RA9) (B) L=1077 SERVICED BY L=1250	1-47434-389-0	01	1	9211-9303				●	●
165	PIPE; AIR,MAG VLV TO FLEX HOSE EXC. FIRE TRUCK(RA9) (B) L=1092 SERVICED BY L=1100	1-47426-351-0	01	1	9304-				●	●
165	PIPE; AIR,MAG VLV TO FLEX HOSE EXC. FIRE TRUCK(RA9) (C) L=1333 SERVICED BY L=1500	1-47434-391-0	01	1	9207-9210				●	●
165	PIPE; AIR,MAG VLV TO FLEX HOSE EXC. FIRE TRUCK(RA9) (C) L=1337 SERVICED BY L=1500	1-47426-355-0	01	1	9211-9303				●	●
165	PIPE; AIR,MAG VLV TO FLEX HOSE EXC. FIRE TRUCK(RA9) (C) L=1316 SERVICED BY L=1370	1-47426-354-0	01	1	9304-				●	●
166	BRACKET; CLIP,AIR PIPE (B) L=50	1-47475-299-2	03	1	9207-9210	●	●
166	BRACKET; CLIP,AIR PIPE (B) L=50	1-47475-299-2	04	1	9211-9303	●	●
166	BRACKET; CLIP,AIR PIPE (B) L=50	1-47475-299-2	02	1	9304-9307	●	●
166	BRACKET; CLIP,AIR PIPE (B) L=50	1-47475-299-2	02	1	9308-	●	●	●	●	●
166	BRACKET; CLIP,AIR PIPE (A)	1-47475-427-1	01	1	9207-9303	●	●	●	●	●
166	BRACKET; CLIP,AIR PIPE WHEEL BASE 3800MM(38W) (A)	1-47475-427-1	01	1	9207-9303		●
166	BRACKET; CLIP,AIR PIPE (A)	1-47475-427-1	01	1	9207-9303				●	●
166	BRACKET; CLIP,AIR PIPE (A)	1-47475-427-1	02	1	9304-	●	●
166	BRACKET; CLIP,AIR PIPE WHEEL BASE 3600MM(36W) (B) L=50	1-47475-299-2	01	1	9207-9303		●
166	BRACKET; CLIP,AIR PIPE (B) L=50	1-47475-299-2	01	1	9207-9303			●	●	●
166	BRACKET; CLIP,AIR PIPE (B) L=50	1-47475-299-2	01	1	9207-9303			●
166	BRACKET; CLIP,AIR PIPE (B) L=50	1-47475-299-2	02	1	9304-9307			●	●	●
166	BRACKET; CLIP,AIR PIPE (B) L=50	1-47475-299-2	01	1	9308-			●
166	BRACKET; CLIP,AIR PIPE (A)	1-47475-427-1	01	1	9304-		●	●	●	●
166	BRACKET; CLIP,AIR PIPE (A)	1-47475-427-1	01	1	9304-				●	●
167	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28080-820-0	04	1	9207-9301	●	●
167	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28080-820-0	03	1	9302-9303	●	●
167	BOLT; CLIP,AIR PIPE M8X40 FLANGE	0-28080-840-0	02	1	9304-	●	●
167	BOLT; CLIP,AIR PIPE M8X40 FLANGE	0-28080-840-0	01	1	9207-9303	●	●		●	●
167	BOLT; CLIP,AIR PIPE WHEEL BASE 3800MM(38W) M8X40 FLANGE	0-28080-840-0	01	1	9207-9303		●
167	BOLT; CLIP,AIR PIPE M8X40 FLANGE	0-28080-840-0	01	1	9304-		●		●	●
167	BOLT; CLIP,AIR PIPE WHEEL BASE 3600MM(36W) M8X16 FLANGE	0-28080-816-0	01	1	9207-9303		●
167	BOLT; CLIP,AIR PIPE M8X16 FLANGE	0-28080-816-0	01	1	9207-9303			●
167	BOLT; CLIP,AIR PIPE M8X16 FLANGE	0-28080-816-0	01	1	9304-			●
167	BOLT; CLIP,AIR PIPE WHEEL BASE 3800MM(38W) M8X25 FLANGE	0-28080-825-0	01	1	9212-9301		●
167	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28080-825-0	01	1	9302-9303	●	●
167	BOLT; CLIP,AIR PIPE WHEEL BASE 3800MM(38W) M8X25 FLANGE	0-28080-825-0	01	1	9302-9303		●
167	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28080-825-0	01	1	9304-		●
167	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28080-820-0	01	1	9207-9303			●	●	●
167	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28080-820-0	01	1	9304-	●	●	●	●	●
167	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28080-820-0	01	1	9304-			●
167	BOLT; CLIP,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	9207-				●	●
167	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28080-820-0	02	1	9304-				●	●
168	NUT; CLIP,AIR PIPE M8	9-09110-408-0	05	1	9207-9303	●	●
168	NUT; CLIP,AIR PIPE M8	9-09110-408-0	03	1	9304-	●	●
168	NUT; CLIP,AIR PIPE WHEEL BASE 3800MM(38W) M8	9-09110-408-0	02	1	9212-9303		●
168	NUT; CLIP,AIR PIPE M8	9-09110-408-0	01	1	9304-			●	●	●
168	NUT; CLIP,AIR PIPE M8	9-09110-408-0	01	1	9304-			●
168	NUT; CLIP,AIR PIPE M8	9-09110-408-0	01	1	9207-9303		●	●	●	●
168	NUT; CLIP,AIR PIPE M8	9-09110-408-0	01	1	9207-9303				●	●
168	NUT; CLIP,AIR PIPE M8	9-09110-408-0	02	1	9304-		●		●	●
169	HOSE; FLEX,TRANSFER CONT MBG5B M/T(X4K) (A) L=220	0-07120-220-0	01	1	9207-9209	●	●	●	●	●
169	HOSE; FLEX,TRANSFER CONT (A) L=220	0-07120-220-0	01	1	9210-	●	●
169	HOSE; FLEX,TRANSFER CONT MBG5B M/T(X4K) (B) L=280	0-07120-280-0	02	1	9207-9209	●	●	●	●	●
169	HOSE; FLEX,TRANSFER CONT (B) L=280	0-07120-280-0	02	1	9210-	●	●
169	HOSE; FLEX,TRANSFER CONT MLD6D M/T(X5Q) (A) L=320	0-07120-320-0	01	1	9207-9209				●	●
169	HOSE; FLEX,TRANSFER CONT (A) L=320	0-07120-320-0	01	1	9210-9309			●	●	●
169	HOSE; FLEX,TRANSFER CONT (A) L=300	0-07120-300-0	01	1	9310-			●	●	●
169	HOSE; FLEX,TRANSFER CONT MLD6D M/T(X5Q) (B) L=340	0-07120-340-0	02	1	9207-9209				●	●
169	HOSE; FLEX,TRANSFER CONT (B) L=340	0-07120-340-0	02	1	9210-			●	●	●
170	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	03	1	9207-	●	●	●	●	●
171	NUT; FLEX HOSE M12	9-09840-280-0	03	1	9207-	●	●	●	●	●
172	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	03	1	9207-	●	●	●	●	●
173	PIPE; AIR,MAG VALVE TO VALVE (A)	1-47493-835-0	01	1	9207-9210	●	●	●	●	●
173	PIPE; AIR,MAG VALVE TO VALVE (A)	1-47493-835-0	01	1	9207-9210	●		●
173	PIPE; AIR,MAG VALVE TO VALVE (A)	1-47493-835-0	01	1	9211-9303	●		●
173	PIPE; AIR,MAG VALVE TO VALVE (D)	1-47493-835-0	01	1	9304-	●	●	●
173	PIPE; AIR,MAG VALVE TO VALVE (D)	1-47493-835-0	01	1	9304-	●
173	PIPE; AIR,MAG VALVE TO VALVE (B) L=273	1-47491-847-0	01	1	9211-9303	●	●	●	●	●
173	PIPE; AIR,MAG VALVE TO VALVE (B) L=273	1-47491-847-0	01	1	9304-			●	●	●
173	PIPE; AIR,MAG VALVE TO VALVE WHEEL BASE 3600MM(36W) (C) L=545	1-47493-832-0	01	1	9207-9303		●
173	PIPE; AIR,MAG VALVE TO VALVE WHEEL BASE 3600MM(36W) (C) L=622 SERVICED BY L=650	1-47426-346-0	01	1	9304-		●
173	PIPE; AIR,MAG VALVE TO VALVE WHEEL BASE 3800MM(38W) (C)	1-47493-847-0	01	1	9207-9303		●
173	PIPE; AIR,MAG VALVE TO VALVE WHEEL BASE 3800MM(38W) (C) L=773 SERVICED BY L=800	1-47426-348-0	01	1	9304-		●
173	PIPE; AIR,MAG VALVE TO VALVE (C) L=357	1-47493-842-0	01	1	9207-9303				●	●
173	PIPE; AIR,MAG VALVE TO VALVE (C) L=370 SERVICED BY L=460	1-47426-342-0	01	1	9304-				●	●
182	NUT M12	9-99111-412-0	01	1	9207-	●	●
182	NUT M8	9-09110-408-0	01	1	9207-9210			●	●	●
182	NUT M8	9-09110-408-0	01	1	9211-	●	●	●	●	●
183	PIPE; AIR,UNION TO UNION (A) L=647	1-47493-829-0	01	1	9207-	●	●
183	PIPE; AIR,UNION TO UNION WHEEL BASE 3600MM(36W) (B) L=837 SERVICED BY L=900	1-47426-349-0	01	1	9304-		●
183	PIPE; AIR,UNION TO UNION L=1026 SERVICED BY L=1200	1-47434-388-0	01	1	9207-9310			●	●	●
183	PIPE; AIR,UNION TO UNION L=1032 SERVICED BY L=1100	1-47426-351-0	01	1	9311-			●	●	●
184	PIPE; AIR,UNION TO MAG VALVE L=362	1-47493-830-0	01	1	9207-	●	●
184	PIPE; AIR,UNION TO MAG VALVE L=288 SERVICED BY L=300	1-47426-340-0	01	1	9207-9303			●
184	PIPE; AIR,UNION TO MAG VALVE L=287 SERVICED BY L=300	1-47426-340-0	01	1	9304-			●
184	PIPE; AIR,UNION TO MAG VALVE L=888 SERVICED BY L=900	1-47426-349-0	01	1	9207-9303				●	●
184	PIPE; AIR,UNION TO MAG VALVE L=871 SERVICED BY L=900	1-47426-349-0	01	1	9304-				●	●
185	PIPE; AIR,UNION TO FLEX HOSE (A) L=851	1-47493-845-0	01	1	9207-9303	●
185	PIPE; AIR,UNION TO FLEX HOSE (A) L=995 SERVICED BY L=1000	1-47434-386-0	01	1	9304-	●
185	PIPE; AIR,UNION TO FLEX HOSE (B) L=809	1-47493-846-0	01	1	9207-9303	●
185	PIPE; AIR,UNION TO FLEX HOSE (B) L=960 SERVICED BY L=1000	1-47434-386-0	01	1	9304-	●
185	PIPE; AIR,UNION TO FLEX HOSE (C) L=1028 SERVICED BY L=1100	1-47426-351-0	01	1	9304-	●	●
185	PIPE; AIR,UNION TO FLEX HOSE WHEEL BASE 3600MM(36W) (A) L=1169 SERVICED BY L=1250	1-47434-389-0	01	1	9207-9303		●
185	PIPE; AIR,UNION TO FLEX HOSE WHEEL BASE 3600MM(36W) (B) L=1237 SERVICED BY L=1250	1-47434-389-0	01	1	9304-		●
185	PIPE; AIR,UNION TO FLEX HOSE WHEEL BASE 3600MM(36W) (B) L=1118 SERVICED BY L=1250	1-47434-389-0	01	1	9207-9303		●
185	PIPE; AIR,UNION TO FLEX HOSE WHEEL BASE 3600MM(36W) (A) L=516 SERVICED BY L=550	1-47426-344-0	01	1	9304-9304		●
185	PIPE; AIR,UNION TO FLEX HOSE WHEEL BASE 3600MM(36W) (A) L=513 SERVICED BY L=550	1-47426-344-0	01	1	9305-		●
185	PIPE; AIR,UNION TO FLEX HOSE WHEEL BASE 3800MM(38W) (A) L=1301 SERVICED BY L=1500	1-47434-391-0	01	1	9207-9303		●
185	PIPE; AIR,UNION TO FLEX HOSE WHEEL BASE 3800MM(38W) (A) L=1445 SERVICED BY L=1500	1-47434-391-0	01	1	9304-		●
185	PIPE; AIR,UNION TO FLEX HOSE WHEEL BASE 3800MM(38W) (B) L=1260 SERVICED BY L=1500	1-47434-391-0	01	1	9207-9303		●
185	PIPE; AIR,UNION TO FLEX HOSE WHEEL BASE 3800MM(38W) (B) L=1410 SERVICED BY L=1500	1-47434-391-0	01	1	9304-		●
185	PIPE; AIR,UNION TO FLEX HOSE FIRE TRUCK(RA9) L=1100 SERVICED BY L=1200	1-47434-388-0	01	1	9207-9210				●	●
185	PIPE; AIR,UNION TO FLEX HOSE FIRE TRUCK(RA9) L=1070 SERVICED BY L=1200	1-47434-388-0	01	1	9211-9303				●	●
185	PIPE; AIR,UNION TO FLEX HOSE FIRE TRUCK(RA9) L=516 SERVICED BY L=550	1-47426-344-0	01	1	9304-				●	●
185	PIPE; AIR,UNION TO FLEX HOSE EXC. FIRE TRUCK(RA9) L=1152 SERVICED BY L=1250	1-47434-389-0	01	1	9207-9210				●	●
185	PIPE; AIR,UNION TO FLEX HOSE EXC. FIRE TRUCK(RA9) L=1121 SERVICED BY L=1250	1-47434-389-0	01	1	9211-9303				●	●
185	PIPE; AIR,UNION TO FLEX HOSE EXC. FIRE TRUCK(RA9) L=569 SERVICED BY L=600	1-47426-345-0	01	1	9304-				●	●
197	NUT; UNION M12	9-99111-412-0	01	1	9207-9303	●	●
197	NUT; UNION M12	9-99111-412-0	03	1	9304-	●	●
197	NUT; UNION WHEEL BASE 3600MM(36W) M12	9-99111-412-0	01	1	9304-		●
197	NUT; UNION M12	9-99110-512-0	01	1	9304-				●	●
198	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	9207-9303	●	●
198	WASHER; LK,UNION ID=12.2	9-09150-512-0	03	1	9304-	●	●
198	WASHER; LK,UNION WHEEL BASE 3600MM(36W) ID=12.2	9-09150-512-0	01	1	9304-		●
198	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	9304-				●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
