6-05 — FRONT PANEL (#15914) — 185 parça

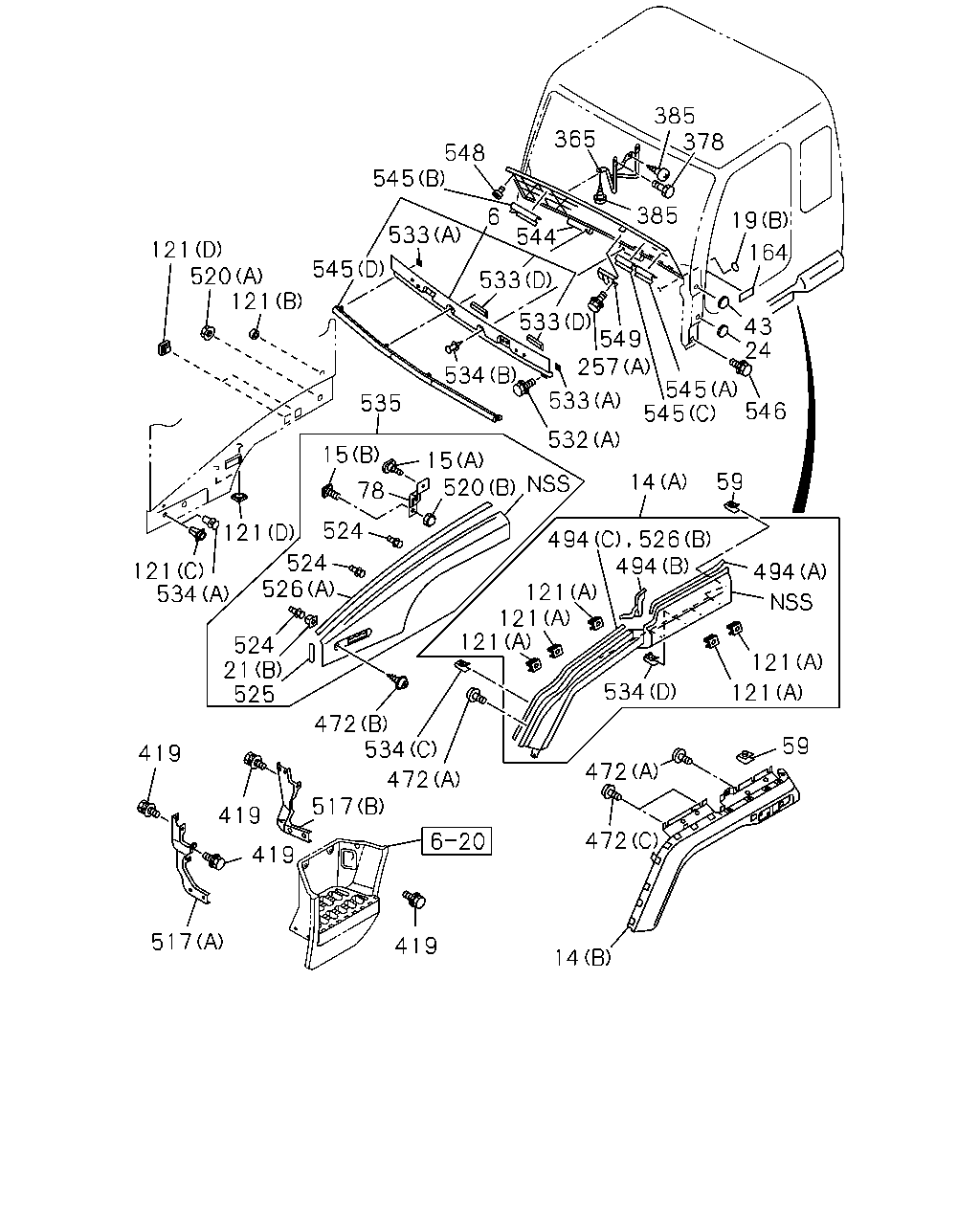

çizim 15488
385 378 365 548 545 385 6 19 533 544 121 520 121 164 545 533 533 549 257 534 43 24 545 545 546 533 535 532 15 15 520 59 14 78 524 121 494 524 526 121 534 494 121 121 121 524 21 525 121 534 121 472 534 59 419 472 472 517 419 419 472 517 419 14 494 526
BalonParca AdiParca NoAdetTipApplied Date A B
6 PANEL; FRONT 1-65481-744-2 01 1 9905- ● ●
14 FENDER; FRT
(A) 		1-65481-638-1 01 1 9905-0209 ● ●
14 FENDER; FRT
(A) WHITE 		1-65482-045-1 01 1 0210- ● ●
14 FENDER; FRT
(A) 		1-65481-637-1 01 1 9905-0209 ● ●
14 FENDER; FRT
(A) WHITE 		1-65482-044-1 01 1 0210- ● ●
14 FENDER; FRT
(B) GRAY 		1-71996-178-1 01 1 9905- ● ●
14 FENDER; FRT
(B) GRAY 		1-71996-177-1 01 1 9905- ● ●
15 BOLT; FENDER
(A) M6X7 		1-71268-294-0 02 1 9905- ● ●
15 BOLT; FENDER
(B) M6X14 SQUARE HEAD 		1-71268-300-1 02 1 9905- ● ●
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 9905- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 9905- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 9905- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 9905- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 9905- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 9905- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9905- ● ●
24 SEAL; FRT PANEL LWR
OD=25 BLACK 		1-76798-019-0 08 1 9905- ● ●
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 9905- ● ●
59 GROMMET; SCREW 8-94279-723-0 02 1 9905- ● ●
78 BRACKET; FENDER 1-71268-323-0 01 1 9905- ● ●
78 BRACKET; FENDER 1-71268-322-0 01 1 9905- ● ●
121 GROMMET; FENDER
(B) 		1-09983-162-0 02 1 9905-1009 ● ●
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9905-0304 ● ●
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 12 1 0305- ● ●
121 GROMMET; FENDER
(D) 14.5X14.5 BLACK 		8-94279-714-0 10 1 9905-0304 ● ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 16 1 9905- ● ●
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 9905- ● ●
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 9905-0411 ● ●
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0412- ● ●
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0005-0904 ● ●
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905- ● ●
365 SUPPORT; FENDER 1-71996-147-1 01 1 9905- ● ●
378 BOLT; SUPPORT
M6X20 W/LK&PL WASHER 		8-94279-203-0 01 1 9905- ● ●
385 SCREW; FENDER LWR
M6X30 		1-65481-387-0 04 1 9905- ● ●
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 18 1 9905-0009 ● ●
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0010-0904 ● ●
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 0905- ● ●
419 BOLT; STEP
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0010-0204 ● ●
419 BOLT; STEP
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 0205-0301 ● ●
419 BOLT; STEP
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0302- ● ●
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 08 1 9905- ● ●
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 26 1 9905- ● ●
472 SCREW; FENDER TO CAB
(C) M6X25 		1-65481-736-0 03 1 9905-0602 ● ●
472 SCREW; FENDER TO CAB
(C) M6X25 		1-65481-736-0 04 1 0603- ● ●
472 SCREW; FENDER TO CAB
(B) M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 9905- ● ●
494 FINISHER; FENDER
(B) 		1-71907-181-4 01 1 9905- ● ●
494 FINISHER; FENDER
(B) 		1-71907-180-4 01 1 9905- ● ●
494 FINISHER; FENDER
BODY COLOR ARC WHITE(729),BODY COLOR MIDDLE BRONZEGREEN(909) (C) 		1-71998-900-3 02 1 9905-0610 ● ●
494 FINISHER; FENDER
BODY COLOR ARC WHITE(729),BODY COLOR MIDDLE BRONZEGREEN(909) (C) 		1-71907-641-0 02 1 0611- ● ●
494 FINISHER; FENDER
BODY COLOR ARC WHITE(729),BODY COLOR MIDDLE BRONZEGREEN(909) (A) 		1-71998-999-0 02 1 9905-0705 ● ●
494 FINISHER; FENDER
(A) 		1-71998-999-0 02 1 0706- ● ●
517 SUPPORT; STEP PANEL
(B) 		1-71996-083-4 01 1 9905- ● ●
517 SUPPORT; STEP PANEL
(A) 		1-71996-120-0 01 1 9905- ● ●
517 SUPPORT; STEP PANEL
(A) 		1-71996-056-1 01 1 9905- ● ●
517 SUPPORT; STEP PANEL
(B) 		1-71996-082-2 01 1 9905- ● ●
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9905- ● ●
520 NUT; FENDER
(B) M6 		1-09984-189-0 02 1 9905- ● ●
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 9905- ● ●
525 SEAL; FENDER
10X145 		1-71268-281-1 02 1 9905-0409 ● ●
525 SEAL; FENDER
10X145 		1-71267-342-0 02 1 0410- ● ●
526 FINISHER; FENDER
(A) 		1-71268-276-1 01 1 9905-0209 ● ●
526 FINISHER; FENDER
(A) 		1-71268-275-1 01 1 9905-0209 ● ●
526 FINISHER; FENDER
(A) 		1-71268-275-1 02 1 0210- ● ●
526 FINISHER; FENDER
BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR OMAHA ORANGE(906),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) (B) 		1-71998-900-3 04 1 9905-0207 ● ●
526 FINISHER; FENDER
BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (B) 		1-71998-900-3 04 1 0208-0209 ● ●
526 FINISHER; FENDER
BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (B) 		1-71998-900-3 02 1 0210-0610 ● ●
526 FINISHER; FENDER
BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (B) 		1-71907-641-0 02 1 0611- ● ●
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 9905- ● ●
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 9905- ● ●
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 06 1 9905-0406 ● ●
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 0407- ● ●
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-3 02 1 9905- ● ●
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 13 1 9905- ● ●
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 9905- ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-019-0 08 1 9905-0004 ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0005-1302 ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1303- ● ●
534 FASTENER
(D) 		1-71996-035-1 20 1 9905- ● ●
534 FASTENER
(C) 		1-71996-035-1 04 1 9905-0404 ● ●
534 FASTENER
(C) 		1-71996-035-1 06 1 0405- ● ●
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 9905- ● ●
535 FENDER; BLISTER
WHITE 		1-71268-361-3 01 1 9905-0209 ● ●
535 FENDER; BLISTER
WHITE 		1-71268-429-1 01 1 0210- ● ●
535 FENDER; BLISTER
WHITE 		1-71268-360-3 01 1 9905-0209 ● ●
535 FENDER; BLISTER
WHITE 		1-71268-428-2 01 1 0210- ● ●
544 LID; FRT
HITACHI CHEMICAL 		1-71108-152-0 01 1 9905-0004 ● ●
544 LID; FRT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-71108-235-3 01 1 0005- ● ●
544 LID; FRT
HEADLAMPS RECTANGULAR<TR4> HITACHI CHEMICAL 		1-71108-152-0 01 1 0005-0407 ● ●
544 LID; FRT
HEADLAMPS RECTANGULAR<TR4> MITRAS 		1-71108-116-0 01 1 0007-0407 ● ●
545 SEAL; FRT LID
(B) 		1-71996-045-3 01 1 9905-9908 ● ●
545 SEAL; FRT LID
(B) 		1-71996-257-1 01 1 9909-0411 ● ●
545 SEAL; FRT LID
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-71996-257-1 01 1 0412- ● ●
545 SEAL; FRT LID
(D) 		1-71998-814-3 02 1 9905-0406 ● ●
545 SEAL; FRT LID
(D) 		1-71998-814-4 01 1 0407- ● ●
545 SEAL; FRT LID
(C) 		1-71998-873-2 01 1 9905-9908 ● ●
545 SEAL; FRT LID
(C) 		1-71996-255-0 01 1 9909-0411 ● ●
545 SEAL; FRT LID
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C) 		1-71996-255-0 01 1 0412- ● ●
545 SEAL; FRT LID
(A) L=63 		1-71998-963-2 01 1 9905-0411 ● ●
545 SEAL; FRT LID
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) L=63 		1-71998-963-2 01 1 0412- ● ●
546 PLUG; DUMMY HOLE
OD=16 L=11 		1-76378-155-0 02 1 9905- ● ●
548 STRIKER; FRT LID PANEL 1-79318-008-0 02 1 9905-0411 ● ●
548 STRIKER; FRT LID PANEL
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-79318-008-1 02 1 0412- ● ●
549 BRACKET; STOPPER,FRT LID 1-71108-060-1 01 1 9905-0301 ● ●
549 BRACKET; STOPPER,FRT LID 8-97589-019-0 01 1 0302-0411 ● ●
549 BRACKET; STOPPER,FRT LID
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		8-97589-019-0 01 1 0412- ● ●

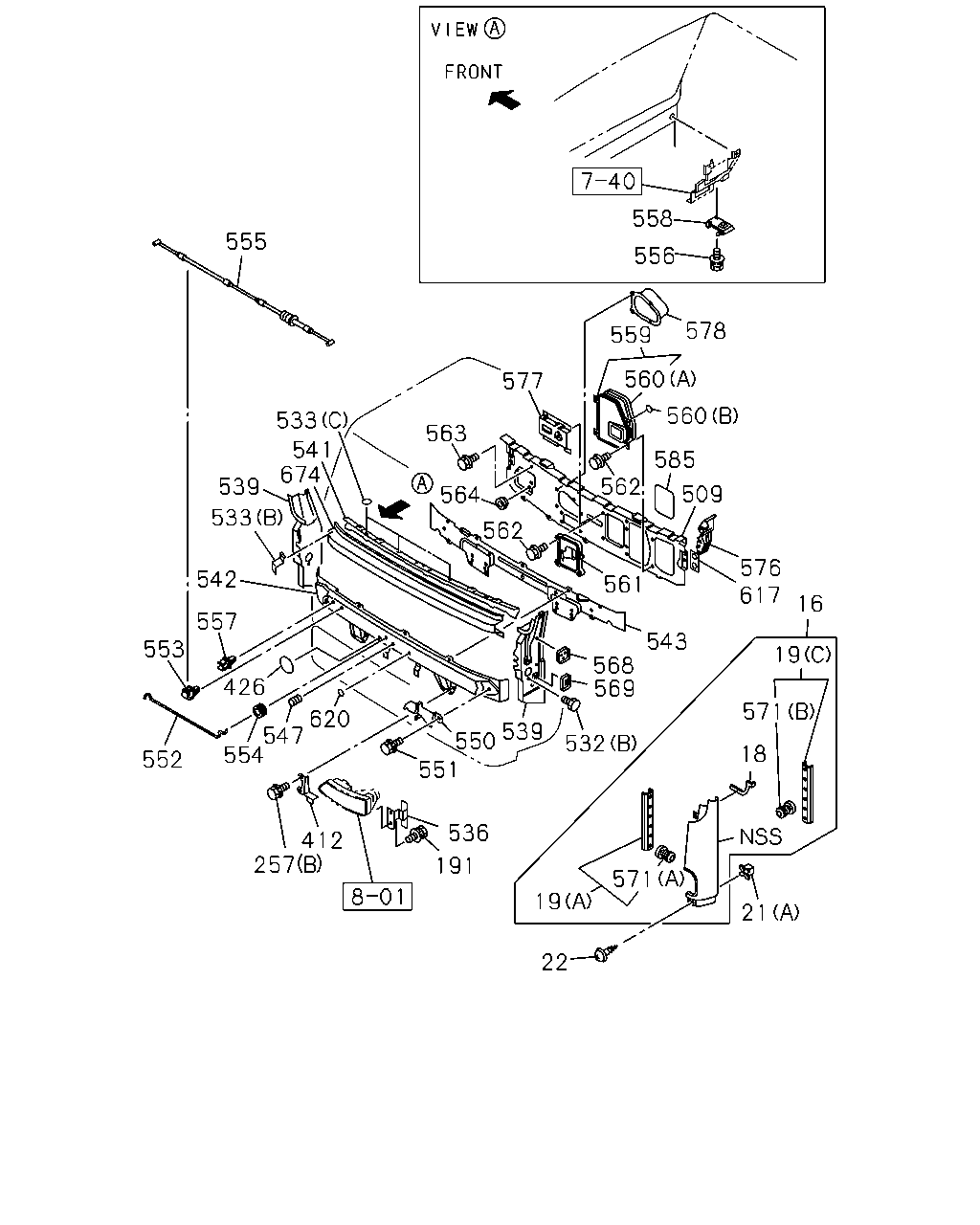

çizim 15917
558 555 556 578 559 560 577 560 533 563 541 674 585 539 562 509 564 533 562 576 617 542 561 16 557 543 553 19 568 569 426 571 620 547 554 539 550 532 18 552 551 536 412 257 191 571 19 21 22
BalonParca AdiParca NoAdetTipApplied Date A B
16 PANEL; FRONT,SIDE
WHITE 		1-65481-591-2 01 1 9905- ● ●
16 PANEL; FRONT,SIDE
WHITE 		1-65481-590-2 01 1 9905- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 9905- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 9905- ● ●
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 9905- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 9905- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 9905- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 9905- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 9905- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 9905- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9905- ● ●
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 12 1 9905-0003 ● ●
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 0004-0810 ● ●
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 12 1 0811-1010 ● ●
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 1011- ● ●
191 BOLT; HINGE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0005-0708 ● ●
191 BOLT; HINGE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> M6X16 FLANGE 		0-28650-616-0 04 1 0709- ● ●
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 9905-0411 ● ●
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0412- ● ●
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0005-0904 ● ●
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905- ● ●
412 BRACKET ASM; HD LAMP UPR
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-044-3 01 1 0005- ● ●
412 BRACKET ASM; HD LAMP UPR
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-043-3 01 1 0005- ● ●
426 GASKET
OD=25 BLACK 		1-76798-019-0 03 1 9905- ● ●
509 PANEL; DASH
HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		1-62280-214-4 01 1 9905- ● ●
509 PANEL; DASH
EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		1-62280-216-4 01 1 9905- ● ●
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 9905- ● ●
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 9905- ● ●
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 06 1 9905-0406 ● ●
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 0407- ● ●
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-3 02 1 9905- ● ●
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 13 1 9905- ● ●
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 9905- ● ●
536 HINGE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-004-5 01 1 0005- ● ●
536 HINGE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-003-5 01 1 0005- ● ●
539 CLOSING; PILLAR 1-61480-762-1 01 1 9905- ● ●
539 CLOSING; PILLAR 1-61480-763-1 01 1 9905- ● ●
541 PANEL; FRONT,INNER 1-61480-765-1 01 1 9905- ● ●
542 RAIL; FRT MOUNTING 1-61480-774-7 01 1 9905- ● ●
543 CLOSING; FRT MTG RAIL 1-61480-769-2 01 1 9905- ● ●
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 03 1 9905- ● ●
550 LOCK ASM; FRT LID 1-79318-007-5 01 1 9905- ● ●
550 LOCK ASM; FRT LID 1-79318-006-3 01 1 9905- ● ●
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 9905- ● ●
552 STAY; FRT LID 1-71996-046-2 01 1 9905-0205 ● ●
552 STAY; FRT LID 1-71996-311-0 01 1 0206-0706 ● ●
552 STAY; FRT LID 1-71996-353-0 01 1 0707- ● ●
553 CLIP; STAY 8-97031-428-0 01 1 9905- ● ●
554 GROMMET; STAY
ID=8 OD=20 T=9 		9-09956-038-0 01 1 9905- ● ●
555 CABLE; FRT LID
L=2242 		1-79348-006-2 01 1 9905- ● ●
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 9905- ● ●
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 02 1 9905- ● ●
558 LEVER; FRT LID 8-97865-110-0 01 1 9905- ● ●
559 COVER; EVAPOLATOR 1-71996-193-1 01 1 9905- ● ●
560 SEAL; COVER
(A) 		1-71998-827-1 01 1 9905- ● ●
560 SEAL; COVER
(B) OD=25 BLACK 		1-76798-019-0 01 1 9905- ● ●
560 SEAL; COVER
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9905- ● ●
560 SEAL; COVER
EXC. HEATER & DEFROSTER<C41> (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9905- ● ●
561 COVER; HEATER CORE 1-71998-993-2 01 1 9905- ● ●
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9905- ● ●
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 14 1 9905-0202 ● ●
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 12 1 0203- ● ●
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 0203- ● ●
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 9905- ● ●
568 PATCH; INST REINF 1-61480-675-2 02 1 9905- ● ●
568 PATCH; INST REINF 1-61480-676-2 02 1 9905- ● ●
569 PATCH; LWR GRIP 1-61480-736-2 01 1 9905- ● ●
569 PATCH; LWR GRIP 1-61480-772-0 01 1 9905- ● ●
571 CLIP; SEAL
(A) 		1-09987-228-0 06 1 9905- ● ●
571 CLIP; SEAL
(A) 		1-09987-228-0 06 1 9905- ● ●
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 07 1 9905- ● ●
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 07 1 9905- ● ●
576 FRAME; INST SIDE 1-62280-200-2 01 1 9905- ● ●
576 FRAME; INST SIDE 1-62280-201-2 01 1 9905- ● ●
577 BRACKET; IDLER 1-62280-202-0 01 1 9905- ● ●
578 COVER; WIPER MOTOR 1-62280-173-4 01 1 9905- ● ●
585 PLATE; EVAPOLATOR
EXC. HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		1-71996-084-1 01 1 9905- ● ●
617 SEAL; DASH 1-61281-497-1 02 1 9905- ● ●
620 SEAL; FRT MTG
OD=25 BLACK 		1-76798-019-0 01 1 9905- ● ●
674 PANEL; UPR 1-61480-785-1 01 1 9905- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
