Isuzu WW
▶
TRUCKS
▶
FTS
▶
11311 - FTS(MIDDLE EAST)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

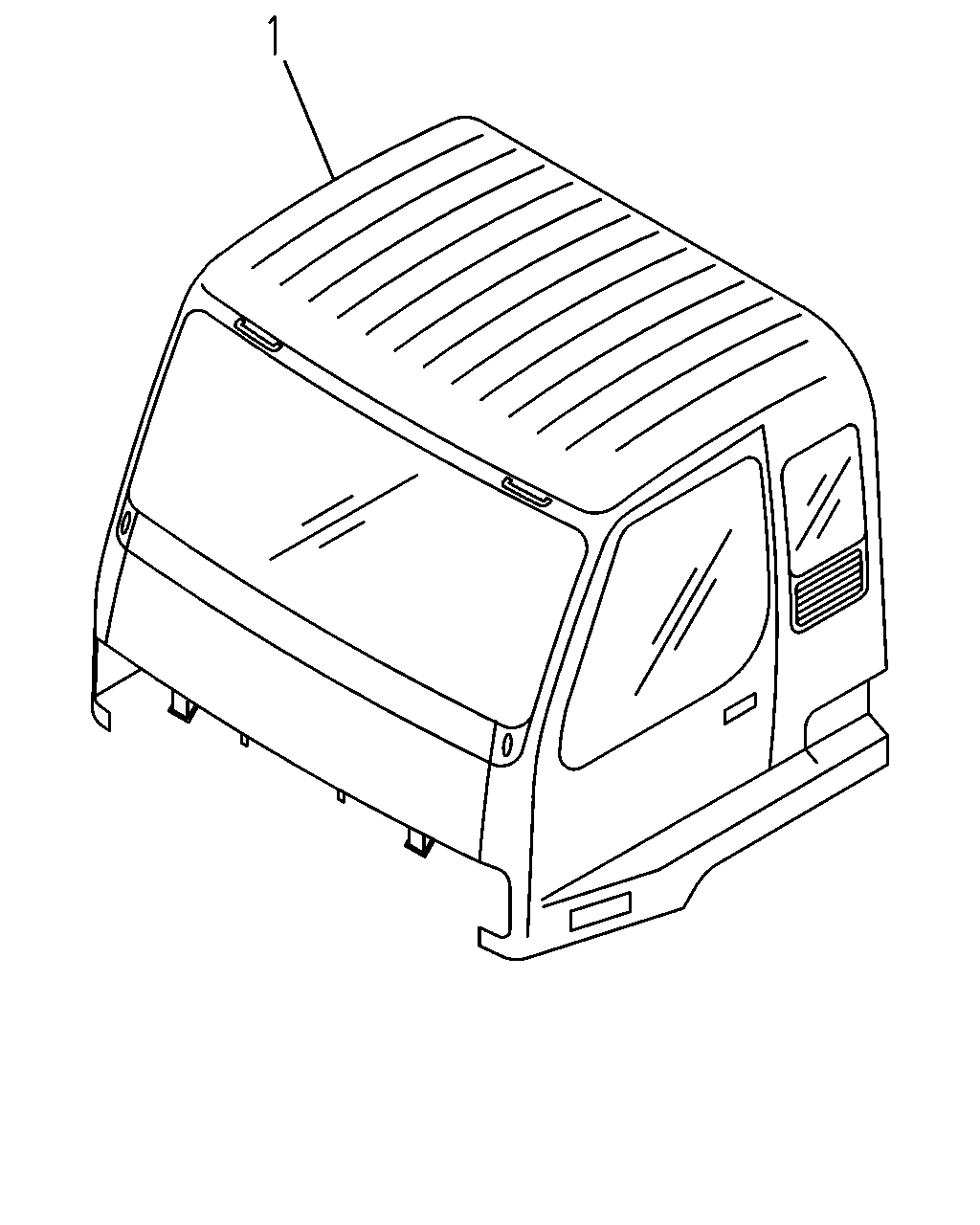

6-04 - CAB ASM
▶
6-04 — CAB ASM
(#15913) — 3 parça
Tümü
A - FTS6MC
B - FTS6MF
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) LOW ROOF<6XQ> MIR O/S RR VIEW DOOR MOUNTED PASS SIDE(DG1) HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. ENGINE NO PLATE<E6D>
1-61083-858-0
01
1
9905-0004
●
●
1
CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) LOW ROOF<6XQ> MIR O/S RR VIEW DOOR MOUNTED PASS SIDE(DG1) HEATER & DEFROSTER<C41>,VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. ENGINE NO PLATE<E6D>,PROVISIONAL PACKAGE<NLY>
1-61086-012-0
01
1
0005-
●
●
1
CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) LOW ROOF<6XQ> MIR O/S RR VIEW DOOR MOUNTED PASS SIDE(DG1) EXC. HEATER & DEFROSTER<C41>,ENGINE NO PLATE<E6D>, PROVISIONAL PACKAGE<NLY>,VENTILATOR & DEFROSTER WO/HEATER<SAZ>
1-61086-900-0
01
1
0005-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
