◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11311 - FTS(MIDDLE EAST) ▶ 5 - Frame, Cab Mounting ▶ 5-30 - SPARE TIRE CARRIER AND COVER ▶
5-30 — SPARE TIRE CARRIER AND COVER (#15910) — 11 parça

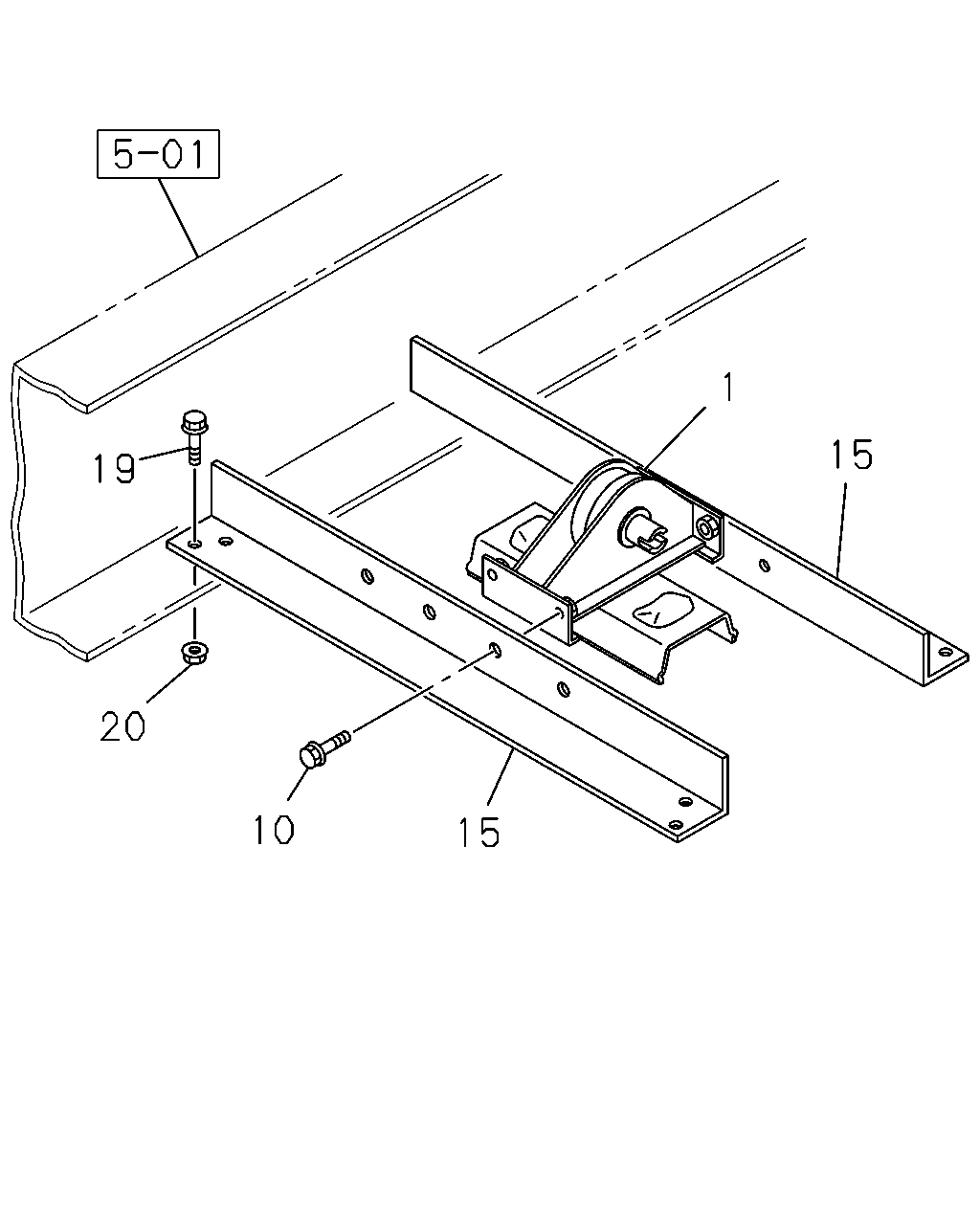

çizim 63650
1 15 19 20 10 15
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		1-53630-208-3 01 1 9905- ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		1-53630-208-3 01 1 9905- ●
10 BOLT; TIRE HANGER
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE 		0-28681-230-0 04 1 9905-0512 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE 		0-28681-230-0 04 1 9905-0512 ●
10 BOLT; TIRE HANGER
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE 		0-28651-230-0 04 1 0601- ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE 		0-28651-230-0 04 1 0601- ●
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-373-0 02 1 9905- ●
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE 		0-28081-025-0 08 1 9905-0512 ●
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE 		0-28051-025-0 08 1 0601- ●
20 NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE 		0-91150-210-0 08 1 9905-0602 ●
20 NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE 		0-91180-210-0 08 1 0603- ●
