2-66 — MANUAL TRANSFER GEAR; OUTPUT (#1591) — 59 parça

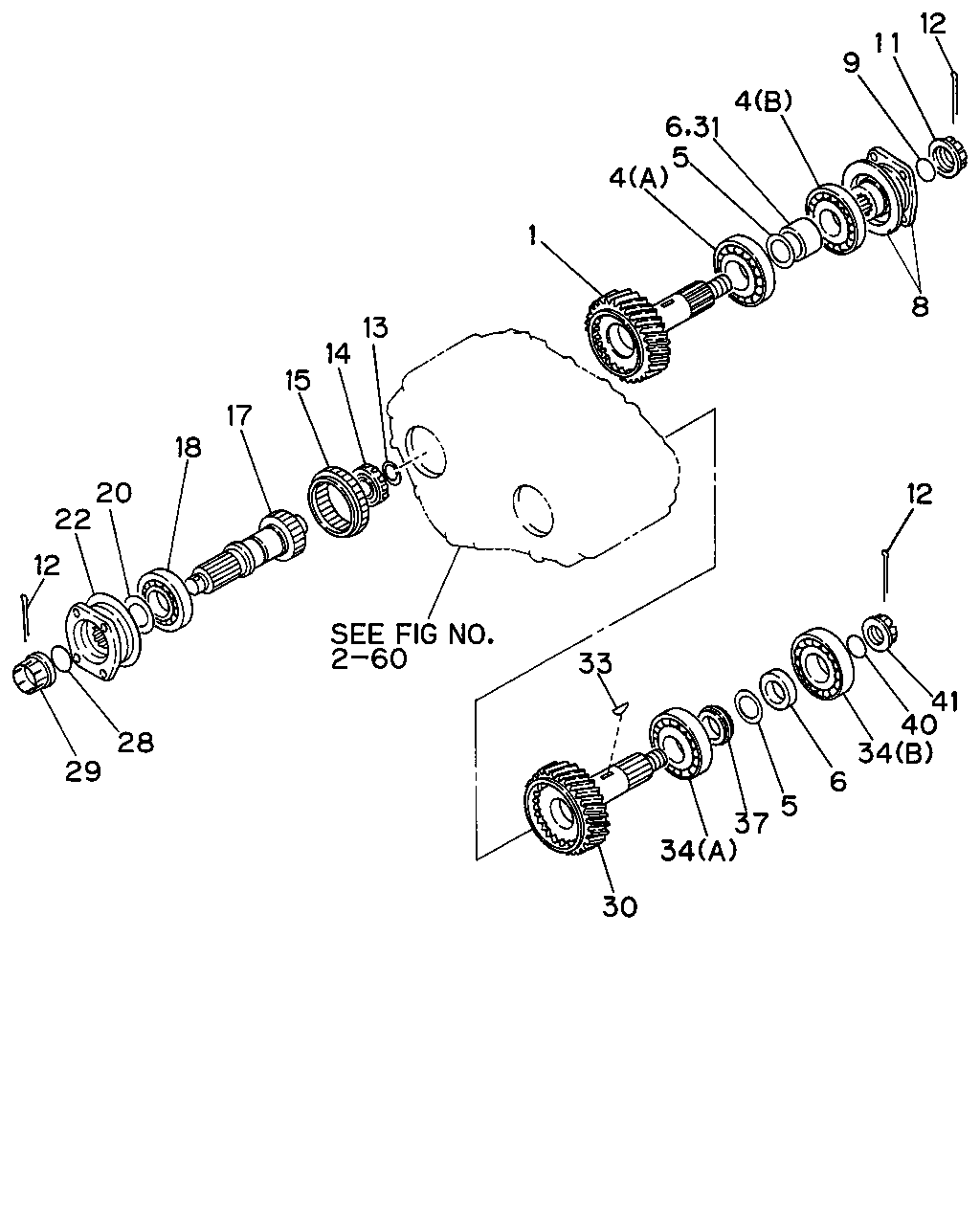

çizim 94650
12 11 9 4 31 6 5 4 1 8 12 41 40 34 6 5 37 34 30 33 13 14 15 17 18 20 22 12 29 28
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 SHAFT; GEAR,OUTPUT,RR
Z=34 		1-36351-033-0 01 1 9207-9406 ● ● ● ● ●
1 SHAFT; GEAR,OUTPUT,RR
Z=34 		1-36351-033-0 01 1 9407-9407 ● ● ● ●
1 SHAFT; GEAR,OUTPUT,RR
EXC. REAR WHEEL PARKING(B3A) Z=34 		1-36351-033-0 01 1 9407-9407 ●
1 SHAFT; GEAR,OUTPUT,RR
REAR WHEEL PARKING(B3A) TACHOGRAPH 140KM/H<WC7> Z=34 		1-36351-033-0 01 1 9407-9407 ●
1 SHAFT; GEAR,OUTPUT,RR
REAR WHEEL PARKING(B3A) EXC. TACHOGRAPH 140KM/H<WC7> Z=34 		1-36351-041-0 01 1 9407-9407 ●
1 SHAFT; GEAR,OUTPUT,RR
Z=34 		1-36351-041-0 01 1 9408- ● ● ● ● ●
4 BEARING; ROLLER,OUTPUT
(A) NSK 		1-09812-009-0 01 1 9207- ● ● ● ● ●
4 BEARING; ROLLER,OUTPUT
(B) NACHI 		1-09812-029-0 01 1 9207- ● ● ● ● ●
4 BEARING; ROLLER,OUTPUT
(A) NACHI 		1-09812-030-0 01 1 9207- ● ● ● ● ●
4 BEARING; ROLLER,OUTPUT
(B) NSK 		9-00030-309-0 01 1 9207- ● ● ● ● ●
5 SHIM; RR OUTPUT SHAFT
T=3.20 		1-41229-090-0 AR 1 9207- ● ● ● ● ●
5 SHIM; RR OUTPUT SHAFT
T=3.21 		1-41229-091-0 AR 1 9207- ● ● ● ● ●
5 SHIM; RR OUTPUT SHAFT
T=3.22 		1-41229-092-0 AR 1 9207- ● ● ● ● ●
5 SHIM; RR OUTPUT SHAFT
T=3.23 		1-41229-093-0 AR 1 9207- ● ● ● ● ●
5 SHIM; RR OUTPUT SHAFT
T=3.24 		1-41229-094-0 AR 1 9207- ● ● ● ● ●
5 SHIM; RR OUTPUT SHAFT
T=3.25 		1-41229-095-0 AR 1 9207- ● ● ● ● ●
5 SHIM; RR OUTPUT SHAFT
T=3.26 		1-41229-096-0 AR 1 9207- ● ● ● ● ●
5 SHIM; RR OUTPUT SHAFT
T=3.27 		1-41229-097-0 AR 1 9207- ● ● ● ● ●
5 SHIM; RR OUTPUT SHAFT
T=3.28 		1-41229-098-0 AR 1 9207- ● ● ● ● ●
5 SHIM; RR OUTPUT SHAFT
T=3.29 		1-41229-099-0 AR 1 9207- ● ● ● ● ●
5 SHIM; RR OUTPUT SHAFT
T=3.30 		1-41229-100-0 AR 1 9207- ● ● ● ● ●
6 COLLAR; DIST,OUTPUT
T=19.5 		1-36355-022-0 01 1 9207- ● ● ● ● ●
6 COLLAR; DIST,OUTPUT
T=19.7 		1-36355-023-0 01 1 9207- ● ● ● ● ●
6 COLLAR; DIST,OUTPUT
T=19.9 		1-36355-024-0 01 1 9207- ● ● ● ● ●
6 COLLAR; DIST,OUTPUT
T=20.1 		1-36355-025-0 01 1 9207- ● ● ● ● ●
6 COLLAR; DIST,OUTPUT
T=20.3 		1-36355-026-0 01 1 9207- ● ● ● ● ●
6 COLLAR; DIST,OUTPUT
T=20.5 		1-36355-027-0 01 1 9207- ● ● ● ● ●
6 COLLAR; DIST,OUTPUT
T=20.7 		1-36355-028-0 01 1 9207- ● ● ● ● ●
6 COLLAR; DIST,OUTPUT
T=20.9 		1-36355-029-0 01 1 9207- ● ● ● ● ●
6 COLLAR; DIST,OUTPUT
T=21.1 		1-36355-030-0 01 1 9207- ● ● ● ● ●
8 FLANGE; OUTPUT
W/COVER:DUST 		1-37240-079-1 01 1 9207- ● ● ● ● ●
9 GASKET; SHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5 		1-09623-379-0 01 1 9207- ● ● ● ● ●
11 NUT; FLANGE,TRANSFER,OUTPUT,RR
M30 		1-09440-018-0 01 1 9207- ● ● ● ● ●
12 PIN 9-08116-045-0 03 1 9207- ● ● ● ● ●
13 RING; SNAP,OUTPUT,FRT 1-09588-157-0 01 1 9207- ● ● ● ● ●
14 BEARING; ROLLER,OUTPUT,FRT
NSK 		1-09810-087-0 01 1 9207- ● ● ● ● ●
15 SLEEVE; NEUTRAL & FRT 1-36262-021-0 01 1 9207- ● ● ● ● ●
17 SHAFT; OUTPUT
Z=26 		1-36311-016-0 01 1 9207- ● ● ● ● ●
18 BEARING; BALL,OUTPUT,FRT
NSK 		9-00090-047-0 01 1 9207- ● ● ● ● ●
18 BEARING; BALL,OUTPUT,FRT
NACHI 		9-00090-225-0 01 1 9207- ● ● ● ● ●
20 COLLAR; DIST,OUTPUT SHAFT,FRT 9-36215-006-1 01 1 9207- ● ● ● ● ●
22 FLANGE; OUTPUT,FRT 1-37240-078-1 01 1 9207- ● ● ● ● ●
28 GASKET; SHAFT
ALSO INCLUDED IN REPAIR KIT(T/F). ID=35.7 T=5 		1-09623-379-0 01 1 9207- ● ● ● ● ●
29 NUT; FLANGE
M30 		1-09440-018-0 01 1 9207- ● ● ● ● ●
30 SHAFT; GEAR,OUTPUT,RR
Z=34 		1-36351-033-0 01 1 9207-9406 ● ● ● ● ●
30 SHAFT; GEAR,OUTPUT,RR
Z=34 		1-36351-033-0 01 1 9407-9407 ● ● ● ●
30 SHAFT; GEAR,OUTPUT,RR
EXC. REAR WHEEL PARKING(B3A) Z=34 		1-36351-033-0 01 1 9407-9407 ●
30 SHAFT; GEAR,OUTPUT,RR
REAR WHEEL PARKING(B3A) TACHOGRAPH 140KM/H<WC7> Z=34 		1-36351-033-0 01 1 9407-9407 ●
30 SHAFT; GEAR,OUTPUT,RR
REAR WHEEL PARKING(B3A) EXC. TACHOGRAPH 140KM/H<WC7> Z=34 		1-36351-041-0 01 1 9407-9407 ●
30 SHAFT; GEAR,OUTPUT,RR
Z=34 		1-36351-041-0 01 1 9408- ● ● ● ● ●
31 COLLAR; DIST,BRG,OUTPUT
T=25 		1-36355-049-0 01 1 9207- ● ● ● ● ●
33 KEY; FEATHER,SPD DRIVE GEAR 9-08055-519-0 01 1 9207- ● ● ● ● ●
34 BEARING; ROLLER,OUTPUT
(A) NSK 		1-09812-009-0 01 1 9207- ● ● ● ● ●
34 BEARING; ROLLER,OUTPUT
(B) NACHI 		1-09812-029-0 01 1 9207- ● ● ● ● ●
34 BEARING; ROLLER,OUTPUT
(A) NACHI 		1-09812-030-0 01 1 9207- ● ● ● ● ●
34 BEARING; ROLLER,OUTPUT
(B) NSK 		9-00030-309-0 01 1 9207- ● ● ● ● ●
37 GEAR; DRIVE,SPD,TRANSFER
Z=4 		1-33371-007-2 01 1 9207- ● ● ● ● ●
40 GASKET; FLANGE
ALSO INCLUDED IN REPAIR KIT(T/F). ID=35.7 T=5 		1-09623-379-0 01 1 9207- ● ● ● ● ●
41 NUT; FLANGE LK,OUTPUT
M30 		1-09440-018-0 01 1 9207- ● ● ● ● ●
