5-01 — FRAME AND OTHER PARTS (#15906) — 95 parça

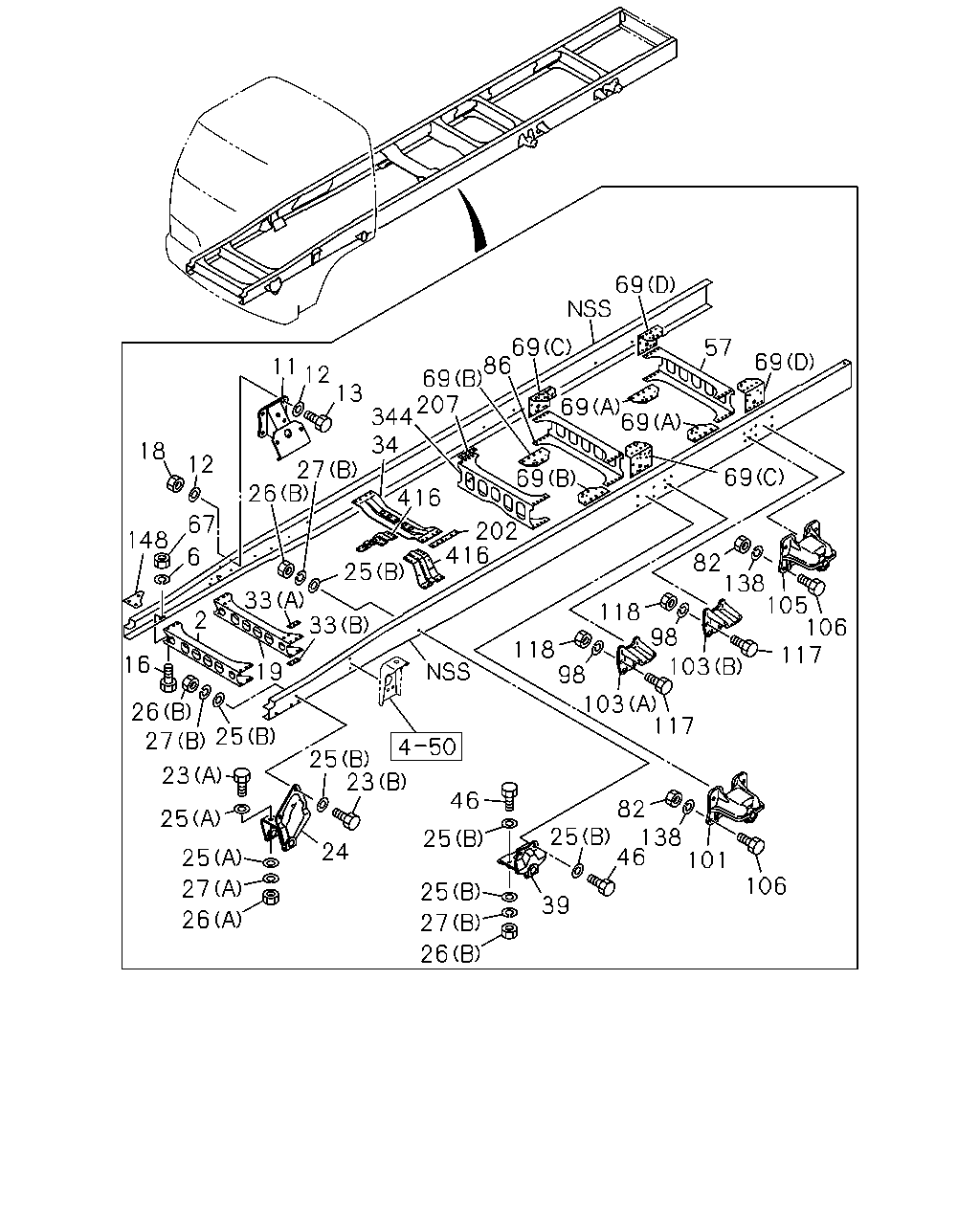

çizim 15930
69 69 86 12 69 13 207 344 34 57 69 11 69 69 18 69 12 69 27 26 416 67 202 416 25 82 138 105 106 117 148 6 33 2 33 19 118 16 98 118 98 103 103 117 26 27 25 25 23 23 46 82 25 138 46 101 25 25 24 2 106 27 25 39 26 27 26
BalonParca AdiParca NoAdetTipApplied Date A B
2 MEMBER; CROSS,1ST 1-53181-670-9 01 1 9905-0706 ● ●
2 MEMBER; CROSS,1ST 1-53181-939-2 01 1 0707- ● ●
6 WASHER; LK,1ST C/MBR
ID=16.2 		9-09150-616-0 01 1 9905-0603 ● ●
6 WASHER; LK,1ST C/MBR
ID=16.2 		0-91510-616-0 01 1 0604- ● ●
11 BRACKET; ENG MTG 1-53211-218-0 02 1 9905- ● ●
12 WASHER; PL,BRKT,ENG MTG
ID=12.5 		1-09503-171-0 16 1 9905- ● ●
13 BOLT; BRKT,ENG MTG
M12X35 		9-92061-235-0 08 1 9905-0512 ● ●
13 BOLT; BRKT,ENG MTG
M12X35 		0-20951-235-0 08 1 0601- ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		0-20801-640-0 01 1 9905-0512 ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		0-20851-640-0 01 1 0601- ● ●
18 NUT; BRKT,ENG MTG
M12 		9-99110-512-0 08 1 9905-0512 ● ●
18 NUT; BRKT,ENG MTG
M12 		0-91110-512-0 08 1 0601- ● ●
19 MEMBER; CROSS,2ND 1-53181-671-9 01 1 9905-0410 ● ●
19 MEMBER; CROSS,2ND 8-97606-306-0 01 1 0411- ● ●
23 BOLT; BRKT,SPR
(B) M14X45 		9-92061-445-0 06 1 9905- ● ●
23 BOLT; BRKT,SPR
(A) M16X50 		9-92061-650-0 04 1 9905-0512 ● ●
23 BOLT; BRKT,SPR
(A) M16X50 		0-20951-650-0 04 1 0601- ● ●
24 BRACKET; FRT SPR,FRT 1-53351-148-3 01 1 9905- ● ●
24 BRACKET; FRT SPR,FRT 1-53351-149-3 01 1 9905- ● ●
25 WASHER; PL,BRKT
(A) ID=16.2 		1-09503-223-0 08 1 9905- ● ●
25 WASHER; PL,BRKT
(B) ID=15 		9-09651-069-0 28 1 9905-1201 ● ●
25 WASHER; PL,BRKT
(B) ID=15 		8-98010-627-1 28 1 1202- ● ●
26 NUT; BRKT,SPR
(B) M14 		9-99110-514-0 14 1 9905-0512 ● ●
26 NUT; BRKT,SPR
(B) M14 		0-91110-514-0 14 1 0601- ● ●
26 NUT; BRKT,SPR
(A) M16 		9-99110-516-0 04 1 9905-0512 ● ●
26 NUT; BRKT,SPR
(A) M16 		0-91110-516-0 04 1 0601- ● ●
27 WASHER; LK,BRKT,FRT SPR
(B) ID=14.2 		9-09150-614-0 14 1 9905-0603 ● ●
27 WASHER; LK,BRKT,FRT SPR
(B) ID=14.2 		0-91510-614-0 14 1 0604- ● ●
27 WASHER; LK,BRKT,FRT SPR
(A) ID=16.2 		9-09150-616-0 04 1 9905-0603 ● ●
27 WASHER; LK,BRKT,FRT SPR
(A) ID=16.2 		0-91510-616-0 04 1 0604- ● ●
33 SPACER; 2ND C/MBR,UPR
(A) 		1-53168-276-0 02 1 9905- ● ●
33 SPACER; 2ND C/MBR,UPR
(B) 		1-53168-287-0 02 1 9905- ● ●
34 MEMBER; CROSS,3RD 1-53174-231-1 01 1 9905- ● ●
39 BRACKET; FRT SPR,RR 1-53352-124-2 01 1 9905- ● ●
39 BRACKET; FRT SPR,RR 1-53352-125-2 01 1 9905- ● ●
46 BOLT; BRKT FIX
M14X45 		9-92061-445-0 08 1 9905- ● ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-691-4 01 1 9905- ● ●
67 NUT; C/MBR
M16 		9-99110-516-0 01 1 9905-0512 ● ●
67 NUT; C/MBR
M16 		0-91110-516-0 01 1 0601- ● ●
69 GUSSET; RR SUSP,UPR
(A) 		1-53167-099-4 02 1 9905- ● ●
69 GUSSET; RR SUSP,UPR
(B) 		1-53167-100-3 02 1 9905- ● ●
69 GUSSET; RR SUSP,UPR
(C) 		1-53167-299-0 01 1 9905-0004 ● ●
69 GUSSET; RR SUSP,UPR
(C) 		1-53167-630-0 01 1 0005- ● ●
69 GUSSET; RR SUSP,UPR
(C) 		1-53167-300-0 01 1 9905-0004 ● ●
69 GUSSET; RR SUSP,UPR
(C) 		1-53167-629-0 01 1 0005- ● ●
69 GUSSET; RR SUSP,UPR
(D) 		1-53167-301-0 01 1 9905-0004 ● ●
69 GUSSET; RR SUSP,UPR
(D) 		1-53167-628-0 01 1 0005- ● ●
69 GUSSET; RR SUSP,UPR
(D) 		1-53167-302-0 01 1 9905-0004 ● ●
69 GUSSET; RR SUSP,UPR
(D) 		1-53167-631-0 01 1 0005- ● ●
82 NUT; BRKT
M14 		9-99110-414-0 20 1 9905-0512 ● ●
82 NUT; BRKT
M14 		0-91110-514-0 20 1 0601- ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-691-4 01 1 9905- ● ●
98 WASHER; LK,STOPPER
ID=14.2 		9-09150-614-0 16 1 9905-0603 ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 0604- ● ●
101 BRACKET; RR SPR,FRT 1-53353-072-1 02 1 9905- ● ●
103 STOPPER; SUB SPR
(A) 		1-53356-038-1 02 1 9905- ● ●
103 STOPPER; SUB SPR
(B) 		1-53357-029-1 02 1 9905- ● ●
105 BRACKET; RR SPR,RR 1-53353-072-1 02 1 9905- ● ●
106 BOLT; BRKT
M14X45 		0-20801-445-0 20 1 9905- ● ●
117 BOLT; STOPPER
M14X45 		0-20801-445-0 16 1 9905- ● ●
118 NUT; STOPPER
M14 		9-99110-414-0 16 1 9905-0512 ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 0601- ● ●
138 WASHER; LK,BRKT
ID=14.2 		9-09150-614-0 20 1 9905-0603 ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 20 1 0604- ● ●
148 SPACER; C/MBR 1-53168-341-0 02 1 9905- ● ●
202 SPACER; 3RD C/MBR 1-53168-351-1 02 1 9905- ● ●
207 SPACER; 4TH C/MBR
PINTLE HOOK<PP7> 		1-53168-163-1 01 1 9905- ●
207 SPACER; 4TH C/MBR
EXC. PINTLE HOOK<PP7> 		1-53168-163-1 02 1 9905- ●
344 MEMBER; CROSS,4TH 1-53181-095-2 01 1 9905- ●
416 GUSSET; 3RD C/MBR 1-53164-213-0 01 1 9905- ● ●
416 GUSSET; 3RD C/MBR 1-53164-214-0 01 1 9905- ● ●

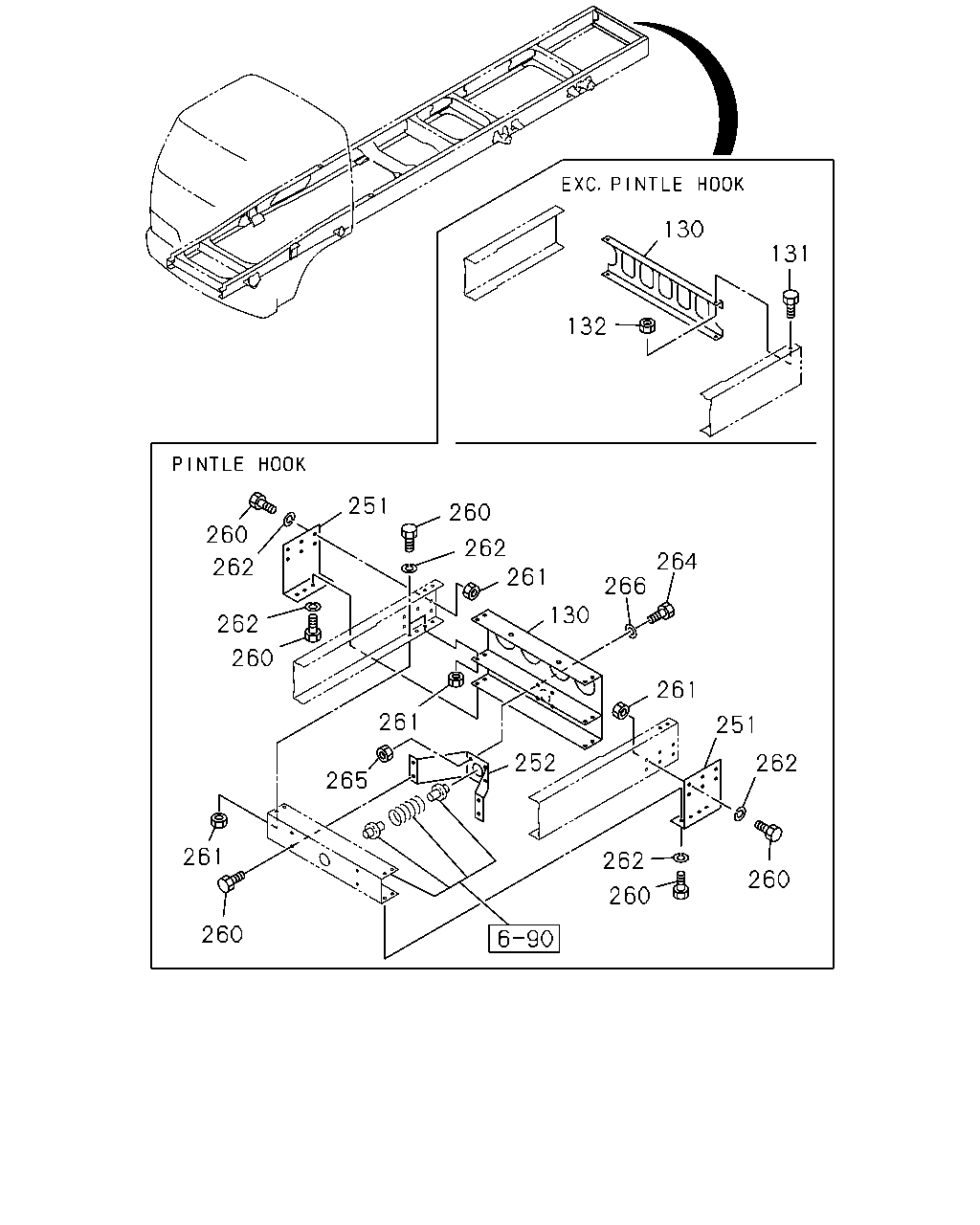

çizim 63522
130 131 132 251 260 260 262 261 264 262 266 130 262 260 261 261 251 252 262 265 261 262 260 260 260
BalonParca AdiParca NoAdetTipApplied Date A B
130 MEMBER; CROSS,END
PINTLE HOOK<PP7> 		1-53181-586-0 01 1 9905- ● ●
130 MEMBER; CROSS,END
EXC. PINTLE HOOK<PP7> 		1-53181-151-2 01 1 9905- ● ●
131 BOLT; END C/MBR
EXC. PINTLE HOOK<PP7> M12X30 W/LK WASHER 		0-50041-230-0 04 1 9905-0512 ● ●
131 BOLT; END C/MBR
EXC. PINTLE HOOK<PP7> M12X30 W/LK WASHER 		0-50541-230-0 04 1 0601- ● ●
132 NUT; END C/MBR
EXC. PINTLE HOOK<PP7> M12 		9-99110-412-0 04 1 9905-0512 ● ●
132 NUT; END C/MBR
EXC. PINTLE HOOK<PP7> M12 		0-91110-512-0 04 1 0601- ● ●
251 SUPPORT; PINTLE HOOK
PINTLE HOOK<PP7> 		1-57189-183-1 01 1 9905- ● ●
251 SUPPORT; PINTLE HOOK
PINTLE HOOK<PP7> 		1-57189-184-1 01 1 9905- ● ●
252 STIFFENER; PINTLE HOOK
PINTLE HOOK<PP7> 		1-57189-187-0 01 1 9905- ● ●
260 BOLT; SUB FRAME
PINTLE HOOK<PP7> M12X40 W/LK WASHER 		0-50041-240-0 08 1 9905-0906 ● ●
260 BOLT; SUB FRAME
PINTLE HOOK<PP7> M12X40 W/LK WASHER 		0-50541-240-0 08 1 0907- ● ●
260 BOLT; SUB FRAME
PINTLE HOOK<PP7> M14X35 		9-92061-435-0 24 1 9905-0512 ● ●
260 BOLT; SUB FRAME
PINTLE HOOK<PP7> M14X35 		0-20951-435-0 24 1 0601- ● ●
261 NUT; SUB FRAME
PINTLE HOOK<PP7> M14 		9-99110-514-0 16 1 9905-0512 ● ●
261 NUT; SUB FRAME
PINTLE HOOK<PP7> M14 		0-91110-514-0 16 1 0601- ● ●
262 WASHER; LK,SUB FRAME
PINTLE HOOK<PP7> ID=14.2 		9-09150-614-0 24 1 9905-0603 ● ●
262 WASHER; LK,SUB FRAME
PINTLE HOOK<PP7> ID=14.2 		0-91510-614-0 24 1 0604- ● ●
264 BOLT; FRT C/MBR
PINTLE HOOK<PP7> M14X35 		9-92061-435-0 04 1 9905-0512 ● ●
264 BOLT; FRT C/MBR
PINTLE HOOK<PP7> M14X35 		0-20951-435-0 04 1 0601- ● ●
265 NUT; FRT C/MBR
PINTLE HOOK<PP7> M14 		9-99110-514-0 04 1 9905-0512 ● ●
265 NUT; FRT C/MBR
PINTLE HOOK<PP7> M14 		0-91110-514-0 04 1 0601- ● ●
266 WASHER; LK,C/MBR
PINTLE HOOK<PP7> ID=14.2 		9-09150-614-0 04 1 9905-0202 ● ●
266 WASHER; LK,C/MBR
PINTLE HOOK<PP7> ID=14.2 		9-09150-814-0 04 1 0203-0603 ● ●
266 WASHER; LK,C/MBR
PINTLE HOOK<PP7> ID=14.2 		0-91510-814-0 04 1 0604- ● ●
