◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11311 - FTS(MIDDLE EAST) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#15905) — 35 parça

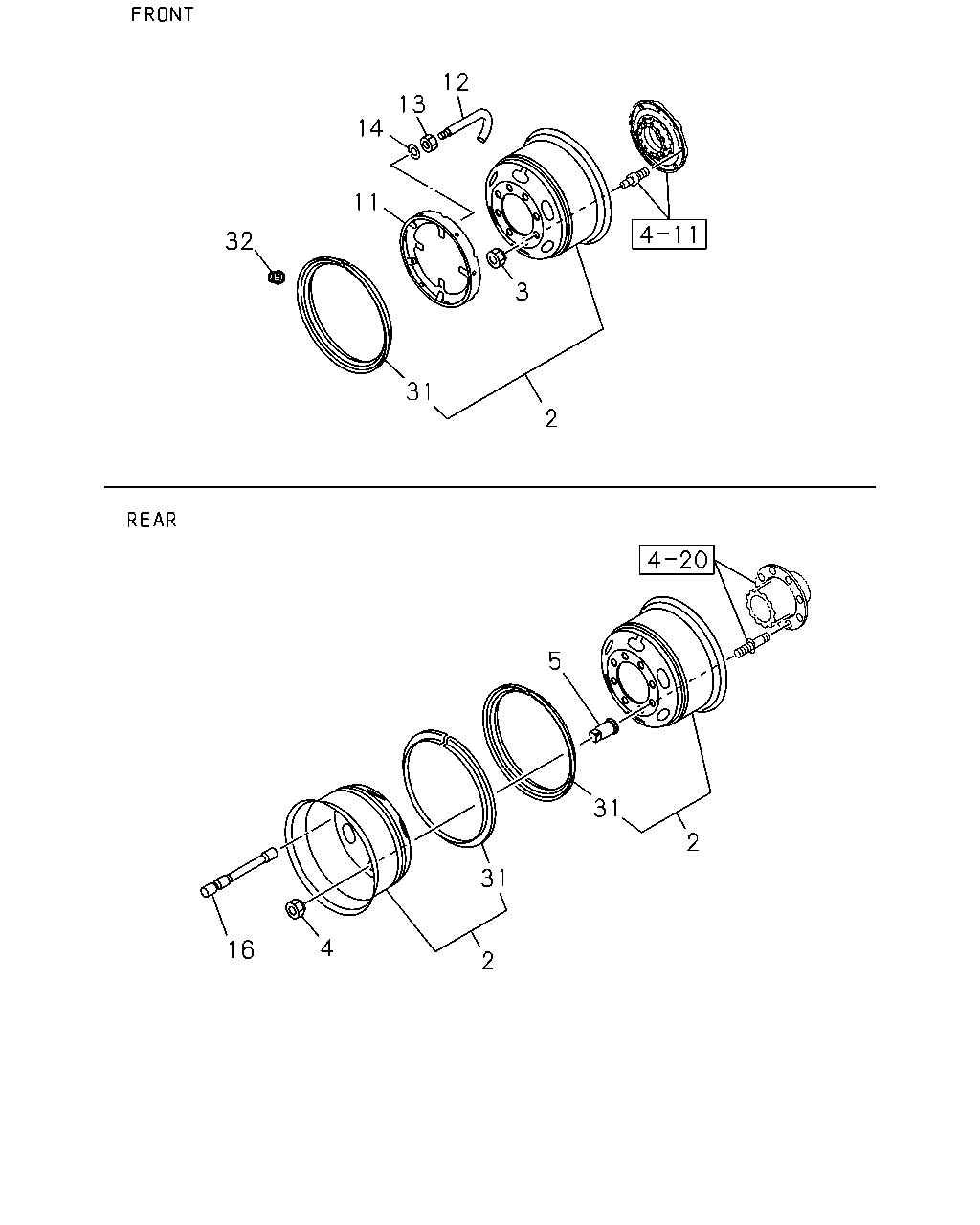

çizim 65216
12 13 14 11 32 3 31 2 5 31 2 31 4 16 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE 		1-42350-478-0 01 1 9905- ● ●
2 WHEEL; DISC
DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE TIRE & DISC WHEEL RR<R46> SPARE 		1-42350-478-0 01 1 9905- ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE 		1-42350-268-2 01 1 9905-0403 ● ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE 		1-42350-268-2 01 1 9905-0403 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE 		1-42350-268-2 01 1 0404- ● ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE 		1-42350-268-2 01 1 0404- ● ●
2 WHEEL; DISC
DISC WHEEL 8STUD 20X7.00T 162-12(Q54) FRONT,REAR 		1-42350-478-0 06 1 9905- ● ●
2 WHEEL; DISC
EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54) FRONT,REAR 		1-42350-268-2 06 1 9905- ● ●
3 NUT; WHEEL,FRT AXLE
M24 LH THREAD 		1-42334-022-3 08 1 9905- ● ●
3 NUT; WHEEL,FRT AXLE
M24 		1-42333-022-3 08 1 9905- ● ●
4 NUT; WHEEL,RR AXLE
M30 LH THREAD 		1-42334-023-0 08 1 9905-0610 ● ●
4 NUT; WHEEL,RR AXLE
M30 LH THREAD 		8-97359-810-0 08 1 0611- ● ●
4 NUT; WHEEL,RR AXLE
M30 		1-42333-023-0 08 1 9905-0610 ● ●
4 NUT; WHEEL,RR AXLE
M30 RH THREAD 		8-97359-809-0 08 1 0611- ● ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD 		1-42336-005-1 08 1 9905-0610 ● ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 08 1 0611- ● ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD 		1-42335-005-1 08 1 9905-0610 ● ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 08 1 0611- ● ●
11 STEP; DISC WHEEL SIDE 1-43139-002-2 02 1 9905- ● ●
12 U-BOLT; STEP DISC
L=44 		9-43139-023-1 06 1 9905- ● ●
13 NUT; STEP DISC
M10 		9-09110-510-0 06 1 9905-0512 ● ●
13 NUT; STEP DISC
M10 		0-91110-510-0 06 1 0601- ● ●
14 WASHER; LK,STEP DISC
ID=10.2 		9-09150-510-0 06 1 9905-0603 ● ●
14 WASHER; LK,STEP DISC
ID=10.2 		0-91510-510-0 06 1 0604- ● ●
16 HOLDER; TIRE VALVE,DISC WHEEL
L=170 		1-42370-024-0 02 1 9905-0210 ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE 		1-42355-003-1 01 1 9905- ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE TIRE & DISC WHEEL RR<R46> SPARE 		1-42355-003-1 01 1 9905- ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE 		1-42355-012-1 01 1 9905-0403 ● ●
31 RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE 		1-42355-012-1 01 1 9905-0403 ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE 		1-42355-012-1 01 1 0404- ● ●
31 RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE 		1-42355-012-1 01 1 0404- ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X7.00T 162-12(Q54) FRONT,REAR 		1-42355-003-1 06 1 9905- ● ●
31 RING; SIDE,DISC WHEEL
EXC. DISC WHEEL 8STUD 20X7.00T 162-12(Q54) FRONT,REAR 		1-42355-012-1 06 1 9905- ● ●
32 CAP; VALVE
SPARE TIRE & DISC WHEEL RR<R46> 		1-42374-001-0 07 1 9905- ● ●
32 CAP; VALVE
EXC. SPARE TIRE & DISC WHEEL RR<R46> 		1-42374-001-0 06 1 9905- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
