4-60 — REAR SUSPENSION (#15903) — 26 parça

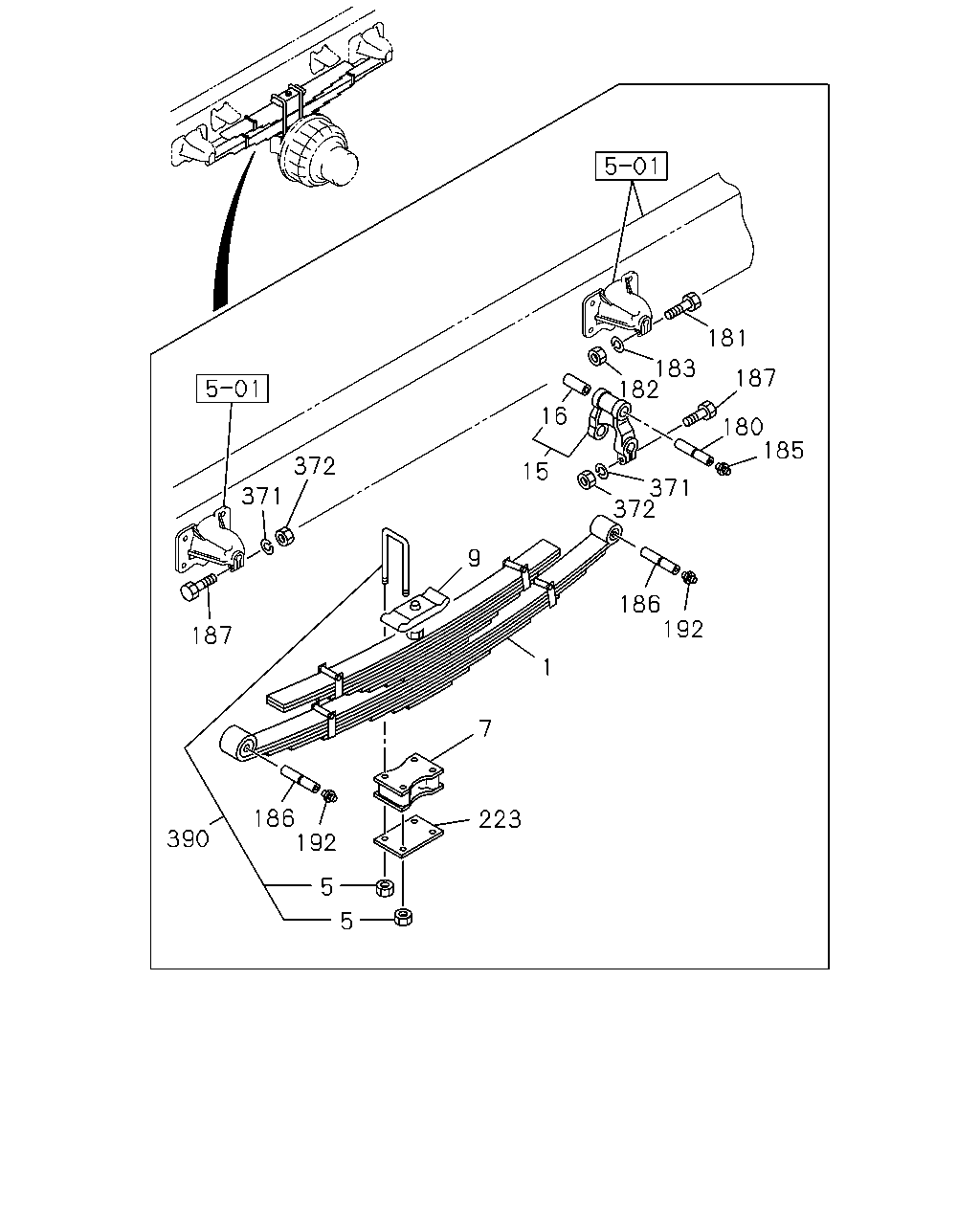

çizim 64853
181 183 182 187 16 180 185 372 15 371 372 371 9 186 192 187 1 7 186 192 223 390 5 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 		1-51300-358-2 02 1 9905- ● ●
5 NUT; U-BOLT,RR SPR
M24 		9-99112-824-0 08 1 9905-0512 ● ●
5 NUT; U-BOLT,RR SPR
M24 		0-91112-824-0 08 1 0601- ● ●
7 SEAT; SPR,LWR 1-51385-062-2 02 1 9905- ● ●
9 PAD; U BOLT,RR SPR 1-51372-048-1 02 1 9905- ● ●
15 SHACKLE; RR SPR 1-51362-049-2 02 1 9905- ● ●
16 BUSHING; SHACKLE,RR SPR 9-51351-019-2 02 1 9905-0902 ● ●
16 BUSHING; SHACKLE,RR SPR 8-98081-830-0 02 1 0903- ● ●
180 PIN; RR SPR
DO=28 L=131 PT1/8 		1-51361-015-0 02 1 9905- ● ●
181 BOLT; SPR & SHACKLE
M14X65 		0-10811-465-0 02 1 9905- ● ●
182 NUT; PIN,RR SPR
M14 		9-99110-414-0 02 1 9905-0512 ● ●
182 NUT; PIN,RR SPR
M14 		0-91110-514-0 02 1 0601- ● ●
183 WASHER; LK,PIN,RR SPR
ID=14.2 		9-09150-514-0 02 1 9905-0603 ● ●
183 WASHER; LK,PIN,RR SPR
ID=14.2 		0-91510-514-0 02 1 0604- ● ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		9-09031-010-0 02 1 9905-0512 ● ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ● ●
186 PIN; SHACKLE,RR SPR
DO=28 L=131 PT1/8 		1-51361-015-0 04 1 9905- ● ●
187 BOLT; SPR & SHACKLE
M14X65 		0-10811-465-0 04 1 9905- ● ●
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 STRAIGHT 		9-09031-010-0 04 1 9905-0512 ● ●
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 STRAIGHT 		0-90301-410-0 04 1 0601- ● ●
223 SPACER; U BOLT,RR SPR 1-51377-246-0 01 1 9905- ● ●
371 WASHER; LK,SHACKLE
ID=14.2 		9-09150-514-0 04 1 9905-0603 ● ●
371 WASHER; LK,SHACKLE
ID=14.2 		0-91510-514-0 04 1 0604- ● ●
372 NUT; SHACKLE
M14 		9-99110-414-0 04 1 9905-0512 ● ●
372 NUT; SHACKLE
M14 		0-91110-514-0 04 1 0601- ● ●
390 U-BOLT SET; RR SPRING
L=570 		1-87870-320-1 04 1 9905- ● ●
