◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11311 - FTS(MIDDLE EAST) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#15901) — 53 parça

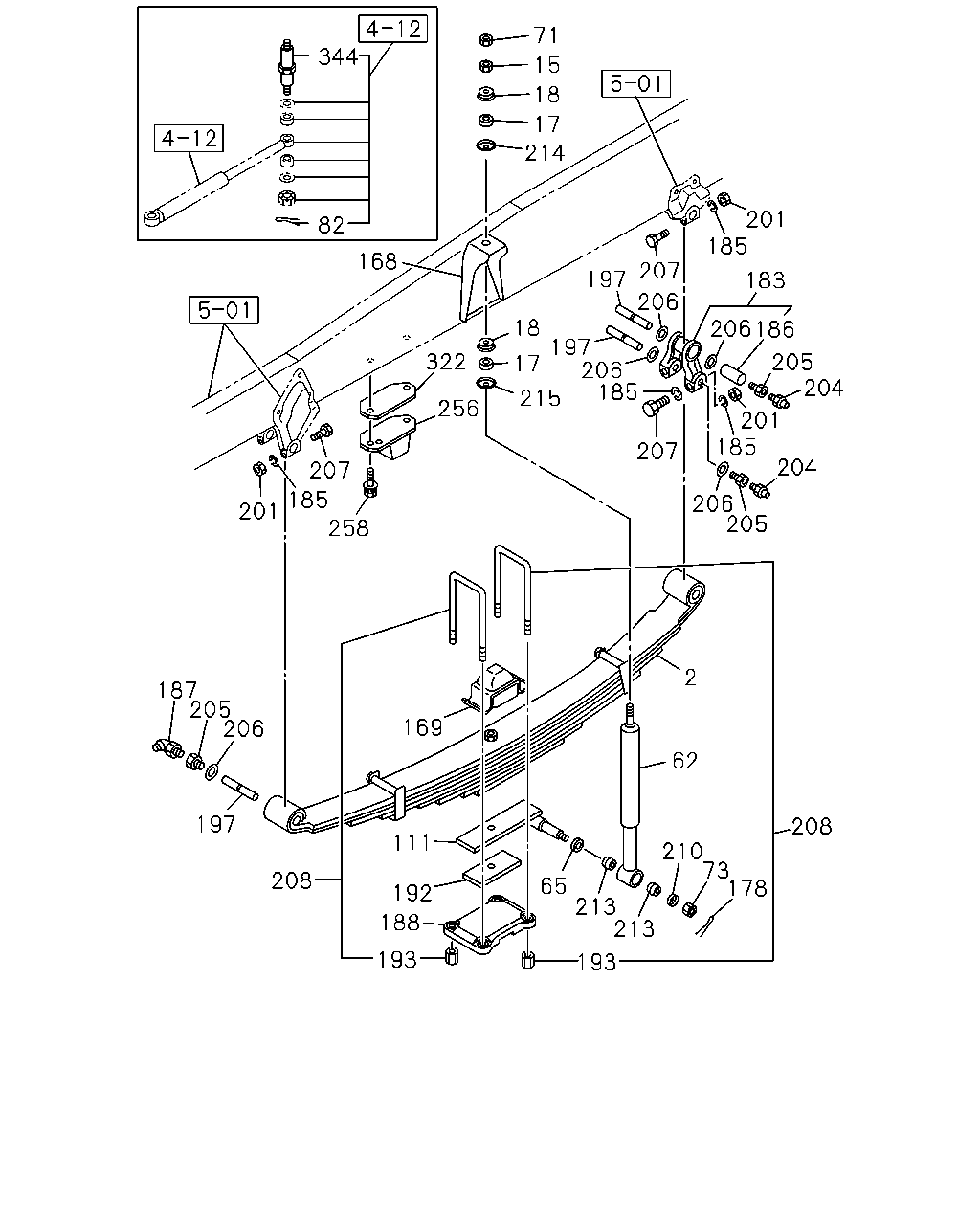

çizim 15560
344 71 15 18 17 214 201 185 82 168 207 197 183 206 18 322 197 206 185 205 204 17 215 256 201 185 207 207 204 206 205 185 201 258 2 187 205 206 169 62 197 208 111 210 73 178 208 65 213 213 192 188 193 193 206 186
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		1-51130-415-0 02 1 9905- ● ●
15 NUT; S/ABS,UPR
M12 		1-09400-006-0 02 1 9905-0910 ● ●
15 NUT; S/ABS,UPR
M12 		8-98010-412-0 02 1 0911- ● ●
17 BUSHING; RUBBER,S/ABS 9-51631-050-0 04 1 9905- ● ●
18 WASHER; CENTERING,S/ABS
ID=16.8 		1-51631-022-0 04 1 9905- ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-180-4 02 1 9905- ● ●
62 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS 		1-87610-153-0 02 1 9905-0004 ● ●
65 WASHER; S/ABS
ID=23 		1-51631-019-0 02 1 9905- ● ●
71 NUT; LK,S/ABS,UPR
M12 		1-09400-006-0 02 1 9905-0910 ● ●
71 NUT; LK,S/ABS,UPR
M12 		8-98010-412-0 02 1 0911- ● ●
73 NUT; BRKT,SHOCK
M16 SLOTTED 		9-99116-416-0 02 1 9905-0605 ● ●
73 NUT; BRKT,SHOCK
M16 SLOTTED 		0-91116-516-0 02 1 0606-1204 ● ●
73 NUT; BRKT,SHOCK
M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ●
82 PIN; SPLIT,FRT S/ABS
OD=2.8 L=25 		9-08113-025-0 01 1 9905- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-743-0 01 1 9905- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-744-0 01 1 9905- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-306-0 02 1 9905- ● ●
169 PAD; U BOLT,FRT SPR 1-51172-106-0 02 1 9905- ● ●
178 PIN; SPLIT,S/ABS
OD=3.7 L=25 		9-08114-025-0 02 1 9905-0606 ● ●
178 PIN; SPLIT,S/ABS
OD=3.7 L=25 		0-81124-025-0 02 1 0607- ● ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 9905- ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9905-0603 ● ●
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 12 1 0604- ● ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 9905-0902 ● ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 0903- ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 9905-0512 ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51173-038-0 02 1 9905- ● ●
192 PIECE; DIST 9-51377-038-0 01 1 9905- ● ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 9905-0512 ● ●
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0601-1206 ● ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207- ● ●
197 PIN; FRT SPR,FRT 1-51161-031-0 06 1 9905- ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9905-0512 ● ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 0601- ● ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		9-09031-010-0 04 1 9905-0512 ● ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		0-90301-410-0 04 1 0601- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9905- ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 9905- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9905-0512 ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 0601- ● ●
208 U-BOLT SET; FRT SPRING
L=380 		1-87870-332-2 04 1 9905-0601 ● ●
208 U-BOLT SET; FRT SPRING
L=380 		1-87870-488-1 04 1 0602- ● ●
210 WASHER; S/ABS,OUTER
ID=17 		1-51631-020-0 02 1 9905- ● ●
213 BUSHING; RUBBER,LWR 1-51631-009-1 04 1 9905- ● ●
214 WASHER; S/ABS,UPR,INNER
ID=14.5 		9-51631-051-0 02 1 9905- ● ●
215 WASHER; S/ABS,UPR,OUTER
ID=14.5 		9-51631-051-0 02 1 9905- ● ●
256 RUBBER; CUSHION,FRT SPR 1-51174-008-2 01 1 9905- ● ●
256 RUBBER; CUSHION,FRT SPR 1-51174-009-2 01 1 9905- ● ●
258 BOLT; CUSHION,WIND UP
M8X35 FLANGE 		0-28080-835-0 04 1 9905-0512 ● ●
258 BOLT; CUSHION,WIND UP
M8X35 FLANGE 		0-28050-835-0 04 1 0601- ● ●
322 PLUG; RUBBER 1-51174-017-1 02 1 9905- ● ●
344 PIN; FRT S/ABS 9-43219-034-0 01 1 9905- ● ●
