Isuzu WW
▶
TRUCKS
▶
FSS
▶
10634 - FSS/FTS-RHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-65 - MANUAL TRANSFER GEAR; INPUT AND IDLE
▶

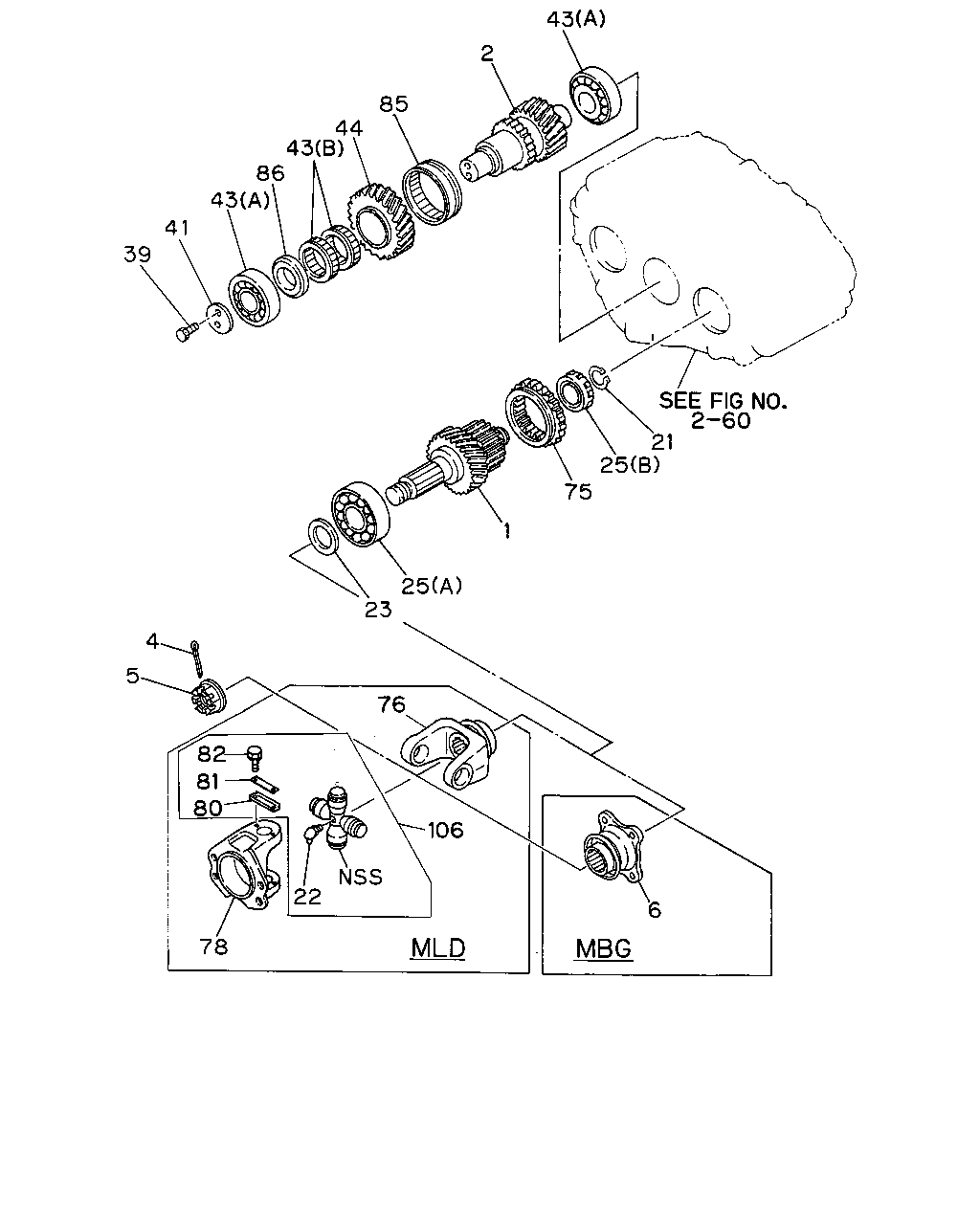

2-65 — MANUAL TRANSFER GEAR; INPUT AND IDLE
(#1590) — 27 parça
Tümü
A - FSS5MC
B - FSS5MF
C - FTS5MC
D - FTS5MF
E - FTS5WF
43
2
85
44
43
86
43
41
39
23
25
1
75
25
21
76
4
5
82
81
80
106
6
22
78
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
1
SHAFT; GEAR,INPUT
Z=16-24-26
1-36211-025-0
01
1
9207-
●
●
●
●
●
2
SHAFT; GEAR,IDLE
Z=21-26
1-36251-022-0
01
1
9207-
●
●
●
●
●
4
PIN; SPLIT
9-08116-045-0
01
1
9207-
●
●
●
●
●
5
NUT; YOKE,TRANSFER,INPUT
M30
1-09440-018-0
01
1
9207-
●
●
●
●
●
6
FLANGE; INPUT
MBG5B M/T(X4K) W/COVER:DUST
1-37240-079-1
01
1
9207-
●
●
●
●
●
21
RING; SNAP,PILOT BRG
1-09588-157-0
01
1
9207-
●
●
●
●
●
22
NIPPLE; GREASE
MLD6D M/T(X5Q) PT1/8 ELBOW 67.5?
9-09031-110-0
01
1
9207-
●
●
23
COLLAR; DIST,INPUT SHAFT
9-36215-006-1
01
1
9207-
●
●
●
●
●
25
BEARING; BALL,INPUT SHAFT
(A) NSK
1-09800-055-0
01
1
9207-
●
●
●
●
●
25
BEARING; BALL,INPUT SHAFT
(A) NTN
1-09800-064-0
01
1
9207-
●
●
●
●
●
25
BEARING; BALL,INPUT SHAFT
(B) NSK
1-09810-087-0
01
1
9207-
●
●
●
●
●
39
BOLT; LK PLATE
M8X20
1-09050-005-1
02
1
9207-
●
●
●
●
●
41
PLATE; LK,IDLE SHAFT
1-33313-002-0
01
1
9207-
●
●
●
●
●
43
BEARING; ROLLER,IDLE SHAFT
(A) NSK
1-09812-038-0
02
1
9207-
●
●
●
●
●
43
BEARING; ROLLER,IDLE SHAFT
(A) NACHI
1-09812-039-0
02
1
9207-
●
●
●
●
●
43
BEARING; ROLLER,IDLE SHAFT
(B) KOYO
9-00096-240-1
02
1
9207-
●
●
●
●
●
44
GEAR; IDLE,LOW RANGE
Z=26-31
1-36271-045-0
01
1
9207-
●
●
●
●
●
75
SLEEVE; HIGH,INPUT
1-36262-021-0
01
1
9207-
●
●
●
●
●
76
YOKE ASM; INPUT
MLD6D M/T(X5Q)
1-37240-056-0
01
1
9207-
●
●
78
YOKE; FLANGE,INPUT
MLD6D M/T(X5Q)
1-37211-042-0
01
1
9207-
●
●
80
COVER; SPIDER,YOKE
MLD6D M/T(X5Q)
1-37355-002-1
04
1
9207-
●
●
81
PLATE; LK,SPIDER
MLD6D M/T(X5Q)
1-37356-004-0
04
1
9207-
●
●
82
BOLT; COVER
MLD6D M/T(X5Q) M8X20
9-09802-702-0
08
1
9207-
●
●
85
SLEEVE; LOW,IDLE
1-36262-020-0
01
1
9207-
●
●
●
●
●
86
WASHER; THRUST,IDLE
1-36255-006-0
01
1
9207-
●
●
●
●
●
106
JORNAL ASM; TRANSFER
MLD6D M/T(X5Q)
1-37300-071-0
01
1
9207-9207
●
●
106
JORNAL ASM; TRANSFER
MLD6D M/T(X5Q)
1-37300-083-0
01
1
9208-
●
●
