0-66 — GENERATOR (#159) — 88 parça

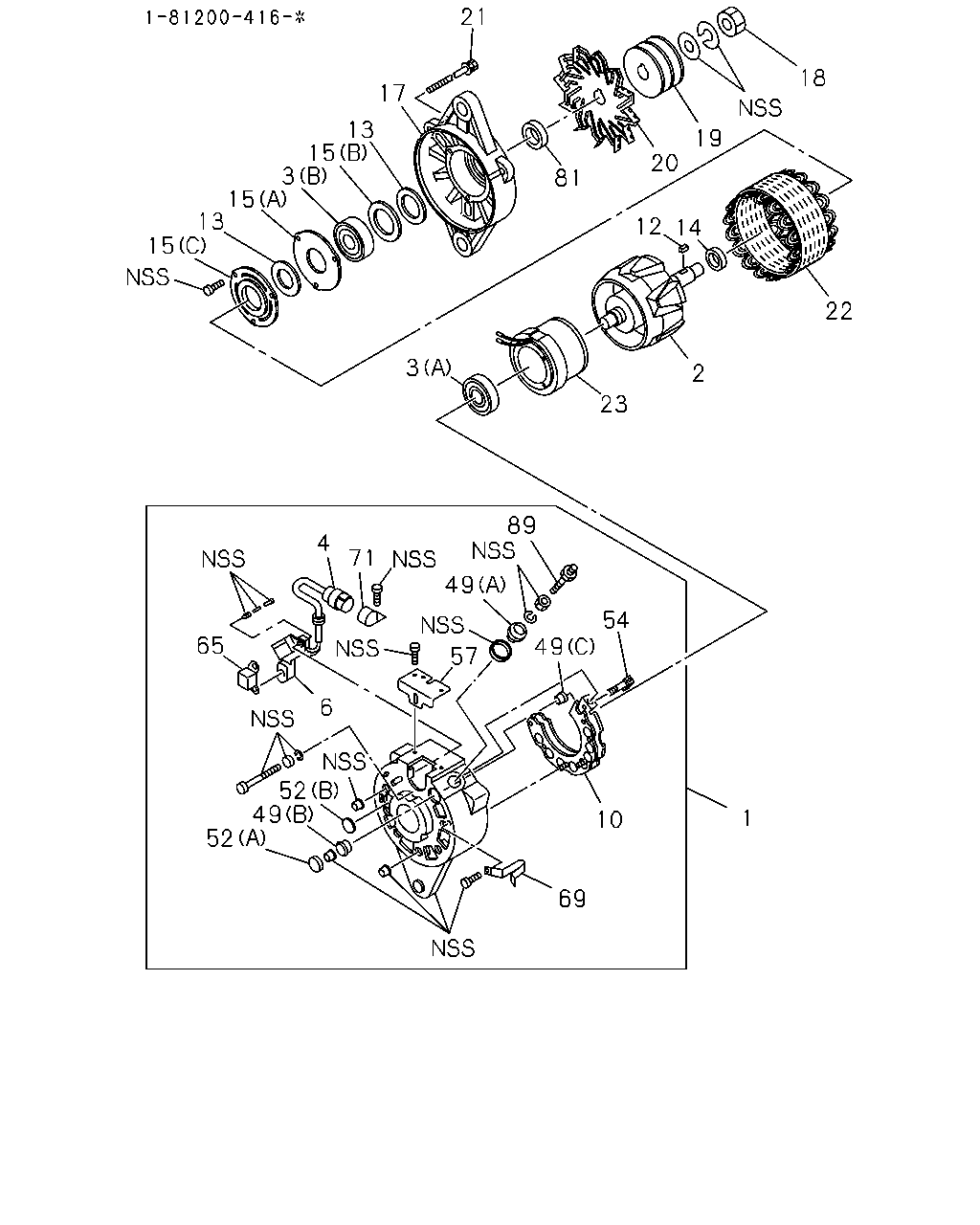

21 18 17 13 15 3 19 20 81 15 13 15 12 14 22 3 2 23 89 4 71 49 54 49 65 57 6 52 49 52 1 10 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: B = 1-81200-416-3	1-81214-294-1	01	1	-
2	ROTOR; GEN ASM PART: B = 1-81200-416-3	1-81211-105-0	01	1	-
2	ROTOR; GEN ASM PART: A = 1-81200-321-4	1-81221-062-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: B = 1-81200-416-3	1-81229-393-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: A = 1-81200-321-4	1-81229-466-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 1-81200-321-4	1-81229-576-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: B = 1-81200-416-3	1-81229-645-0	01	1	-
4	TERMINAL; BRUSH,GEN ASM PART: B = 1-81200-416-3	1-81229-517-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 1-81200-416-3	1-81260-007-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 1-81200-321-4	1-81270-010-0	01	1	-
10	RECTIFIER; GEN ASM PART: B = 1-81200-416-3	1-81219-107-0	01	1	-
12	KEY; ROTOR,GEN ASM PART: B = 1-81200-416-3	9-82215-867-0	01	1	-
13	GASKET; ROTOR,GEN ASM PART: B = 1-81200-416-3	1-81229-644-0	02	1	-
15	RETAINER; ROTOR,GEN (A) ASM PART: B = 1-81200-416-3	1-81229-376-0	01	1	-
15	RETAINER; ROTOR,GEN (B) ASM PART: B = 1-81200-416-3	1-81229-526-0	01	1	-
15	RETAINER; ROTOR,GEN (C) ASM PART: B = 1-81200-416-3	1-81229-643-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 1-81200-321-4	1-81213-057-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: B = 1-81200-416-3	1-81213-076-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: B = 1-81200-416-3	1-81229-474-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: A = 1-81200-321-4	8-94167-948-0	01	1	-
19	PULLEY; GEN ASM PART: A = 1-81200-321-4	1-81222-030-0	01	1	-
19	PULLEY; GEN ASM PART: B = 1-81200-416-3	1-81222-055-0	01	1	-
20	FAN; GEN ASM PART: B = 1-81200-416-3	1-81223-016-0	01	1	-
20	FAN; GEN ASM PART: A = 1-81200-321-4	5-81223-006-0	01	1	-
21	BOLT; THROUGH,GEN ASM PART: B = 1-81200-416-3	1-81229-382-0	03	1	-
21	BOLT; THROUGH,GEN ASM PART: A = 1-81200-321-4	5-81229-106-0	04	1	-
22	STATOR; GEN ASM PART: B = 1-81200-416-3	1-81211-106-1	01	1	-
22	STATOR; GEN ASM PART: A = 1-81200-321-4	1-81211-276-0	01	1	-
23	COIL; ROTOR GEN ASM PART: A = 1-81200-321-4	1-81212-008-0	01	1	-
23	COIL; ROTOR GEN ASM PART: B = 1-81200-416-3	1-81212-011-0	01	1	-
49	BUSHING; RECTIFIER,GEN (A) ASM PART: B = 1-81200-416-3	1-81229-648-0	01	1	-
49	BUSHING; RECTIFIER,GEN (B) ASM PART: B = 1-81200-416-3	1-81229-649-0	01	1	-
49	BUSHING; RECTIFIER,GEN (C) ASM PART: B = 1-81200-416-3	1-81229-650-0	01	1	-
52	CAP; RUBBER,TERMINAL ASM PART: A = 1-81200-321-4	1-81229-417-0	02	1	-
52	CAP; RUBBER,TERMINAL (A) ASM PART: B = 1-81200-416-3	1-81229-652-0	01	1	-
52	CAP; RUBBER,TERMINAL (B) ASM PART: B = 1-81200-416-3	1-81229-653-0	01	1	-
54	BOLT; RECTIFIER,GEN ASM PART: B = 1-81200-416-3	1-81229-647-0	01	1	-
57	COVER; BRUSH,GEN ASM PART: B = 1-81200-416-3	1-81214-296-0	01	1	-
65	CONDENSER; GEN ASM PART: B = 1-81200-416-3	1-84132-008-0	01	1	-
65	CONDENSER; GEN ASM PART: A = 1-81200-321-4	1-84132-009-0	01	1	-
69	CLIP; WIRE,GEN ASM PART: B = 1-81200-416-3	1-81229-516-0	01	1	-
71	HOLDER; TERMINAL,GEN ASM PART: B = 1-81200-416-3	1-81217-053-0	01	1	-
81	SPACER; ROTOR,GEN ASM PART: B = 1-81200-416-3	1-81229-642-0	01	1	-
85	SPACER; PULLEY,GEN ASM PART: B = 1-81200-416-3	1-81229-642-0	01	1	-
87	WASHER; PULLEY,GEN ASM PART: B = 1-81200-416-3	1-81229-479-0	01	1	-
88	WASHER; PL,PULLEY GEN ASM PART: B = 1-81200-416-3	1-81229-478-0	01	1	-
89	BOLT; RECTIFIER,GEN ASM PART: B = 1-81200-416-3	1-81229-646-0	01	1	-

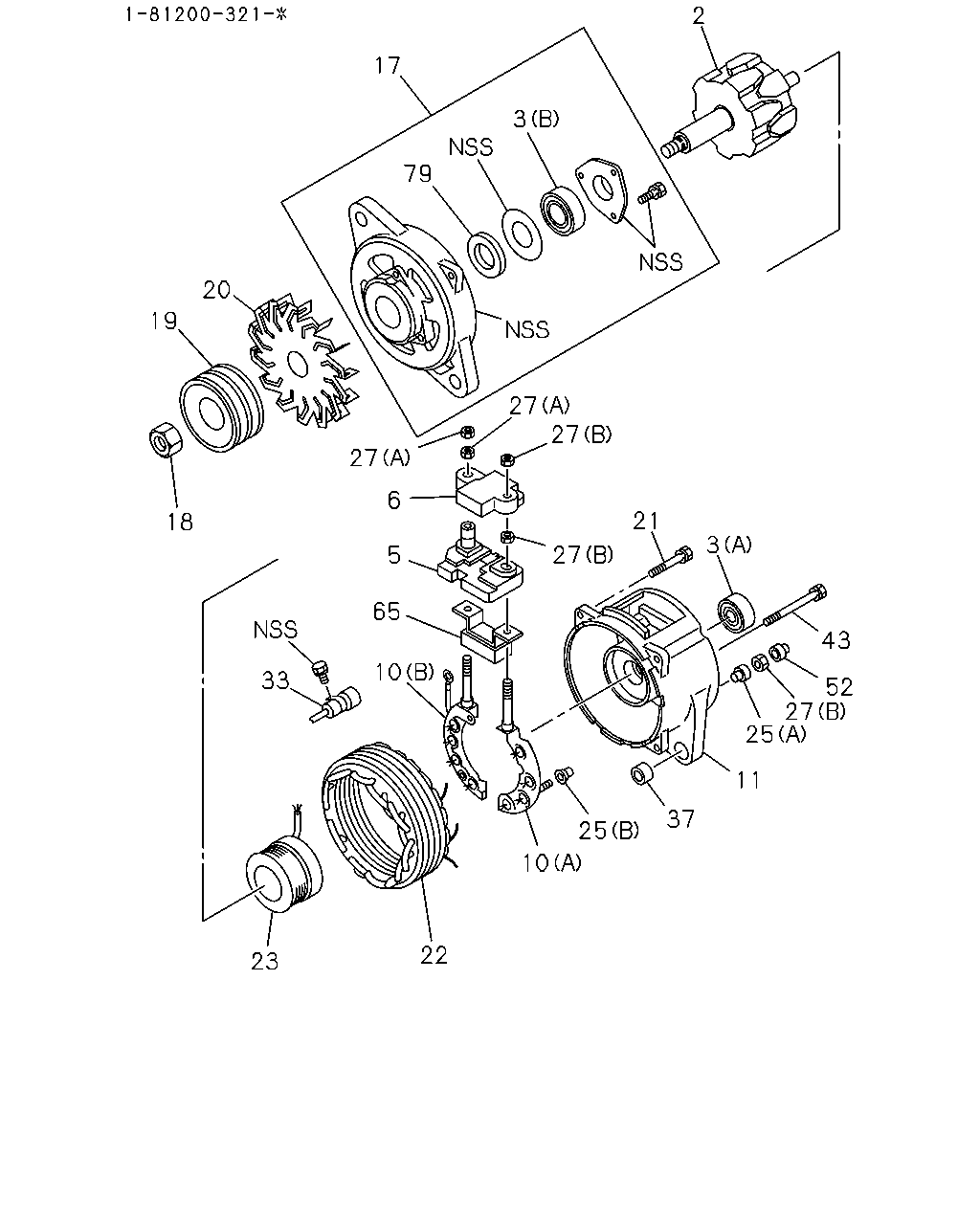

2 17 3 79 20 19 27 27 27 6 21 18 3 27 5 65 43 10 33 52 27 25 11 37 25 10 22 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	ROTOR; GEN ASM PART: B = 1-81200-416-3	1-81211-105-0	01	1	-
2	ROTOR; GEN ASM PART: A = 1-81200-321-4	1-81221-062-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: B = 1-81200-416-3	1-81229-393-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: A = 1-81200-321-4	1-81229-466-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 1-81200-321-4	1-81229-576-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: B = 1-81200-416-3	1-81229-645-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: A = 1-81200-321-4	1-81229-486-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 1-81200-416-3	1-81260-007-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 1-81200-321-4	1-81270-010-0	01	1	-
10	RECTIFIER; GEN ASM PART: B = 1-81200-416-3	1-81219-107-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 1-81200-321-4	1-81213-057-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: B = 1-81200-416-3	1-81213-076-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: B = 1-81200-416-3	1-81229-474-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: A = 1-81200-321-4	8-94167-948-0	01	1	-
19	PULLEY; GEN ASM PART: A = 1-81200-321-4	1-81222-030-0	01	1	-
19	PULLEY; GEN ASM PART: B = 1-81200-416-3	1-81222-055-0	01	1	-
20	FAN; GEN ASM PART: B = 1-81200-416-3	1-81223-016-0	01	1	-
20	FAN; GEN ASM PART: A = 1-81200-321-4	5-81223-006-0	01	1	-
21	BOLT; THROUGH,GEN ASM PART: B = 1-81200-416-3	1-81229-382-0	03	1	-
21	BOLT; THROUGH,GEN ASM PART: A = 1-81200-321-4	5-81229-106-0	04	1	-
22	STATOR; GEN ASM PART: B = 1-81200-416-3	1-81211-106-1	01	1	-
22	STATOR; GEN ASM PART: A = 1-81200-321-4	1-81211-276-0	01	1	-
23	COIL; ROTOR GEN ASM PART: A = 1-81200-321-4	1-81212-008-0	01	1	-
23	COIL; ROTOR GEN ASM PART: B = 1-81200-416-3	1-81212-011-0	01	1	-
25	BUSHING; INSULATION TERMINAL (A) ASM PART: A = 1-81200-321-4	1-81229-410-0	02	1	-
25	BUSHING; INSULATION TERMINAL (B) ASM PART: A = 1-81200-321-4	1-81229-411-0	02	1	-
27	NUT; RECTIFIER,GEN (A) ASM PART: A = 1-81200-321-4	8-94206-186-0	02	1	-
27	NUT; RECTIFIER,GEN (B) ASM PART: A = 1-81200-321-4	8-94206-188-0	06	1	-
33	WIRE; LEAD,GEN ASM PART: A = 1-81200-321-4	1-81215-031-0	01	1	-
37	BUSHING; RR COVER,GEN ASM PART: A = 1-81200-321-4	9-82215-879-0	01	1	-
43	SCREW; RR END COVER ASM PART: A = 1-81200-321-4	1-81229-464-0	03	1	-
43	SCREW; RR END COVER ASM PART: B = 1-81200-416-3	1-81229-477-0	03	1	-
52	CAP; RUBBER,TERMINAL ASM PART: A = 1-81200-321-4	1-81229-417-0	02	1	-
52	CAP; RUBBER,TERMINAL (A) ASM PART: B = 1-81200-416-3	1-81229-652-0	01	1	-
52	CAP; RUBBER,TERMINAL (B) ASM PART: B = 1-81200-416-3	1-81229-653-0	01	1	-
65	CONDENSER; GEN ASM PART: B = 1-81200-416-3	1-84132-008-0	01	1	-
65	CONDENSER; GEN ASM PART: A = 1-81200-321-4	1-84132-009-0	01	1	-
79	WASHER; FELT,ROTOR,GEN ASM PART: A = 1-81200-321-4	9-82215-707-0	01	1	-
85	SPACER; PULLEY,GEN ASM PART: B = 1-81200-416-3	1-81229-642-0	01	1	-
87	WASHER; PULLEY,GEN ASM PART: B = 1-81200-416-3	1-81229-479-0	01	1	-
88	WASHER; PL,PULLEY GEN ASM PART: B = 1-81200-416-3	1-81229-478-0	01	1	-
