4-36 — POWER STEERING CONTROL; ENGINE SIDE (#15898) — 14 parça

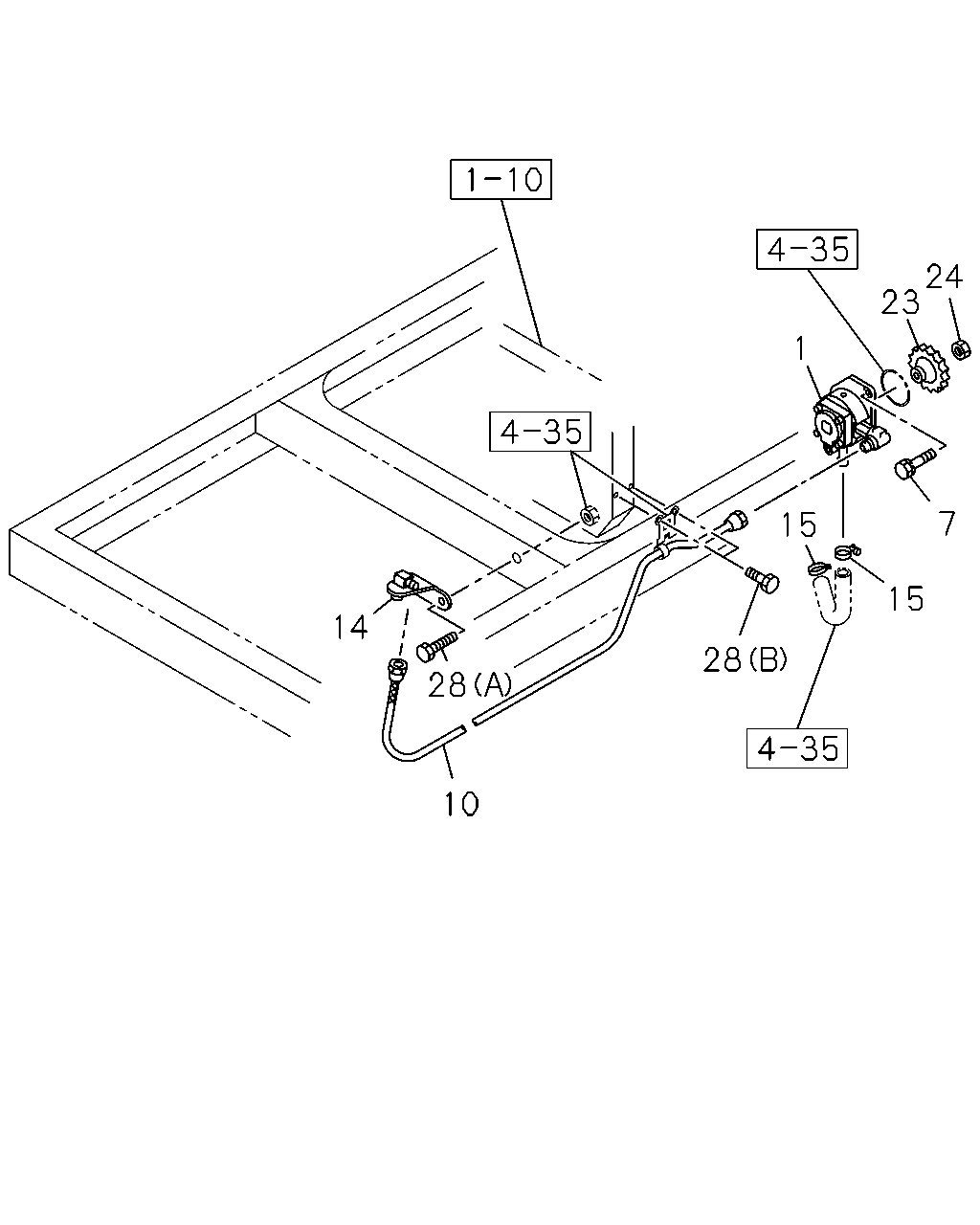

çizim 63892
24 23 1 7 15 15 14 28 28 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-530-0 01 1 9905-0202 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-595-1 01 1 0203-1112 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		8-98202-668-0 01 1 1201- ● ●
7 BOLT; OIL PUMP,P/S
M10X55 FLANGE 		8-94399-863-1 02 1 9905-0805 ● ●
7 BOLT; OIL PUMP,P/S
M10X55 FLANGE 		8-97365-449-0 02 1 0806- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
L=875 		1-09364-980-0 01 1 9905- ● ●
14 UNION; FLEX HOSE,P/S 1-47470-394-3 01 1 9905- ● ●
15 CLIP; OIL PIPE SUCTION
ID=32 		1-09704-085-0 02 1 9905- ● ●
23 GEAR; OIL PUMP
Z=30 		8-94396-957-3 01 1 9905- ● ●
24 NUT; GEAR,P/S PUMP
M14 FLANGE 		0-91150-114-0 01 1 9905-0712 ● ●
24 NUT; GEAR,P/S PUMP
M14 FLANGE 		0-91180-114-0 01 1 0801- ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9905-0512 ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
(B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9905-0004 ● ●
