4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#15897) — 48 parça

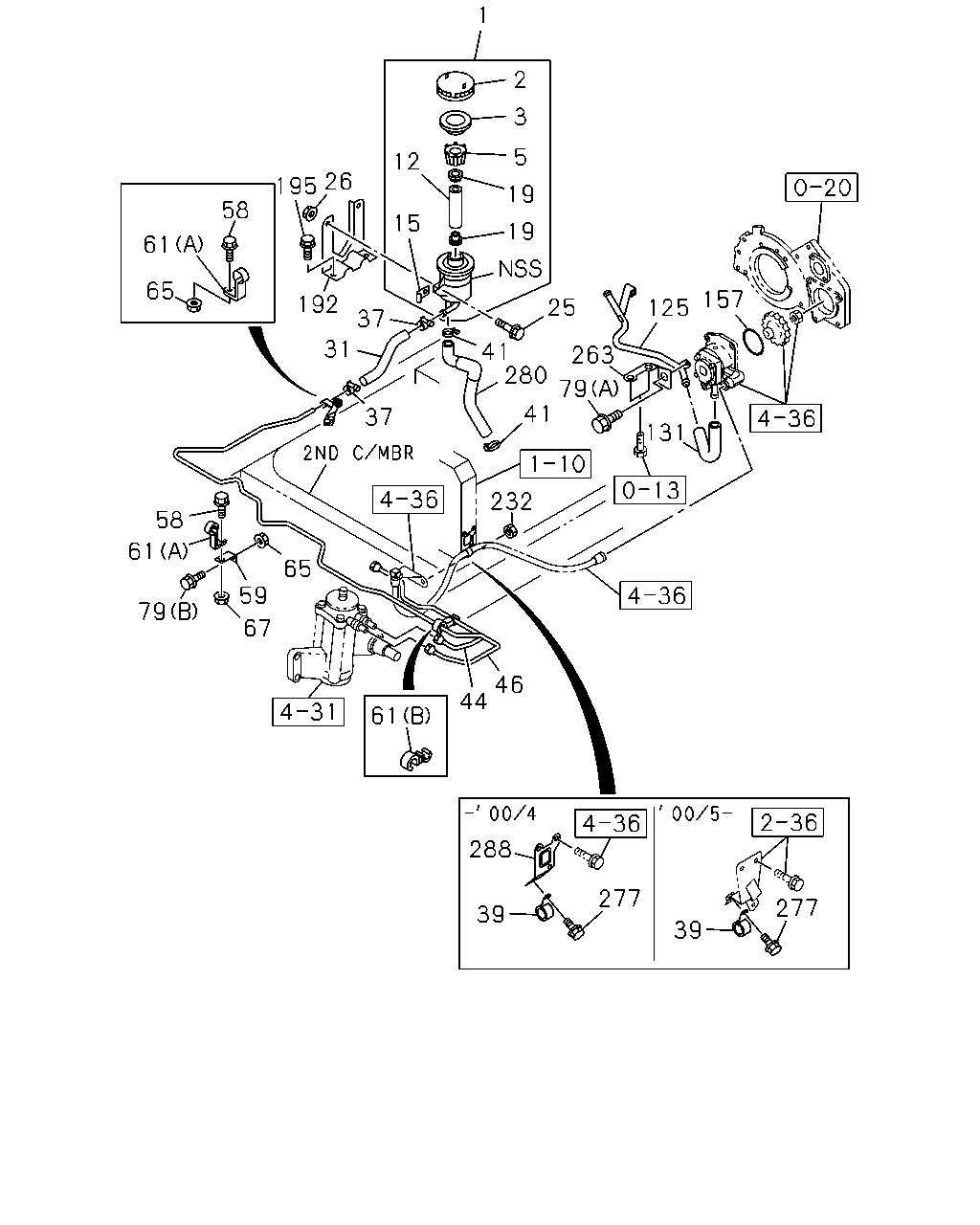

çizim 15900
1 2 3 5 12 26 195 19 58 15 19 61 157 65 192 25 125 37 31 41 280 263 79 41 37 131 232 58 61 65 59 79 67 46 44 61 288 277 277 39 39
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; OIL,P/S 1-21210-205-0 01 1 9905-0508 ● ●
1 TANK ASM; OIL,P/S 1-21210-238-1 01 1 0509-1006 ● ●
1 TANK ASM; OIL,P/S 8-98166-928-0 01 1 1007- ● ●
2 CAP; OIL TANK,P/S 1-21241-004-4 01 1 9905-1006 ● ●
2 CAP; OIL TANK,P/S 8-98166-876-0 01 1 1007- ● ●
3 GASKET; OIL TANK,P/S 1-21249-003-1 01 1 9905- ● ●
5 STRAINER; OIL TANK,P/S 1-21235-007-1 01 1 9905- ● ●
12 FILTER; MICROBON,OIL TANK,P/S 1-21235-011-0 01 1 9905- ● ●
15 PLATE; FILTER,OIL TANK 1-21249-007-1 02 1 9905-0508 ● ●
15 PLATE; FILTER,OIL TANK 1-21249-016-0 02 1 0509- ● ●
19 SEAT; OIL TANK 1-21249-004-0 02 1 9905- ● ●
25 BOLT; OIL TANK BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 9905-0512 ● ●
25 BOLT; OIL TANK BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91150-108-0 02 1 9905-0602 ● ●
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
31 HOSE; P/S OIL TANK,INL 1-21113-590-0 01 1 9905- ● ●
37 CLIP; HOSE,P/S
ID=26 		1-09704-082-0 02 1 9905- ● ●
39 CLIP; FLEX HOSE
ID=40 		8-94226-553-0 01 1 9905- ● ●
41 CLIP; HOSE,P/S
ID=32 		1-09704-085-0 02 1 9905- ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE 1-21115-359-0 01 1 9905- ● ●
46 PIPE; OIL,P/S UNIT TO OIL TANK 1-21116-024-1 01 1 9905- ● ●
58 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 02 1 9905-0512 ● ●
58 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
59 BRACKET; CLIP,OIL PIPE
L=60 		1-47475-455-0 01 1 9905- ● ●
61 CLIP; OIL PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 02 1 9905- ● ●
61 CLIP; OIL PIPE
(B) ID=12 & 15 		1-09709-281-1 01 1 9905- ● ●
65 NUT; BRKT
M8 FLANGE 		0-91150-108-0 03 1 9905-0602 ● ●
65 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
67 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 9905-0602 ● ●
67 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
79 BOLT; BRKT
(A) M8X12 FLANGE 		0-28080-812-0 02 1 9905-0512 ● ●
79 BOLT; BRKT
(A) M8X12 FLANGE 		0-28050-812-0 02 1 0601- ● ●
79 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 01 1 9905-0512 ● ●
79 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
125 CONNECTOR; P/S PUMP 8-97600-113-0 01 1 9905- ● ●
131 HOSE; RUBBER,P/S 8-94396-331-1 01 1 9905- ● ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4 		1-09623-178-0 01 1 9905- ● ●
192 BRACKET; P/S OIL TANK 1-21119-142-1 01 1 9905- ● ●
195 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 02 1 9905-0406 ● ●
195 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 02 1 0407-0512 ● ●
195 BOLT; BRKT
M10X25 FLANGE 		0-28051-025-0 02 1 0601- ● ●
232 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9905-0602 ● ●
232 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
263 BRACKET; P/S PIPE 8-97600-117-0 01 1 9905- ● ●
277 BOLT; HOSE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9905-0512 ● ●
277 BOLT; HOSE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
280 HOSE; P/S OIL PUMP,INL 1-21115-230-1 01 1 9905- ● ●
288 BRACKET; CLIP,P/S 1-82659-149-0 01 1 9905-0004 ● ●
