Isuzu WW
▶
TRUCKS
▶
FTS
▶
11311 - FTS(MIDDLE EAST)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-33 - STEERING LINKAGE
▶

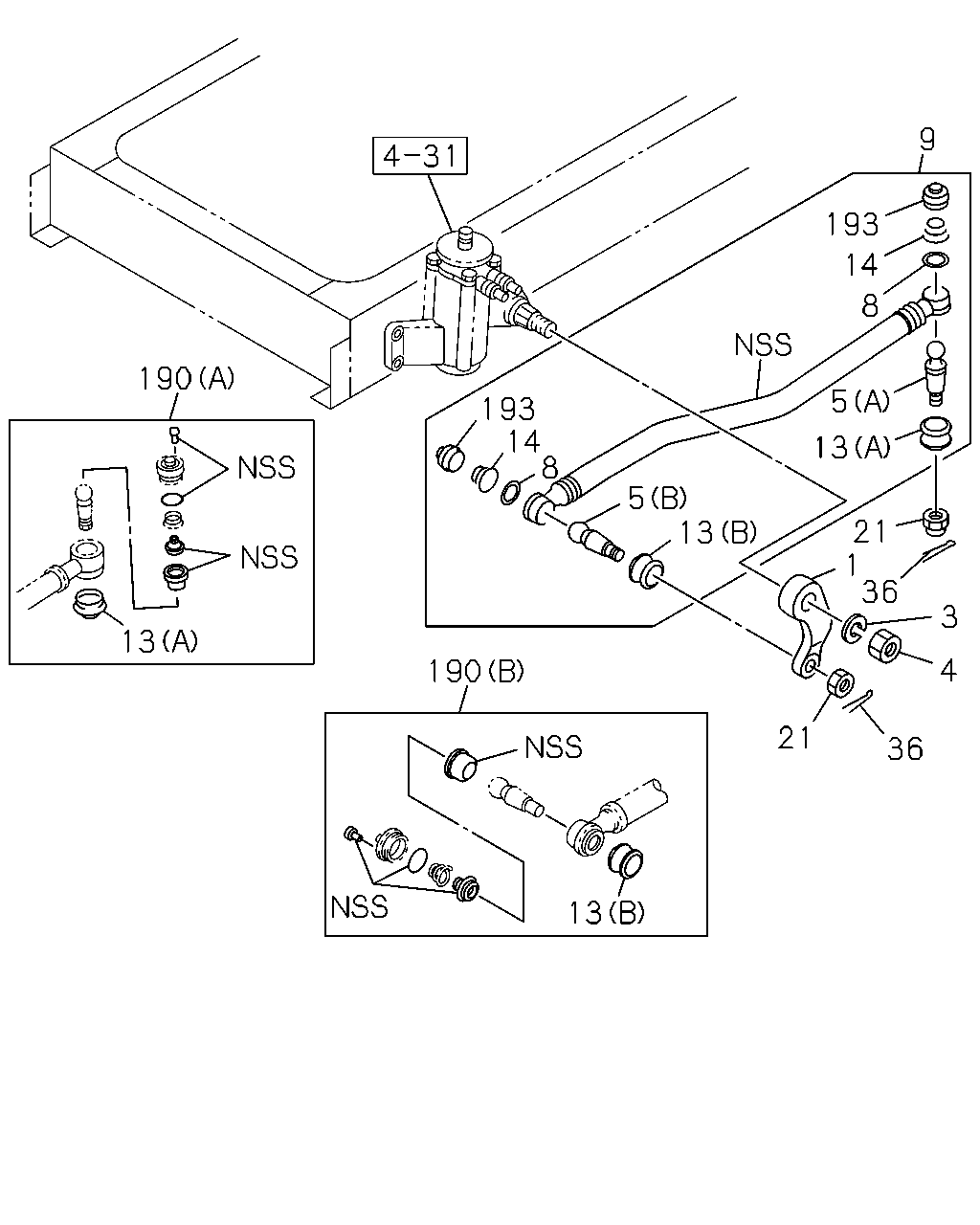

4-33 — STEERING LINKAGE
(#15896) — 18 parça
Tümü
A - FTS6MC
B - FTS6MF
9
193
14
8
190
5
193
14
8
13
5
13
21
1
36
3
13
4
190
21
36
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
ARM; PITMAN,STRG
1-44341-460-1
01
1
9905-
●
●
3
WASHER; LK,PITMAN ARM
ID=36.5
1-09500-021-0
01
1
9905-
●
●
4
NUT; PITMAN ARM
M36 FLANGE
1-09440-013-0
01
1
9905-0805
●
●
4
NUT; PITMAN ARM
M36 FLANGE
1-09440-098-0
01
1
0806-
●
●
5
BALL; JOINT,DRAG LINK
(A)
1-44361-098-0
01
1
9905-
●
●
5
BALL; JOINT,DRAG LINK
(B)
1-44361-105-1
01
1
9905-
●
●
8
SEAT; SPR,ROD END
1-43159-075-0
02
1
9905-
●
●
9
LINK; DRAG
1-44380-196-2
01
1
9905-
●
●
13
BOOT; DRAG LINK
(A)
1-43159-078-0
01
1
9905-
●
●
13
BOOT; DRAG LINK
(B)
1-43159-081-0
01
1
9905-
●
●
14
SPRING; COIL,DRAG LINK
1-43159-074-0
02
1
9905-
●
●
21
NUT; LK,JOINT BALL
M24 SLOTTED
1-09442-020-0
02
1
9905-0805
●
●
21
NUT; LK,JOINT BALL
M24
1-09442-032-0
02
1
0806-
●
●
36
PIN; SPLIT,DRAG LINK
OD=4.6 L=35
9-08115-035-0
02
1
9905-0606
●
●
36
PIN; SPLIT,DRAG LINK
OD=4.6 L=35
0-81125-035-0
02
1
0607-
●
●
190
REPAIR KIT; DRAG LINK
(B)
1-85574-040-0
01
1
9905-
●
●
190
REPAIR KIT; DRAG LINK
(A)
1-85574-041-0
01
1
9905-
●
●
193
PLUG; END,DRAG LINK
1-43159-093-0
02
1
9905-
●
●
