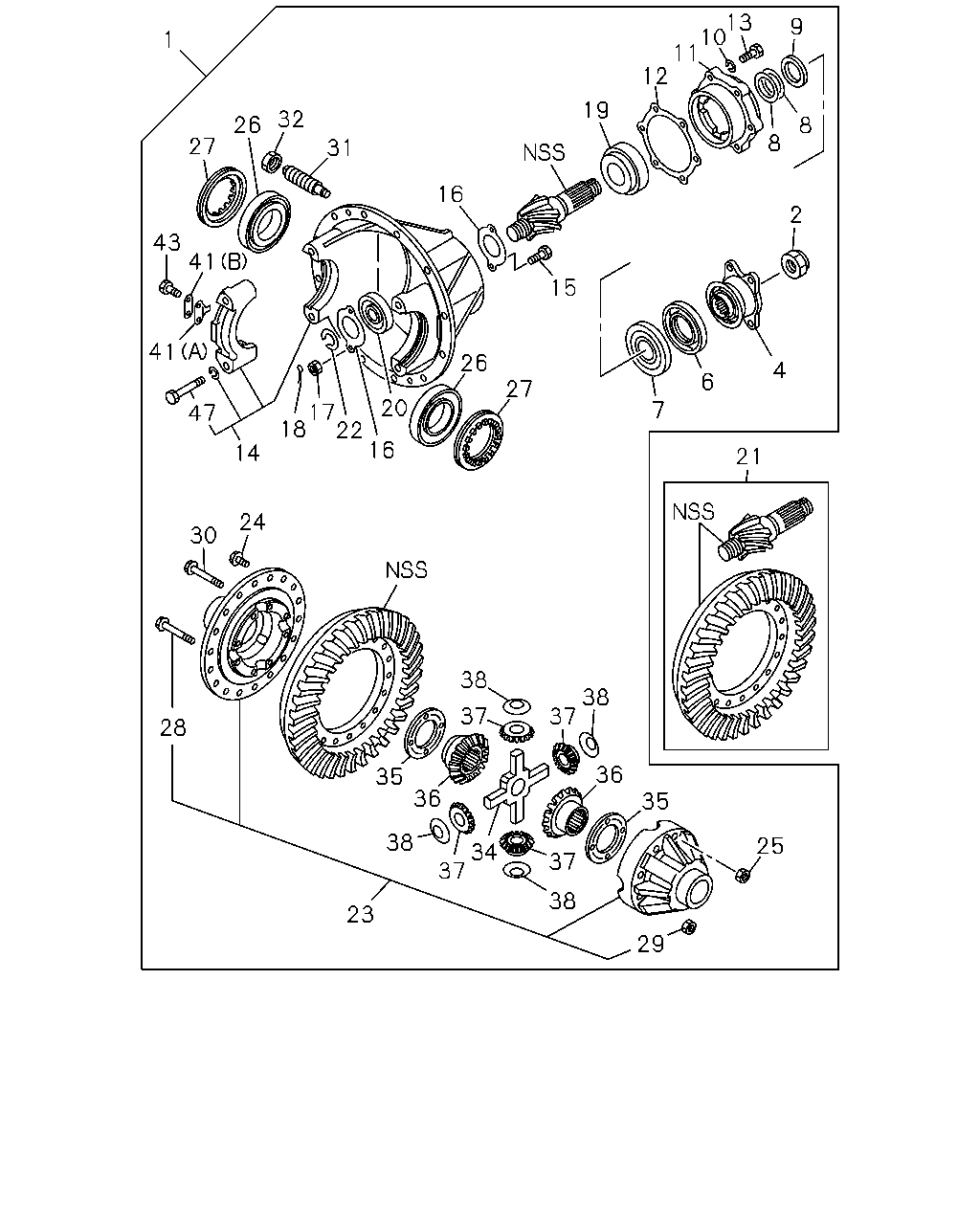

4-15 — FRONT FINAL DRIVE (#15890) — 87 parça

13 10 11 12 9 1 19 32 26 8 8 27 31 16 2 43 41 15 41 26 4 6 27 20 7 17 16 47 14 21 24 30 38 38 37 37 28 36 35 36 35 38 25 34 37 37 38 23 29 18 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,FRT FRONT AXLE 39/6 14.4" SPIRAL(W9C) 39/6	1-41001-772-0	01	1	9905-	●	●
1	DRIVE ASM; FINAL,FRT FRONT AXLE 39/7 14.4" SPIRAL(W9A) 39/7	1-41001-826-0	01	1	9905-	●	●
2	NUT; FINAL DRIVE PINION M30 FLANGE	1-09449-066-1	01	1	9905-	●	●
4	COUPLING; FINAL DRIVE PINION	1-37245-067-4	01	1	9905-	●	●
6	SEAL; OIL,FINAL PINION TKK	1-09625-432-0	01	1	9905-9908	●	●
6	SEAL; OIL,FINAL PINION TKK	1-09625-637-0	01	1	9909-	●	●
6	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	9905-	●	●
7	BEARING; PINION,OUTER NSK	1-09812-026-0	01	1	9905-1001	●	●
7	BEARING; PINION,OUTER NSK	5-09812-063-0	01	1	1002-	●	●
7	BEARING; PINION,OUTER JTEKT	5-09812-062-1	01	1	1001-	●	●
8	SHIM; PINION,FINAL DRIVE T=1.60	1-41229-179-0	AR	1	9905-	●	●
8	SHIM; PINION,FINAL DRIVE T=1.61	1-41229-180-0	AR	1	9905-	●	●
8	SHIM; PINION,FINAL DRIVE T=1.62	1-41229-181-0	AR	1	9905-	●	●
8	SHIM; PINION,FINAL DRIVE T=1.63	1-41229-182-0	AR	1	9905-	●	●
8	SHIM; PINION,FINAL DRIVE T=1.64	1-41229-183-0	AR	1	9905-	●	●
8	SHIM; PINION,FINAL DRIVE T=1.65	1-41229-184-0	AR	1	9905-	●	●
8	SHIM; PINION,FINAL DRIVE T=1.66	1-41229-185-0	AR	1	9905-	●	●
8	SHIM; PINION,FINAL DRIVE T=1.67	1-41229-186-0	AR	1	9905-	●	●
8	SHIM; PINION,FINAL DRIVE T=1.68	1-41229-187-0	AR	1	9905-	●	●
8	SHIM; PINION,FINAL DRIVE T=1.69	1-41229-188-0	AR	1	9905-	●	●
8	SHIM; PINION,FINAL DRIVE T=1.70	1-41229-189-0	AR	1	9905-	●	●
9	COLLAR; DIST,PINION T=10.7	1-36355-031-0	01	1	9905-	●	●
9	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	9905-	●	●
9	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	9905-	●	●
9	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	9905-	●	●
9	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	9905-	●	●
9	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	9905-	●	●
9	COLLAR; DIST,PINION T=11.9	1-36355-043-0	01	1	9905-	●	●
9	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	9905-	●	●
9	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	9905-	●	●
10	WASHER; LK,FINAL PINION ID=12.2	9-09150-512-0	06	1	9905-0603	●	●
10	WASHER; LK,FINAL PINION ID=12.2	0-91510-512-0	06	1	0604-	●	●
11	CAGE; FINAL PINION	1-41151-063-0	01	1	9905-	●	●
12	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	9905-	●	●
12	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	9905-	●	●
12	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	9905-	●	●
12	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	9905-	●	●
13	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	9905-	●	●
14	CARRIER ASM; FINAL DRIVE,FRT AXLE	1-41110-042-0	01	1	9905-	●	●
15	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	9905-	●	●
16	RETAINER; PILOT BRG,PINION	9-41227-004-0	02	1	9905-	●	●
17	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	9905-0512	●	●
17	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0601-	●	●
18	PIN; SPLIT,RET	9-08112-012-0	02	1	9905-0805	●	●
18	PIN; SPLIT,RET	0-81122-012-0	02	1	0806-	●	●
19	BEARING; PINION,INNER NSK	1-09812-041-2	01	1	9905-	●	●
19	BEARING; PINION,INNER JTEKT	1-09812-042-1	01	1	0612-	●	●
20	BEARING; FINAL DRIVE PINION	9-00094-081-0	01	1	9905-	●	●
21	GEAR SET; FINAL DRIVE,FRT FRONT AXLE 39/6 14.4" SPIRAL(W9C) 39/6	1-41210-357-1	01	1	9905-	●	●
21	GEAR SET; FINAL DRIVE,FRT FRONT AXLE 39/7 14.4" SPIRAL(W9A) 39/7	1-41210-259-2	01	1	9905-	●	●
22	RING; SNAP,FINAL DRIVE PINION	9-09952-005-0	01	1	9905-	●	●
23	CAGE ASM; DIFF,FINAL DRIVE	1-41510-123-0	01	1	9905-	●	●
24	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	9905-0201	●	●
24	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	0202-0204	●	●
24	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	0205-	●	●
25	NUT; DIFF CAGE SETTING M14	1-09400-077-1	04	1	9905-	●	●
26	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-011-0	02	1	9905-	●	●
26	BEARING; DIFF CAGE NACHI ID=70 OD=125 T=26.3	1-09812-024-0	02	1	9905-	●	●
26	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-071-0	02	1	9905-0704	●	●
26	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	02	1	0705-	●	●
27	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	02	1	9905-	●	●
28	BOLT; DIFF CAGE SETTING M14X107	1-09044-024-0	04	1	9905-	●	●
29	NUT; DIFF CAGE SETTING M14	1-09400-077-1	04	1	9905-	●	●
30	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	04	1	9905-	●	●
31	BOLT; ADJ,DRIVEN GEAR M24X104	9-41127-005-0	01	1	9905-	●	●
32	NUT; ADJ,BOLT M24	9-09840-264-0	01	1	9905-	●	●
34	PIN; CROSS,DIFF PINION	1-41521-050-2	01	1	9905-	●	●
35	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-061-0	AR	1	9905-	●	●
35	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-062-0	AR	1	9905-	●	●
35	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-063-0	AR	1	9905-	●	●
35	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-064-0	AR	1	9905-	●	●
35	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-080-0	AR	1	9905-	●	●
35	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-081-0	AR	1	9905-	●	●
35	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-082-0	AR	1	9905-	●	●
36	GEAR; SIDE,DIFF Z=16	1-41561-115-0	02	1	9905-0407	●	●
36	GEAR; SIDE,DIFF Z=16	1-41561-144-0	02	1	0408-0905	●	●
36	GEAR; SIDE,DIFF Z=16	1-41561-158-0	02	1	0906-	●	●
37	GEAR; PINION DIFF Z=10	1-41551-032-0	04	1	9905-0407	●	●
37	GEAR; PINION DIFF Z=10	1-41551-042-0	04	1	0408-0905	●	●
37	GEAR; PINION DIFF Z=10	1-41551-049-0	04	1	0906-	●	●
38	WASHER; THRUST,PINION GEAR ID=29 OD=60	1-41562-119-0	04	1	9905-	●	●
41	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	9905-	●	●
41	PLATE; LK,ADJ NUT (A) T=2.3	9-41124-015-0	02	1	9905-	●	●
43	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	9905-0512	●	●
43	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	0601-	●	●
47	BOLT; BRG CAP M16X100	9-91661-600-0	04	1	9905-0104	●	●
47	BOLT; BRG CAP M16X100 FLANGE	1-09070-047-0	04	1	0105-	●	●
