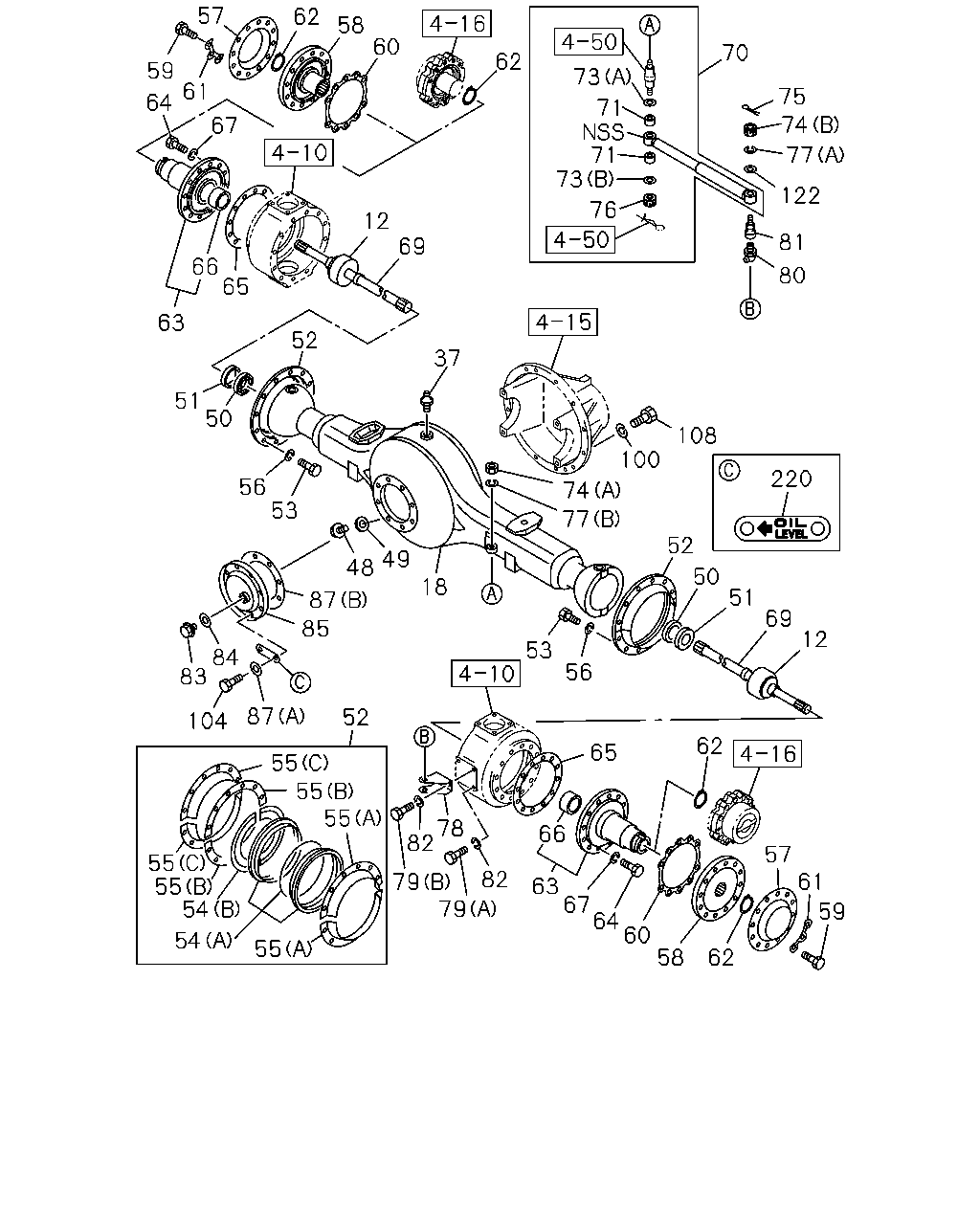

4-12 — FRONT DRIVE SHAFT (#15889) — 74 parça

57 62 58 60 70 62 59 73 61 75 64 71 71 73 67 74 77 122 76 12 81 69 66 65 80 63 52 37 51 50 108 74 100 220 56 53 77 52 49 48 50 18 51 87 69 85 12 53 84 83 56 87 52 104 62 65 55 55 55 78 82 66 55 55 54 57 61 82 79 79 63 67 64 60 58 59 54 55 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	JOINT ASM LOCKING HUB FRT WHEEL DRIVE(W12)	1-43330-012-0	02	1	9905-	●	●
12	JOINT ASM EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43330-018-0	02	1	9905-	●	●
18	CASE; FRT AXLE	1-43210-102-4	01	1	9905-1109	●	●
18	CASE; FRT AXLE	8-98200-699-0	01	1	1110-	●	●
37	BREATHER; FRT AXLE CASE	9-36122-015-1	01	1	9905-	●	●
48	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	9905-	●	●
49	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	9905-	●	●
50	SEAL; OIL,SHAFT,FRT AXLE	1-09625-192-0	02	1	9905-	●	●
51	GUIDE; OIL,FRT AXLE	9-43339-003-0	02	1	9905-	●	●
52	SEAL; OIL,KNUCKLE	1-09625-004-0	02	1	9905-	●	●
53	BOLT; OIL SEAL M8X16	0-20800-816-0	24	1	9905-0512	●	●
53	BOLT; OIL SEAL M8X16	0-20850-816-0	24	1	0601-	●	●
54	GASKET; OIL SEAL (A)	1-09625-241-0	02	1	9905-	●	●
54	GASKET; OIL SEAL (B)	1-09625-242-0	02	1	9905-	●	●
55	RING; OIL SEAL (A)	1-09625-243-0	04	1	9905-	●	●
55	RING; OIL SEAL (B)	1-09625-244-0	04	1	9905-	●	●
55	RING; OIL SEAL (C)	1-09625-245-0	04	1	9905-	●	●
56	WASHER; LK,OIL SEAL ID=8.2	9-09150-508-0	24	1	9905-0603	●	●
56	WASHER; LK,OIL SEAL ID=8.2	0-91510-508-0	24	1	0604-	●	●
57	COVER; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	9-42313-116-0	02	1	9905-	●	●
58	FLANGE; AXLE SHAFT,FRT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-42312-028-0	02	1	9905-	●	●
59	BOLT; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12) M12X45	9-09804-239-1	20	1	9905-	●	●
60	GASKET; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-42175-001-0	02	1	9905-	●	●
61	PLATE; LK,FLANGE EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43319-005-0	08	1	9905-	●	●
62	RING; SNAP,AXLE SHAFT ID=38.5 T=2.00	9-09952-253-0	02	1	9905-	●	●
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	1-43241-028-1	02	1	9905-0902	●	●
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	1-43241-061-0	02	1	0903-	●	●
64	BOLT; SPINDLE M12X35	9-92061-235-0	08	1	9905-0512	●	●
64	BOLT; SPINDLE M12X35	0-20951-235-0	08	1	0601-	●	●
64	BOLT; SPINDLE M12X45	9-92061-245-0	16	1	9905-	●	●
65	GASKET; KNUCKLE TO SPINDLE	9-43254-005-0	02	1	9905-	●	●
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-008-0	02	1	9905-0902	●	●
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-011-0	02	1	0903-	●	●
67	WASHER; LK,SPINDLE ID=12.2	9-09150-512-0	24	1	9905-0603	●	●
67	WASHER; LK,SPINDLE ID=12.2	0-91510-512-0	24	1	0604-	●	●
69	SHAFT; AXLE,FRT INNER	1-43311-037-0	01	1	9905-	●	●
69	SHAFT; AXLE,FRT INNER	1-43311-038-0	01	1	9905-	●	●
70	ABSORBER ASM; SHOCK,SHIMMY	1-51630-207-0	01	1	9905-	●	●
71	BUSHING; RUB,LWR,FRT S/ABS	9-51631-037-0	02	1	9905-	●	●
73	WASHER; LWR,FRT S/ABS (A)	9-51679-010-0	01	1	9905-	●	●
73	WASHER; LWR,FRT S/ABS (B)	9-51679-011-0	01	1	9905-	●	●
74	NUT; S/ABS (A) M16	9-99110-416-0	01	1	9905-0512	●	●
74	NUT; S/ABS (A) M16	0-91110-516-0	01	1	0601-	●	●
74	NUT; S/ABS (B) M12	9-99116-412-0	01	1	9905-0805	●	●
74	NUT; S/ABS (B) M12	0-91116-512-0	01	1	0806-	●	●
75	PIN; SPLIT,S/ABS OD=2.8 L=20	9-08113-020-0	01	1	9905-0606	●	●
75	PIN; SPLIT,S/ABS OD=2.8 L=20	0-81123-020-0	01	1	0607-	●	●
76	NUT; LWR,FRT S/ABS	9-51631-083-0	01	1	9905-	●	●
77	WASHER; LK,S/ABS (A) ID=12.2	9-09150-512-0	01	1	9905-0603	●	●
77	WASHER; LK,S/ABS (A) ID=12.2	0-91510-512-0	01	1	0604-	●	●
77	WASHER; LK,S/ABS (B) ID=16.2	9-09150-516-0	01	1	9905-0603	●	●
77	WASHER; LK,S/ABS (B) ID=16.2	0-91510-516-0	01	1	0604-	●	●
78	BRACKET; SHIMMY DAMPER	1-43219-017-0	01	1	9905-	●	●
79	BOLT; BRKT (A) M12X20	0-20801-220-0	02	1	9905-	●	●
79	BOLT; BRKT (B) M12X25	0-20801-225-0	02	1	9905-	●	●
80	NIPPLE; GREASE,BRKT PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9905-0512	●	●
80	NIPPLE; GREASE,BRKT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-	●	●
81	PIN; SHIMMY DAMPER	1-43219-018-0	01	1	9905-	●	●
82	WASHER; LK,BRKT ID=12.2	9-09150-512-0	04	1	9905-0603	●	●
82	WASHER; LK,BRKT ID=12.2	0-91510-512-0	04	1	0604-	●	●
83	PLUG; OIL FILLER M24X17 FLANGE	1-09604-022-0	01	1	9905-	●	●
84	GASKET; PLUG,OIL FILLER ID=26.8	9-09920-605-0	01	1	9905-	●	●
85	COVER; AXLE CASE	9-42141-059-0	01	1	9905-1109	●	●
87	GASKET; COVER,AXLE CASE (A) ID=10.2 OD=19	9-09572-010-0	08	1	9905-1109	●	●
87	GASKET; COVER,AXLE CASE (B)	9-42142-026-2	01	1	9905-1109	●	●
100	WASHER; LK,FRT FINAL DRIVE ID=12.2	9-09150-812-0	12	1	9905-0603	●	●
100	WASHER; LK,FRT FINAL DRIVE ID=12.2	0-91510-812-0	12	1	0604-	●	●
104	BOLT; COVER,AXLE CASE M10X16	9-09800-874-0	08	1	9905-1109	●	●
108	BOLT; FRT FINAL DRIVE M12X35	9-92061-235-0	08	1	9905-0512	●	●
108	BOLT; FRT FINAL DRIVE M12X35	0-20951-235-0	08	1	0601-	●	●
108	BOLT; FRT FINAL DRIVE M12X45	9-92061-245-0	04	1	9905-	●	●
122	WASHER; S/ABS ID=17	9-09160-516-0	01	1	9905-0605	●	●
122	WASHER; S/ABS ID=17 OD=30	0-91610-516-0	01	1	0606-	●	●
220	PLATE	9-83996-444-1	01	1	9905-1109	●	●
