◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11311 - FTS(MIDDLE EAST) ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#15885) — 80 parça

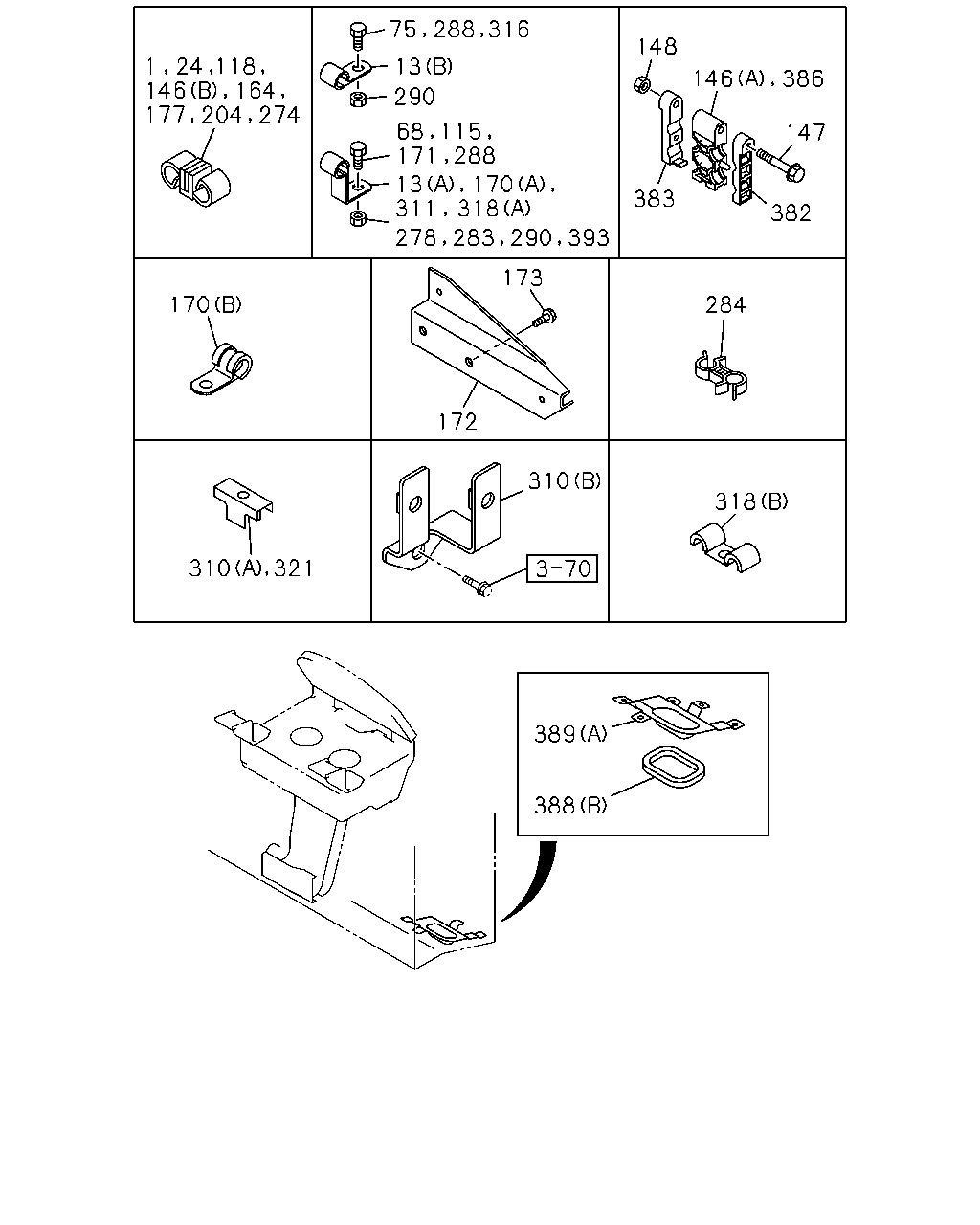

çizim 15558
148 146 164 13 146 386 290 170 318 147 13 311 383 382 173 170 284 172 310 318 310 321 389 388 1 24 118 177 204 274 68 115 171 288 278 283 290 393 75 288 316
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLIP; AIR PIPE
ID=6.35 & 6.35 		1-09709-273-1 01 1 9905- ● ●
13 CLIP; AIR PIPE
(A) ID=7 L=38 H=21 		1-09700-916-0 01 1 9905- ● ●
13 CLIP; AIR PIPE
(B) ID=7 L=40 		9-09524-675-0 01 1 9905-0606 ● ●
13 CLIP; AIR PIPE
(B) ID=7 L=40 		0-95234-675-0 01 1 0607- ● ●
24 CLIP; PIPE
ID=6.35 & 15 		1-09709-276-1 01 1 9905- ● ●
68 BOLT; CLIP,AIR PIPE
M8X50 FLANGE 		0-28080-850-0 01 1 9905-0512 ● ●
68 BOLT; CLIP,AIR PIPE
M8X50 FLANGE 		0-28050-850-0 01 1 0601- ● ●
75 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 04 1 9905-9912 ● ●
75 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 03 1 0001-0512 ● ●
75 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 03 1 0601- ● ●
115 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 9905-0512 ● ●
115 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
118 CLIP; AIR PIPE
ID=6.35 & 10.0 		1-09709-274-1 01 1 9905- ● ●
118 CLIP; AIR PIPE
ID=6.35 & 10.0 		1-09709-274-1 01 1 9905- ● ●
118 CLIP; AIR PIPE
ID=6.35 & 15 		1-09709-276-1 01 1 9905- ● ●
146 CLIP; AIR PIPE
(A) ID=10 		1-09709-242-0 01 1 9905- ● ●
146 CLIP; AIR PIPE
(B) ID=10 & 10 		1-09709-277-1 01 1 0009- ● ●
147 BOLT; PIPE CLIP
M8X70 FLANGE 		0-28080-870-0 03 1 9905-0512 ● ●
147 BOLT; PIPE CLIP
M8X70 FLANGE 		0-28050-870-0 03 1 0601- ● ●
148 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 03 1 9905-0602 ● ●
148 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
164 CLIP; AIR PIPE
ID=10 & 10 		1-09709-277-1 01 1 9905- ● ●
170 CLIP; NYLON TUBE
(A) ID=24.5 H=35 L=25 		1-09700-990-0 01 1 9905- ● ●
170 CLIP; NYLON TUBE
(B) ID=26 L=27 		1-09701-006-0 01 1 9905- ● ●
171 BOLT; TUBE CLIP
M8X16 FLANGE 		0-28080-816-0 02 1 9905-0402 ● ●
171 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28680-820-0 02 1 0403-0512 ● ●
171 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
172 BRACKET; TUBE CLIP 1-47477-650-0 01 1 9905- ● ●
173 BOLT; CLIP BRKT
M10X16 FLANGE 		0-28181-016-0 02 1 9905-0512 ● ●
173 BOLT; CLIP BRKT
M10X16 FLANGE 		0-28151-016-0 02 1 0601- ● ●
177 CLIP; AIR PIPE
ID=10 & 10 		1-09709-277-1 01 1 9905- ● ●
204 CLIP; AIR PIPE
ID=10 & 10 		1-09709-277-1 02 1 0009- ● ●
274 CLIP; AIR PIPE
ID=6.35 & 6.35 		1-09709-273-1 01 1 9905- ● ●
274 CLIP; AIR PIPE
ID=6.35 & 10.0 		1-09709-274-1 01 1 9905- ● ●
278 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 01 1 9905-0602 ● ●
278 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
278 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 02 1 9905-0602 ● ●
278 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
283 NUT; CLIP
M8 FLANGE 		0-91150-108-0 06 1 9905-9912 ● ●
283 NUT; CLIP
M8 FLANGE 		0-91150-108-0 05 1 0001-0602 ● ●
283 NUT; CLIP
M8 FLANGE 		0-91180-108-0 05 1 0603- ● ●
284 CLIP; FLEX HOSE
ID=18 & 18 		8-94323-068-0 02 1 9905- ● ●
288 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28680-820-0 02 1 9905-0512 ● ●
288 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
290 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 02 1 9905-0602 ● ●
290 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
310 BRACKET; PIPE CLIP
(A) 		1-47475-427-1 01 1 9905- ● ●
310 BRACKET; PIPE CLIP
(B) M8 W/NUT 		1-47475-439-2 01 1 9905- ● ●
311 CLIP; AIR PIPE
ID=6 H=20 L=20 		1-09700-603-0 04 1 9905-9912 ● ●
311 CLIP; AIR PIPE
ID=6 H=20 L=20 		1-09700-603-0 03 1 0001- ● ●
316 BOLT; CLIP
M8X40 FLANGE 		0-28680-840-0 01 1 9905-0512 ● ●
316 BOLT; CLIP
M8X40 FLANGE 		0-28650-840-0 01 1 0601- ● ●
318 CLIP; AIR PIPE
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 9905- ● ●
318 CLIP; AIR PIPE
(B) ID=16 & 7 L=21 & 17 		1-09700-675-0 01 1 0212- ● ●
321 BRACKET; CLIP 1-47475-427-1 01 1 9905- ● ●
382 CLIP; UPR
ID=10 & 10 		1-09709-241-0 01 1 9905- ● ●
382 CLIP; UPR
ID=10 & 10 		1-09709-241-0 03 1 9905- ● ●
383 CLIP; LWR
ID=10 & 10 		1-09709-241-0 03 1 9905- ● ●
383 CLIP; LWR
ID=6 & 6 		1-09709-244-0 01 1 9905- ● ●
386 CLIP; CENTER
ID=10 		1-09709-242-0 03 1 9905- ● ●
388 SEAL
(A) L=280 		1-79738-793-1 01 1 9905- ● ●
388 SEAL
(B) L=215 		1-79738-794-1 01 1 9905- ● ●
389 BRACKET; UNION
(A) 		1-79738-795-1 01 1 9905- ● ●
389 BRACKET; UNION
(B) 		1-79738-811-1 01 1 9905- ● ●
393 NUT; UNION
M8 FLANGE 		0-91150-108-0 01 1 9905-0602 ● ●
393 NUT; UNION
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●

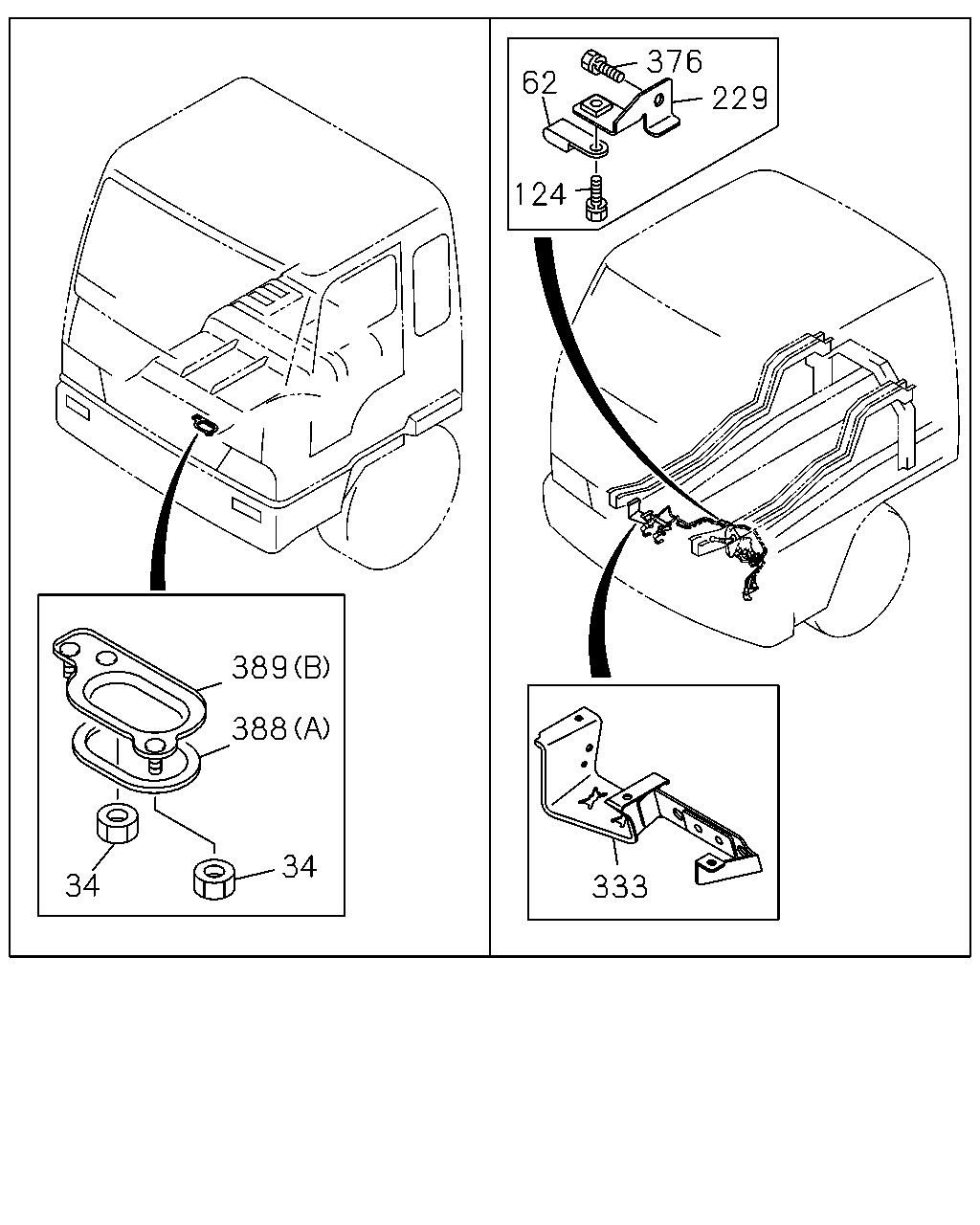

çizim 63867
376 229 62 124 389 388 34 34 333
BalonParca AdiParca NoAdetTipApplied Date A B
34 NUT; BRKT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 9905- ● ●
62 CLIP; AIR PIPE
ID=13X2 L=20 		9-09535-236-0 02 1 9905-0606 ● ●
62 CLIP; AIR PIPE
ID=13X2 L=20 		0-95325-236-0 02 1 0607- ● ●
124 BOLT; PIPE CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9905-0904 ● ●
124 BOLT; PIPE CLIP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905- ● ●
229 BRACKET; PIPE CLIP 1-79738-819-0 01 1 9905- ● ●
333 BRACKET; BRK AIR PIPE 1-79738-804-4 01 1 9905- ● ●
376 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9905- ● ●
376 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9905-0904 ● ●
376 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ● ●
388 SEAL
(A) L=280 		1-79738-793-1 01 1 9905- ● ●
388 SEAL
(B) L=215 		1-79738-794-1 01 1 9905- ● ●
389 BRACKET; UNION
(A) 		1-79738-795-1 01 1 9905- ● ●
389 BRACKET; UNION
(B) 		1-79738-811-1 01 1 9905- ● ●
