3-77 — BRAKE PIPING; AIR,REAR (#15884) — 28 parça

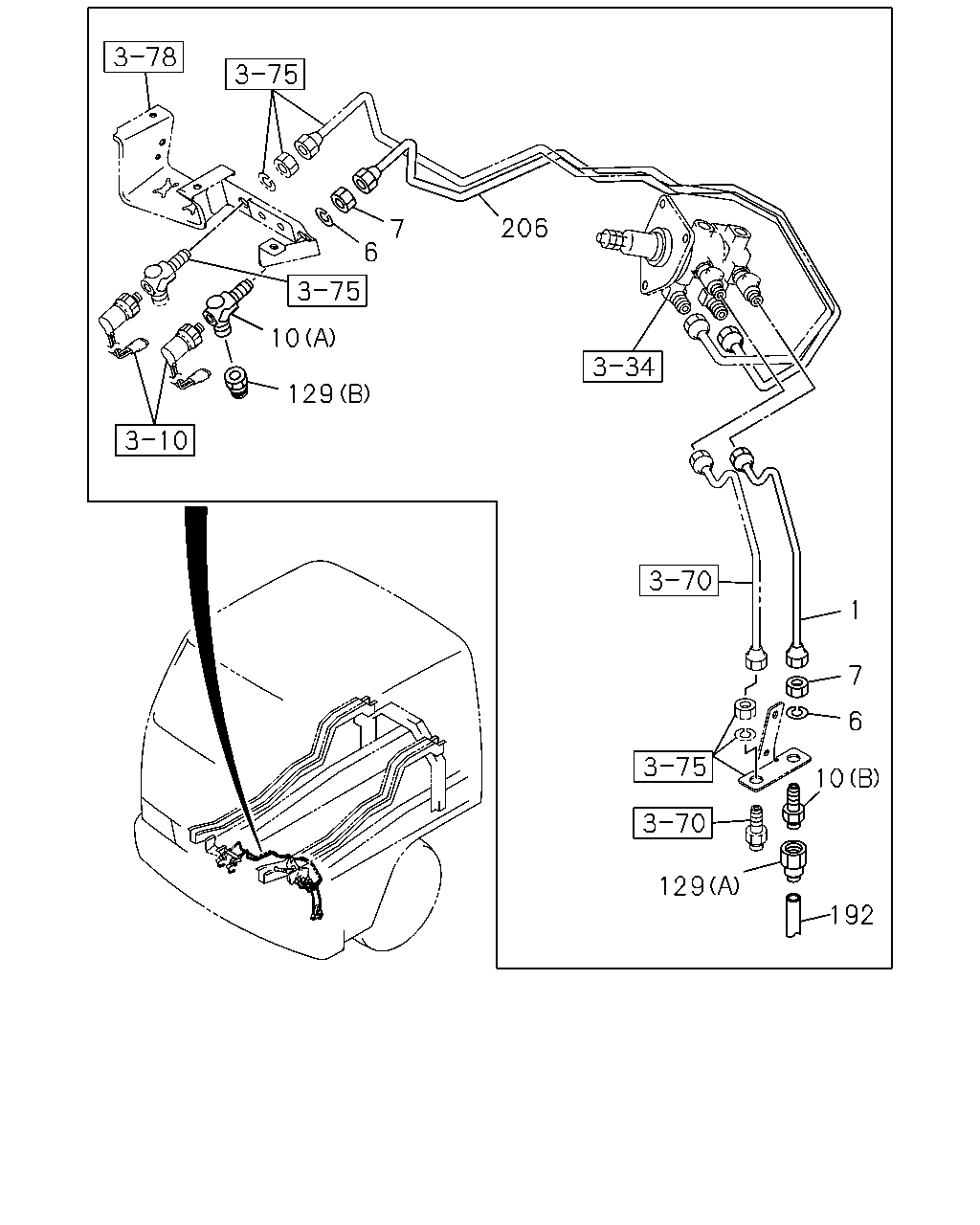

çizim 63465
206 7 6 10 129 1 7 6 10 129 192
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; AIR,FLEX HOSE TO BRK VLV 1-49116-436-1 01 1 9905- ● ●
6 WASHER; LK,FLEX HOSE
ID=16.2 		9-09150-516-0 02 1 9905-0603 ● ●
6 WASHER; LK,FLEX HOSE
ID=16.2 		0-91510-516-0 02 1 0604- ● ●
7 NUT; FLEX HOSE
M16 		9-99111-416-0 02 1 9905-0512 ● ●
7 NUT; FLEX HOSE
M16 		0-91111-516-0 02 1 0601- ● ●
10 CONNECTOR; FLEX HOSE
(B) M16 STRAIGHT 		1-09654-380-0 01 1 9905- ● ●
10 CONNECTOR; FLEX HOSE
(A) M16X2 & PT1/4 3WAY 		1-09656-329-1 01 1 9905- ● ●
129 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 9905-0004 ● ●
129 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0005-0007 ● ●
129 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 0008- ● ●
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09661-096-0 01 1 9905-0007 ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0009-0010 ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0011- ● ●
206 PIPE; AIR,BRK VLV TO FLEX HOSE
L=1145 		1-49116-438-0 01 1 9905- ● ●
çizim 63477
96 102 87 118
BalonParca AdiParca NoAdetTipApplied Date A B
87 PIPE; AIR,AIR TANK TO UNION
L=1232 SERVICED BY L=1250 		1-47426-416-0 01 1 9905- ● ●
96 PIPE; AIR,UNION TO UNION
L=3028 		1-49118-876-0 01 1 9905- ● ●
102 PIPE; AIR,UNION TO UNION
L=2733 SERVICED BY L=2900 		1-47428-800-0 01 1 9905- ● ●
118 PIPE; AIR,UNION TO AIR MASTER 1-49118-357-0 01 1 9905- ● ●

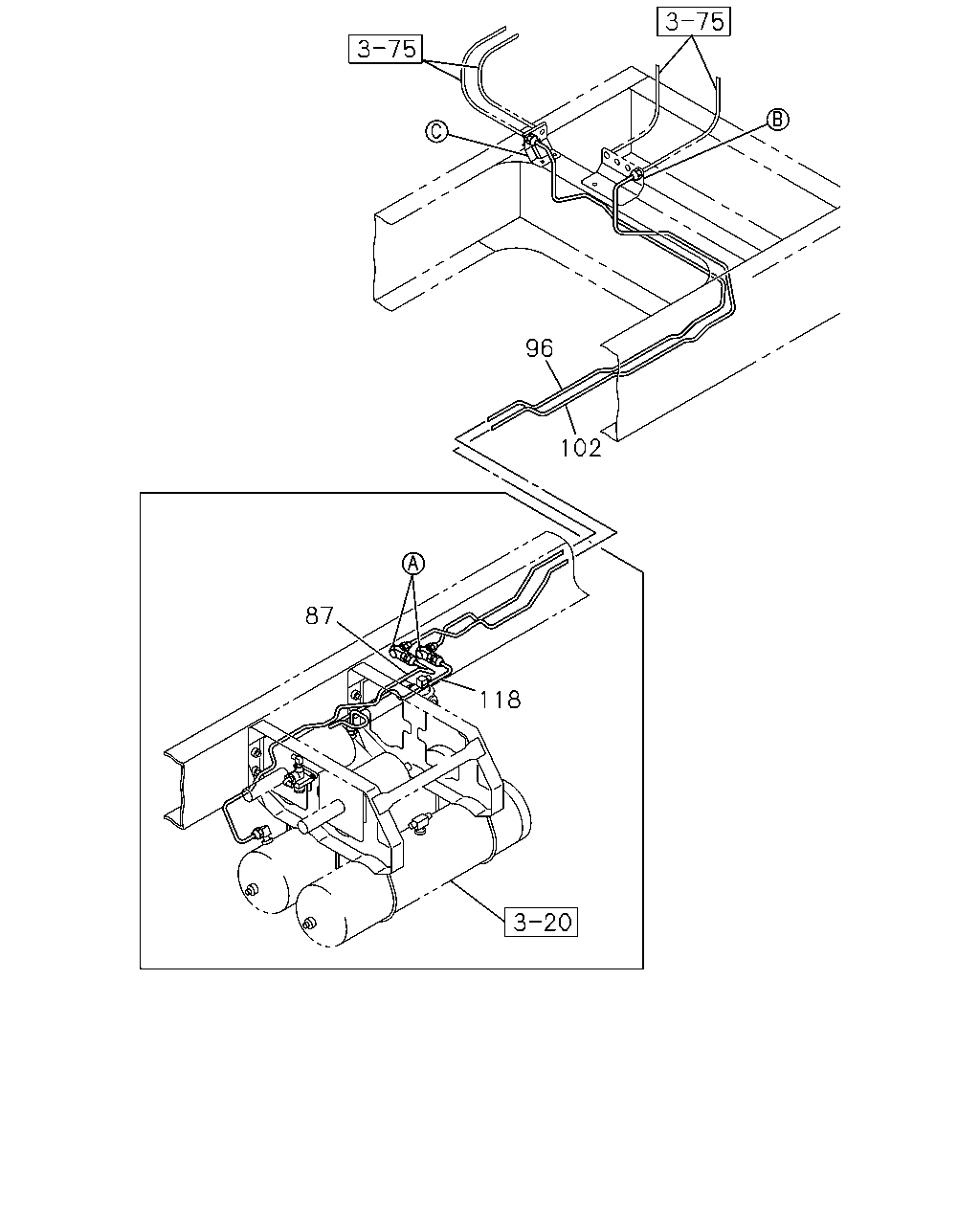

çizim 63582
278 91 37 37 98 97
BalonParca AdiParca NoAdetTipApplied Date A B
37 UNION; AIR PIPE
(B) 		1-09660-807-2 01 1 9905- ● ●
37 UNION; AIR PIPE
(A) M16 ELBOW 		9-09235-210-1 01 1 9905-0607 ● ●
37 UNION; AIR PIPE
(A) M16 ELBOW 		0-92135-210-0 01 1 0608- ● ●
91 NUT; PIPE UNION
M16 		9-99111-416-0 01 1 9905-0512 ● ●
91 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0601- ● ●
97 UNION; AIR PIPE 1-09660-807-2 01 1 9905- ● ●
98 NUT; PIPE UNION
M16 		9-99111-416-0 01 1 9905-0512 ● ●
98 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0601- ● ●
278 NUT; UNION
M16 		9-99111-416-0 01 1 9905-0512 ● ●
278 NUT; UNION
M16 		0-91111-516-0 01 1 0601- ● ●
