Isuzu WW
▶
TRUCKS
▶
FTS
▶
11311 - FTS(MIDDLE EAST)
▶
3 - Brakes, Brake System
▶
3-75 - BRAKE PIPING; AIR,FRONT
▶
3-75 — BRAKE PIPING; AIR,FRONT
(#15883) — 38 parça
Tümü
A - FTS6MC
B - FTS6MF
◀

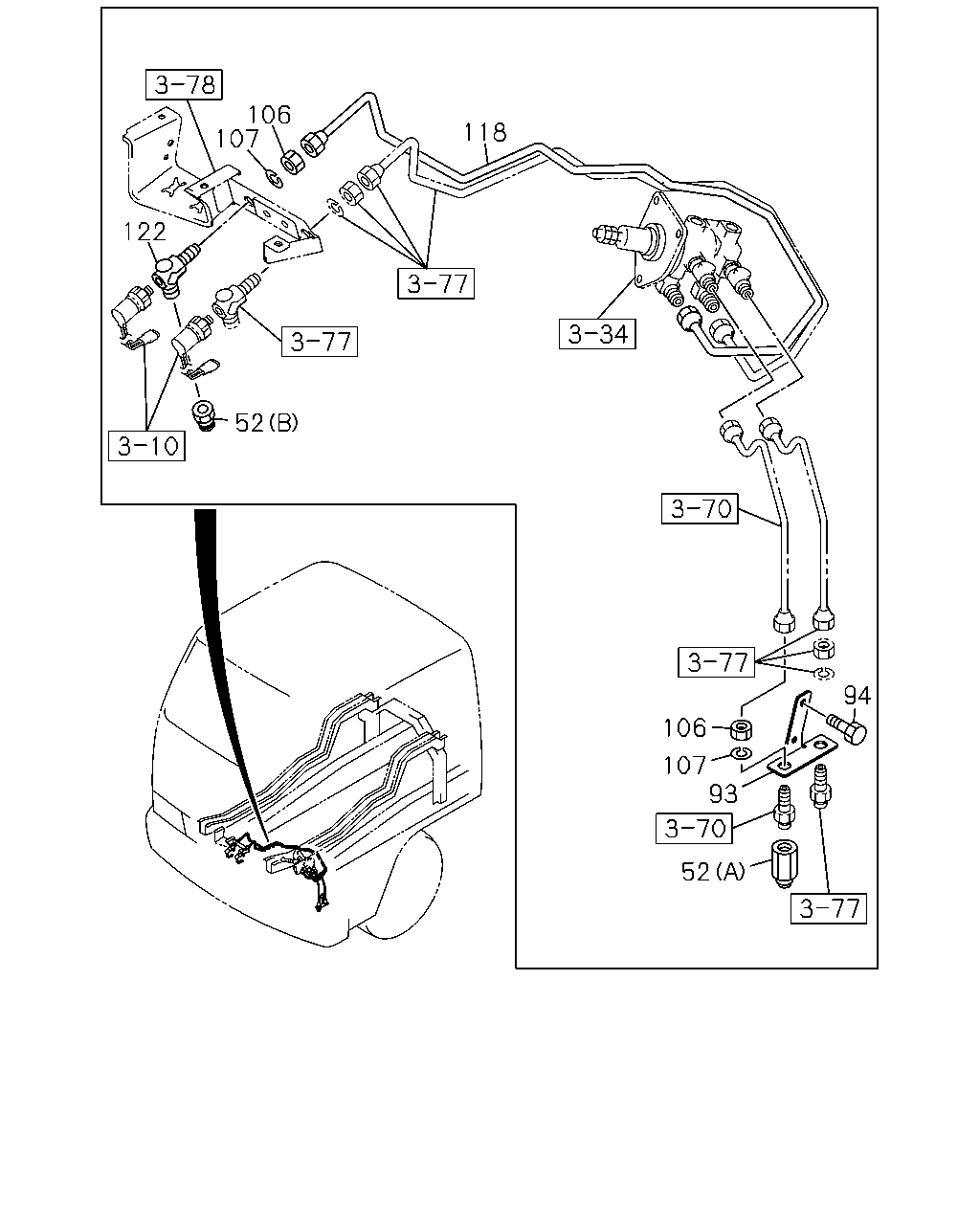

[375A] NO.3 (13 parça)
[375A] NO.2 (18 parça)

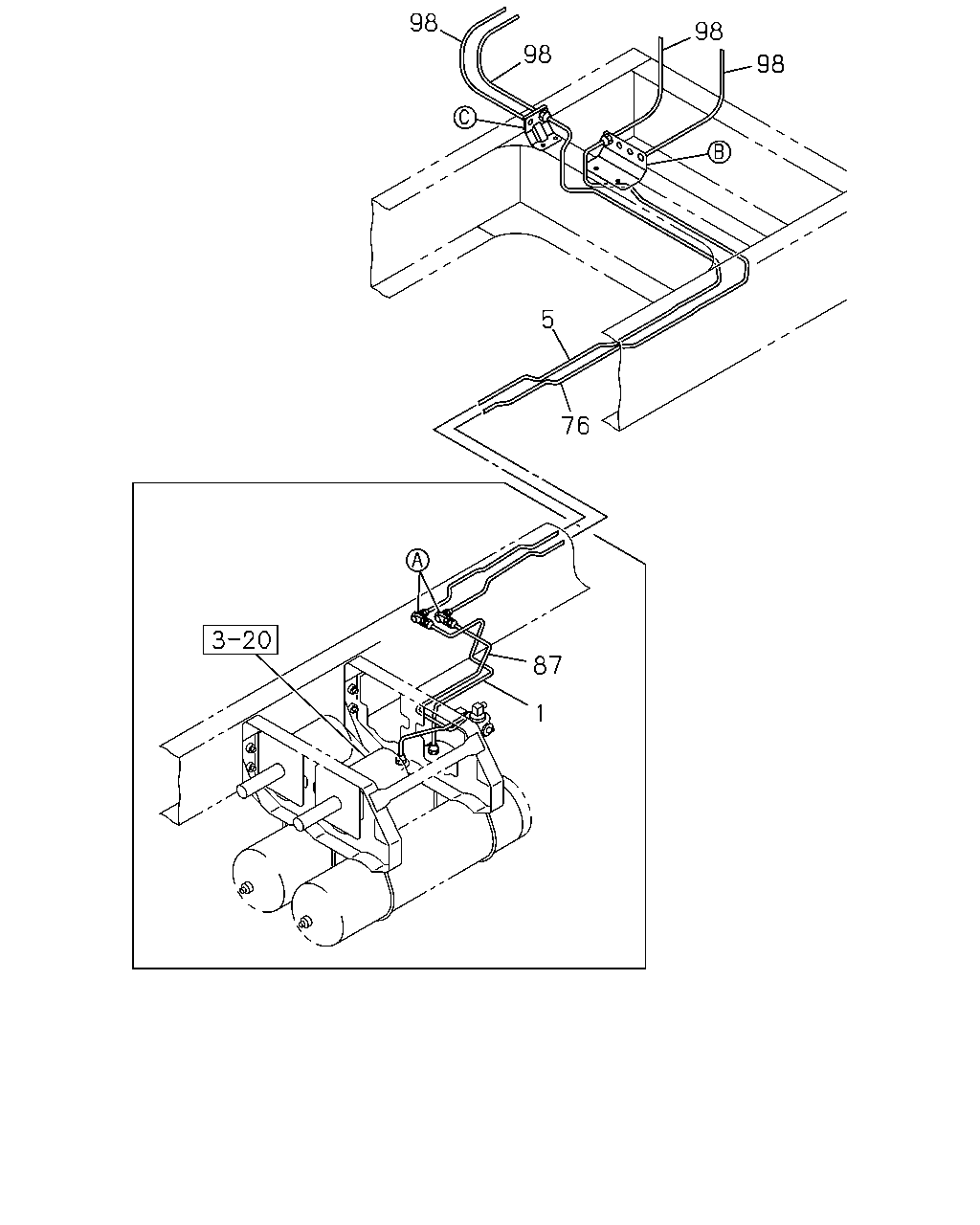

[375A] NO.1 (7 parça)
▶
106
107
118
122
52
94
106
107
93
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
52
CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT
1-09660-876-0
02
1
9905-0004
●
●
52
CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
0005-0007
●
●
52
CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT
1-09660-876-0
02
1
0008-
●
●
52
CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT
1-09661-096-0
01
1
9905-0007
●
●
93
BRACKET; UNION,TUBE
1-71996-119-0
01
1
9905-
●
●
94
BOLT; BRKT
M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
9905-0904
●
●
94
BOLT; BRKT
M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
0905-
●
●
106
NUT; FLEX HOSE
M16
9-99111-416-0
02
1
9905-0512
●
●
106
NUT; FLEX HOSE
M16
0-91111-516-0
02
1
0601-
●
●
107
WASHER; LK,FLEX HOSE
ID=16.2
9-09150-516-0
02
1
9905-0603
●
●
107
WASHER; LK,FLEX HOSE
ID=16.2
0-91510-516-0
02
1
0604-
●
●
118
PIPE; AIR,BRK VLV TO FLEX HOSE
L=1303
1-49116-437-0
01
1
9905-
●
●
122
CONNECTOR; FLEX HOSE
M16X2 & PT1/4 3WAY
1-09656-329-1
01
1
9905-
●
●
66
48
68
75
75
2
3
77
2
36
120
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
UNION; AIR PIPE
(A)
1-09660-807-2
01
1
9905-
●
●
2
UNION; AIR PIPE
(B) M16 ELBOW
9-09235-210-1
02
1
9905-0607
●
●
2
UNION; AIR PIPE
(B) M16 ELBOW
0-92135-210-0
02
1
0608-
●
●
3
NUT; PIPE UNION
M16
9-99111-416-0
01
1
9905-0512
●
●
3
NUT; PIPE UNION
M16
0-91111-516-0
01
1
0601-
●
●
36
NUT; HOSE BRKT
M8 FLANGE
0-91150-108-0
02
1
9905-0602
●
●
36
NUT; HOSE BRKT
M8 FLANGE
0-91180-108-0
02
1
0603-
●
●
48
NUT; UNION BRKT
M16
9-99111-416-0
01
1
9905-0512
●
●
48
NUT; UNION BRKT
M16
0-91111-516-0
01
1
0601-
●
●
66
BOLT; HOSE BRKT
M8X25 FLANGE
0-28680-825-0
02
1
9905-0512
●
●
66
BOLT; HOSE BRKT
M8X25 FLANGE
0-28650-825-0
02
1
0601-
●
●
68
NUT; UNION
M16
9-99111-416-0
01
1
9905-0512
●
●
68
NUT; UNION
M16
0-91111-516-0
01
1
0601-
●
●
75
BRACKET; UNION
(A)
1-47477-487-2
01
1
9905-
●
●
75
BRACKET; UNION
(B)
1-47477-642-2
01
1
9905-
●
●
77
NUT; PIPE UNION
M16
9-99111-416-0
01
1
9905-0512
●
●
77
NUT; PIPE UNION
M16
0-91111-516-0
01
1
0601-
●
●
120
UNION; AIR PIPE
1-09660-807-2
01
1
9905-
●
●
98
98
98
98
5
76
87
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PIPE; AIR,AIR TANK TO UNION
1-49116-738-0
01
1
9905-
●
●
5
PIPE; AIR,UNION TO UNION
L=2860 SERVICED BY L=2900
1-47428-800-0
01
1
9905-0411
●
●
5
PIPE; AIR,UNION TO UNION
L=2860 SERVICED BY L=2900
1-47428-800-0
01
1
0412-
●
●
76
PIPE; AIR,UNION TO UNION
L=2727 SERVICED BY L=2900
1-47428-800-0
01
1
9905-0411
●
●
76
PIPE; AIR,UNION TO UNION
L=2726 SERVICED BY L=2900
1-47428-800-0
01
1
0412-
●
●
87
PIPE; AIR,UNION TO AIR MASTER
1-49118-356-0
01
1
9905-
●
●
98
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87410-069-0
03
1
9905-
●
●
