1 |

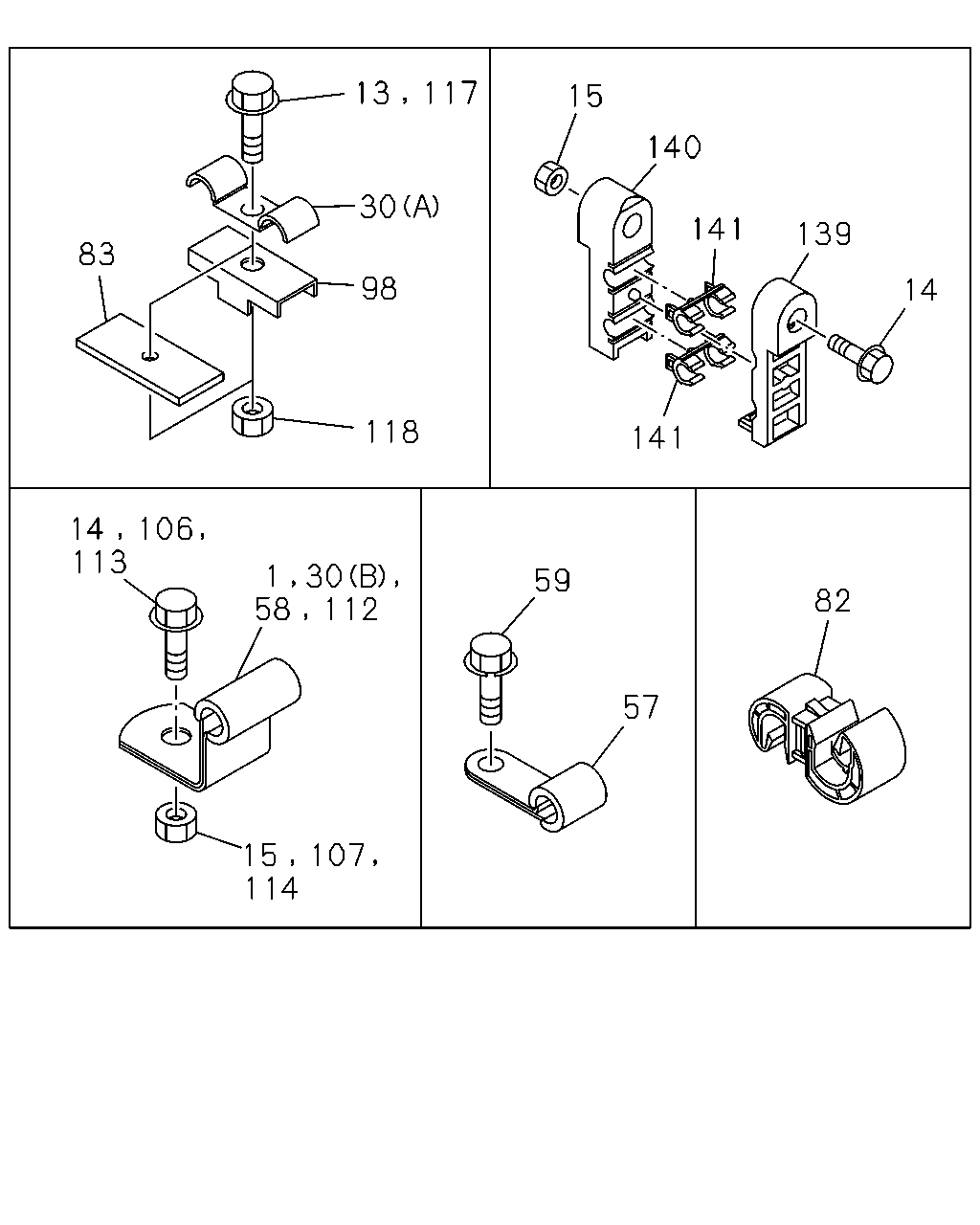

CLIP; OIL PIPE TO BODY
ID=6 H=20 L=20
|
1-09700-603-0 |
02 |
1 |
9905- |
● |
● |
| |
13 |
BOLT; BRKT,OIL PIPE
M8X40 FLANGE
|
0-28680-840-0 |
01 |
1 |
0001-0512 |
● |
● |
| |
13 |
BOLT; BRKT,OIL PIPE
M8X40 FLANGE
|
0-28650-840-0 |
01 |
1 |
0601- |
● |
● |
| |
14 |
BOLT; CLIP,OIL PIPE
M8X50 FLANGE
|
0-28080-850-0 |
01 |
1 |
9905-0512 |
● |
● |
| |
14 |
BOLT; CLIP,OIL PIPE
M8X50 FLANGE
|
0-28050-850-0 |
01 |
1 |
0601- |
● |
● |
| |
14 |
BOLT; CLIP,OIL PIPE
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9905-0512 |
● |
● |
| |
14 |
BOLT; CLIP,OIL PIPE
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0601- |
● |
● |
| |
15 |
NUT; CLIP,OIL PIPE
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
9905-0602 |
● |
● |
| |
15 |
NUT; CLIP,OIL PIPE
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
0603- |
● |
● |
| |
30 |
CLIP; OIL PIPE
(B)
ID=6 H=20 L=20
|
1-09700-603-0 |
02 |
1 |
9905- |
● |
● |
| |
30 |
CLIP; OIL PIPE
(A)
ID=7 & 7 L=17.5 & 17.5
|
1-09700-745-0 |
01 |
1 |
9905-9912 |
● |
● |
| |
30 |
CLIP; OIL PIPE
(A)
ID=7 & 7 L=17.5 & 17.5
|
1-09700-745-0 |
02 |
1 |
0001- |
● |
● |
| |
57 |
CLIP; BRK PIPE,RR AXLE
ID=7 L=20
|
9-09524-635-0 |
04 |
1 |
9905-9907 |
● |
● |
| |
58 |
CLIP; OIL PIPE
ID=6 H=20 L=20
|
1-09700-603-0 |
03 |
1 |
9905- |
● |
● |
| |
59 |
BOLT; BRK PIPE,RR AXLE
M8X12 W/LK WASHER
|
0-50040-812-0 |
04 |
1 |
9905-9907 |
● |
● |
| |
82 |
CLIP; OIL PIPE
ID=6.35 & 10.0
|
1-09709-274-1 |
01 |
1 |
9905- |
● |
● |
| |
82 |
CLIP; OIL PIPE
ID=6.35 & 10.0
|
1-09709-274-1 |
02 |
1 |
9905-9906 |
● |
● |
| |
82 |
CLIP; OIL PIPE
ID=6.35 & 10.0
|
1-09709-274-1 |
03 |
1 |
9907- |
● |
● |
| |
83 |
BRACKET; PIPE CLIP
L=50
|
1-47475-299-2 |
01 |
1 |
9905- |
● |
● |
| |
98 |
BRACKET; OIL PIPE
|
1-47475-427-1 |
01 |
1 |
0001- |
● |
● |
| |
106 |
BOLT; CLIP,OIL PIPE
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
9905-9912 |
● |
● |
| |
106 |
BOLT; CLIP,OIL PIPE
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
0001-0006 |
● |
● |
| |
106 |
BOLT; CLIP,OIL PIPE
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
0007-0512 |
● |
● |
| |
106 |
BOLT; CLIP,OIL PIPE
M8X16 FLANGE
|
0-28050-816-0 |
01 |
1 |
0601- |
● |
● |
| |
106 |
BOLT; CLIP,OIL PIPE
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9905-0512 |
● |
● |
| |
106 |
BOLT; CLIP,OIL PIPE
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0601- |
● |
● |
| |
107 |
NUT; CLIP,OIL PIPE
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9905-9912 |
● |
● |
| |
107 |
NUT; CLIP,OIL PIPE
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9905-9912 |
● |
● |
| |
107 |
NUT; CLIP,OIL PIPE
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0001-0602 |
● |
● |
| |
107 |
NUT; CLIP,OIL PIPE
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0001-0602 |
● |
● |
| |
107 |
NUT; CLIP,OIL PIPE
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
● |
● |
| |
107 |
NUT; CLIP,OIL PIPE
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
● |
● |
| |
112 |
CLIP; OIL PIPE
ID=6 H=20 L=20
|
1-09700-603-0 |
04 |
1 |
9905- |
● |
● |
| |
113 |
BOLT; CLIP,OIL PIPE
M8X25 FLANGE
|
0-28680-825-0 |
04 |
1 |
9905-0512 |
● |
● |
| |
113 |
BOLT; CLIP,OIL PIPE
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
0601- |
● |
● |
| |
114 |
NUT; CLIP,OIL PIPE
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9905-0602 |
● |
● |
| |
114 |
NUT; CLIP,OIL PIPE
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0603- |
● |
● |
| |
117 |
BOLT; CLIP,OIL PIPE
M8X25 FLANGE
|
0-28680-825-0 |
03 |
1 |
9905-0512 |
● |
● |
| |
117 |
BOLT; CLIP,OIL PIPE
M8X25 FLANGE
|
0-28650-825-0 |
03 |
1 |
0601- |
● |
● |
| |
118 |
NUT; CLIP,OIL PIPE
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
9905-0602 |
● |
● |
| |
118 |
NUT; CLIP,OIL PIPE
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
0603- |
● |
● |
| |
139 |
CLIP; UPR
ID=10 & 10
|
1-09709-241-0 |
02 |
1 |
9905- |
● |
● |
| |
140 |
CLIP; LWR
ID=10 & 10
|
1-09709-243-0 |
02 |
1 |
9905- |
● |
● |
| |
141 |
COLLAR
ID=6
|
1-47459-010-0 |
02 |
1 |
9905- |
● |
● |
| |
141 |
COLLAR
ID=8
|
1-47459-011-0 |
02 |
1 |
9905- |
● |
● |
