3-55 — BRAKE PIPING; OIL,REAR (#15880) — 27 parça

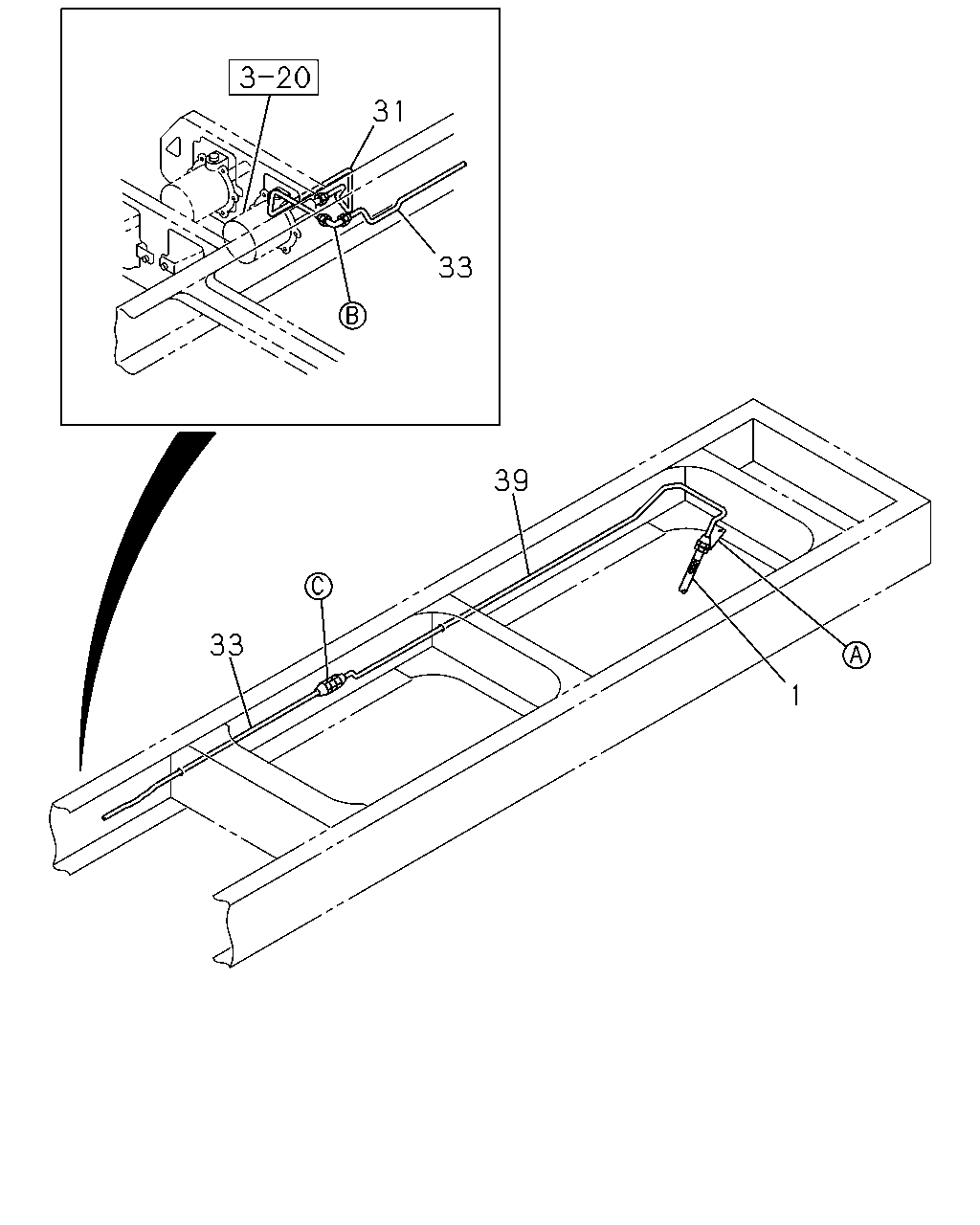

çizim 63495
31 33 39 33 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,RR BRK
L=663 		1-09364-938-0 01 1 9905- ●
1 HOSE; FLEX,RR BRK
L=700 		0-05312-700-0 01 1 9905-0907 ●
1 HOSE; FLEX,RR BRK
L=700 		0-05212-700-0 01 1 0908- ●
31 PIPE; OIL,AIR MASTER TO UNION
L=614 SERVICED BY L=650 		1-47426-346-0 01 1 9905- ● ●
33 PIPE; OIL,UNION TO UNION
L=1475 SERVICED BY L=1500 		1-47426-355-0 01 1 9905- ●
33 PIPE; OIL,UNION TO UNION
L=2105 SERVICED BY L=2200 		1-47426-360-0 01 1 9905- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
L=1325 SERVICED BY L=1370 		1-47426-354-0 01 1 9905- ● ●

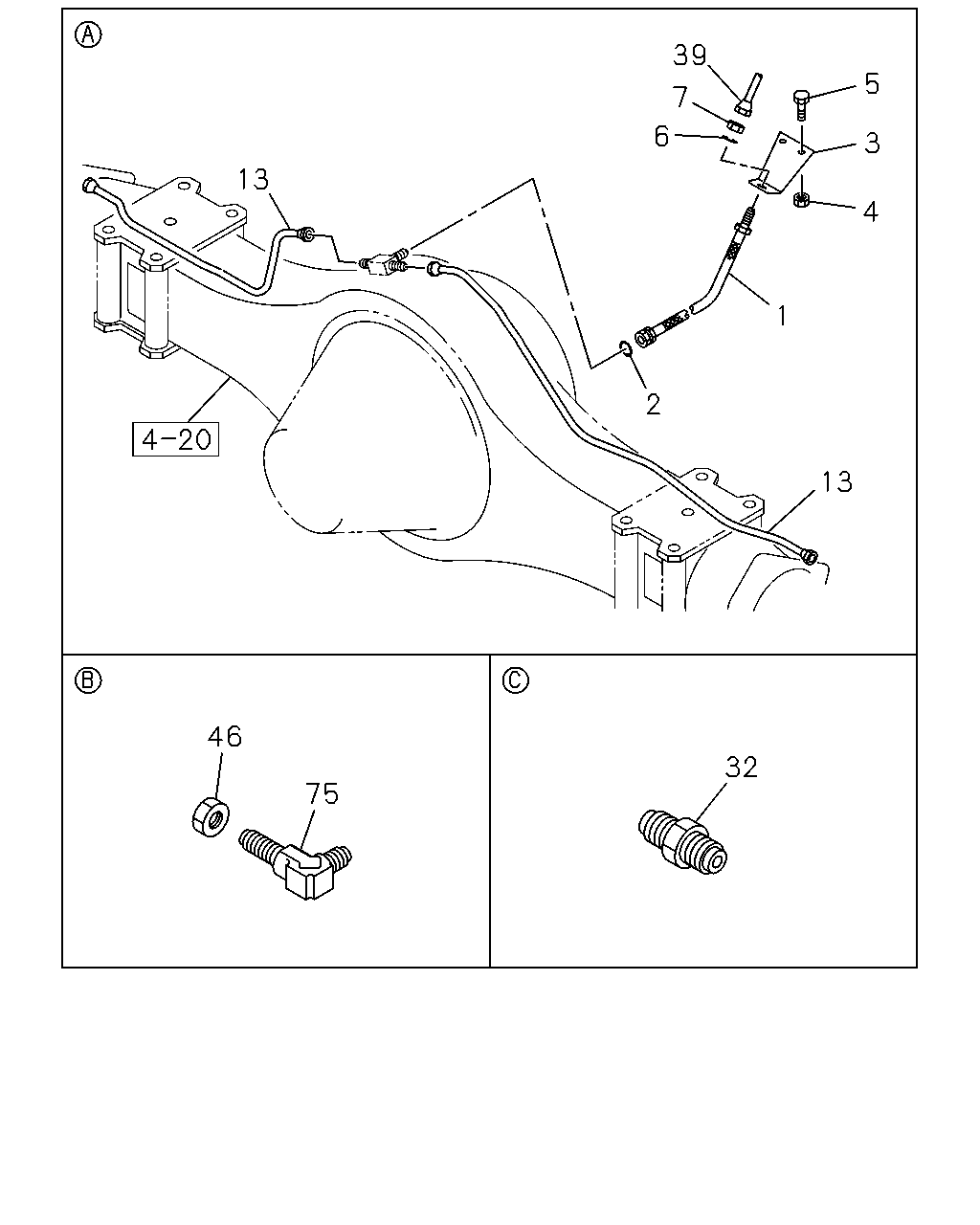

çizim 63989
39 5 7 6 3 13 4 1 2 13 46 32 75
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,RR BRK
L=663 		1-09364-938-0 01 1 9905- ●
1 HOSE; FLEX,RR BRK
L=700 		0-05312-700-0 01 1 9905-0907 ●
1 HOSE; FLEX,RR BRK
L=700 		0-05212-700-0 01 1 0908- ●
2 GASKET; FLEX HOSE,RR BRK
ID=9 OD=17 		9-09920-472-0 01 1 9905- ● ●
3 BRACKET; FLEX HOSE,RR BRK 1-47465-251-0 01 1 9905- ● ●
4 NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE 		0-91150-108-0 02 1 9905-0602 ● ●
4 NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X25 FLANGE 		0-28680-825-0 02 1 9905-0512 ● ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
6 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 01 1 9905-0603 ● ●
6 WASHER; LK,FLEX HOSE
ID=12.2 		0-91510-512-0 01 1 0604- ● ●
7 NUT; FLEX HOSE
M12 		9-09840-280-0 01 1 9905- ● ●
13 PIPE; BRK,RR AXLE 1-47428-643-0 01 1 9905- ● ●
13 PIPE; BRK,RR AXLE 1-47428-644-0 01 1 9905- ● ●
32 UNION; OIL PIPE
M12 L=40 		9-09223-006-1 01 1 9905-0607 ● ●
32 UNION; OIL PIPE
M12 L=40 		0-92113-006-0 01 1 0608- ● ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
L=1325 SERVICED BY L=1370 		1-47426-354-0 01 1 9905- ● ●
46 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 9905- ● ●
75 UNION; OIL PIPE
M12 ELBOW 		9-09225-206-1 01 1 9905-0607 ● ●
75 UNION; OIL PIPE
M12 ELBOW 		0-92125-206-0 01 1 0608- ● ●
