◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10634 - FSS/FTS-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-60 - TRANSFER ▶
2-60 — TRANSFER (#1588) — 50 parça
çizim 29185
2
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 REPAIR KIT; TRANSFER OVERHAUL 1-87830-218-5 01 1 9207- ● ● ● ● ●

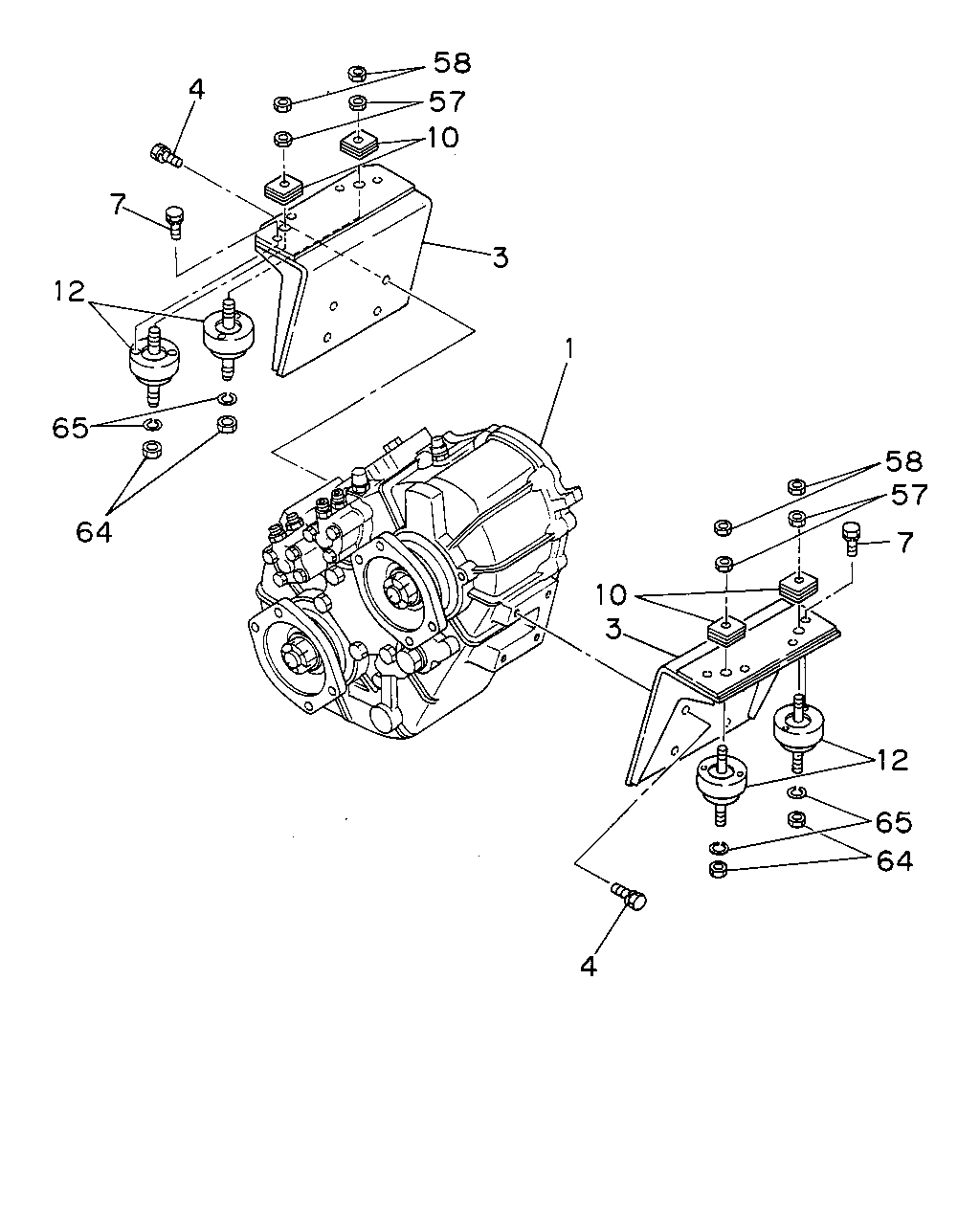

çizim 93639
58 57 10 3 1 4 7 12 65 64 10 3 58 57 7 12 65 64 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 TRANSFER ASM
FINAL GEAR 39/7 14.5" HYPOID(WIH) RR TIRE 7.50-20(91X) EXC. REAR WHEEL PARKING(B3A),TACHOGRAPH 140KM/H<WC7> 		1-36000-393-0 01 1 9207- ● ●
1 TRANSFER ASM
FINAL GEAR 39/7 14.5" HYPOID(WIH) RR TIRE 7.50-20(91X) TACHOGRAPH 140KM/H<WC7> EXC. REAR WHEEL PARKING(B3A) 		1-36000-477-0 01 1 9207- ● ●
1 TRANSFER ASM
FINAL GEAR 39/7 14.5" HYPOID(WIH) RR TIRE 8.25-20(93X) EXC. REAR WHEEL PARKING(B3A),TACHOGRAPH 140KM/H<WC7> 		1-36000-392-0 01 1 9207- ● ●
1 TRANSFER ASM
FINAL GEAR 39/7 14.5" HYPOID(WIH) RR TIRE 8.25-20(93X) TACHOGRAPH 140KM/H<WC7> EXC. REAR WHEEL PARKING(B3A) 		1-36000-476-0 01 1 9207- ● ●
1 TRANSFER ASM
FINAL GEAR 41/8 14.5" HYPOID(W4F) RR TIRE 8.25-20(93X) REAR WHEEL PARKING(B3A) TACHOGRAPH 140KM/H<WC7> 		1-36000-508-0 01 1 9207- ●
1 TRANSFER ASM
FINAL GEAR 41/8 14.5" HYPOID(W4F) RR TIRE 8.25-20(93X) REAR WHEEL PARKING(B3A) EXC. TACHOGRAPH 140KM/H<WC7> 		1-36000-558-0 01 1 9207-9406 ●
1 TRANSFER ASM
FINAL GEAR 41/8 14.5" HYPOID(W4F) RR TIRE 8.25-20(93X) REAR WHEEL PARKING(B3A) EXC. TACHOGRAPH 140KM/H<WC7> 		1-36000-559-0 01 1 9407- ●
1 TRANSFER ASM
FINAL GEAR 41/8 14.5" HYPOID(W4F) RR TIRE 8.25-20(93X) EXC. REAR WHEEL PARKING(B3A),TACHOGRAPH 140KM/H<WC7> 		1-36000-391-0 01 1 9207- ●
1 TRANSFER ASM
FINAL GEAR 41/8 14.5" HYPOID(W4F) RR TIRE 8.25-20(93X) TACHOGRAPH 140KM/H<WC7> EXC. REAR WHEEL PARKING(B3A) 		1-36000-475-0 01 1 9207- ●
1 TRANSFER ASM
MBG5B M/T(X4K) FINAL GEAR 39/6 15.5" HYPOID(WIT) RR TIRE 9.00-20(94X) TACHOGRAPH 140KM/H<WC7> EXC. REAR WHEEL PARKING(B3A) 		1-36000-516-0 01 1 9207- ● ● ●
1 TRANSFER ASM
MBG5B M/T(X4K) FINAL GEAR 39/6 15.5" HYPOID(WIT) RR TIRE 9.00-20(94X) TACHOGRAPH 140KM/H<WC7> REAR WHEEL PARKING(B3A) 		1-36000-521-0 01 1 9207- ● ● ●
1 TRANSFER ASM
MBG5B M/T(X4K) FINAL GEAR 39/6 15.5" HYPOID(WIT) RR TIRE 9.00-20(94X) EXC. REAR WHEEL PARKING(B3A),TACHOGRAPH 140KM/H<WC7> 		1-36000-566-0 01 1 9207- ● ● ●
1 TRANSFER ASM
MBG5B M/T(X4K) FINAL GEAR 39/6 15.5" HYPOID(WIT) RR TIRE 9.00-20(94X) REAR WHEEL PARKING(B3A) EXC. TACHOGRAPH 140KM/H<WC7> 		1-36000-571-0 01 1 9207- ● ● ●
1 TRANSFER ASM
MBG5B M/T(X4K) FINAL GEAR 39/7 15.5" HYPOID(W3K) RR TIRE 9.00-20(94X) TACHOGRAPH 140KM/H<WC7> EXC. REAR WHEEL PARKING(B3A) 		1-36000-514-0 01 1 9207- ● ● ●
1 TRANSFER ASM
MBG5B M/T(X4K) FINAL GEAR 39/7 15.5" HYPOID(W3K) RR TIRE 9.00-20(94X) REAR WHEEL PARKING(B3A) TACHOGRAPH 140KM/H<WC7> 		1-36000-519-0 01 1 9207- ● ● ●
1 TRANSFER ASM
MBG5B M/T(X4K) FINAL GEAR 39/6 15.5" HYPOID(WIT) RR TIRE 12.00-20(98X) REAR WHEEL PARKING(B3A) TACHOGRAPH 140KM/H<WC7> 		1-36000-519-0 01 1 9207- ●
1 TRANSFER ASM
MBG5B M/T(X4K) FINAL GEAR 39/7 15.5" HYPOID(W3K) RR TIRE 9.00-20(94X) EXC. REAR WHEEL PARKING(B3A),TACHOGRAPH 140KM/H<WC7> 		1-36000-564-0 01 1 9207- ● ● ●
1 TRANSFER ASM
MBG5B M/T(X4K) FINAL GEAR 39/7 15.5" HYPOID(W3K) RR TIRE 9.00-20(94X) REAR WHEEL PARKING(B3A) EXC. TACHOGRAPH 140KM/H<WC7> 		1-36000-569-0 01 1 9207- ● ● ●
1 TRANSFER ASM
MBG5B M/T(X4K) FINAL GEAR 39/6 15.5" HYPOID(WIT) RR TIRE 12.00-20(98X) REAR WHEEL PARKING(B3A) EXC. TACHOGRAPH 140KM/H<WC7> 		1-36000-569-0 01 1 9207- ●
1 TRANSFER ASM
MBG5B M/T(X4K) FINAL GEAR 39/6 15.5" HYPOID(WIT) RR TIRE 10.00-20(96X) REAR WHEEL PARKING(B3A) TACHOGRAPH 140KM/H<WC7> 		1-36000-520-0 01 1 9207- ●
1 TRANSFER ASM
MBG5B M/T(X4K) FINAL GEAR 39/6 15.5" HYPOID(WIT) RR TIRE 10.00-20(96X) REAR WHEEL PARKING(B3A) EXC. TACHOGRAPH 140KM/H<WC7> 		1-36000-570-0 01 1 9207- ●
1 TRANSFER ASM
MBG5B M/T(X4K) FINAL GEAR 39/7 15.5" HYPOID(W3K) RR TIRE 10.00-20(96X),RR TIRE 12.00-20(98X) REAR WHEEL PARKING(B3A) TACHOGRAPH 140KM/H<WC7> 		1-36000-518-0 01 1 9207- ●
1 TRANSFER ASM
MBG5B M/T(X4K) FINAL GEAR 39/7 15.5" HYPOID(W3K) RR TIRE 10.00-20(96X),RR TIRE 12.00-20(98X) REAR WHEEL PARKING(B3A) EXC. TACHOGRAPH 140KM/H<WC7> 		1-36000-568-0 01 1 9207- ●
1 TRANSFER ASM
MLD6D M/T(X5Q) FINAL GEAR 39/6 15.5" HYPOID(WIT) RR TIRE 10.00-20(96X) REAR WHEEL PARKING(B3A) TACHOGRAPH 140KM/H<WC7> 		1-36000-490-0 01 1 9207- ●
1 TRANSFER ASM
MLD6D M/T(X5Q) FINAL GEAR 39/6 15.5" HYPOID(WIT) RR TIRE 10.00-20(96X) REAR WHEEL PARKING(B3A) EXC. TACHOGRAPH 140KM/H<WC7> 		1-36000-550-0 01 1 9207- ●
1 TRANSFER ASM
MLD6D M/T(X5Q) FINAL GEAR 39/7 15.5" HYPOID(W3K) RR TIRE 10.00-20(96X),RR TIRE 12.00-20(98X) REAR WHEEL PARKING(B3A) TACHOGRAPH 140KM/H<WC7> 		1-36000-488-0 01 1 9207- ●
1 TRANSFER ASM
MLD6D M/T(X5Q) FINAL GEAR 39/7 15.5" HYPOID(W3K) RR TIRE 10.00-20(96X),RR TIRE 12.00-20(98X) REAR WHEEL PARKING(B3A) EXC. TACHOGRAPH 140KM/H<WC7> 		1-36000-548-0 01 1 9207- ●
1 TRANSFER ASM
MLD6D M/T(X5Q) FINAL GEAR 39/6 15.5" HYPOID(WIT) RR TIRE 9.00-20(94X) TACHOGRAPH 140KM/H<WC7> EXC. REAR WHEEL PARKING(B3A) 		1-36000-486-0 01 1 9207- ● ●
1 TRANSFER ASM
MLD6D M/T(X5Q) FINAL GEAR 39/6 15.5" HYPOID(WIT) RR TIRE 9.00-20(94X) TACHOGRAPH 140KM/H<WC7> REAR WHEEL PARKING(B3A) 		1-36000-491-0 01 1 9207- ● ●
1 TRANSFER ASM
MLD6D M/T(X5Q) FINAL GEAR 39/6 15.5" HYPOID(WIT) RR TIRE 9.00-20(94X) EXC. REAR WHEEL PARKING(B3A),TACHOGRAPH 140KM/H<WC7> 		1-36000-546-0 01 1 9207- ● ●
1 TRANSFER ASM
MLD6D M/T(X5Q) FINAL GEAR 39/6 15.5" HYPOID(WIT) RR TIRE 9.00-20(94X) REAR WHEEL PARKING(B3A) EXC. TACHOGRAPH 140KM/H<WC7> 		1-36000-551-0 01 1 9207- ● ●
1 TRANSFER ASM
MLD6D M/T(X5Q) FINAL GEAR 39/7 15.5" HYPOID(W3K) RR TIRE 9.00-20(94X) TACHOGRAPH 140KM/H<WC7> EXC. REAR WHEEL PARKING(B3A) 		1-36000-484-0 01 1 9207- ● ●
1 TRANSFER ASM
MLD6D M/T(X5Q) FINAL GEAR 39/7 15.5" HYPOID(W3K) RR TIRE 9.00-20(94X) TACHOGRAPH 140KM/H<WC7> REAR WHEEL PARKING(B3A) 		1-36000-489-0 01 1 9207- ● ●
1 TRANSFER ASM
MLD6D M/T(X5Q) FINAL GEAR 39/6 15.5" HYPOID(WIT) RR TIRE 12.00-20(98X) REAR WHEEL PARKING(B3A) TACHOGRAPH 140KM/H<WC7> 		1-36000-489-0 01 1 9207- ●
1 TRANSFER ASM
MLD6D M/T(X5Q) FINAL GEAR 39/7 15.5" HYPOID(W3K) RR TIRE 9.00-20(94X) EXC. REAR WHEEL PARKING(B3A),TACHOGRAPH 140KM/H<WC7> 		1-36000-544-0 01 1 9207- ● ●
1 TRANSFER ASM
MLD6D M/T(X5Q) FINAL GEAR 39/7 15.5" HYPOID(W3K) RR TIRE 9.00-20(94X) REAR WHEEL PARKING(B3A) EXC. TACHOGRAPH 140KM/H<WC7> 		1-36000-549-0 01 1 9207- ● ●
1 TRANSFER ASM
MLD6D M/T(X5Q) FINAL GEAR 39/6 15.5" HYPOID(WIT) RR TIRE 12.00-20(98X) REAR WHEEL PARKING(B3A) EXC. TACHOGRAPH 140KM/H<WC7> 		1-36000-549-0 01 1 9207- ●
3 BRACKET; TRANSFER 1-36183-157-1 01 1 9207- ● ●
3 BRACKET; TRANSFER 1-36183-116-0 01 1 9207- ● ●
3 BRACKET; TRANSFER 1-36183-114-6 01 1 9207- ● ● ●
3 BRACKET; TRANSFER 1-36183-113-3 01 1 9207- ● ● ●
4 BOLT; BRKT TO TRANSFER
M12X30 W/LK WASHER 		0-50051-230-0 08 1 9207- ● ● ● ● ●
7 BOLT; CUSHION RUBBER
M10X25 W/LK WASHER 		0-50041-025-0 08 1 9207- ● ● ● ● ●
10 RUBBER; CUSHION,UPR,TRANSFER 1-36189-027-0 04 1 9207- ● ● ● ● ●
12 RUBBER; CUSHION,LWR,TRANSFER 1-36189-026-2 04 1 9207- ● ● ● ● ●
57 NUT; CUSHION RUBBER,UPR
M12 		9-99110-512-0 04 1 9207- ● ● ● ● ●
58 NUT; CUSHION RUBBER,LK UPR
M12 		9-99111-412-0 04 1 9207- ● ● ● ● ●
64 NUT; CUSHION RUBBER,LWR
M14 		9-99110-414-0 04 1 9207- ● ● ● ● ●
65 WASHER; LK,CUSHION RUBBER,LWR
ID=14.2 		9-09150-514-0 04 1 9207- ● ● ● ● ●
