3-20 — AIR TANK (#15875) — 77 parça

246

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

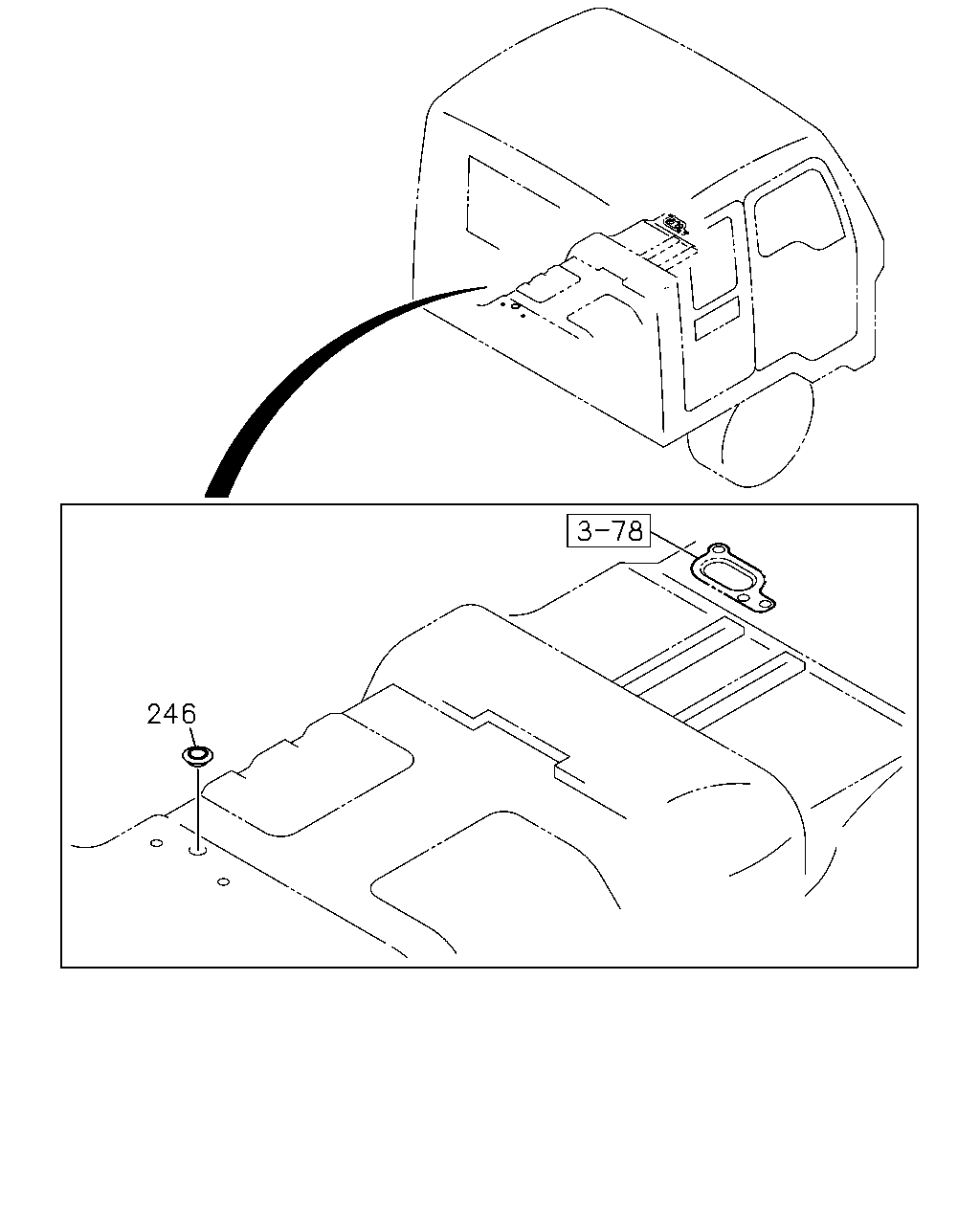

	246	GROMMET; VINYL PIPE OD=35	8-94122-971-0	01	1	9905-	●	●

28 43 172 28 172 64 3 5 43 172 5 12 11 67 1 12 10 3 3 64 43 10 8 20 174 10 10 5 7 6 45 166 7 10 175 42 6 45 45 42 8 45 42 42 45 45 10 45 1 39 39 39 45 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

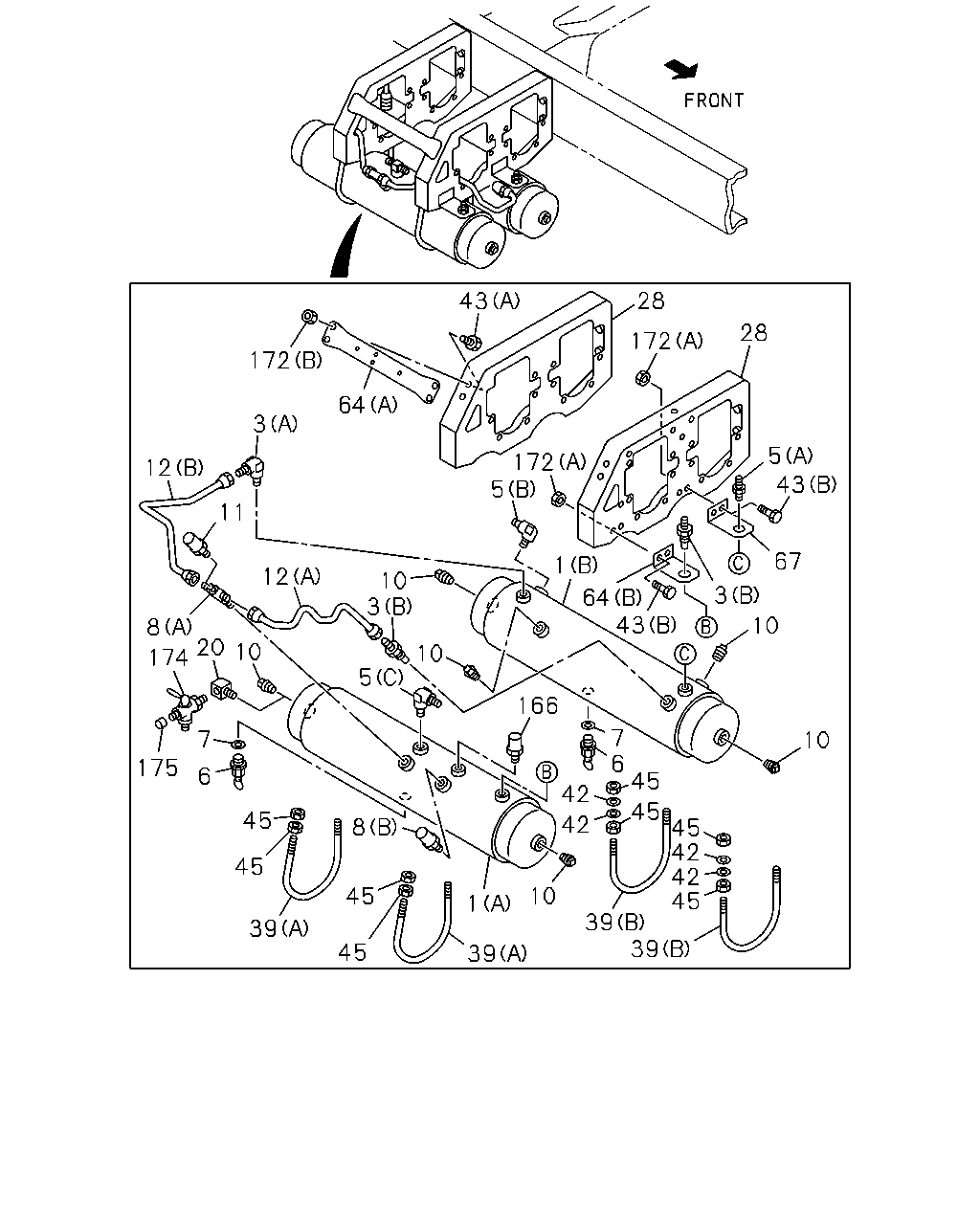

1	TANK ASM; AIR (A)	1-48330-598-0	01	1	9905-	●	●
1	TANK ASM; AIR (B)	1-48370-299-0	01	1	9905-	●	●
3	VALVE; CHECK,AIR TANK (B) M22 & PT3/4	1-48410-136-3	01	1	9905-	●	●
3	VALVE; CHECK,AIR TANK (B)	1-48410-182-3	01	1	9905-	●	●
3	VALVE; CHECK,AIR TANK (A) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9905-	●	●
5	UNION; AIR TANK (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	9905-	●	●
5	UNION; AIR TANK (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9905-	●	●
5	UNION; AIR TANK (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9905-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	9905-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	9905-	●	●
8	CONNECTOR; AIR TANK (B)	1-09650-283-1	01	1	9905-	●	●
8	CONNECTOR; AIR TANK (A)	1-09656-699-0	01	1	9905-	●	●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE(SG4) PT1/4	9-99204-513-0	05	1	9905-	●	●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE(SG4) PT1/4	9-99204-513-0	06	1	9905-	●	●
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	9905-	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (B)	1-47497-011-0	01	1	9905-	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (A)	1-47497-012-0	01	1	9905-	●	●
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE(SG4) PT1/4 2WAY	1-09660-693-0	01	1	9905-	●	●
28	BRACKET; AIR TANK	1-53318-338-6	02	1	9905-	●	●
39	U-BOLT; AIR TANK (A) L=97.5	1-48317-323-1	02	1	9905-	●	●
39	U-BOLT; AIR TANK (B) L=195	1-48317-367-2	02	1	9905-	●	●
42	WASHER; PL ID=8.4 OD=18	9-09160-608-0	04	1	9905-0605	●	●
42	WASHER; PL ID=8.4 OD=18	0-91610-608-0	04	1	0606-	●	●
43	BOLT; STAY,AIR TANK,MAIN (B) M8X20 FLANGE	0-28680-820-0	04	1	9905-0512	●	●
43	BOLT; STAY,AIR TANK,MAIN (B) M8X20 FLANGE	0-28650-820-0	04	1	0601-	●	●
43	BOLT; STAY,AIR TANK,MAIN (A) M10X25 FLANGE	0-28681-025-0	04	1	9905-0512	●	●
43	BOLT; STAY,AIR TANK,MAIN (A) M10X25 FLANGE	0-28651-025-0	04	1	0601-	●	●
45	NUT; AIR TANK,MAIN M8	9-09110-408-0	16	1	9905-0512	●	●
45	NUT; AIR TANK,MAIN M8	0-91110-508-0	16	1	0601-	●	●
64	STAY; AIR TANK,MAIN (A)	1-53318-293-1	01	1	9905-	●	●
64	STAY; AIR TANK,MAIN (B)	8-94301-490-0	01	1	9905-	●	●
67	STAY; SUB TANK	1-48317-349-0	01	1	9905-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-1	01	1	9905-	●	●
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91150-108-0	04	1	9905-0602	●	●
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91150-210-0	04	1	9905-0602	●	●
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91180-210-0	04	1	0603-	●	●
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE(SG4)	1-09680-036-0	01	1	9905-0009	●	●
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE(SG4)	1-09680-099-0	01	1	0010-	●	●
175	CAP; AIR COCK TIRE INFLATOR DEVICE(SG4)	9-48319-102-0	01	1	9905-	●	●

145 150 125 145 237 138 238 138 145 149 125 239 240 151 140 145 86 139 153 151 81 152 126 83 37 80 141 79 82 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

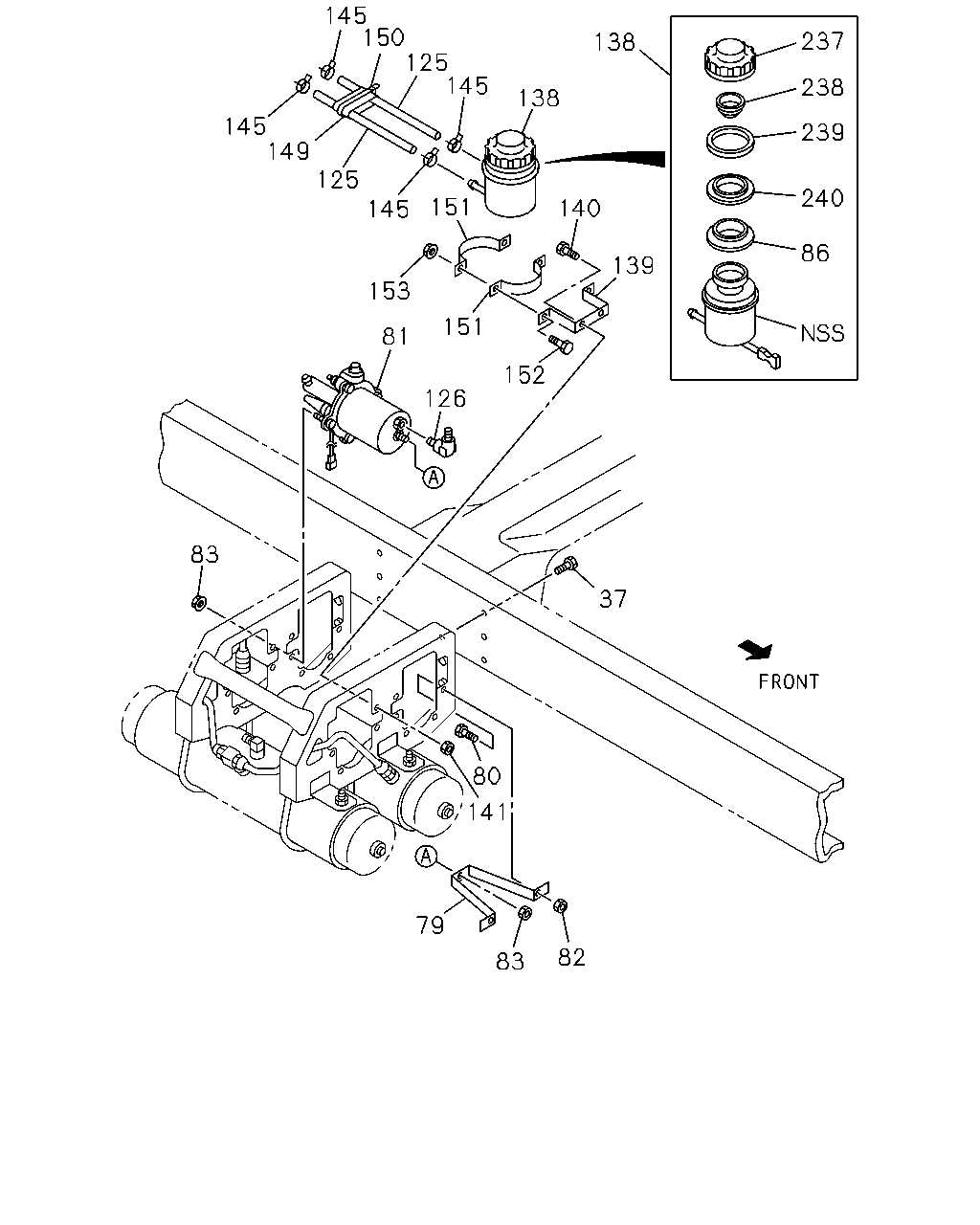

37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	06	1	9905-0512	●	●
37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	06	1	0601-	●	●
79	STAY; AIR MASTER TO BRKT	1-53318-347-0	02	1	9905-0805	●	●
79	STAY; AIR MASTER TO BRKT	8-98120-254-0	02	1	0806-	●	●
80	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	04	1	9905-0512	●	●
80	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	0601-	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. PRIMARY	1-47800-663-1	01	1	9905-	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. SECONDARY	1-47800-664-2	01	1	9905-	●	●
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91150-210-0	04	1	9905-0602	●	●
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91180-210-0	04	1	0603-	●	●
83	NUT; AIR MASTER M10 FLANGE	0-91150-210-0	10	1	9905-0602	●	●
83	NUT; AIR MASTER M10 FLANGE	0-91180-210-0	10	1	0603-	●	●
86	SEAL; DUST	1-47529-019-0	01	1	9905-	●	●
125	HOSE; OIL TANK TO AIR MASTER L=270 SERVICED BY L=1800	1-09360-320-0	02	1	9905-	●	●
126	CONNECTOR; ELBOW M16 & PT3/8 ELBOW	1-09650-438-0	02	1	9905-	●	●
138	TANK ASM; OIL,AIR MASTER	1-47530-170-1	01	1	9905-0011	●	●
138	TANK ASM; OIL,AIR MASTER	1-47530-184-0	01	1	0012-0206	●	●
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	0207-	●	●
139	BRACKET; OIL TANK	1-47537-081-2	01	1	9905-	●	●
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28681-020-0	02	1	9905-0512	●	●
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28651-020-0	02	1	0601-	●	●
141	NUT; OIL TANK TO BRKT M10 FLANGE	0-91150-210-0	02	1	9905-0602	●	●
141	NUT; OIL TANK TO BRKT M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	9905-	●	●
149	SLEEVE; RUBBER,HOSE ID=23 OD=27 L=40	1-09337-015-0	01	1	9905-	●	●
150	CLIP; BAND,RUBBER SLEEVE L=140	5-09707-031-1	01	1	9905-	●	●
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	9905-	●	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28680-820-0	02	1	9905-0512	●	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91150-108-0	02	1	9905-0602	●	●
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
237	CAP; OIL TANK	1-47525-024-0	01	1	9905-0011	●	●
237	CAP; OIL TANK	1-47525-030-0	01	1	0012-	●	●
238	PLATE; BAFFLE	1-47529-022-0	01	1	9905-	●	●
239	FILTER; DUST	1-47529-017-0	01	1	9905-	●	●
240	HOLDER; FILTER	1-47529-018-0	01	1	9905-	●	●
