Sayfa 3-11 - Isuzu EPC

3-11 — PARKING BRAKE CONTROL (#15870) — 90 parça

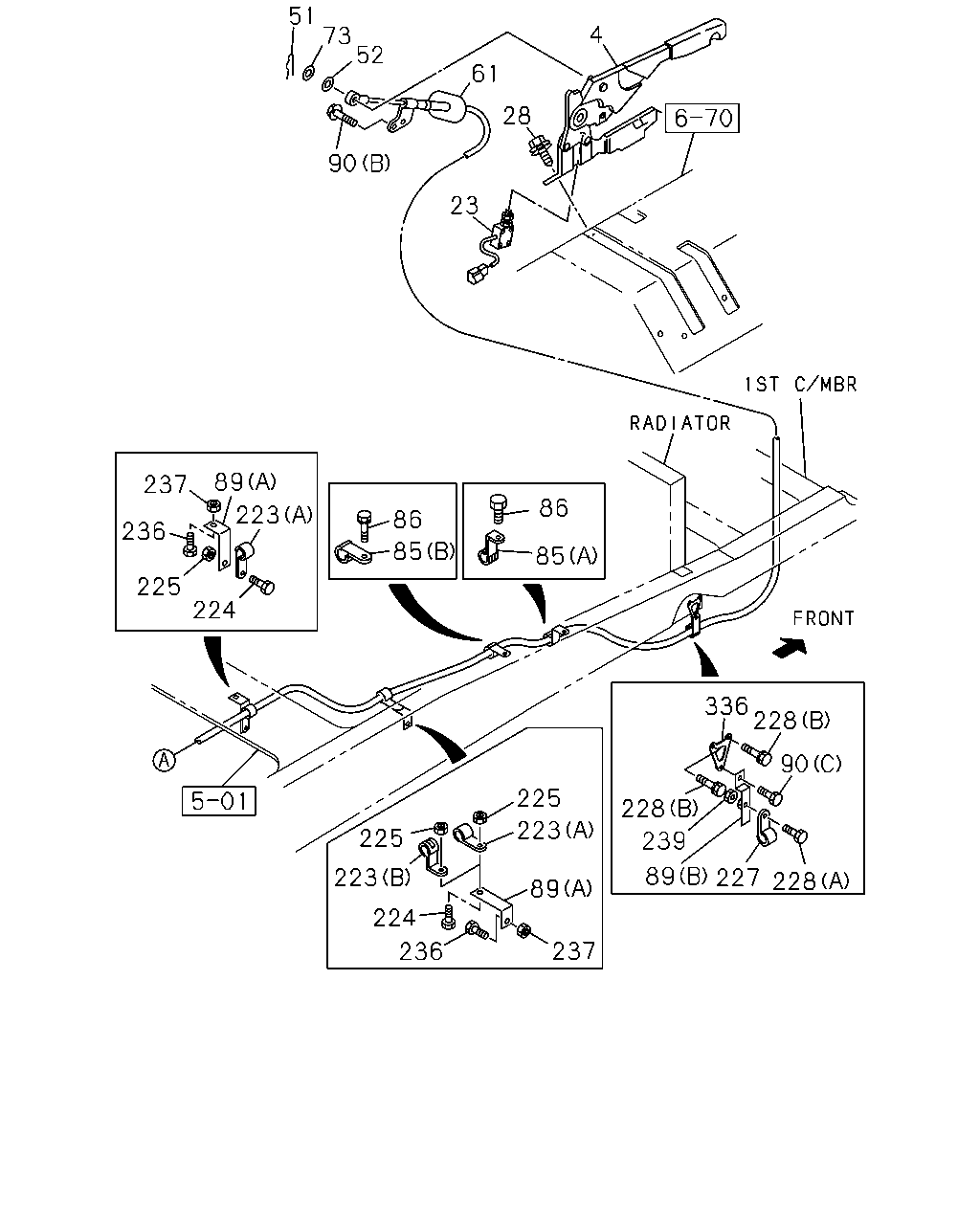

51 4 73 52 61 28 90 23 89 237 86 223 86 236 85 85 225 224 336 228 90 225 228 223 225 239 223 228 89 224 237 236 89 227

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	STEM; PARKING BRK	1-79996-423-0	01	1	9905-9908	●	●
4	STEM; PARKING BRK	1-79996-485-0	01	1	9909-9911	●	●
4	STEM; PARKING BRK	1-79996-505-0	01	1	9912-0010	●	●
4	STEM; PARKING BRK	1-79996-565-0	01	1	0011-	●	●
23	SWITCH; PARKING BRK	1-82440-100-0	01	1	9905-	●	●
28	BOLT; HAND BRK LEVER M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9905-0904	●	●
28	BOLT; HAND BRK LEVER M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-	●	●
51	PIN; JOINT,RELAY LEVER	1-09987-243-1	01	1	9905-	●	●
52	WASHER; CURVED RELAY LEVER ID=19	8-94206-429-1	02	1	9905-	●	●
61	CABLE; PARKING BRK L=5055	1-79996-406-0	01	1	9905-9909	●	●
61	CABLE; PARKING BRK L=5344	1-79996-467-4	01	1	9910-	●	●
73	WASHER; PL,CABLE ID=17	9-09160-516-0	01	1	9905-0605	●	●
73	WASHER; PL,CABLE ID=17 OD=30	0-91610-516-0	01	1	0606-	●	●
85	CLIP; BRKT (A) ID=16 H=30 L=30	1-09701-080-0	01	1	9905-	●	●
85	CLIP; BRKT (B) ID=24 L=40	1-09701-139-0	01	1	9905-1101	●	●
85	CLIP; BRKT (B) ID=14.5 L=40	1-09701-014-0	01	1	1102-	●	●
86	BOLT M8X25 FLANGE	0-28680-825-0	02	1	9905-0512	●	●
86	BOLT M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
89	BRACKET; CLIP (A)	1-34656-009-0	02	1	9905-	●	●
89	BRACKET; CLIP (B)	1-47477-261-0	01	1	9905-	●	●
90	BOLT; CABLE TO BRKT (C) M8X16 FLANGE	0-28080-816-0	01	1	9905-0512	●	●
90	BOLT; CABLE TO BRKT (C) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
90	BOLT; CABLE TO BRKT (B) M10X25 FLANGE	0-28681-025-0	02	1	9905-0009	●	●
90	BOLT; CABLE TO BRKT (B) M10X30 FLANGE	0-28681-030-0	02	1	0010-0512	●	●
90	BOLT; CABLE TO BRKT (B) M10X30 FLANGE	0-28651-030-0	02	1	0601-	●	●
90	BOLT; CABLE TO BRKT (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9905-0904	●	●
90	BOLT; CABLE TO BRKT (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-	●	●
223	CLIP; PARKING BRK CABLE (A) ID=14.5 L=28	1-09701-013-0	02	1	9905-9909	●	●
223	CLIP; PARKING BRK CABLE (A) ID=14.5 L=28	1-09701-013-0	01	1	9910-	●	●
223	CLIP; PARKING BRK CABLE (B) ID=15 L=22 H=30	1-09701-215-1	01	1	9910-	●	●
224	BOLT; CABLE CLIP M8X25 FLANGE	0-28680-825-0	02	1	9905-0512	●	●
224	BOLT; CABLE CLIP M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
225	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	02	1	9905-0602	●	●
225	NUT; CABLE CLIP M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
227	CLIP; RAD ID=13 L=20	9-09525-235-0	01	1	9905-0606	●	●
227	CLIP; RAD ID=13 L=20	0-95235-235-0	01	1	0607-	●	●
228	BOLT; CLIP RAD MTG (A) M8X16 FLANGE	0-28080-816-0	01	1	9905-0512	●	●
228	BOLT; CLIP RAD MTG (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
228	BOLT; CLIP RAD MTG (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	9905-	●	●
236	BOLT; BRKT TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	9905-0512	●	●
236	BOLT; BRKT TO FRAME M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
237	NUT; BRKT TO FRAME M8 FLANGE	0-91150-108-0	02	1	9905-0602	●	●
237	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
239	NUT; CLIP TO BRKT M8 FLANGE	0-91150-108-0	01	1	9905-0602	●	●
239	NUT; CLIP TO BRKT M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
336	BRACKET; RADIATOR	1-36183-162-1	01	1	9905-	●	●

61 46 45 324 218 46 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
45	BOLT; CABLE TO FLOOR M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9905-	●	●
46	CLIP; FRT CABLE TO FLOOR ID=16 L=20	9-09525-535-0	02	1	9905-0004	●	●
46	CLIP; FRT CABLE TO FLOOR ID=16 L=20	9-09525-535-0	03	1	0005-0606	●	●
46	CLIP; FRT CABLE TO FLOOR ID=16 L=20	0-95235-535-0	03	1	0607-	●	●
61	CABLE; PARKING BRK L=5055	1-79996-406-0	01	1	9905-9909	●	●
61	CABLE; PARKING BRK L=5344	1-79996-467-4	01	1	9910-	●	●
218	NUT; BRKT,PARKING BRK CABLE M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	9905-	●	●
324	BRACKET	1-79996-260-2	01	1	9905-	●	●

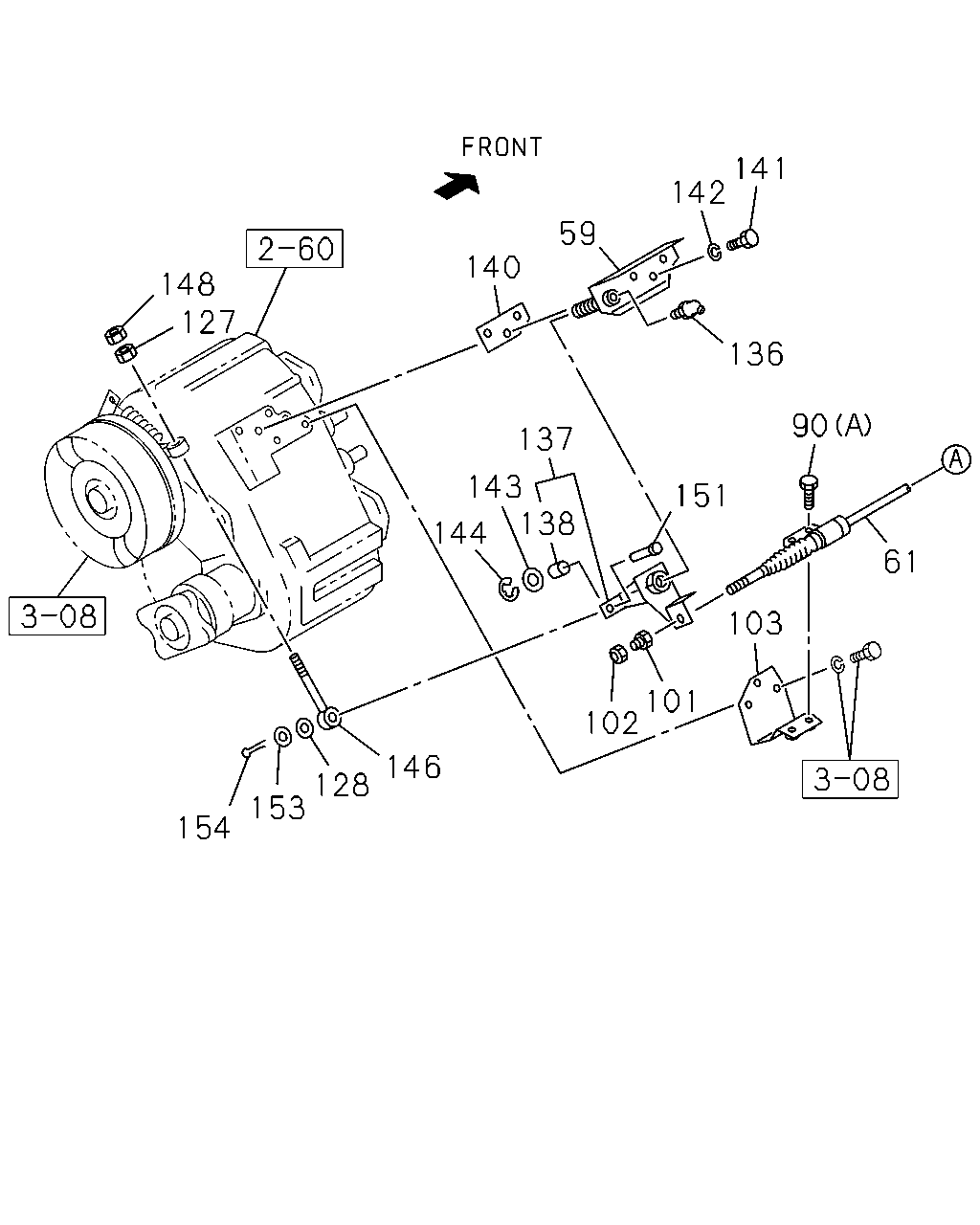

141 142 59 140 148 127 136 90 137 143 138 151 144 61 103 101 102 146 128 153 154

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
59	BRACKET; RELAY LEVER	1-46276-030-1	01	1	9905-	●	●
61	CABLE; PARKING BRK L=5055	1-79996-406-0	01	1	9905-9909	●	●
61	CABLE; PARKING BRK L=5344	1-79996-467-4	01	1	9910-	●	●
90	BOLT; CABLE TO BRKT (C) M8X16 FLANGE	0-28080-816-0	01	1	9905-0512	●	●
90	BOLT; CABLE TO BRKT (C) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
90	BOLT; CABLE TO BRKT (B) M10X25 FLANGE	0-28681-025-0	02	1	9905-0009	●	●
90	BOLT; CABLE TO BRKT (B) M10X30 FLANGE	0-28681-030-0	02	1	0010-0512	●	●
90	BOLT; CABLE TO BRKT (B) M10X30 FLANGE	0-28651-030-0	02	1	0601-	●	●
90	BOLT; CABLE TO BRKT (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9905-0904	●	●
90	BOLT; CABLE TO BRKT (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-	●	●
101	NUT; CABLE TO LEVER	1-46259-007-0	01	1	9905-	●	●
102	NUT; LK,CABLE TO LEVER M8 FLANGE	0-91150-108-0	01	1	9905-0602	●	●
102	NUT; LK,CABLE TO LEVER M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
103	BRACKET; PARKING BRK CONT	1-46147-052-1	01	1	9905-	●	●
127	NUT; LINK	1-09445-001-0	01	1	9905-	●	●
128	WASHER; PL,LINK ID=10.5 OD=18	9-09160-510-0	01	1	9905-0605	●	●
128	WASHER; PL,LINK ID=10.5	0-91610-510-0	01	1	0606-	●	●
136	NIPPLE; GREASE PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9905-0512	●	●
136	NIPPLE; GREASE PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-	●	●
137	LEVER ASM; W/BUSHING	1-46140-098-1	01	1	9905-1001	●	●
137	LEVER ASM; W/BUSHING	1-46140-119-0	01	1	1002-	●	●
138	BUSHING; LEVER	1-46149-003-0	01	1	9905-1001	●	●
138	BUSHING; LEVER	1-46149-031-0	01	1	1002-	●	●
140	PLATE; DIST PARKING BRK	1-46149-016-0	01	1	9905-	●	●
141	BOLT; BRKT,RELAY LEVER M12X38	0-23801-238-0	03	1	9905-	●	●
142	WASHER; LK,BRKT,RELAY LEVER ID=12.2	9-09150-512-0	03	1	9905-0603	●	●
142	WASHER; LK,BRKT,RELAY LEVER ID=12.2	0-91510-512-0	03	1	0604-	●	●
143	WASHER; PL,BRKT,RELAY LEVER ID=19	9-09160-518-0	01	1	9905-	●	●
144	RING; SNAP,E TYPE,BRKT ID=15	9-09185-015-0	01	1	9905-	●	●
146	ROD; LINK,PARKING BRK	1-46142-048-0	01	1	9905-	●	●
148	NUT; LK,LINK M10	9-09110-410-0	01	1	9905-0512	●	●
148	NUT; LK,LINK M10	0-91110-510-0	01	1	0601-	●	●
151	PIN; LINK TO LEVER OD=10 L=31	9-08234-031-0	01	1	9905-	●	●
153	WASHER; WAVE,LINK	9-09855-192-0	01	1	9905-	●	●
154	PIN; SPLIT,LINK OD=2.8 L=18	9-08113-018-0	01	1	9905-0606	●	●
154	PIN; SPLIT,LINK OD=2.8 L=18	0-81123-018-0	01	1	0607-	●	●
