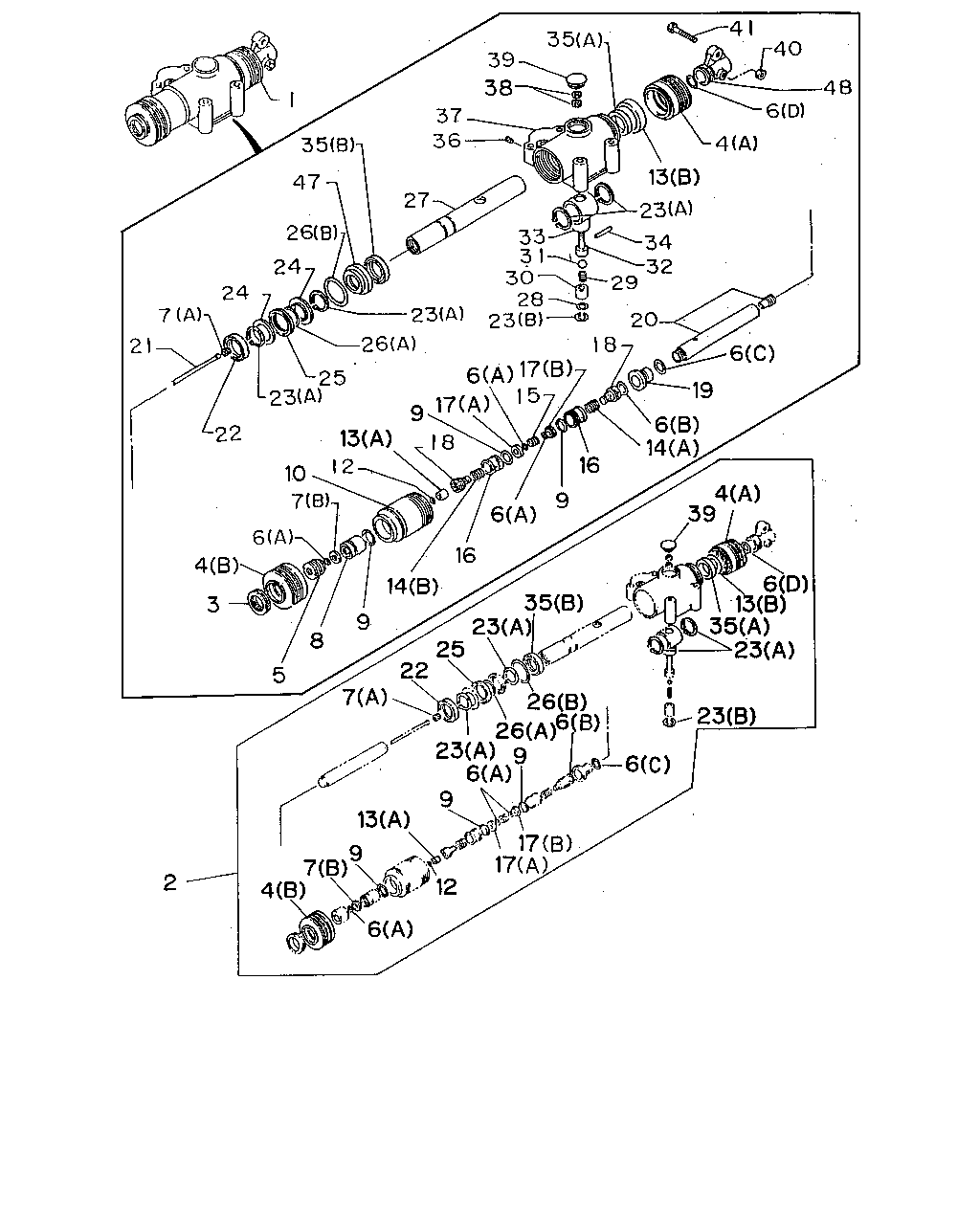

2-39 — POWER ASSISTOR (#1587) — 53 parça

1 35 47 26 24 24 7 21 22 23 25 26 23 27 36 37 38 39 35 41 40 48 6 4 13 23 34 32 29 33 31 30 28 23 20 18 6 19 6 14 17 6 17 9 13 18 15 12 10 7 6 4 3 5 8 9 14 16 6 9 16 39 4 6 13 35 23 23 35 23 25 22 7 2 4 7 9 13 23 9 6 9 26 26 6 6 17 17 12 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ASSISTOR ASM; POWER,SHIFT ASSISTER SHIFT CONTROL<WX8>	1-33730-070-1	01	1	9207-9207
2	REPAIR KIT; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-498-0	01	1	9207-9207
3	NUT; LK,ROD ASSISTER SHIFT CONTROL<WX8>	1-33739-025-0	01	1	9207-9207
4	BOOT; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-030-0	01	1	9207-9207
4	BOOT; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-038-0	01	1	9207-9207
5	CONNECTOR; CYL ASSISTER SHIFT CONTROL<WX8>	1-33739-017-0	01	1	9207-9207
6	GASKET ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-013-0	03	1	9207-9207
6	GASKET ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-070-0	01	1	9207-9207
6	GASKET ASSISTER SHIFT CONTROL<WX8> (D)	1-33739-080-0	01	1	9207-9207
6	GASKET ASSISTER SHIFT CONTROL<WX8> (C)	1-33739-365-0	01	1	9207-9207
7	FILTER; AIR ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-032-0	01	1	9207-9207
7	FILTER; AIR ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-033-0	01	1	9207-9207
8	TUBE ASSISTER SHIFT CONTROL<WX8>	1-33739-431-0	01	1	9207-9207
9	RING; SQUARE ASSISTER SHIFT CONTROL<WX8>	1-33739-086-0	03	1	9207-9207
10	CYLINDER; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-421-0	01	1	9207-9207
12	RING; RET ASSISTER SHIFT CONTROL<WX8>	1-33739-016-0	01	1	9207-9207
13	RETAINER ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-426-0	01	1	9207-9207
13	RETAINER ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-429-0	01	1	9207-9207
14	SPRING; VALVE LIFTER ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-066-0	01	1	9207-9207
14	SPRING; VALVE LIFTER ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-077-0	01	1	9207-9207
15	SPRING; VALVE SEAL ASSISTER SHIFT CONTROL<WX8>	1-33739-014-0	01	1	9207-9207
16	SEAT; VALVE ASSISTER SHIFT CONTROL<WX8>	1-33739-067-0	02	1	9207-9207
17	SEAL ASM; VALVE ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-012-0	02	1	9207-9207
17	SEAL ASM; VALVE ASSISTER SHIFT CONTROL<WX8> (A)	9-83335-055-0	02	1	9207-9207
18	LIFTER; VALVE ASSISTER SHIFT CONTROL<WX8>	1-33739-500-0	02	1	9207-9207
19	BUSHING; CYL ASSISTER SHIFT CONTROL<WX8>	1-33739-427-0	01	1	9207-9207
20	ROD ASM; W/CAP ASSISTER SHIFT CONTROL<WX8>	1-33739-083-0	01	1	9207-9207
21	PIPE; AIR,POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-048-0	01	1	9207-9207
22	SEAL; OIL ASSISTER SHIFT CONTROL<WX8>	1-33739-353-0	01	1	9207-9207
23	RING; RET ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-022-0	04	1	9207-9207
23	RING; RET ASSISTER SHIFT CONTROL<WX8> (B)	1-47819-109-0	01	1	9207-9207
24	PISTON ASSISTER SHIFT CONTROL<WX8>	1-33739-422-0	02	1	9207-9207
25	RING; "X",PISTON ASSISTER SHIFT CONTROL<WX8>	1-33739-420-0	01	1	9207-9207
26	GASKET ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-028-0	01	1	9207-9207
26	GASKET ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-496-0	01	1	9207-9207
27	ROD; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-423-0	01	1	9207-9207
28	PLATE; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-094-0	01	1	9207-9207
29	SPRING; BALL ASSISTER SHIFT CONTROL<WX8>	1-33739-095-0	01	1	9207-9207
30	PLUG ASSISTER SHIFT CONTROL<WX8>	1-33739-273-0	01	1	9207-9207
31	BALL; STEEL ASSISTER SHIFT CONTROL<WX8>	1-33739-096-0	01	1	9207-9207
32	BOLT; STRIKER ASSISTER SHIFT CONTROL<WX8>	1-33739-269-0	01	1	9207-9207
33	STRIKER; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-272-0	01	1	9207-9207
34	PIN; STRAIGHT,POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-271-0	01	1	9207-9207
35	GASKET; CUP ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-073-0	01	1	9207-9207
35	GASKET; CUP ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-075-0	01	1	9207-9207
36	SCREW; SET ASSISTER SHIFT CONTROL<WX8>	1-33739-040-0	01	1	9207-9207
37	HOUSING; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-334-0	01	1	9207-9207
38	NUT; STRIKER BOLT ASSISTER SHIFT CONTROL<WX8>	9-83315-080-0	02	1	9207-9207
39	COVER; RUBBER ASSISTER SHIFT CONTROL<WX8>	1-33739-031-0	01	1	9207-9207
40	NUT; LEVER ASSISTER SHIFT CONTROL<WX8>	1-33739-363-0	01	1	9207-9207
41	BOLT; SET,LEVER ASSISTER SHIFT CONTROL<WX8>	1-33739-339-0	01	1	9207-9207
47	BUSHING; CYL ASSISTER SHIFT CONTROL<WX8>	1-33739-333-0	01	1	9207-9207
48	LEVER; CONT,CABLE ASSISTER SHIFT CONTROL<WX8>	1-33739-054-0	01	1	9207-9207
