3-05 — REAR WHEEL BRAKE (#15867) — 48 parça

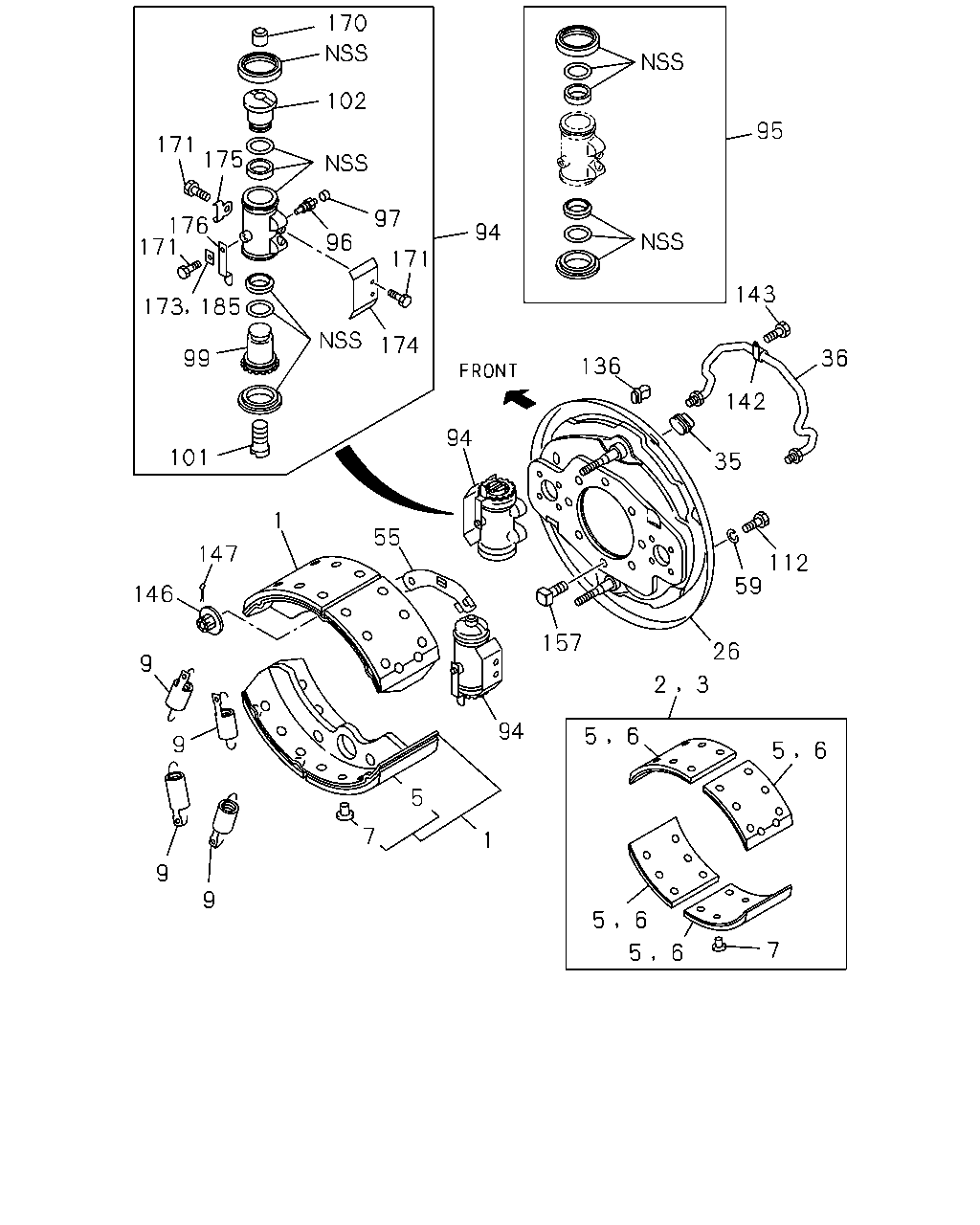

çizim 15451
170 102 95 171 175 97 176 171 94 96 171 143 173 185 174 36 99 136 142 94 101 35 1 55 147 112 59 146 157 26 9 2 3 94 5 6 9 5 6 5 7 1 9 9 5 6 7 6 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,RR 1-47120-632-0 04 1 9905- ● ●
2 LINING SET; RR BRK,STANDARD 1-88310-527-0 02 1 9905- ● ●
3 LINING SET; RR BRK,OVER SIZE 1-88310-528-0 02 1 9905- ● ●
5 LINING; RR BRK SHOE,STANDARD 1-47125-809-0 08 1 9905- ● ●
6 LINING; RR BRK SHOE,OVER SIZE 1-47125-810-0 08 1 9905- ● ●
7 RIVET; LINING,RR BRK
D6X11.5 		1-09732-019-0 96 1 9905- ● ●
9 SPRING; RETURN,BRK SHOE 1-09583-167-0 08 1 9905- ● ●
26 PLATE; BACK,RR BRK 1-47150-456-0 01 1 9905- ● ●
26 PLATE; BACK,RR BRK 1-47150-457-0 01 1 9905- ● ●
35 GROMMET; CHECK HOLE 1-09333-066-1 04 1 9905- ● ●
36 PIPE; OIL,RR BRK 1-47416-356-0 02 1 9905- ● ●
55 PLATE; LK,RR WHEEL CYL 1-47139-068-0 04 1 9905- ● ●
59 WASHER; LK,RR WHEEL CYL
ID=14.2 		9-09150-614-0 16 1 9905-0603 ● ●
59 WASHER; LK,RR WHEEL CYL
ID=14.2 		0-91510-614-0 16 1 0604- ● ●
94 CYLINDER; WHEEL,RR BRK
BACKWARD 		1-47600-429-2 01 1 9905-0104 ● ●
94 CYLINDER; WHEEL,RR BRK
BACKWARD 		1-47601-128-0 01 1 0105- ● ●
94 CYLINDER; WHEEL,RR BRK
BACKWARD 		1-47600-430-2 01 1 9905-0104 ● ●
94 CYLINDER; WHEEL,RR BRK
BACKWARD 		1-47601-129-0 01 1 0105- ● ●
94 CYLINDER; WHEEL,RR BRK
FORWARD 		1-47600-603-1 01 1 9905-0104 ● ●
94 CYLINDER; WHEEL,RR BRK
FORWARD 		1-47601-132-0 01 1 0105- ● ●
94 CYLINDER; WHEEL,RR BRK
FORWARD 		1-47600-604-1 01 1 9905-0104 ● ●
94 CYLINDER; WHEEL,RR BRK
FORWARD 		1-47601-133-0 01 1 0105- ● ●
95 CUP SET; RR WHEEL CYL 1-87830-552-0 04 1 9905- ● ●
96 SCREW; BLEEDER,RR BRK
L=44 		1-47615-007-0 02 1 9905- ● ●
97 CAP; BLEEDER,RR WHEEL CYL
OD=9.5 		9-47619-005-0 02 1 9905- ● ●
99 PISTON; RR WHEEL CYL 1-47624-156-0 02 1 9905- ● ●
99 PISTON; RR WHEEL CYL 1-47624-157-0 02 1 9905- ● ●
101 SCREW; ADJ,RR WHEEL CYL 1-47622-022-0 02 1 9905- ● ●
101 SCREW; ADJ,RR WHEEL CYL 1-47622-023-0 02 1 9905- ● ●
102 PISTON; REAR WHEEL CYL 1-47624-158-0 04 1 9905- ● ●
112 BOLT; WHEEL CYL SETTING 9-92361-435-0 16 1 9905- ● ●
136 GROMMET 1-09333-065-2 04 1 9905- ● ●
142 CLAMP; OIL PIPE 1-09700-454-0 02 1 9905- ● ●
143 BOLT; CLAMP,OIL PIPE
M6X10 		9-01900-610-0 02 1 9905- ● ●
146 NUT; HOLDER 1-09440-009-0 04 1 9905- ● ●
147 PIN; HOLDER
OD=1.8 L=20 		9-08112-020-0 04 1 9905-0606 ● ●
147 PIN; HOLDER
OD=1.8 L=20 		0-81122-020-0 04 1 0607- ● ●
157 BOLT; RR BRK SET
M14X56 		1-09060-004-0 12 1 9905- ● ●
170 PIECE; ANCHOR,RR WHEEL CYL 1-47619-019-0 04 1 9905- ● ●
171 BOLT; RR WHEEL CYL
M6X8 		0-20800-608-0 04 1 9905- ● ●
171 BOLT; RR WHEEL CYL
M8X18 W/LK WASHER 		0-50040-818-0 08 1 9905-0906 ● ●
171 BOLT; RR WHEEL CYL
M8X18 W/LK WASHER 		0-50540-818-0 08 1 0907- ● ●
171 BOLT; RR WHEEL CYL
M6X10 		9-01900-610-0 08 1 9905- ● ●
173 PLATE; LK,RR WHEEL CYL 1-47169-009-0 02 1 9905- ● ●
174 COVER; CYL,RR WHEEL CYL 1-47619-016-0 04 1 9905- ● ●
175 HANGER; RR WHEEL BRK 1-47118-084-0 08 1 9905- ● ●
176 STOPPER; RR WHEEL CYL 1-47169-008-0 04 1 9905- ● ●
185 PLATE; LK,RR WHEEL CYL 1-47169-009-0 02 1 9905- ● ●
