4-55 — FRONT LEAF SPRING (#15855) — 56 parça

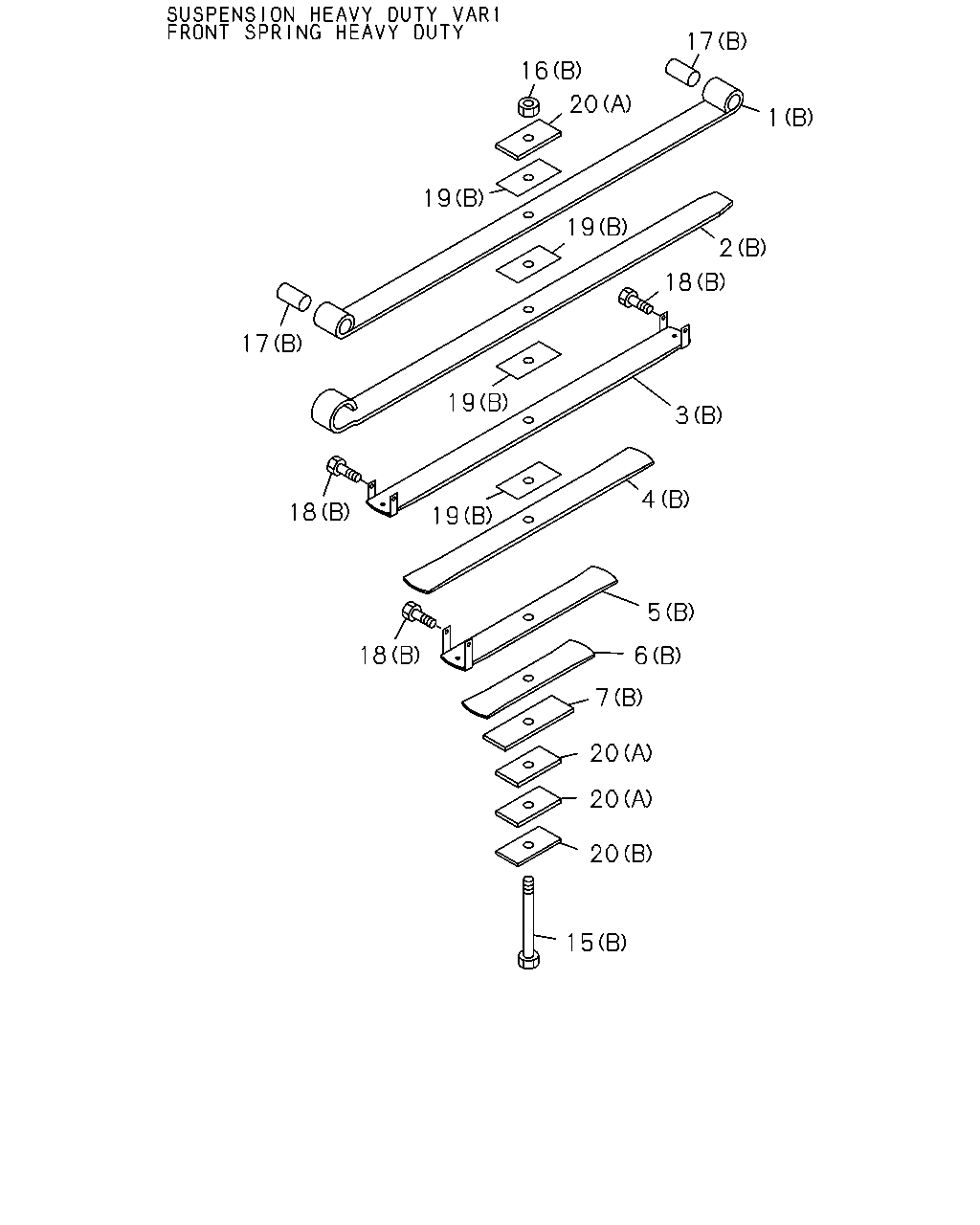

17 16 20 1 19 19 2 18 17 19 3 4 18 19 5 18 6 7 20 20 20 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: A = 1-51130-341-0	1-51131-341-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (A), MAL ASM PART: B = 1-51130-433-1	1-51131-433-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: A = 1-51130-341-0	1-51132-341-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A), MAL ASM PART: B = 1-51130-433-1	1-51132-433-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: A = 1-51130-341-0	1-51133-341-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A), MAL ASM PART: B = 1-51130-433-1	1-51133-433-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (B) ASM PART: A = 1-51130-341-0	1-51134-341-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A), MAL ASM PART: B = 1-51130-433-1	1-51134-433-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (B) ASM PART: A = 1-51130-341-0	1-51135-341-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (A), MAL ASM PART: B = 1-51130-433-1	1-51135-433-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (B) ASM PART: A = 1-51130-341-0	1-51136-341-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (A), MAL ASM PART: B = 1-51130-433-1	1-51136-433-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (B) ASM PART: A = 1-51130-341-0	1-51137-341-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (A), MAL ASM PART: B = 1-51130-433-1	1-51137-433-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (B), L=150 ASM PART: A = 1-51130-341-0	1-51156-328-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=110 ASM PART: B = 1-51130-433-1	1-51156-375-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT (B), M16 ASM PART: A = 1-51130-341-0	1-09400-054-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT (A), M14 ASM PART: B = 1-51130-433-1	9-99110-514-0	01	1	-
17	BUSHING; LEAF SPR,FRT (B), OD=38 ASM PART: A = 1-51130-341-0	1-51351-009-0	02	1	-
17	BUSHING; LEAF SPR,FRT ID=25, MAL ASM PART: B = 1-51130-433-1	8-98082-176-0	02	1	0903-
17	BUSHING; LEAF SPR,FRT (A), ID=25 ASM PART: B = 1-51130-433-1	9-51151-032-0	02	1	-0902
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X99 ASM PART: A = 1-51130-341-0	1-09000-328-0	03	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M8X87 ASM PART: B = 1-51130-433-1	1-09000-335-0	02	1	-
19	SPACER; LEAF SPRING,FRT (B), T=1 ASM PART: A = 1-51130-341-0	1-51177-071-0	04	1	-
19	SPACER; LEAF SPRING,FRT (A), T=1 ASM PART: B = 1-51130-433-1	1-51177-263-0	01	1	-
20	SEAT; LEAF SPR,FRT (A), T=12 ASM PART: A = 1-51130-341-0	1-51177-107-0	03	1	-
20	SEAT; LEAF SPR,FRT (B), T=9 ASM PART: A = 1-51130-341-0	1-51177-114-0	01	1	-
20	SEAT; LEAF SPR,FRT (C), T=6 ASM PART: B = 1-51130-433-1	1-51177-262-0	01	1	-

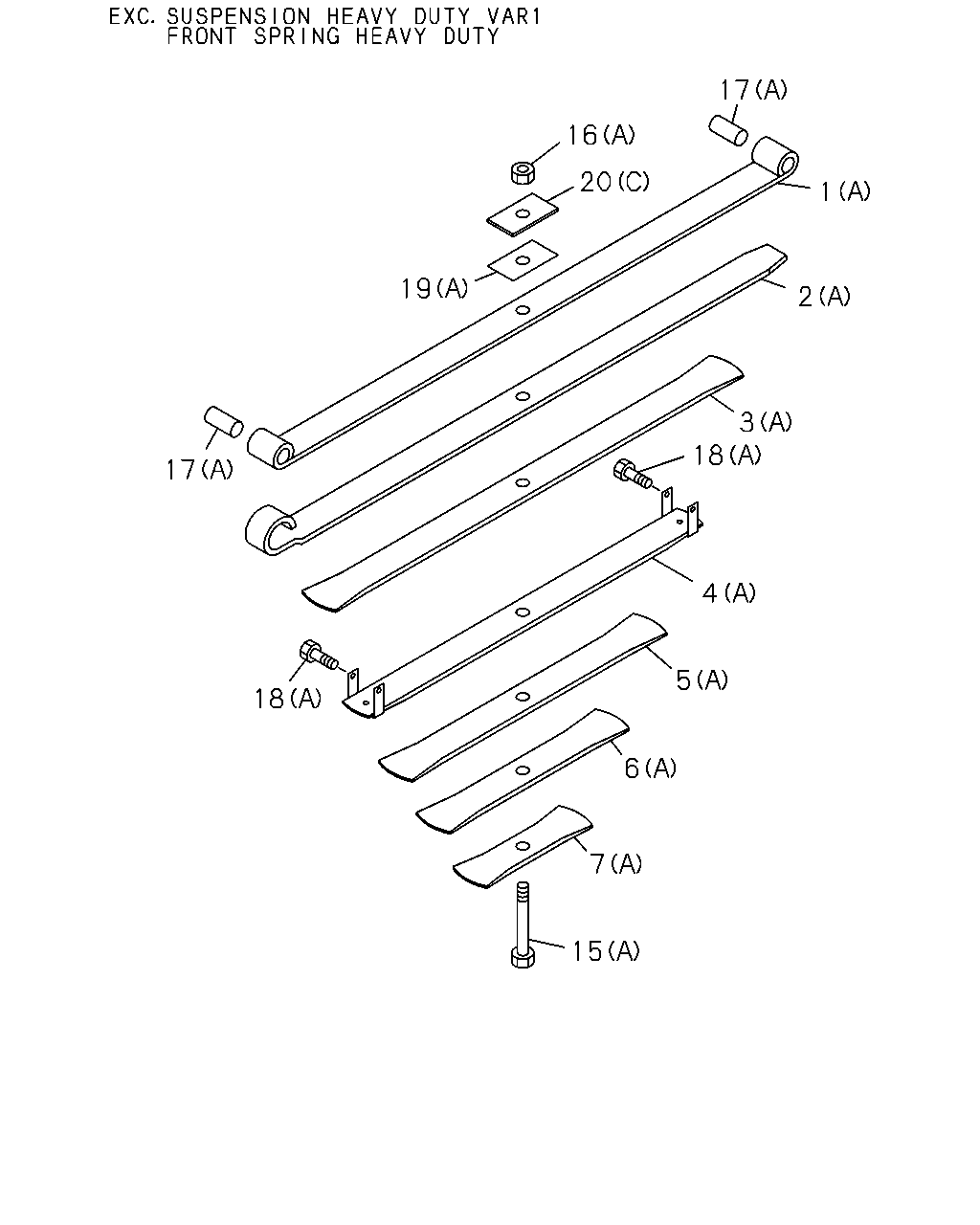

17 16 20 1 19 2 3 18 17 4 5 18 6 7 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: A = 1-51130-341-0	1-51131-341-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (A), MAL ASM PART: B = 1-51130-433-1	1-51131-433-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: A = 1-51130-341-0	1-51132-341-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A), MAL ASM PART: B = 1-51130-433-1	1-51132-433-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: A = 1-51130-341-0	1-51133-341-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A), MAL ASM PART: B = 1-51130-433-1	1-51133-433-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (B) ASM PART: A = 1-51130-341-0	1-51134-341-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A), MAL ASM PART: B = 1-51130-433-1	1-51134-433-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (B) ASM PART: A = 1-51130-341-0	1-51135-341-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (A), MAL ASM PART: B = 1-51130-433-1	1-51135-433-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (B) ASM PART: A = 1-51130-341-0	1-51136-341-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (A), MAL ASM PART: B = 1-51130-433-1	1-51136-433-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (B) ASM PART: A = 1-51130-341-0	1-51137-341-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (A), MAL ASM PART: B = 1-51130-433-1	1-51137-433-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (B), L=150 ASM PART: A = 1-51130-341-0	1-51156-328-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=110 ASM PART: B = 1-51130-433-1	1-51156-375-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT (B), M16 ASM PART: A = 1-51130-341-0	1-09400-054-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT (A), M14 ASM PART: B = 1-51130-433-1	9-99110-514-0	01	1	-
17	BUSHING; LEAF SPR,FRT (B), OD=38 ASM PART: A = 1-51130-341-0	1-51351-009-0	02	1	-
17	BUSHING; LEAF SPR,FRT ID=25, MAL ASM PART: B = 1-51130-433-1	8-98082-176-0	02	1	0903-
17	BUSHING; LEAF SPR,FRT (A), ID=25 ASM PART: B = 1-51130-433-1	9-51151-032-0	02	1	-0902
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X99 ASM PART: A = 1-51130-341-0	1-09000-328-0	03	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M8X87 ASM PART: B = 1-51130-433-1	1-09000-335-0	02	1	-
19	SPACER; LEAF SPRING,FRT (B), T=1 ASM PART: A = 1-51130-341-0	1-51177-071-0	04	1	-
19	SPACER; LEAF SPRING,FRT (A), T=1 ASM PART: B = 1-51130-433-1	1-51177-263-0	01	1	-
20	SEAT; LEAF SPR,FRT (A), T=12 ASM PART: A = 1-51130-341-0	1-51177-107-0	03	1	-
20	SEAT; LEAF SPR,FRT (B), T=9 ASM PART: A = 1-51130-341-0	1-51177-114-0	01	1	-
20	SEAT; LEAF SPR,FRT (C), T=6 ASM PART: B = 1-51130-433-1	1-51177-262-0	01	1	-
