Sayfa 4-50 - Isuzu EPC

4-50 — FRONT SUSPENSION (#15854) — 180 parça

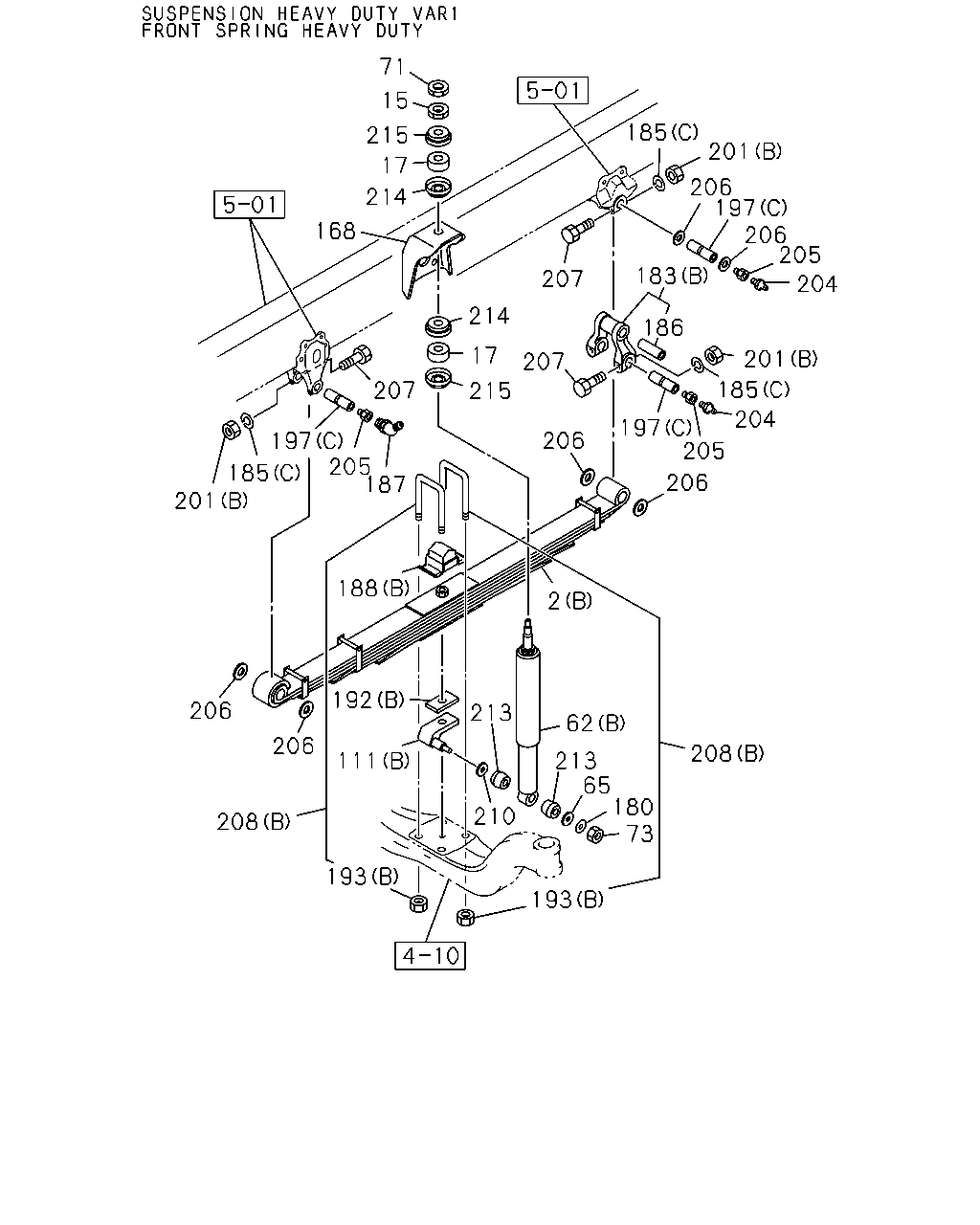

168 201 202 197 205 204 187 201 183 201 185 185 197 205 204 197 2 188 71 15 193 215 17 208 192 214 208 214 111 17 215 210 62 213 213 65 180 73 193 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. SUSPENSION HEAVY DUTY VAR1(F40) (B)	1-51130-341-0	02	1	9706-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<F60> (B)	1-51130-341-0	02	1	9706-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60> (A) MAL	1-51130-433-1	02	1	9706-
15	NUT; S/ABS,UPR M12	1-09400-006-0	02	1	9706-0910
15	NUT; S/ABS,UPR M12	8-98010-412-0	02	1	0911-
17	BUSHING; RUBBER,S/ABS MAL	9-51631-050-0	04	1	9706-
62	ABSORBER ASM; SHOCK,FRT SUSPENSION HEAVY DUTY VAR1(F40) (B) MAL	1-51630-180-4	02	1	9706-
62	ABSORBER ASM; SHOCK,FRT FRONT SPRING HEAVY DUTY<F60> (B) MAL	1-51630-180-4	02	1	9706-
62	ABSORBER ASM; SHOCK,FRT EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60> (A) MAL	1-51630-302-1	02	1	9706-
62	ABSORBER ASM; SHOCK,FRT SUSPENSION HEAVY DUTY VAR1(F40) (B) BEST VALUE PARTS MAL	1-87610-153-0	02	1	9706-1412
62	ABSORBER ASM; SHOCK,FRT FRONT SPRING HEAVY DUTY<F60> (B) BEST VALUE PARTS MAL	1-87610-153-0	02	1	9706-1412
65	WASHER; S/ABS ID=23	1-51631-019-0	02	1	9706-
71	NUT; LK,S/ABS,UPR M12	1-09400-006-0	02	1	9706-0910
71	NUT; LK,S/ABS,UPR M12	8-98010-412-0	02	1	0911-
73	NUT; BRKT,SHOCK M16	9-99110-516-0	02	1	9706-0206
73	NUT; BRKT,SHOCK M16	9-99110-416-0	02	1	0207-0512
73	NUT; BRKT,SHOCK M16	0-91110-516-0	02	1	0601-
111	SUPPORTER; S/ABS,FRT SUSP SUSPENSION HEAVY DUTY VAR1(F40) (B)	1-51681-721-1	01	1	9706-1004
111	SUPPORTER; S/ABS,FRT SUSP FRONT SPRING HEAVY DUTY<F60> (B)	1-51681-721-1	01	1	9706-1004
111	SUPPORTER; S/ABS,FRT SUSP SUSPENSION HEAVY DUTY VAR1(F40) (B)	8-98153-482-0	01	1	1005-
111	SUPPORTER; S/ABS,FRT SUSP FRONT SPRING HEAVY DUTY<F60> (B)	8-98153-482-0	01	1	1005-
111	SUPPORTER; S/ABS,FRT SUSP SUSPENSION HEAVY DUTY VAR1(F40) (B)	1-51681-720-1	01	1	9706-1004
111	SUPPORTER; S/ABS,FRT SUSP FRONT SPRING HEAVY DUTY<F60> (B)	1-51681-720-1	01	1	9706-1004
111	SUPPORTER; S/ABS,FRT SUSP SUSPENSION HEAVY DUTY VAR1(F40) (B)	8-98153-481-0	01	1	1005-
111	SUPPORTER; S/ABS,FRT SUSP FRONT SPRING HEAVY DUTY<F60> (B)	8-98153-481-0	01	1	1005-
111	SUPPORTER; S/ABS,FRT SUSP EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60> (A)	1-51681-642-2	01	1	9706-
111	SUPPORTER; S/ABS,FRT SUSP EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60> (A)	1-51681-641-2	01	1	9706-
168	BRACKET; S/ABS,FRT SUSP	1-51681-306-0	02	1	9706-
180	WASHER; PL,PIN ID=17	9-09160-516-0	02	1	9706-0605
180	WASHER; PL,PIN ID=17 OD=30	0-91610-516-0	02	1	0606-
183	SHACKLE; FRT SUSP SUSPENSION HEAVY DUTY VAR1(F40) (B)	1-51162-029-5	02	1	9706-
183	SHACKLE; FRT SUSP FRONT SPRING HEAVY DUTY<F60> (B)	1-51162-029-5	02	1	9706-
183	SHACKLE; FRT SUSP EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60> (A)	1-51162-037-0	02	1	9706-
185	WASHER; LK,PIN SUSPENSION HEAVY DUTY VAR1(F40) (C) ID=12.2 MAL	9-09150-612-0	12	1	9706-0603
185	WASHER; LK,PIN FRONT SPRING HEAVY DUTY<F60> (C) ID=12.2 MAL	9-09150-612-0	12	1	9706-0603
185	WASHER; LK,PIN SUSPENSION HEAVY DUTY VAR1(F40) (C) ID=12.2 MAL	0-91510-612-0	12	1	0604-
185	WASHER; LK,PIN FRONT SPRING HEAVY DUTY<F60> (C) ID=12.2 MAL	0-91510-612-0	12	1	0604-
185	WASHER; LK,PIN EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60> (A) ID=25.5	1-09503-011-0	04	1	9706-0910
185	WASHER; LK,PIN EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60> (A) ID=25.5	8-98010-404-0	04	1	0911-
185	WASHER; LK,PIN EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60> (B) ID=23	1-51169-003-0	02	1	9706-0910
185	WASHER; LK,PIN EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60> (B) ID=23	8-98010-411-0	02	1	0911-
187	NIPPLE; GREASE,FRT PT1/8 ELBOW	9-09031-210-0	02	1	9706-0512
187	NIPPLE; GREASE,FRT PT1/8 ELBOW	0-90301-610-0	02	1	0601-
188	RUBBER; CLAMP,U-BOLT,FRT SPR SUSPENSION HEAVY DUTY VAR1(F40) (B)	1-51172-085-2	02	1	9706-
188	RUBBER; CLAMP,U-BOLT,FRT SPR FRONT SPRING HEAVY DUTY<F60> (B)	1-51172-085-2	02	1	9706-
188	RUBBER; CLAMP,U-BOLT,FRT SPR EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60> (A)	1-51172-107-0	02	1	9706-0308
188	RUBBER; CLAMP,U-BOLT,FRT SPR EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60> (A)	1-51172-124-0	02	1	0309-
192	PIECE; DIST SUSPENSION HEAVY DUTY VAR1(F40) (B) 80X144 ID=17.5	1-51177-284-1	01	1	9706-
192	PIECE; DIST FRONT SPRING HEAVY DUTY<F60> (B) 80X144 ID=17.5	1-51177-284-1	01	1	9706-
192	PIECE; DIST EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60> (A) T=4.5	1-51177-149-0	01	1	9706-
193	NUT; U BOLT SUSPENSION HEAVY DUTY VAR1(F40) (B) M22	9-09112-822-0	08	1	9706-0512
193	NUT; U BOLT FRONT SPRING HEAVY DUTY<F60> (B) M22	9-09112-822-0	08	1	9706-0512
193	NUT; U BOLT SUSPENSION HEAVY DUTY VAR1(F40) (B) M22	0-91112-822-0	08	1	0601-1206
193	NUT; U BOLT FRONT SPRING HEAVY DUTY<F60> (B) M22	0-91112-822-0	08	1	0601-1206
193	NUT; U BOLT SUSPENSION HEAVY DUTY VAR1(F40) (B) M22	8-98179-318-0	08	1	1207-
193	NUT; U BOLT FRONT SPRING HEAVY DUTY<F60> (B) M22	8-98179-318-0	08	1	1207-
193	NUT; U BOLT EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60> (A) M16	1-09440-028-1	08	1	9706-0503
193	NUT; U BOLT EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60> (A) M16	8-94107-767-0	08	1	0504-0706
193	NUT; U BOLT EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60> (A) M16	8-97360-121-0	08	1	0707-
197	PIN; FRT SPR,FRT SUSPENSION HEAVY DUTY VAR1(F40) (C) MAL	1-51161-031-0	06	1	9706-
197	PIN; FRT SPR,FRT FRONT SPRING HEAVY DUTY<F60> (C) MAL	1-51161-031-0	06	1	9706-
197	PIN; FRT SPR,FRT EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60> (A) MAL	1-51161-004-3	02	1	9706-0911
197	PIN; FRT SPR,FRT EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60> (A) MAL	8-98060-335-0	02	1	0912-
197	PIN; FRT SPR,FRT EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60> (B) MAL	1-51161-005-3	04	1	9706-0911
197	PIN; FRT SPR,FRT EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60> (B) MAL	8-98060-333-0	04	1	0912-
201	NUT; PIN LK SUSPENSION HEAVY DUTY VAR1(F40) (B) M12	9-99110-512-0	12	1	9706-0512
201	NUT; PIN LK FRONT SPRING HEAVY DUTY<F60> (B) M12	9-99110-512-0	12	1	9706-0512
201	NUT; PIN LK SUSPENSION HEAVY DUTY VAR1(F40) (B) M12 MAL	0-91110-512-0	12	1	0601-
201	NUT; PIN LK FRONT SPRING HEAVY DUTY<F60> (B) M12 MAL	0-91110-512-0	12	1	0601-
201	NUT; PIN LK EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60> (A) M22	9-09111-522-0	06	1	9706-0512
201	NUT; PIN LK EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60> (A) M22	0-91111-522-0	06	1	0601-
202	PLATE; LK,SPR PIN EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60>	1-51169-016-0	02	1	9706-0910
202	PLATE; LK,SPR PIN EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60>	8-98010-648-0	02	1	0911-
204	NIPPLE; GREASE,RR PT1/8 STRAIGHT	9-09031-010-0	04	1	9706-0512
204	NIPPLE; GREASE,RR PT1/8 STRAIGHT	0-90301-410-0	04	1	0601-
205	ATTACHMENT; GREASE NIPPLE SUSPENSION HEAVY DUTY VAR1(F40)	9-43165-001-0	06	1	9706-
205	ATTACHMENT; GREASE NIPPLE FRONT SPRING HEAVY DUTY<F60>	9-43165-001-0	06	1	9706-
205	ATTACHMENT; GREASE NIPPLE EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60>	9-43165-001-0	04	1	9706-
208	U-BOLT SET; FRT SPRING SUSPENSION HEAVY DUTY VAR1(F40) (B) L=210	1-87870-380-2	04	1	9706-
208	U-BOLT SET; FRT SPRING FRONT SPRING HEAVY DUTY<F60> (B) L=210	1-87870-380-2	04	1	9706-
208	U-BOLT SET; FRT SPRING EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60> (A) L=175	1-87870-350-0	04	1	9706-0503
208	U-BOLT SET; FRT SPRING EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60> (A) L=175	1-87870-455-1	04	1	0504-
210	WASHER; S/ABS,OUTER ID=17	1-51631-020-0	02	1	9706-
213	BUSHING; RUBBER,LWR MAL	1-51631-009-1	04	1	9706-
214	WASHER; S/ABS,UPR,INNER ID=16.8	1-51631-022-0	04	1	9706-
215	WASHER; S/ABS,UPR,OUTER ID=14.5	9-51631-051-0	04	1	9706-

71 15 185 201 215 17 206 197 206 205 214 168 183 207 204 214 186 17 201 207 185 207 215 204 197 205 206 197 205 187 185 201 206 188 2 192 206 213 62 206 208 213 65 180 73 111 210 208 193 193

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. SUSPENSION HEAVY DUTY VAR1(F40) (B)	1-51130-341-0	02	1	9706-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY<F60> (B)	1-51130-341-0	02	1	9706-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60> (A) MAL	1-51130-433-1	02	1	9706-
15	NUT; S/ABS,UPR M12	1-09400-006-0	02	1	9706-0910
15	NUT; S/ABS,UPR M12	8-98010-412-0	02	1	0911-
17	BUSHING; RUBBER,S/ABS MAL	9-51631-050-0	04	1	9706-
62	ABSORBER ASM; SHOCK,FRT SUSPENSION HEAVY DUTY VAR1(F40) (B) MAL	1-51630-180-4	02	1	9706-
62	ABSORBER ASM; SHOCK,FRT FRONT SPRING HEAVY DUTY<F60> (B) MAL	1-51630-180-4	02	1	9706-
62	ABSORBER ASM; SHOCK,FRT EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60> (A) MAL	1-51630-302-1	02	1	9706-
62	ABSORBER ASM; SHOCK,FRT SUSPENSION HEAVY DUTY VAR1(F40) (B) BEST VALUE PARTS MAL	1-87610-153-0	02	1	9706-1412
62	ABSORBER ASM; SHOCK,FRT FRONT SPRING HEAVY DUTY<F60> (B) BEST VALUE PARTS MAL	1-87610-153-0	02	1	9706-1412
65	WASHER; S/ABS ID=23	1-51631-019-0	02	1	9706-
71	NUT; LK,S/ABS,UPR M12	1-09400-006-0	02	1	9706-0910
71	NUT; LK,S/ABS,UPR M12	8-98010-412-0	02	1	0911-
73	NUT; BRKT,SHOCK M16	9-99110-516-0	02	1	9706-0206
73	NUT; BRKT,SHOCK M16	9-99110-416-0	02	1	0207-0512
73	NUT; BRKT,SHOCK M16	0-91110-516-0	02	1	0601-
111	SUPPORTER; S/ABS,FRT SUSP SUSPENSION HEAVY DUTY VAR1(F40) (B)	1-51681-721-1	01	1	9706-1004
111	SUPPORTER; S/ABS,FRT SUSP FRONT SPRING HEAVY DUTY<F60> (B)	1-51681-721-1	01	1	9706-1004
111	SUPPORTER; S/ABS,FRT SUSP SUSPENSION HEAVY DUTY VAR1(F40) (B)	8-98153-482-0	01	1	1005-
111	SUPPORTER; S/ABS,FRT SUSP FRONT SPRING HEAVY DUTY<F60> (B)	8-98153-482-0	01	1	1005-
111	SUPPORTER; S/ABS,FRT SUSP SUSPENSION HEAVY DUTY VAR1(F40) (B)	1-51681-720-1	01	1	9706-1004
111	SUPPORTER; S/ABS,FRT SUSP FRONT SPRING HEAVY DUTY<F60> (B)	1-51681-720-1	01	1	9706-1004
111	SUPPORTER; S/ABS,FRT SUSP SUSPENSION HEAVY DUTY VAR1(F40) (B)	8-98153-481-0	01	1	1005-
111	SUPPORTER; S/ABS,FRT SUSP FRONT SPRING HEAVY DUTY<F60> (B)	8-98153-481-0	01	1	1005-
111	SUPPORTER; S/ABS,FRT SUSP EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60> (A)	1-51681-642-2	01	1	9706-
111	SUPPORTER; S/ABS,FRT SUSP EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60> (A)	1-51681-641-2	01	1	9706-
168	BRACKET; S/ABS,FRT SUSP	1-51681-306-0	02	1	9706-
180	WASHER; PL,PIN ID=17	9-09160-516-0	02	1	9706-0605
180	WASHER; PL,PIN ID=17 OD=30	0-91610-516-0	02	1	0606-
183	SHACKLE; FRT SUSP SUSPENSION HEAVY DUTY VAR1(F40) (B)	1-51162-029-5	02	1	9706-
183	SHACKLE; FRT SUSP FRONT SPRING HEAVY DUTY<F60> (B)	1-51162-029-5	02	1	9706-
183	SHACKLE; FRT SUSP EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60> (A)	1-51162-037-0	02	1	9706-
185	WASHER; LK,PIN SUSPENSION HEAVY DUTY VAR1(F40) (C) ID=12.2 MAL	9-09150-612-0	12	1	9706-0603
185	WASHER; LK,PIN FRONT SPRING HEAVY DUTY<F60> (C) ID=12.2 MAL	9-09150-612-0	12	1	9706-0603
185	WASHER; LK,PIN SUSPENSION HEAVY DUTY VAR1(F40) (C) ID=12.2 MAL	0-91510-612-0	12	1	0604-
185	WASHER; LK,PIN FRONT SPRING HEAVY DUTY<F60> (C) ID=12.2 MAL	0-91510-612-0	12	1	0604-
185	WASHER; LK,PIN EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60> (A) ID=25.5	1-09503-011-0	04	1	9706-0910
185	WASHER; LK,PIN EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60> (A) ID=25.5	8-98010-404-0	04	1	0911-
185	WASHER; LK,PIN EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60> (B) ID=23	1-51169-003-0	02	1	9706-0910
185	WASHER; LK,PIN EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60> (B) ID=23	8-98010-411-0	02	1	0911-
186	BUSHING; SHACKLE SUSPENSION HEAVY DUTY VAR1(F40) OD=38 MAL	1-51351-009-0	02	1	9706-0902
186	BUSHING; SHACKLE FRONT SPRING HEAVY DUTY<F60> OD=38 MAL	1-51351-009-0	02	1	9706-0902
186	BUSHING; SHACKLE SUSPENSION HEAVY DUTY VAR1(F40) OD=38	8-98081-829-0	02	1	0903-
186	BUSHING; SHACKLE FRONT SPRING HEAVY DUTY<F60> OD=38	8-98081-829-0	02	1	0903-
187	NIPPLE; GREASE,FRT PT1/8 ELBOW	9-09031-210-0	02	1	9706-0512
187	NIPPLE; GREASE,FRT PT1/8 ELBOW	0-90301-610-0	02	1	0601-
188	RUBBER; CLAMP,U-BOLT,FRT SPR SUSPENSION HEAVY DUTY VAR1(F40) (B)	1-51172-085-2	02	1	9706-
188	RUBBER; CLAMP,U-BOLT,FRT SPR FRONT SPRING HEAVY DUTY<F60> (B)	1-51172-085-2	02	1	9706-
188	RUBBER; CLAMP,U-BOLT,FRT SPR EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60> (A)	1-51172-107-0	02	1	9706-0308
188	RUBBER; CLAMP,U-BOLT,FRT SPR EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60> (A)	1-51172-124-0	02	1	0309-
192	PIECE; DIST SUSPENSION HEAVY DUTY VAR1(F40) (B) 80X144 ID=17.5	1-51177-284-1	01	1	9706-
192	PIECE; DIST FRONT SPRING HEAVY DUTY<F60> (B) 80X144 ID=17.5	1-51177-284-1	01	1	9706-
192	PIECE; DIST EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60> (A) T=4.5	1-51177-149-0	01	1	9706-
193	NUT; U BOLT SUSPENSION HEAVY DUTY VAR1(F40) (B) M22	9-09112-822-0	08	1	9706-0512
193	NUT; U BOLT FRONT SPRING HEAVY DUTY<F60> (B) M22	9-09112-822-0	08	1	9706-0512
193	NUT; U BOLT SUSPENSION HEAVY DUTY VAR1(F40) (B) M22	0-91112-822-0	08	1	0601-1206
193	NUT; U BOLT FRONT SPRING HEAVY DUTY<F60> (B) M22	0-91112-822-0	08	1	0601-1206
193	NUT; U BOLT SUSPENSION HEAVY DUTY VAR1(F40) (B) M22	8-98179-318-0	08	1	1207-
193	NUT; U BOLT FRONT SPRING HEAVY DUTY<F60> (B) M22	8-98179-318-0	08	1	1207-
193	NUT; U BOLT EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60> (A) M16	1-09440-028-1	08	1	9706-0503
193	NUT; U BOLT EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60> (A) M16	8-94107-767-0	08	1	0504-0706
193	NUT; U BOLT EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60> (A) M16	8-97360-121-0	08	1	0707-
197	PIN; FRT SPR,FRT SUSPENSION HEAVY DUTY VAR1(F40) (C) MAL	1-51161-031-0	06	1	9706-
197	PIN; FRT SPR,FRT FRONT SPRING HEAVY DUTY<F60> (C) MAL	1-51161-031-0	06	1	9706-
197	PIN; FRT SPR,FRT EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60> (A) MAL	1-51161-004-3	02	1	9706-0911
197	PIN; FRT SPR,FRT EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60> (A) MAL	8-98060-335-0	02	1	0912-
197	PIN; FRT SPR,FRT EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60> (B) MAL	1-51161-005-3	04	1	9706-0911
197	PIN; FRT SPR,FRT EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60> (B) MAL	8-98060-333-0	04	1	0912-
201	NUT; PIN LK SUSPENSION HEAVY DUTY VAR1(F40) (B) M12	9-99110-512-0	12	1	9706-0512
201	NUT; PIN LK FRONT SPRING HEAVY DUTY<F60> (B) M12	9-99110-512-0	12	1	9706-0512
201	NUT; PIN LK SUSPENSION HEAVY DUTY VAR1(F40) (B) M12 MAL	0-91110-512-0	12	1	0601-
201	NUT; PIN LK FRONT SPRING HEAVY DUTY<F60> (B) M12 MAL	0-91110-512-0	12	1	0601-
201	NUT; PIN LK EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60> (A) M22	9-09111-522-0	06	1	9706-0512
201	NUT; PIN LK EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60> (A) M22	0-91111-522-0	06	1	0601-
204	NIPPLE; GREASE,RR PT1/8 STRAIGHT	9-09031-010-0	04	1	9706-0512
204	NIPPLE; GREASE,RR PT1/8 STRAIGHT	0-90301-410-0	04	1	0601-
205	ATTACHMENT; GREASE NIPPLE SUSPENSION HEAVY DUTY VAR1(F40)	9-43165-001-0	06	1	9706-
205	ATTACHMENT; GREASE NIPPLE FRONT SPRING HEAVY DUTY<F60>	9-43165-001-0	06	1	9706-
205	ATTACHMENT; GREASE NIPPLE EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60>	9-43165-001-0	04	1	9706-
206	WASHER; LK,SPRING PIN SUSPENSION HEAVY DUTY VAR1(F40) ID=32.4	1-51169-018-0	12	1	9706-
206	WASHER; LK,SPRING PIN FRONT SPRING HEAVY DUTY<F60> ID=32.4	1-51169-018-0	12	1	9706-
207	BOLT; SPR TO SHACKLE SUSPENSION HEAVY DUTY VAR1(F40) M12X80 MAL	0-10806-280-0	12	1	9706-0512
207	BOLT; SPR TO SHACKLE FRONT SPRING HEAVY DUTY<F60> M12X80 MAL	0-10806-280-0	12	1	9706-0512
207	BOLT; SPR TO SHACKLE SUSPENSION HEAVY DUTY VAR1(F40) M12X80 MAL	0-10856-280-0	12	1	0601-
207	BOLT; SPR TO SHACKLE FRONT SPRING HEAVY DUTY<F60> M12X80 MAL	0-10856-280-0	12	1	0601-
208	U-BOLT SET; FRT SPRING SUSPENSION HEAVY DUTY VAR1(F40) (B) L=210	1-87870-380-2	04	1	9706-
208	U-BOLT SET; FRT SPRING FRONT SPRING HEAVY DUTY<F60> (B) L=210	1-87870-380-2	04	1	9706-
208	U-BOLT SET; FRT SPRING EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60> (A) L=175	1-87870-350-0	04	1	9706-0503
208	U-BOLT SET; FRT SPRING EXC. SUSPENSION HEAVY DUTY VAR1(F40),FRONT SPRING HEAVY DUTY<F60> (A) L=175	1-87870-455-1	04	1	0504-
210	WASHER; S/ABS,OUTER ID=17	1-51631-020-0	02	1	9706-
213	BUSHING; RUBBER,LWR MAL	1-51631-009-1	04	1	9706-
214	WASHER; S/ABS,UPR,INNER ID=16.8	1-51631-022-0	04	1	9706-
215	WASHER; S/ABS,UPR,OUTER ID=14.5	9-51631-051-0	04	1	9706-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
