4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#15850) — 61 parça

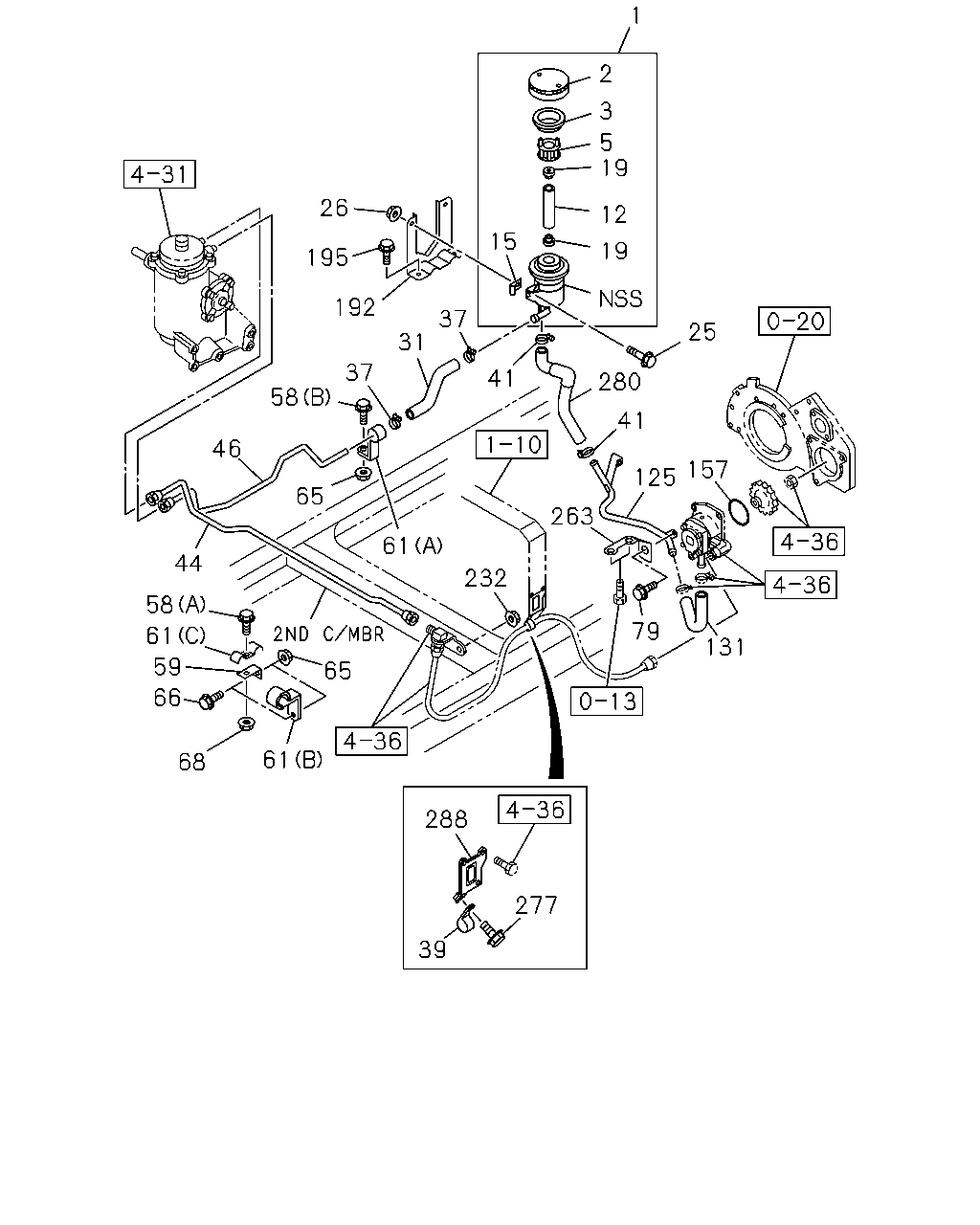

çizim 102581
1 2 3 5 19 26 12 15 19 195 192 37 25 31 37 41 280 58 41 46 157 125 65 263 61 44 232 58 79 61 131 59 65 66 61 68 288 277 39
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; OIL,P/S 1-21210-205-0 01 1 9706-0508
1 TANK ASM; OIL,P/S 1-21210-238-1 01 1 0509-1006
1 TANK ASM; OIL,P/S 8-98166-928-0 01 1 1007-
2 CAP; OIL TANK,P/S 1-21241-004-4 01 1 9706-1006
2 CAP; OIL TANK,P/S 8-98166-876-0 01 1 1007-
3 GASKET; OIL TANK,P/S 1-21249-003-1 01 1 9706-
5 STRAINER; OIL TANK,P/S 1-21235-007-1 01 1 9706-
12 FILTER; MICROBON,OIL TANK,P/S 1-21235-011-0 01 1 9706-
15 PLATE; FILTER,OIL TANK 1-21249-007-1 02 1 9706-0508
15 PLATE; FILTER,OIL TANK 1-21249-016-0 02 1 0509-
19 SEAT; OIL TANK 1-21249-004-0 02 1 9706-
25 BOLT; OIL TANK BRKT
M8X25 FLANGE MAL 		0-28680-825-0 02 1 9706-0512
25 BOLT; OIL TANK BRKT
M8X25 FLANGE MAL 		0-28650-825-0 02 1 0601-
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91150-108-0 02 1 9706-0602
26 NUT; OIL TANK TO BRKT
M8 FLANGE MAL 		0-91180-108-0 02 1 0603-
31 HOSE; P/S OIL TANK,INL 1-21113-591-1 01 1 9706-
37 CLIP; HOSE,P/S
ID=26 		1-09704-082-0 02 1 9706-
39 CLIP; FLEX HOSE
ID=40 		8-94226-553-0 01 1 9706-
41 CLIP; HOSE,P/S
ID=32 		1-09704-085-0 02 1 9706-
44 PIPE; OIL,P/S UNIT TO NIPPLE
FRONT AXLE F049(FS4) 		1-21115-884-0 01 1 9706-9801
44 PIPE; OIL,P/S UNIT TO NIPPLE
FRONT AXLE F049(FS4) 		1-21116-043-0 01 1 9802-9805
44 PIPE; OIL,P/S UNIT TO NIPPLE
FRONT AXLE F049(FS4) 		1-21116-107-0 01 1 9806-
44 PIPE; OIL,P/S UNIT TO NIPPLE
EXC. FRONT AXLE F049(FS4) 		1-21115-883-0 01 1 9706-9708
44 PIPE; OIL,P/S UNIT TO NIPPLE
EXC. FRONT AXLE F049(FS4) 		1-21115-944-0 01 1 9709-9805
44 PIPE; OIL,P/S UNIT TO NIPPLE
EXC. FRONT AXLE F049(FS4) 		1-21116-106-0 01 1 9806-
46 PIPE; OIL,P/S UNIT TO OIL TANK
FRONT AXLE F049(FS4) 		1-21115-253-0 01 1 9706-
46 PIPE; OIL,P/S UNIT TO OIL TANK
EXC. FRONT AXLE F049(FS4) 		1-21114-768-3 01 1 9706-
58 BOLT; CLIP
(A) M8X20 FLANGE MAL 		0-28680-820-0 01 1 9706-0512
58 BOLT; CLIP
(A) M8X20 FLANGE MAL 		0-28650-820-0 01 1 0601-
58 BOLT; CLIP
(B) M8X30 FLANGE 		0-28680-830-0 01 1 9706-9801
58 BOLT; CLIP
(B) M8X25 FLANGE MAL 		0-28680-825-0 01 1 9802-0512
58 BOLT; CLIP
(B) M8X25 FLANGE MAL 		0-28650-825-0 01 1 0601-
59 BRACKET; CLIP,OIL PIPE
L=60 		1-47475-455-0 01 1 9801-
61 CLIP; OIL PIPE
(B) ID=12 H=24 L=20 		1-09700-605-0 01 1 9706-9712
61 CLIP; OIL PIPE
(C) ID=16 & 13 L=18 & 17 		1-09700-658-0 01 1 9801-
61 CLIP; OIL PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 9706-
65 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 9706-9712
65 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9801-0602
65 NUT; BRKT
M8 FLANGE MAL 		0-91180-108-0 02 1 0603-
66 BOLT; BRKT,OIL PIPE
M8X20 FLANGE MAL 		0-28680-820-0 01 1 9801-0512
66 BOLT; BRKT,OIL PIPE
M8X20 FLANGE MAL 		0-28650-820-0 01 1 0601-
68 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 01 1 9706-0602
68 NUT; CLIP,OIL PIPE
M8 FLANGE MAL 		0-91180-108-0 01 1 0603-
79 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 02 1 9706-0512
79 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 0601-
125 CONNECTOR; P/S PUMP 8-94394-319-1 01 1 9706-9901
125 CONNECTOR; P/S PUMP 8-97600-115-0 01 1 9902-
131 HOSE; RUBBER,P/S 8-94396-331-1 01 1 9706-
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4 		1-09623-178-0 01 1 9706-
192 BRACKET; P/S OIL TANK 1-21119-129-0 01 1 9706-
195 BOLT; BRKT
M10X25 FLANGE MAL 		0-28681-025-0 02 1 9706-0406
195 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 02 1 0407-0512
195 BOLT; BRKT
M10X25 FLANGE 		0-28051-025-0 02 1 0601-
232 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9706-0602
232 NUT; BRKT
M8 FLANGE MAL 		0-91180-108-0 02 1 0603-
263 BRACKET; P/S PIPE 8-94393-981-0 01 1 9706-9901
263 BRACKET; P/S PIPE 8-97600-117-0 01 1 9902-
277 BOLT; HOSE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9706-0512
277 BOLT; HOSE CLIP
M8X16 FLANGE MAL 		0-28050-816-0 01 1 0601-
280 HOSE; P/S OIL PUMP,INL 1-21115-230-1 01 1 9706-
288 BRACKET; CLIP,P/S 1-82659-149-0 01 1 9706-
