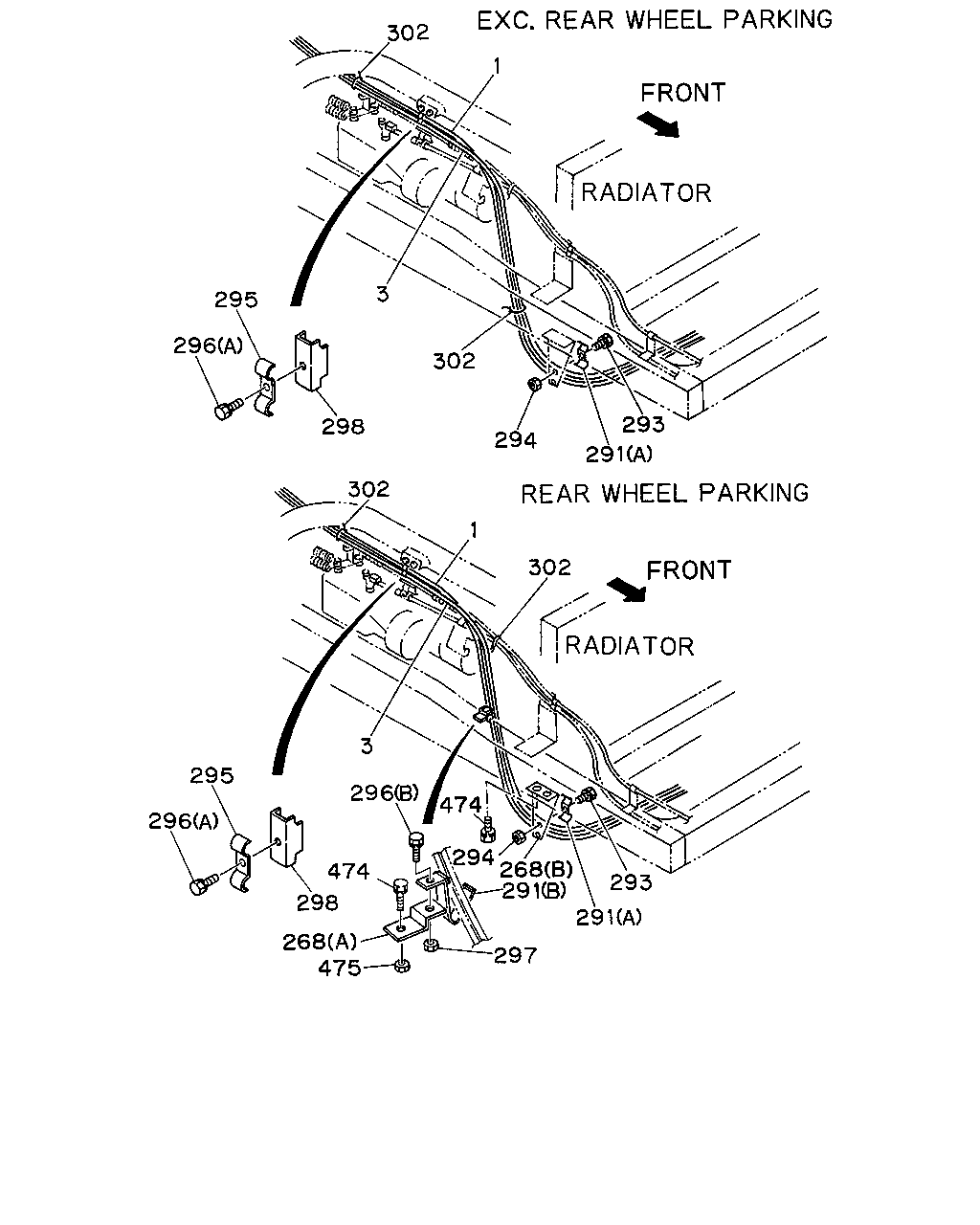

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#1585) — 55 parça

302 1 3 302 294 293 291 1 302 302 298 296 295 295 296 296 3 474 294 268 291 293 291 297 474 298 268 475

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT FSS ALL(FSS***) L=3220	1-33660-488-1	01	1	9207-	●
1	CABLE; SHIFT,TRANS CONT FTS SHORT CHASSIS & BED CAB(FTS5MC) L=3380	1-33660-490-1	01	1	9207-	●
1	CABLE; SHIFT,TRANS CONT FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. TRANSMISSION FRONT PTO<RC2> L=3380	1-33660-490-1	01	1	9207-	●
1	CABLE; SHIFT,TRANS CONT FTS BED CAB & DOUBLE CAB(FTS5*F) TRANSMISSION FRONT PTO<RC2> L=3450	1-33660-492-1	01	1	9207-	●
1	CABLE; SHIFT,TRANS CONT ASSISTER SHIFT CONTROL<WX8> L=3220	1-33660-663-1	01	1	9207-9207		●
1	CABLE; SHIFT,TRANS CONT EXC. ASSISTER SHIFT CONTROL<WX8> L=3340	1-33660-476-1	01	1	9207-9207		●
1	CABLE; SHIFT,TRANS CONT L=3340	1-33660-476-1	01	1	9208-		●
3	CABLE; SELECT,TRANS CONT FSS ALL(FSS***) L=3170	1-33660-430-1	01	1	9207-	●
3	CABLE; SELECT,TRANS CONT FTS SHORT CHASSIS & BED CAB(FTS5MC) L=3310	1-33660-433-1	01	1	9207-	●
3	CABLE; SELECT,TRANS CONT FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. TRANSMISSION FRONT PTO<RC2> L=3310	1-33660-433-1	01	1	9207-	●
3	CABLE; SELECT,TRANS CONT FTS BED CAB & DOUBLE CAB(FTS5*F) TRANSMISSION FRONT PTO<RC2> L=3450	1-33660-435-1	01	1	9207-	●
3	CABLE; SELECT,TRANS CONT L=3285	1-33660-477-1	01	1	9207-		●
268	BRACKET; LINK ROD FSS MIDDLE CHASSIS & BED CAB(FSS5MF) REAR WHEEL PARKING(B3A) (B)	1-46147-133-1	01	1	9207-	●
268	BRACKET; LINK ROD FTS ALL(FTS***) REAR WHEEL PARKING(B3A) (B)	1-46147-135-1	01	1	9207-	●
268	BRACKET; LINK ROD REAR WHEEL PARKING(B3A) (B)	1-46147-135-1	01	1	9207-		●
268	BRACKET; LINK ROD REAR WHEEL PARKING(B3A) (A)	1-33659-123-0	01	1	9207-	●	●
291	CLIP; SHIFT TO SELECT,FRAME (A)	1-09700-739-0	01	1	9207-	●	●
291	CLIP; SHIFT TO SELECT,FRAME REAR WHEEL PARKING(B3A) (B)	1-09700-772-2	01	1	9207-	●	●
293	BOLT; CLIP,SHIFT TO SELECT M8X20 FLANGE	0-28080-820-0	01	1	9207-	●	●
294	NUT; CLIP M8	9-09110-408-0	01	1	9207-	●	●
295	CLIP; SHIFT & SELECT ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9207-	●	●
296	BOLT; CLIP,SHIFT & SELECT (A) M8X40 FLANGE	0-28080-840-0	01	1	9207-	●	●
296	BOLT; CLIP,SHIFT & SELECT REAR WHEEL PARKING(B3A) (B) M8X20 FLANGE	0-28080-820-0	01	1	9207-	●	●
297	NUT; CLIP REAR WHEEL PARKING(B3A) M8	9-09110-408-0	01	1	9207-	●	●
298	BRACKET	1-47475-427-1	01	1	9207-	●	●
302	CLIP; BAND TRANSMISSION FRONT PTO<RC2> L=140	5-09707-031-1	03	1	9207-	●
302	CLIP; BAND EXC. TRANSMISSION FRONT PTO<RC2> L=140	5-09707-031-1	02	1	9207-	●
302	CLIP; BAND L=140	5-09707-031-1	02	1	9207-		●
474	BOLT; BRKT FSS MIDDLE CHASSIS & BED CAB(FSS5MF) REAR WHEEL PARKING(B3A) M8X25 FLANGE	0-28080-825-0	03	1	9207-	●
474	BOLT; BRKT FTS ALL(FTS***) REAR WHEEL PARKING(B3A) M8X20 FLANGE	0-28080-820-0	01	1	9207-	●
474	BOLT; BRKT REAR WHEEL PARKING(B3A) M8X20 FLANGE	0-28080-820-0	01	1	9207-		●
474	BOLT; BRKT FTS ALL(FTS***) REAR WHEEL PARKING(B3A) M8X25 FLANGE	0-28080-825-0	02	1	9207-	●
474	BOLT; BRKT REAR WHEEL PARKING(B3A) M8X25 FLANGE	0-28080-825-0	02	1	9207-		●
475	NUT; BRKT REAR WHEEL PARKING(B3A) M8	9-09110-408-0	03	1	9207-	●	●

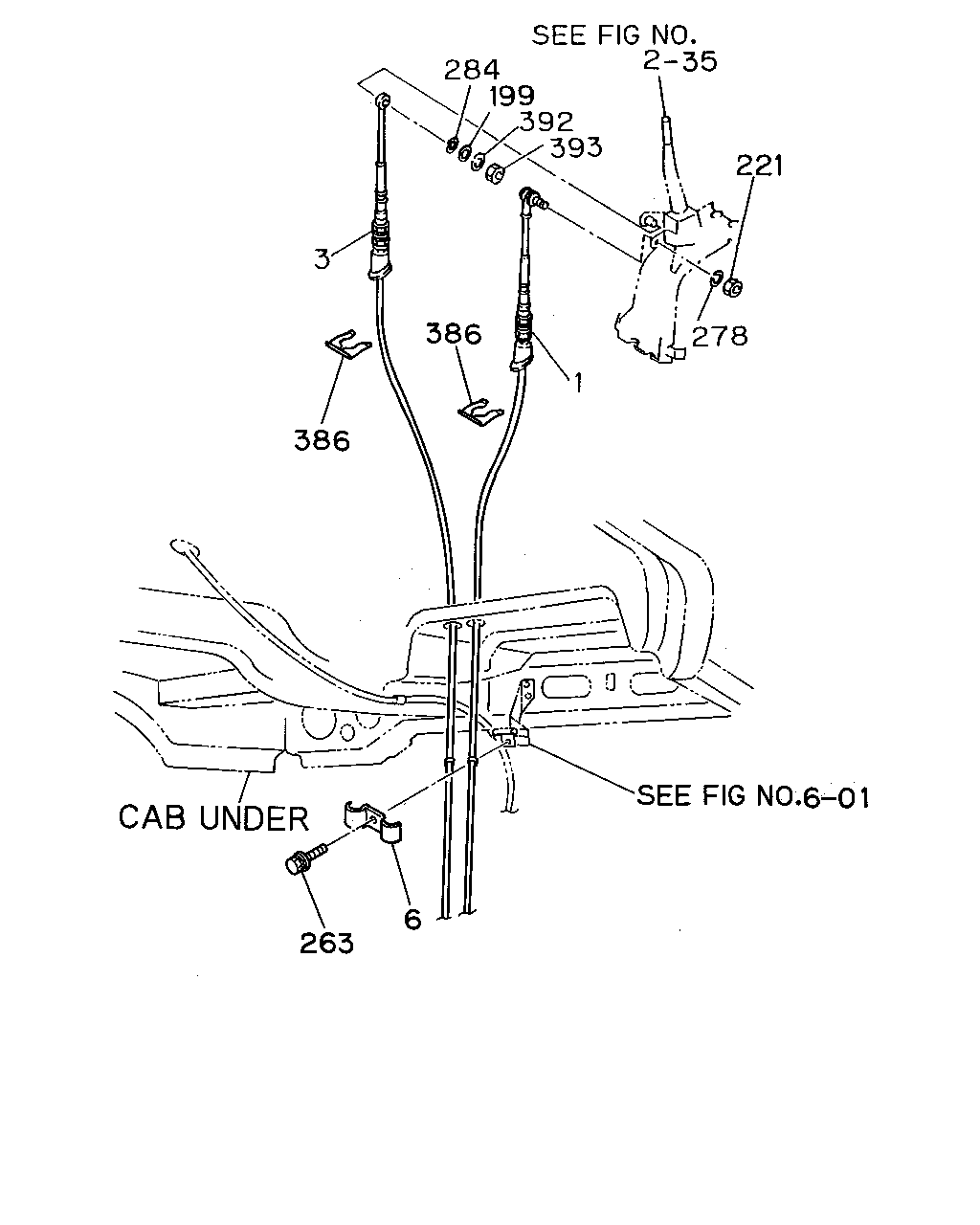

284 199 392 393 221 278 1 386 3 386 6 263

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT FSS ALL(FSS***) L=3220	1-33660-488-1	01	1	9207-	●
1	CABLE; SHIFT,TRANS CONT FTS SHORT CHASSIS & BED CAB(FTS5MC) L=3380	1-33660-490-1	01	1	9207-	●
1	CABLE; SHIFT,TRANS CONT FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. TRANSMISSION FRONT PTO<RC2> L=3380	1-33660-490-1	01	1	9207-	●
1	CABLE; SHIFT,TRANS CONT FTS BED CAB & DOUBLE CAB(FTS5*F) TRANSMISSION FRONT PTO<RC2> L=3450	1-33660-492-1	01	1	9207-	●
1	CABLE; SHIFT,TRANS CONT ASSISTER SHIFT CONTROL<WX8> L=3220	1-33660-663-1	01	1	9207-9207		●
1	CABLE; SHIFT,TRANS CONT EXC. ASSISTER SHIFT CONTROL<WX8> L=3340	1-33660-476-1	01	1	9207-9207		●
1	CABLE; SHIFT,TRANS CONT L=3340	1-33660-476-1	01	1	9208-		●
3	CABLE; SELECT,TRANS CONT FSS ALL(FSS***) L=3170	1-33660-430-1	01	1	9207-	●
3	CABLE; SELECT,TRANS CONT FTS SHORT CHASSIS & BED CAB(FTS5MC) L=3310	1-33660-433-1	01	1	9207-	●
3	CABLE; SELECT,TRANS CONT FTS BED CAB & DOUBLE CAB(FTS5*F) EXC. TRANSMISSION FRONT PTO<RC2> L=3310	1-33660-433-1	01	1	9207-	●
3	CABLE; SELECT,TRANS CONT FTS BED CAB & DOUBLE CAB(FTS5*F) TRANSMISSION FRONT PTO<RC2> L=3450	1-33660-435-1	01	1	9207-	●
3	CABLE; SELECT,TRANS CONT L=3285	1-33660-477-1	01	1	9207-		●
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9207-	●	●
199	WASHER; PL,SELECT ID=6.4 OD=14	9-09164-606-0	01	1	9207-	●	●
221	NUT; SHIFT WIRE TO LEVER M10	9-09110-410-0	01	1	9207-	●	●
263	BOLT; CLIP,TRANS CONT WIRE M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	9207-	●	●
278	WASHER; LK,SHIFT WIRE ID=10.2	9-09150-510-0	01	1	9207-	●	●
284	WASHER; WAVE,SELECT CABLE,CAB	8-94242-854-0	01	1	9207-	●	●
386	CLIP; CONT CABLE & TUBE	1-09700-966-1	02	1	9207-	●	●
392	WASHER; LK,SELECT CABLE,CAB ID=6.1	9-09150-506-0	01	1	9207-	●	●
393	NUT; SELECT CABLE,CAB M6	9-09111-406-0	01	1	9207-	●	●
