Sayfa 4-10 - Isuzu EPC

4-10 — FRONT AXLE (#15843) — 269 parça

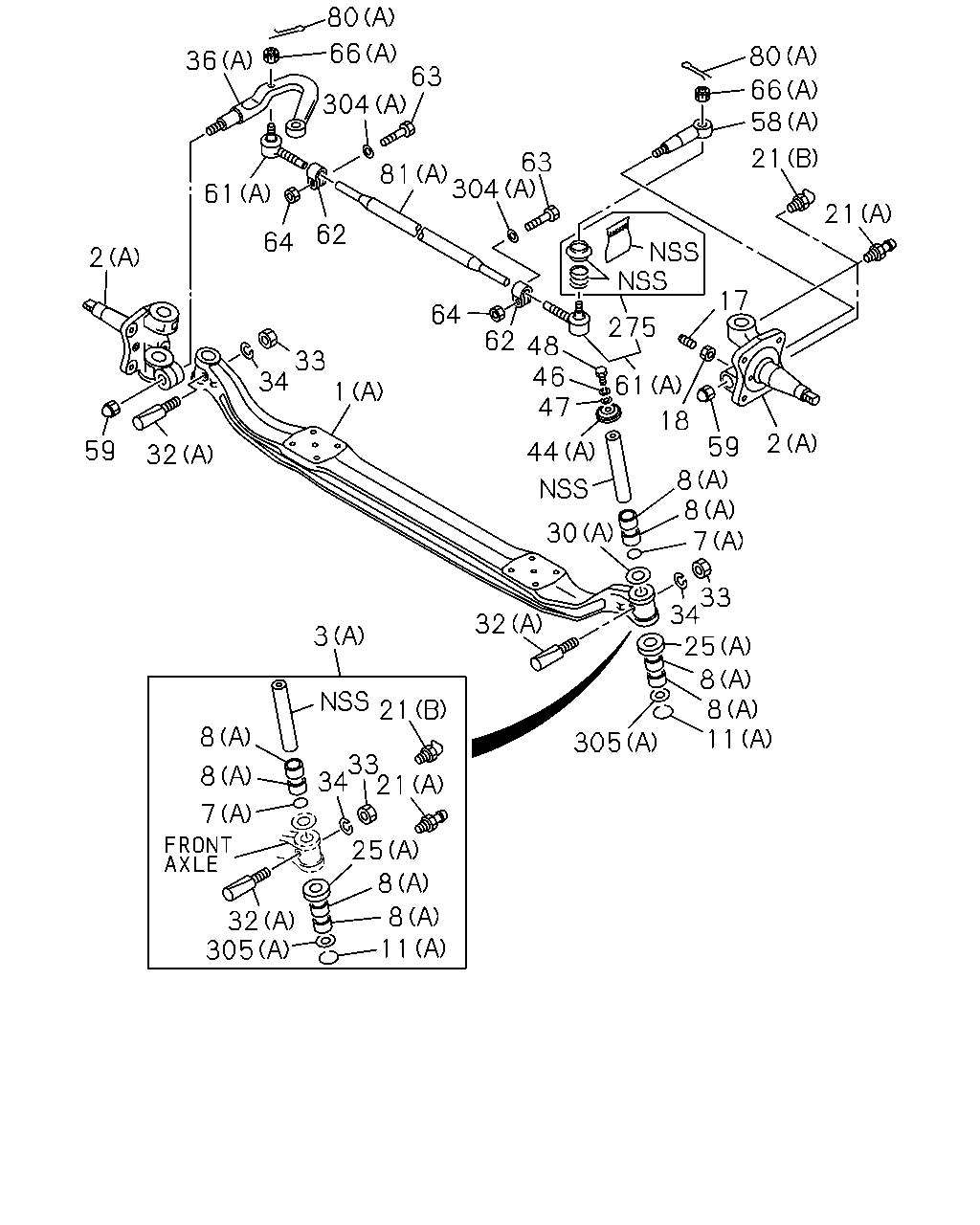

80 66 80 36 63 66 58 304 81 21 63 304 61 21 62 64 2 17 62 48 46 47 64 275 33 34 1 61 18 2 59 59 44 32 8 8 7 30 33 34 25 32 3 8 8 1 21 8 305 33 34 21 8 7 25 8 8 11 32 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT FRONT AXLE F049(FS4) (B)	1-43111-133-0	01	1	9706-
1	AXLE; FRT EXC. FRONT AXLE F049(FS4) (A)	1-43111-126-2	01	1	9706-9706
1	AXLE; FRT EXC. FRONT AXLE F049(FS4) (A)	1-43111-138-0	01	1	9707-9905
1	AXLE; FRT EXC. FRONT AXLE F049(FS4) (A)	1-43111-126-2	01	1	9906-
2	KNUCKLE; FRT AXLE FRONT AXLE F049(FS4) (B)	1-43131-083-0	01	1	9706-
2	KNUCKLE; FRT AXLE FRONT AXLE F049(FS4) (B)	1-43132-083-0	01	1	9706-
2	KNUCKLE; FRT AXLE EXC. FRONT AXLE F049(FS4) (A)	1-43131-097-0	01	1	9706-
2	KNUCKLE; FRT AXLE EXC. FRONT AXLE F049(FS4) (A)	1-43132-097-0	01	1	9706-
3	KING PIN SET FRONT AXLE F049(FS4) (B)	1-87830-804-2	01	1	9706-0704
3	KING PIN SET FRONT AXLE F049(FS4) (B)	1-87831-389-1	01	1	0705-
3	KING PIN SET FRONT AXLE F049(FS4) (B)	1-87830-837-2	01	1	9706-0704
3	KING PIN SET FRONT AXLE F049(FS4) (B)	1-87831-390-1	01	1	0705-
3	KING PIN SET EXC. FRONT AXLE F049(FS4) (A)	1-87830-716-0	01	1	9706-9804
3	KING PIN SET EXC. FRONT AXLE F049(FS4) (A)	1-87831-144-6	01	1	9805-
3	KING PIN SET EXC. FRONT AXLE F049(FS4) (A)	1-87830-717-0	01	1	9706-9804
3	KING PIN SET EXC. FRONT AXLE F049(FS4) (A)	1-87831-145-6	01	1	9805-
7	SEAL; OIL,KING PIN FRONT AXLE F049(FS4) (B) NSK	1-09625-087-0	02	1	9706-
7	SEAL; OIL,KING PIN FRONT AXLE F049(FS4) (B) NTN	1-09625-089-0	02	1	9706-
7	SEAL; OIL,KING PIN EXC. FRONT AXLE F049(FS4) (A)	1-09625-005-1	02	1	9706-
8	BEARING; NEEDLE,KING PIN FRONT AXLE F049(FS4) (B) NTN	1-09811-071-0	08	1	9706-
8	BEARING; NEEDLE,KING PIN FRONT AXLE F049(FS4) (B) NSK	1-09811-072-0	08	1	9706-
8	BEARING; NEEDLE,KING PIN EXC. FRONT AXLE F049(FS4) (A) NTN	1-09811-001-0	08	1	9706-
8	BEARING; NEEDLE,KING PIN EXC. FRONT AXLE F049(FS4) (A) NSK	1-09811-339-0	08	1	9706-
11	RING; SNAP,KNUCKLE PLUG FRONT AXLE F049(FS4) (B)	9-09950-204-0	02	1	9706-
11	RING; SNAP,KNUCKLE PLUG EXC. FRONT AXLE F049(FS4) (A)	1-09589-017-1	02	1	9706-
17	BOLT; STOPPER KNUCKLE M14X47	1-09009-058-0	02	1	9706-0805
17	BOLT; STOPPER KNUCKLE M14X47	1-09009-191-0	02	1	0806-
18	NUT; STOPPER BOLT,KNUCKLE M14	9-99112-814-0	02	1	9706-0512
18	NUT; STOPPER BOLT,KNUCKLE M14	0-91112-814-0	02	1	0601-
21	NIPPLE; GREASE,KING PIN (A) PT1/8 STRAIGHT	9-09031-010-0	04	1	9706-9709
21	NIPPLE; GREASE,KING PIN EXC. FRONT AXLE F049(FS4) (A) PT1/8 STRAIGHT	9-09031-010-0	04	1	9710-9804
21	NIPPLE; GREASE,KING PIN FRONT AXLE F049(FS4) (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	9710-9804
21	NIPPLE; GREASE,KING PIN (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	9805-0512
21	NIPPLE; GREASE,KING PIN (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0601-
25	BEARING; THRUST,KING PIN FRONT AXLE F049(FS4) (B) NTN	1-09829-026-0	01	1	9706-
25	BEARING; THRUST,KING PIN FRONT AXLE F049(FS4) (B) NSK	1-09829-028-0	01	1	9706-
25	BEARING; THRUST,KING PIN FRONT AXLE F049(FS4) (B) NSK	1-09829-040-0	01	1	9706-
25	BEARING; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) NSK	1-09829-031-0	01	1	9706-
25	BEARING; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) NSK	1-09829-033-1	01	1	9706-
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) (B) T=2.800	1-43171-229-0	AR	1	9706-
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) (B) T=2.850	1-43171-230-0	AR	1	9706-
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) (B) T=2.900	1-43171-231-0	AR	1	9706-
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) (B) T=2.950	1-43171-232-0	AR	1	9706-
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) (B) T=3.000	1-43171-233-0	AR	1	9706-
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) (B) T=3.050	1-43171-234-0	AR	1	9706-
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) (B) T=3.100	1-43171-235-0	AR	1	9706-
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) (B) T=3.150	1-43171-236-0	AR	1	9706-
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) (B) T=3.200	1-43171-237-0	AR	1	9706-
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) (B) T=3.250	1-43171-238-0	AR	1	9706-
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) (B) T=3.300	1-43171-239-0	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=3.900	1-43171-261-1	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=3.912	1-43171-262-1	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=3.925	1-43171-263-1	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=3.937	1-43171-264-1	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=3.950	1-43171-265-1	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=3.962	1-43171-266-1	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=3.975	1-43171-267-1	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=3.987	1-43171-268-1	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.000	1-43171-269-1	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.012	1-43171-270-1	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.025	1-43171-271-1	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.037	1-43171-272-1	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.050	1-43171-273-1	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.062	1-43171-274-1	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.075	1-43171-275-1	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.087	1-43171-276-1	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.100	1-43171-277-1	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.112	1-43171-278-1	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.125	1-43171-279-1	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.137	1-43171-280-1	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.150	1-43171-281-1	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.162	1-43171-311-0	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.175	1-43171-312-0	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.187	1-43171-313-0	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.200	1-43171-314-0	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.212	1-43171-315-0	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.225	1-43171-316-0	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.237	1-43171-317-0	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.250	1-43171-318-0	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.262	1-43171-319-0	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.275	1-43171-320-0	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.287	1-43171-321-0	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.300	1-43171-322-0	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.312	1-43171-323-0	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.325	1-43171-324-0	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.337	1-43171-325-0	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.350	1-43171-326-0	AR	1	9706-
32	BOLT; KEY,KING PIN FRONT AXLE F049(FS4) (B)	1-43116-005-2	02	1	9706-
32	BOLT; KEY,KING PIN EXC. FRONT AXLE F049(FS4) (A)	1-43116-003-2	02	1	9706-
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	9706-0512
33	NUT; KEY BOLT M10 MAL	0-91110-510-0	02	1	0601-
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	9706-0603
34	WASHER; LK,KEY BOLT ID=10.2 MAL	0-91510-510-0	02	1	0604-
36	ARM; KNUCKLE FRONT AXLE F049(FS4) (B)	1-43133-068-2	01	1	9706-
36	ARM; KNUCKLE EXC. FRONT AXLE F049(FS4) (A)	1-43133-070-3	01	1	9706-
44	COVER; KING PIN FRONT AXLE F049(FS4) (B)	1-43175-016-0	02	1	9706-
44	COVER; KING PIN EXC. FRONT AXLE F049(FS4) (A)	1-43175-015-0	02	1	9706-0704
44	COVER; KING PIN EXC. FRONT AXLE F049(FS4) (A)	1-43175-031-0	02	1	0705-
46	WASHER; LK,COVER ID=12.2	9-09150-512-0	02	1	9706-0603
46	WASHER; LK,COVER ID=12.2 MAL	0-91510-512-0	02	1	0604-
47	WASHER; PL,COVER,KING PIN ID=12.5 OD=32	9-09164-712-0	02	1	9706-0605
47	WASHER; PL,COVER,KING PIN ID=12.5 OD=32	0-91614-712-0	02	1	0606-
48	BOLT; COVER M12X25	1-09009-081-0	02	1	9706-
58	ARM; TIE ROD FRONT AXLE F049(FS4) (B)	1-43134-015-1	01	1	9706-
58	ARM; TIE ROD FRONT AXLE F049(FS4) (B)	1-43135-015-1	01	1	9706-
58	ARM; TIE ROD EXC. FRONT AXLE F049(FS4) (A)	1-43135-034-5	01	1	9706-
59	NUT; TIE ROD ARM M27	1-09449-016-0	02	1	9706-0704
59	NUT; TIE ROD ARM M27 FLANGE	1-09449-082-0	02	1	0705-
61	ROD END; TIE ROD FRONT AXLE F049(FS4) (B)	1-43150-677-3	01	1	9706-
61	ROD END; TIE ROD FRONT AXLE F049(FS4) (B)	1-43150-678-3	01	1	9706-
61	ROD END; TIE ROD EXC. FRONT AXLE F049(FS4) (A)	1-43150-679-2	01	1	9706-
61	ROD END; TIE ROD EXC. FRONT AXLE F049(FS4) (A)	1-43150-680-2	01	1	9706-
62	CLAMP; TIE ROD EXC. FRONT AXLE F049(FS4)	1-43159-002-3	02	1	9706-
63	BOLT; CLAMP TIE ROD EXC. FRONT AXLE F049(FS4) M12X45 FLANGE	0-28091-245-0	02	1	9706-0512
63	BOLT; CLAMP TIE ROD EXC. FRONT AXLE F049(FS4) M12X45 FLANGE	0-28061-245-0	02	1	0601-
64	NUT; CLAMP EXC. FRONT AXLE F049(FS4) M12	9-99110-512-0	02	1	9706-0512
64	NUT; CLAMP EXC. FRONT AXLE F049(FS4) M12 MAL	0-91110-512-0	02	1	0601-
66	NUT; TIE ROD END FRONT AXLE F049(FS4) (B) M24 SLOTTED	1-09442-020-0	02	1	9706-0805
66	NUT; TIE ROD END FRONT AXLE F049(FS4) (B) M24	1-09442-032-0	02	1	0806-
66	NUT; TIE ROD END EXC. FRONT AXLE F049(FS4) (A) M16 SLOTTED	1-09442-021-1	02	1	9706-0805
66	NUT; TIE ROD END EXC. FRONT AXLE F049(FS4) (A) M16 SLOTTED	1-09442-031-0	02	1	0806-
80	PIN; SPLIT,ROD END FRONT AXLE F049(FS4) (B) OD=4.6 L=35	9-08115-035-0	02	1	9706-0606
80	PIN; SPLIT,ROD END FRONT AXLE F049(FS4) (B) OD=4.6 L=35	0-81125-035-0	02	1	0607-
80	PIN; SPLIT,ROD END EXC. FRONT AXLE F049(FS4) (A) OD=3.7 L=22	9-08114-022-0	02	1	9706-0606
80	PIN; SPLIT,ROD END EXC. FRONT AXLE F049(FS4) (A) OD=3.7 L=22	0-81124-022-0	02	1	0607-
81	ROD; TIE FRONT AXLE F049(FS4) (B)	1-43151-129-0	01	1	9706-
81	ROD; TIE EXC. FRONT AXLE F049(FS4) (A)	1-43151-109-0	01	1	9706-
275	BOOT; ROD END,TIE EXC. FRONT AXLE F049(FS4)	1-85574-046-0	02	1	9706-
304	WASHER; PL FRONT AXLE F049(FS4) (B) ID=12.5	9-09164-512-0	04	1	9706-
304	WASHER; PL EXC. FRONT AXLE F049(FS4) (A) ID=12.5	9-09164-512-0	02	1	9706-
305	COVER; KNUCKLE FRONT AXLE F049(FS4) (B)	1-43175-021-0	02	1	9706-0704
305	COVER; KNUCKLE FRONT AXLE F049(FS4) (B)	8-98052-291-0	02	1	0705-
305	COVER; KNUCKLE EXC. FRONT AXLE F049(FS4) (A)	1-43175-022-0	02	1	9706-0704
305	COVER; KNUCKLE EXC. FRONT AXLE F049(FS4) (A)	1-43175-030-0	02	1	0705-

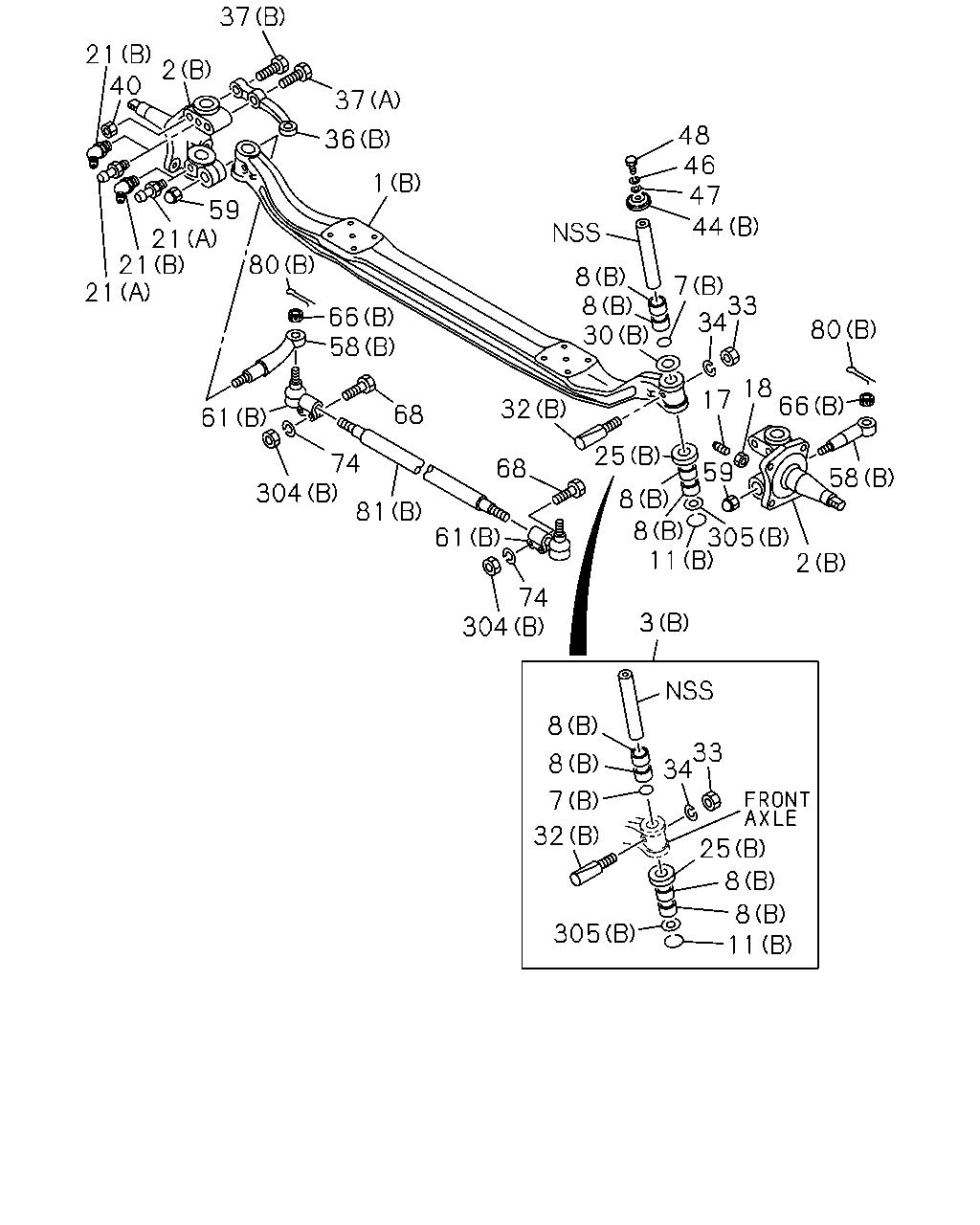

37 21 2 40 37 48 46 47 44 36 1 59 21 21 21 80 8 8 30 7 33 34 66 58 80 18 66 17 32 68 61 59 25 74 304 68 58 8 8 305 11 2 81 61 74 304 3 8 33 34 8 7 25 32 8 8 11 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT FRONT AXLE F049(FS4) (B)	1-43111-133-0	01	1	9706-
1	AXLE; FRT EXC. FRONT AXLE F049(FS4) (A)	1-43111-126-2	01	1	9706-9706
1	AXLE; FRT EXC. FRONT AXLE F049(FS4) (A)	1-43111-138-0	01	1	9707-9905
1	AXLE; FRT EXC. FRONT AXLE F049(FS4) (A)	1-43111-126-2	01	1	9906-
2	KNUCKLE; FRT AXLE FRONT AXLE F049(FS4) (B)	1-43131-083-0	01	1	9706-
2	KNUCKLE; FRT AXLE FRONT AXLE F049(FS4) (B)	1-43132-083-0	01	1	9706-
2	KNUCKLE; FRT AXLE EXC. FRONT AXLE F049(FS4) (A)	1-43131-097-0	01	1	9706-
2	KNUCKLE; FRT AXLE EXC. FRONT AXLE F049(FS4) (A)	1-43132-097-0	01	1	9706-
3	KING PIN SET FRONT AXLE F049(FS4) (B)	1-87830-804-2	01	1	9706-0704
3	KING PIN SET FRONT AXLE F049(FS4) (B)	1-87831-389-1	01	1	0705-
3	KING PIN SET FRONT AXLE F049(FS4) (B)	1-87830-837-2	01	1	9706-0704
3	KING PIN SET FRONT AXLE F049(FS4) (B)	1-87831-390-1	01	1	0705-
3	KING PIN SET EXC. FRONT AXLE F049(FS4) (A)	1-87830-716-0	01	1	9706-9804
3	KING PIN SET EXC. FRONT AXLE F049(FS4) (A)	1-87831-144-6	01	1	9805-
3	KING PIN SET EXC. FRONT AXLE F049(FS4) (A)	1-87830-717-0	01	1	9706-9804
3	KING PIN SET EXC. FRONT AXLE F049(FS4) (A)	1-87831-145-6	01	1	9805-
7	SEAL; OIL,KING PIN FRONT AXLE F049(FS4) (B) NSK	1-09625-087-0	02	1	9706-
7	SEAL; OIL,KING PIN FRONT AXLE F049(FS4) (B) NTN	1-09625-089-0	02	1	9706-
7	SEAL; OIL,KING PIN EXC. FRONT AXLE F049(FS4) (A)	1-09625-005-1	02	1	9706-
8	BEARING; NEEDLE,KING PIN FRONT AXLE F049(FS4) (B) NTN	1-09811-071-0	08	1	9706-
8	BEARING; NEEDLE,KING PIN FRONT AXLE F049(FS4) (B) NSK	1-09811-072-0	08	1	9706-
8	BEARING; NEEDLE,KING PIN EXC. FRONT AXLE F049(FS4) (A) NTN	1-09811-001-0	08	1	9706-
8	BEARING; NEEDLE,KING PIN EXC. FRONT AXLE F049(FS4) (A) NSK	1-09811-339-0	08	1	9706-
11	RING; SNAP,KNUCKLE PLUG FRONT AXLE F049(FS4) (B)	9-09950-204-0	02	1	9706-
11	RING; SNAP,KNUCKLE PLUG EXC. FRONT AXLE F049(FS4) (A)	1-09589-017-1	02	1	9706-
17	BOLT; STOPPER KNUCKLE M14X47	1-09009-058-0	02	1	9706-0805
17	BOLT; STOPPER KNUCKLE M14X47	1-09009-191-0	02	1	0806-
18	NUT; STOPPER BOLT,KNUCKLE M14	9-99112-814-0	02	1	9706-0512
18	NUT; STOPPER BOLT,KNUCKLE M14	0-91112-814-0	02	1	0601-
21	NIPPLE; GREASE,KING PIN (A) PT1/8 STRAIGHT	9-09031-010-0	04	1	9706-9709
21	NIPPLE; GREASE,KING PIN EXC. FRONT AXLE F049(FS4) (A) PT1/8 STRAIGHT	9-09031-010-0	04	1	9710-9804
21	NIPPLE; GREASE,KING PIN FRONT AXLE F049(FS4) (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	9710-9804
21	NIPPLE; GREASE,KING PIN (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	9805-0512
21	NIPPLE; GREASE,KING PIN (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0601-
25	BEARING; THRUST,KING PIN FRONT AXLE F049(FS4) (B) NTN	1-09829-026-0	01	1	9706-
25	BEARING; THRUST,KING PIN FRONT AXLE F049(FS4) (B) NSK	1-09829-028-0	01	1	9706-
25	BEARING; THRUST,KING PIN FRONT AXLE F049(FS4) (B) NSK	1-09829-040-0	01	1	9706-
25	BEARING; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) NSK	1-09829-031-0	01	1	9706-
25	BEARING; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) NSK	1-09829-033-1	01	1	9706-
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) (B) T=2.800	1-43171-229-0	AR	1	9706-
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) (B) T=2.850	1-43171-230-0	AR	1	9706-
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) (B) T=2.900	1-43171-231-0	AR	1	9706-
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) (B) T=2.950	1-43171-232-0	AR	1	9706-
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) (B) T=3.000	1-43171-233-0	AR	1	9706-
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) (B) T=3.050	1-43171-234-0	AR	1	9706-
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) (B) T=3.100	1-43171-235-0	AR	1	9706-
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) (B) T=3.150	1-43171-236-0	AR	1	9706-
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) (B) T=3.200	1-43171-237-0	AR	1	9706-
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) (B) T=3.250	1-43171-238-0	AR	1	9706-
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) (B) T=3.300	1-43171-239-0	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=3.900	1-43171-261-1	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=3.912	1-43171-262-1	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=3.925	1-43171-263-1	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=3.937	1-43171-264-1	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=3.950	1-43171-265-1	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=3.962	1-43171-266-1	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=3.975	1-43171-267-1	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=3.987	1-43171-268-1	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.000	1-43171-269-1	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.012	1-43171-270-1	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.025	1-43171-271-1	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.037	1-43171-272-1	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.050	1-43171-273-1	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.062	1-43171-274-1	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.075	1-43171-275-1	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.087	1-43171-276-1	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.100	1-43171-277-1	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.112	1-43171-278-1	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.125	1-43171-279-1	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.137	1-43171-280-1	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.150	1-43171-281-1	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.162	1-43171-311-0	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.175	1-43171-312-0	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.187	1-43171-313-0	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.200	1-43171-314-0	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.212	1-43171-315-0	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.225	1-43171-316-0	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.237	1-43171-317-0	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.250	1-43171-318-0	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.262	1-43171-319-0	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.275	1-43171-320-0	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.287	1-43171-321-0	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.300	1-43171-322-0	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.312	1-43171-323-0	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.325	1-43171-324-0	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.337	1-43171-325-0	AR	1	9706-
30	WASHER; THRUST,KING PIN EXC. FRONT AXLE F049(FS4) (A) T=4.350	1-43171-326-0	AR	1	9706-
32	BOLT; KEY,KING PIN FRONT AXLE F049(FS4) (B)	1-43116-005-2	02	1	9706-
32	BOLT; KEY,KING PIN EXC. FRONT AXLE F049(FS4) (A)	1-43116-003-2	02	1	9706-
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	9706-0512
33	NUT; KEY BOLT M10 MAL	0-91110-510-0	02	1	0601-
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	9706-0603
34	WASHER; LK,KEY BOLT ID=10.2 MAL	0-91510-510-0	02	1	0604-
36	ARM; KNUCKLE FRONT AXLE F049(FS4) (B)	1-43133-068-2	01	1	9706-
36	ARM; KNUCKLE EXC. FRONT AXLE F049(FS4) (A)	1-43133-070-3	01	1	9706-
37	BOLT; KNUCKLE ARM FRONT AXLE F049(FS4) (A) M22X162	1-09000-107-1	01	1	9706-
37	BOLT; KNUCKLE ARM FRONT AXLE F049(FS4) (B) M22X147	1-09000-108-1	01	1	9706-
40	NUT; KNUCKLE ARM FRONT AXLE F049(FS4) M22	9-09844-670-1	02	1	9706-0704
40	NUT; KNUCKLE ARM FRONT AXLE F049(FS4) M22	1-09449-084-0	02	1	0705-
44	COVER; KING PIN FRONT AXLE F049(FS4) (B)	1-43175-016-0	02	1	9706-
44	COVER; KING PIN EXC. FRONT AXLE F049(FS4) (A)	1-43175-015-0	02	1	9706-0704
44	COVER; KING PIN EXC. FRONT AXLE F049(FS4) (A)	1-43175-031-0	02	1	0705-
46	WASHER; LK,COVER ID=12.2	9-09150-512-0	02	1	9706-0603
46	WASHER; LK,COVER ID=12.2 MAL	0-91510-512-0	02	1	0604-
47	WASHER; PL,COVER,KING PIN ID=12.5 OD=32	9-09164-712-0	02	1	9706-0605
47	WASHER; PL,COVER,KING PIN ID=12.5 OD=32	0-91614-712-0	02	1	0606-
48	BOLT; COVER M12X25	1-09009-081-0	02	1	9706-
58	ARM; TIE ROD FRONT AXLE F049(FS4) (B)	1-43134-015-1	01	1	9706-
58	ARM; TIE ROD FRONT AXLE F049(FS4) (B)	1-43135-015-1	01	1	9706-
58	ARM; TIE ROD EXC. FRONT AXLE F049(FS4) (A)	1-43135-034-5	01	1	9706-
59	NUT; TIE ROD ARM M27	1-09449-016-0	02	1	9706-0704
59	NUT; TIE ROD ARM M27 FLANGE	1-09449-082-0	02	1	0705-
61	ROD END; TIE ROD FRONT AXLE F049(FS4) (B)	1-43150-677-3	01	1	9706-
61	ROD END; TIE ROD FRONT AXLE F049(FS4) (B)	1-43150-678-3	01	1	9706-
61	ROD END; TIE ROD EXC. FRONT AXLE F049(FS4) (A)	1-43150-679-2	01	1	9706-
61	ROD END; TIE ROD EXC. FRONT AXLE F049(FS4) (A)	1-43150-680-2	01	1	9706-
66	NUT; TIE ROD END FRONT AXLE F049(FS4) (B) M24 SLOTTED	1-09442-020-0	02	1	9706-0805
66	NUT; TIE ROD END FRONT AXLE F049(FS4) (B) M24	1-09442-032-0	02	1	0806-
66	NUT; TIE ROD END EXC. FRONT AXLE F049(FS4) (A) M16 SLOTTED	1-09442-021-1	02	1	9706-0805
66	NUT; TIE ROD END EXC. FRONT AXLE F049(FS4) (A) M16 SLOTTED	1-09442-031-0	02	1	0806-
68	BOLT; TIE ROD END FRONT AXLE F049(FS4) M12X55	9-91061-255-0	04	1	9706-
74	NUT; TIE ROD END FRONT AXLE F049(FS4) M12	9-99110-512-0	04	1	9706-0512
74	NUT; TIE ROD END FRONT AXLE F049(FS4) M12 MAL	0-91110-512-0	04	1	0601-
80	PIN; SPLIT,ROD END FRONT AXLE F049(FS4) (B) OD=4.6 L=35	9-08115-035-0	02	1	9706-0606
80	PIN; SPLIT,ROD END FRONT AXLE F049(FS4) (B) OD=4.6 L=35	0-81125-035-0	02	1	0607-
80	PIN; SPLIT,ROD END EXC. FRONT AXLE F049(FS4) (A) OD=3.7 L=22	9-08114-022-0	02	1	9706-0606
80	PIN; SPLIT,ROD END EXC. FRONT AXLE F049(FS4) (A) OD=3.7 L=22	0-81124-022-0	02	1	0607-
81	ROD; TIE FRONT AXLE F049(FS4) (B)	1-43151-129-0	01	1	9706-
81	ROD; TIE EXC. FRONT AXLE F049(FS4) (A)	1-43151-109-0	01	1	9706-
304	WASHER; PL FRONT AXLE F049(FS4) (B) ID=12.5	9-09164-512-0	04	1	9706-
304	WASHER; PL EXC. FRONT AXLE F049(FS4) (A) ID=12.5	9-09164-512-0	02	1	9706-
305	COVER; KNUCKLE FRONT AXLE F049(FS4) (B)	1-43175-021-0	02	1	9706-0704
305	COVER; KNUCKLE FRONT AXLE F049(FS4) (B)	8-98052-291-0	02	1	0705-
305	COVER; KNUCKLE EXC. FRONT AXLE F049(FS4) (A)	1-43175-022-0	02	1	9706-0704
305	COVER; KNUCKLE EXC. FRONT AXLE F049(FS4) (A)	1-43175-030-0	02	1	0705-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
