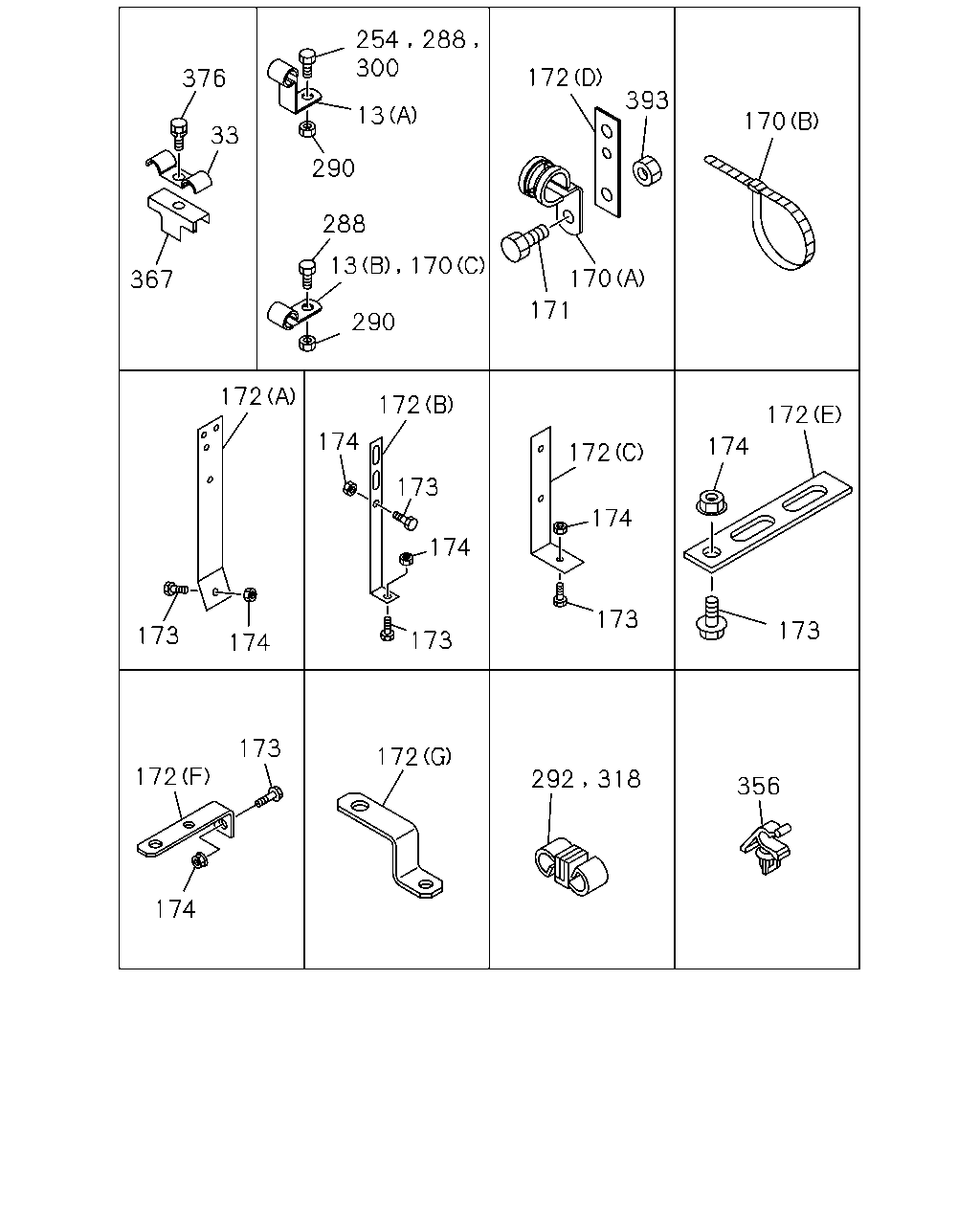

13 |
CLIP; AIR PIPE
(A)
ID=7 L=38 H=21
|
1-09700-916-0 |
01 |
1 |
9706- |
| |
13 |
CLIP; AIR PIPE
(B)
ID=7 L=40
|
9-09524-675-0 |
01 |
1 |
9706-0606 |
| |
13 |
CLIP; AIR PIPE
(B)
ID=7 L=40
|
0-95234-675-0 |
01 |
1 |
0607- |
| |
33 |
CLIP; BOLT
EXC. AIR DRYER<PS7>
ID=16 & 7 L=21 & 17
|
1-09700-675-0 |
01 |
1 |
9706- |
| |
170 |
CLIP; NYLON TUBE
(A)
ID=27.5 H=23 L=24
|
1-09700-863-0 |
02 |
1 |
9706-9802 |
| |
170 |
CLIP; NYLON TUBE
(A)
ID=27.5 H=23 L=24
|
1-09700-863-0 |
01 |
1 |
9803- |
| |
170 |
CLIP; NYLON TUBE
(B)
L=250
|
1-09707-126-0 |
14 |
1 |
9706- |
| |
170 |
CLIP; NYLON TUBE
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
9803-9807 |
| |
170 |
CLIP; NYLON TUBE
(C)
ID=11 L=50
|
9-09525-085-0 |
01 |
1 |
9808-0606 |
| |
170 |
CLIP; NYLON TUBE
(C)
ID=11 L=50
|
0-95235-085-0 |
01 |
1 |
0607- |
| |
170 |
CLIP; NYLON TUBE
(B)
L=250
|
1-09707-126-0 |
02 |
1 |
9806-9807 |
| |
170 |
CLIP; NYLON TUBE
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
9808-9912 |
| |
170 |
CLIP; NYLON TUBE
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
9808-9912 |
| |
170 |
CLIP; NYLON TUBE
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0001-0001 |
| |
170 |
CLIP; NYLON TUBE
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0001-0001 |
| |
170 |
CLIP; NYLON TUBE
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0001-0001 |
| |
170 |
CLIP; NYLON TUBE
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0002-0002 |
| |
170 |
CLIP; NYLON TUBE
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0002-0002 |
| |
170 |
CLIP; NYLON TUBE
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0002-0002 |
| |
170 |
CLIP; NYLON TUBE
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0002-0002 |
| |
170 |
CLIP; NYLON TUBE
(B)
L=250
|
1-09707-126-0 |
04 |
1 |
0002- |
| |
170 |
CLIP; NYLON TUBE
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0002- |
| |
170 |
CLIP; NYLON TUBE
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0002- |
| |
170 |
CLIP; NYLON TUBE
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0002- |
| |
171 |
BOLT; TUBE CLIP
M8X20 FLANGE
MAL
|
0-28680-820-0 |
02 |
1 |
9706-9801 |
| |
171 |
BOLT; TUBE CLIP
M8X25 FLANGE
MAL
|
0-28680-825-0 |
02 |
1 |
9802-9802 |
| |
171 |
BOLT; TUBE CLIP
M8X25 FLANGE
MAL
|
0-28680-825-0 |
01 |
1 |
9803-0512 |
| |
171 |
BOLT; TUBE CLIP
M8X25 FLANGE
MAL
|
0-28650-825-0 |
01 |
1 |
0601- |
| |
171 |
BOLT; TUBE CLIP
M8X20 FLANGE
MAL
|
0-28680-820-0 |
01 |
1 |
9808-0512 |
| |
171 |
BOLT; TUBE CLIP
M8X20 FLANGE
MAL
|
0-28650-820-0 |
01 |
1 |
0601- |
| |
172 |
BRACKET; TUBE CLIP
(A)
|
1-47477-256-1 |
01 |
1 |
9706- |
| |
172 |
BRACKET; TUBE CLIP
(B)
L=100 H=30
|
1-47477-645-1 |
05 |
1 |
9706-9709 |
| |
172 |
BRACKET; TUBE CLIP
(B)
L=100 H=30
|
1-47477-645-2 |
04 |
1 |
9710-9801 |
| |
172 |
BRACKET; TUBE CLIP
(B)
L=100 H=30
|
1-47477-645-2 |
03 |
1 |
9802- |
| |
172 |
BRACKET; TUBE CLIP
(B)
L=225
|
1-47477-646-3 |
01 |
1 |
9706- |
| |
172 |
BRACKET; TUBE CLIP
(C)
L=115 H=30
|
1-47477-715-2 |
01 |
1 |
9706-9710 |
| |
172 |
BRACKET; TUBE CLIP
(C)
L=90
|
1-47477-755-1 |
01 |
1 |
9711- |
| |
172 |
BRACKET; TUBE CLIP
(G)
|
1-47477-908-0 |
01 |
1 |
9706-9710 |
| |
172 |
BRACKET; TUBE CLIP
(D)
L=125
|
1-47477-975-1 |
02 |
1 |
9706- |
| |
172 |
BRACKET; TUBE CLIP
(F)
L=60 H=30
|
1-47477-716-1 |
01 |
1 |
9710-9710 |
| |
172 |
BRACKET; TUBE CLIP
(F)
L=60 H=30
|
1-47477-716-1 |
02 |
1 |
9711-9801 |
| |
172 |
BRACKET; TUBE CLIP
(F)
L=60 H=30
|
1-47477-716-1 |
01 |
1 |
9802- |
| |
172 |
BRACKET; TUBE CLIP
(E)
|
1-47477-514-3 |
01 |
1 |
9803- |
| |
172 |
BRACKET; TUBE CLIP
(D)
L=125
|
1-47477-975-0 |
01 |
1 |
9806-9807 |
| |
172 |
BRACKET; TUBE CLIP
(D)
L=117
|
1-47478-116-0 |
01 |
1 |
9808- |
| |
173 |
BOLT; CLIP BRKT
M8X25 FLANGE
MAL
|
0-28680-825-0 |
10 |
1 |
9706-9710 |
| |
173 |
BOLT; CLIP BRKT
M8X25 FLANGE
MAL
|
0-28680-825-0 |
11 |
1 |
9711-9801 |
| |
173 |
BOLT; CLIP BRKT
M8X25 FLANGE
MAL
|
0-28680-825-0 |
09 |
1 |
9802-9802 |
| |
173 |
BOLT; CLIP BRKT
M8X25 FLANGE
MAL
|
0-28680-825-0 |
10 |
1 |
9803-0512 |
| |
173 |
BOLT; CLIP BRKT
M8X25 FLANGE
MAL
|
0-28650-825-0 |
10 |
1 |
0601- |
| |
173 |
BOLT; CLIP BRKT
M8X25 FLANGE
MAL
|
0-28680-825-0 |
01 |
1 |
9803-9805 |
| |
173 |
BOLT; CLIP BRKT
M8X25 FLANGE
MAL
|
0-28680-825-0 |
01 |
1 |
9806-0512 |
| |
173 |
BOLT; CLIP BRKT
M8X25 FLANGE
MAL
|
0-28680-825-0 |
01 |
1 |
9806-0512 |
| |
173 |
BOLT; CLIP BRKT
M8X25 FLANGE
MAL
|
0-28650-825-0 |
01 |
1 |
0601- |
| |
173 |
BOLT; CLIP BRKT
M8X25 FLANGE
MAL
|
0-28650-825-0 |
01 |
1 |
0601- |
| |
174 |
NUT; CLIP BRKT
M8 FLANGE
|
0-91150-108-0 |
10 |
1 |
9706-9710 |
| |
174 |
NUT; CLIP BRKT
M8 FLANGE
|
0-91150-108-0 |
11 |
1 |
9711-9801 |
| |
174 |
NUT; CLIP BRKT
M8 FLANGE
|
0-91150-108-0 |
09 |
1 |
9802-9802 |
| |
174 |
NUT; CLIP BRKT
M8 FLANGE
|
0-91150-108-0 |
10 |
1 |
9803-0602 |
| |
174 |
NUT; CLIP BRKT
M8 FLANGE
MAL
|
0-91180-108-0 |
10 |
1 |
0603- |
| |
174 |
NUT; CLIP BRKT
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9806-0602 |
| |
174 |
NUT; CLIP BRKT
M8 FLANGE
MAL
|
0-91180-108-0 |
01 |
1 |
0603- |
| |
254 |
BOLT; PIPE CLIP
M8X24.5 W/LK&PL WASHER
MAL
|
8-94279-208-0 |
02 |
1 |
9706-0204 |
| |
254 |
BOLT; PIPE CLIP
M8X20.5 W/LK&PL WASHER
MAL
|
8-94279-207-0 |
02 |
1 |
0205-0205 |
| |
288 |
BOLT; CLIP,AIR PIPE
M8X25 FLANGE
MAL
|
0-28680-825-0 |
02 |
1 |
9706-9712 |
| |
288 |
BOLT; CLIP,AIR PIPE
M8X20 FLANGE
MAL
|
0-28680-820-0 |
02 |
1 |
9801-0512 |
| |
288 |
BOLT; CLIP,AIR PIPE
M8X20 FLANGE
MAL
|
0-28650-820-0 |
02 |
1 |
0601- |
| |
290 |
NUT; CLIP,AIR PIPE
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9706-0602 |
| |
290 |
NUT; CLIP,AIR PIPE
M8 FLANGE
MAL
|
0-91180-108-0 |
02 |
1 |
0603- |
| |
292 |
CLIP; AIR PIPE
ID=6.35 & 15
|
1-09709-276-1 |
01 |
1 |
9706- |
| |
300 |
BOLT; TUBE CLIP
M8X24.5 W/LK&PL WASHER
MAL
|
8-94279-208-0 |
02 |
1 |
0206-0904 |
| |
300 |
BOLT; TUBE CLIP
M8X24.5 W/LK&PL WASHER
MAL
|
8-98059-720-0 |
02 |
1 |
0905- |
| |
318 |
CLIP; AIR PIPE
ID=6.35 & 10.0
|
1-09709-274-1 |
01 |
1 |
9706-0207 |
| |
318 |
CLIP; AIR PIPE
ID=6.35 & 6.35
|
1-09709-273-1 |
01 |
1 |
0208- |
| |
318 |
CLIP; AIR PIPE
AIR DRYER<PS7>
ID=6.35 & 12
|
1-09709-275-1 |
02 |
1 |
9706- |
| |
318 |
CLIP; AIR PIPE
EXC. AIR DRYER<PS7>
ID=6.35 & 15
|
1-09709-276-1 |
02 |
1 |
9706- |
| |
356 |
CLIP; AIR PIPE
ID=4.8
MAL
|
8-94128-483-0 |
01 |
1 |
9706- |
| |
367 |
BRACKET ASM
EXC. AIR DRYER<PS7>
|
1-47475-427-1 |
01 |
1 |
9706- |
| |
376 |
BOLT; BRKT
EXC. AIR DRYER<PS7>
M8X45 FLANGE
|
0-28080-845-0 |
01 |
1 |
9706-0512 |
| |
376 |
BOLT; BRKT
EXC. AIR DRYER<PS7>
M8X45 FLANGE
|
0-28050-845-0 |
01 |
1 |
0601- |
| |
393 |
NUT; UNION
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9711-9802 |
| |
393 |
NUT; UNION
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9803-9807 |
| |
393 |
NUT; UNION
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9808-0602 |
| |
393 |
NUT; UNION
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9808-0602 |
| |
393 |
NUT; UNION
M8 FLANGE
MAL
|
0-91180-108-0 |
01 |
1 |
0603- |
| |
393 |
NUT; UNION
M8 FLANGE
MAL
|
0-91180-108-0 |
01 |
1 |
0603- |
